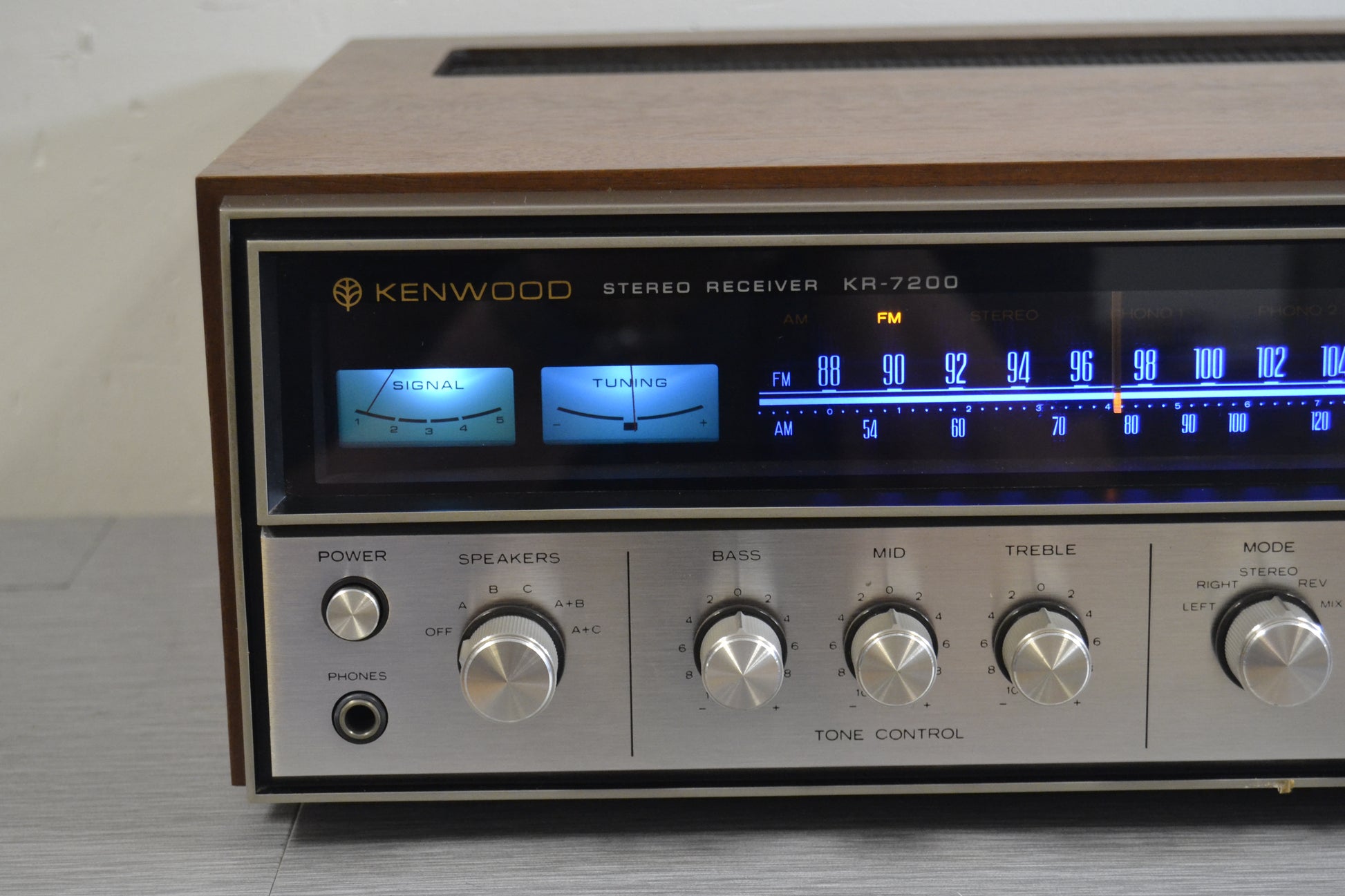

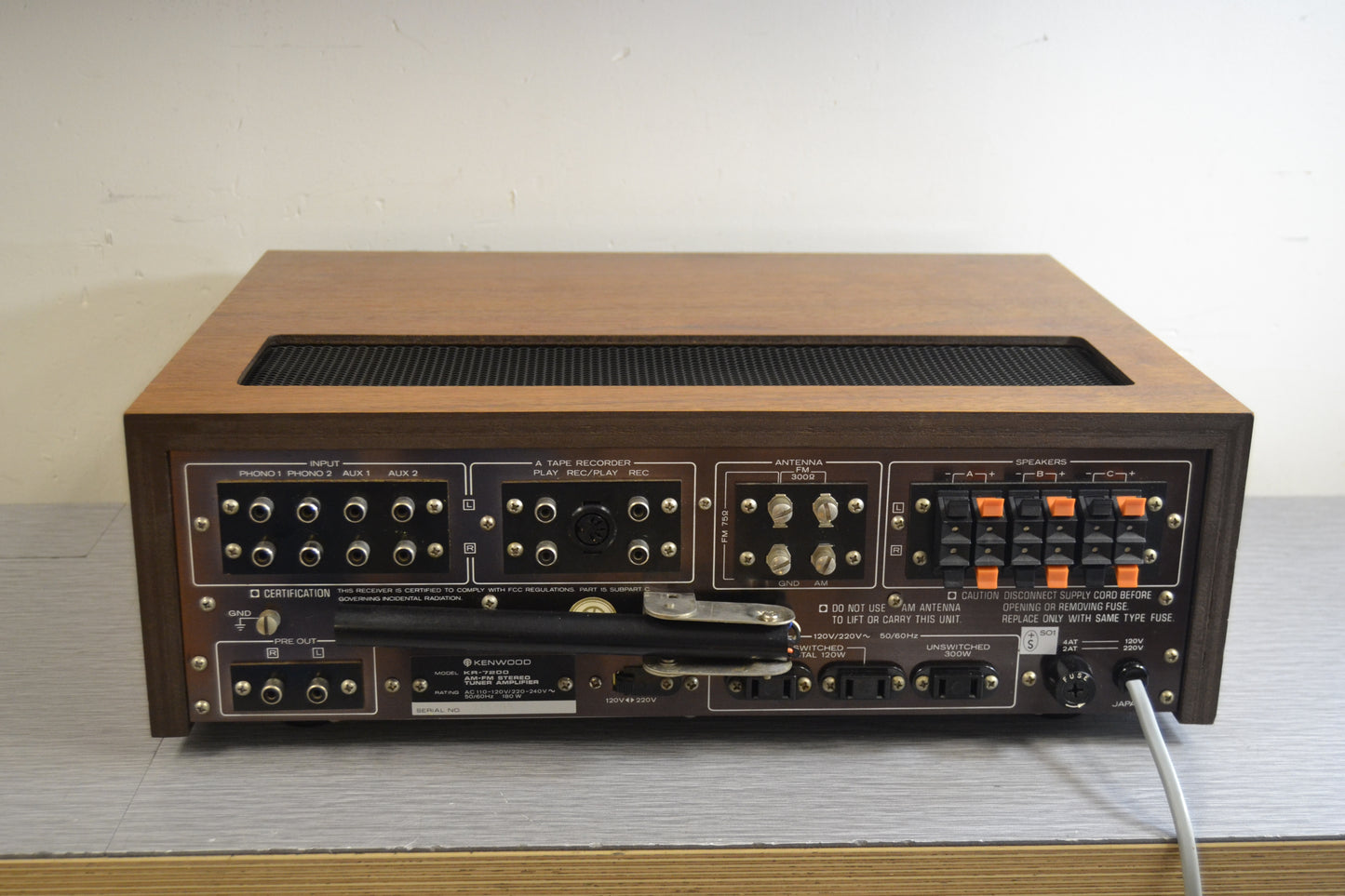

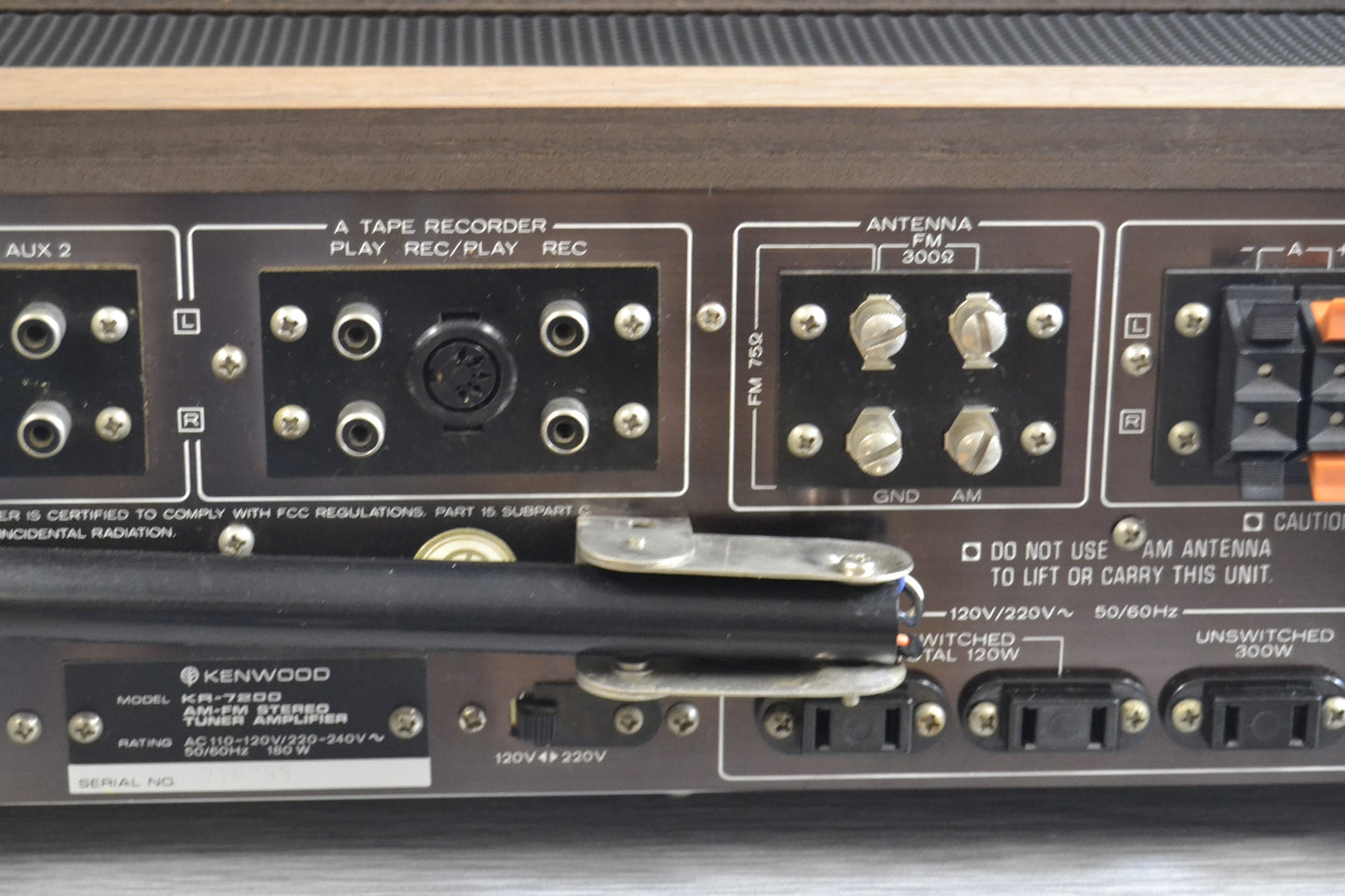

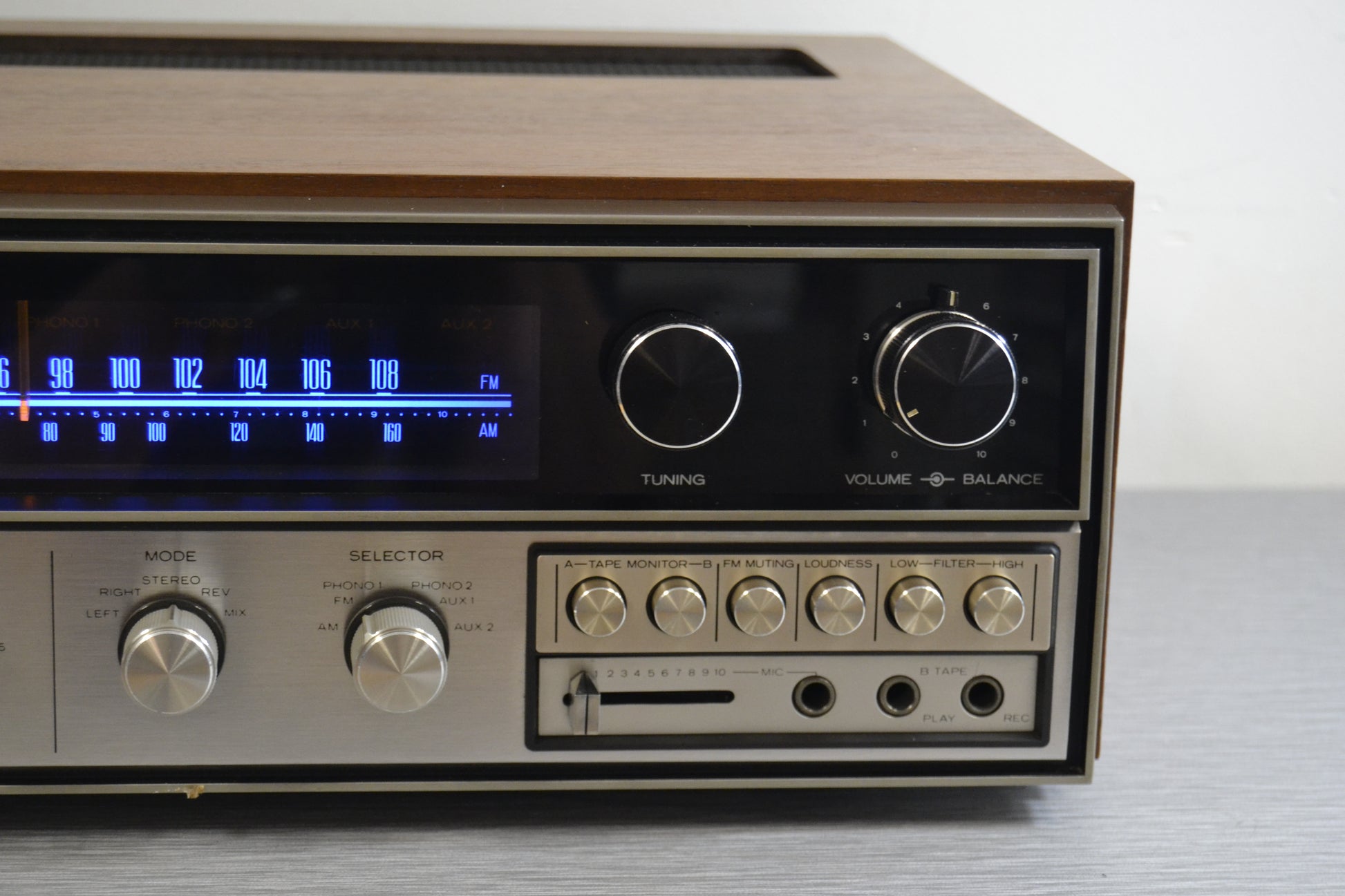

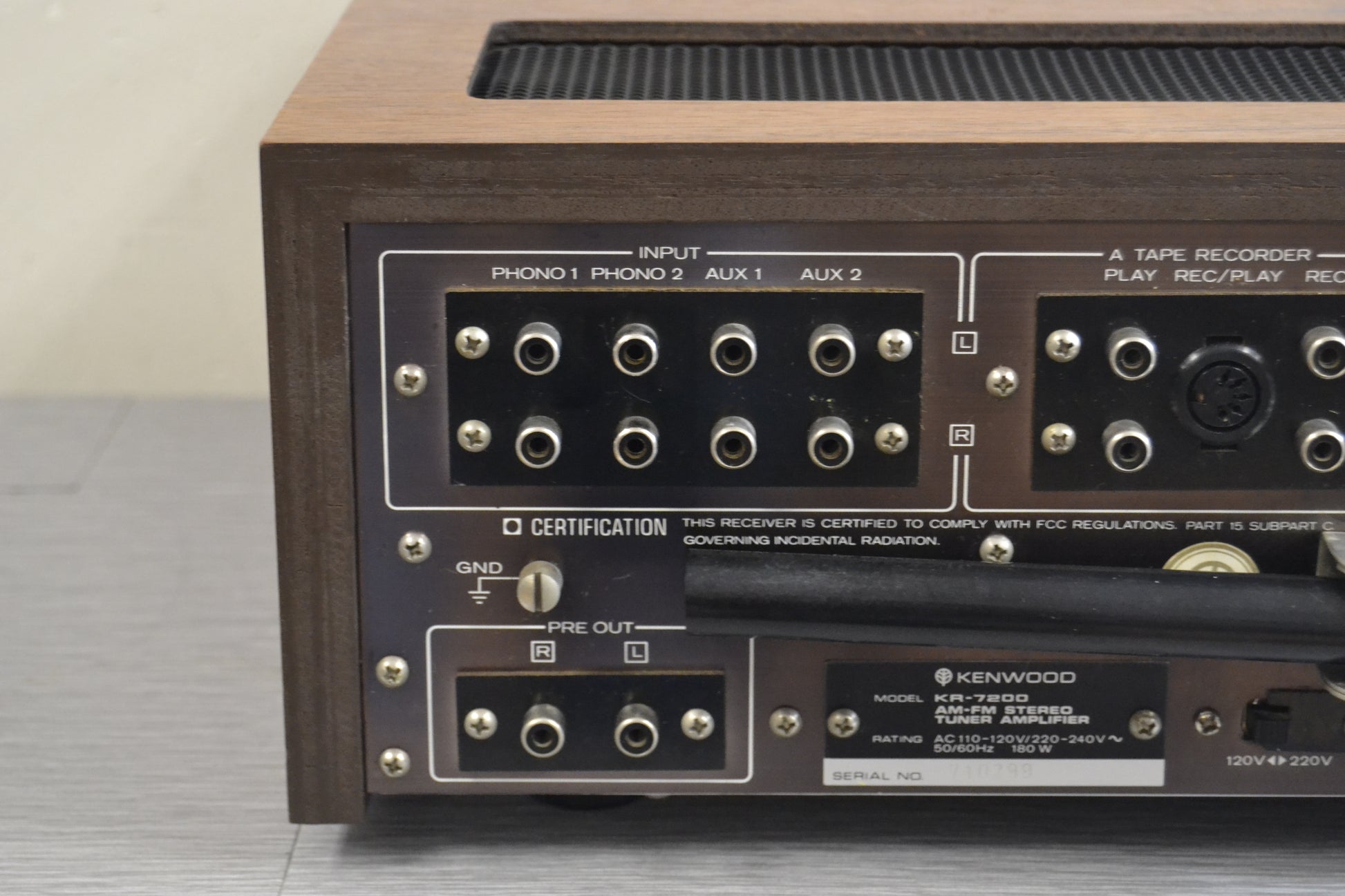

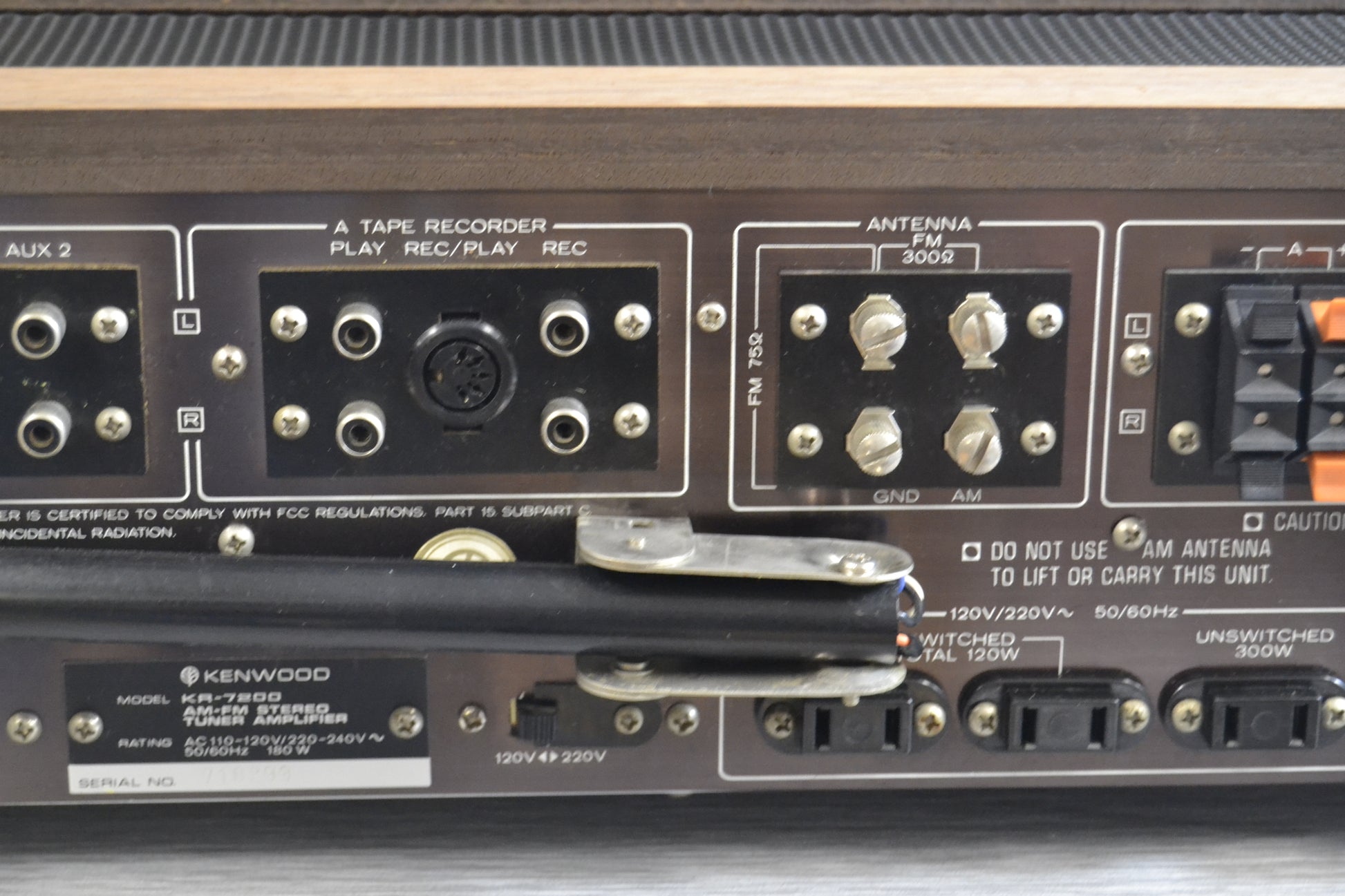

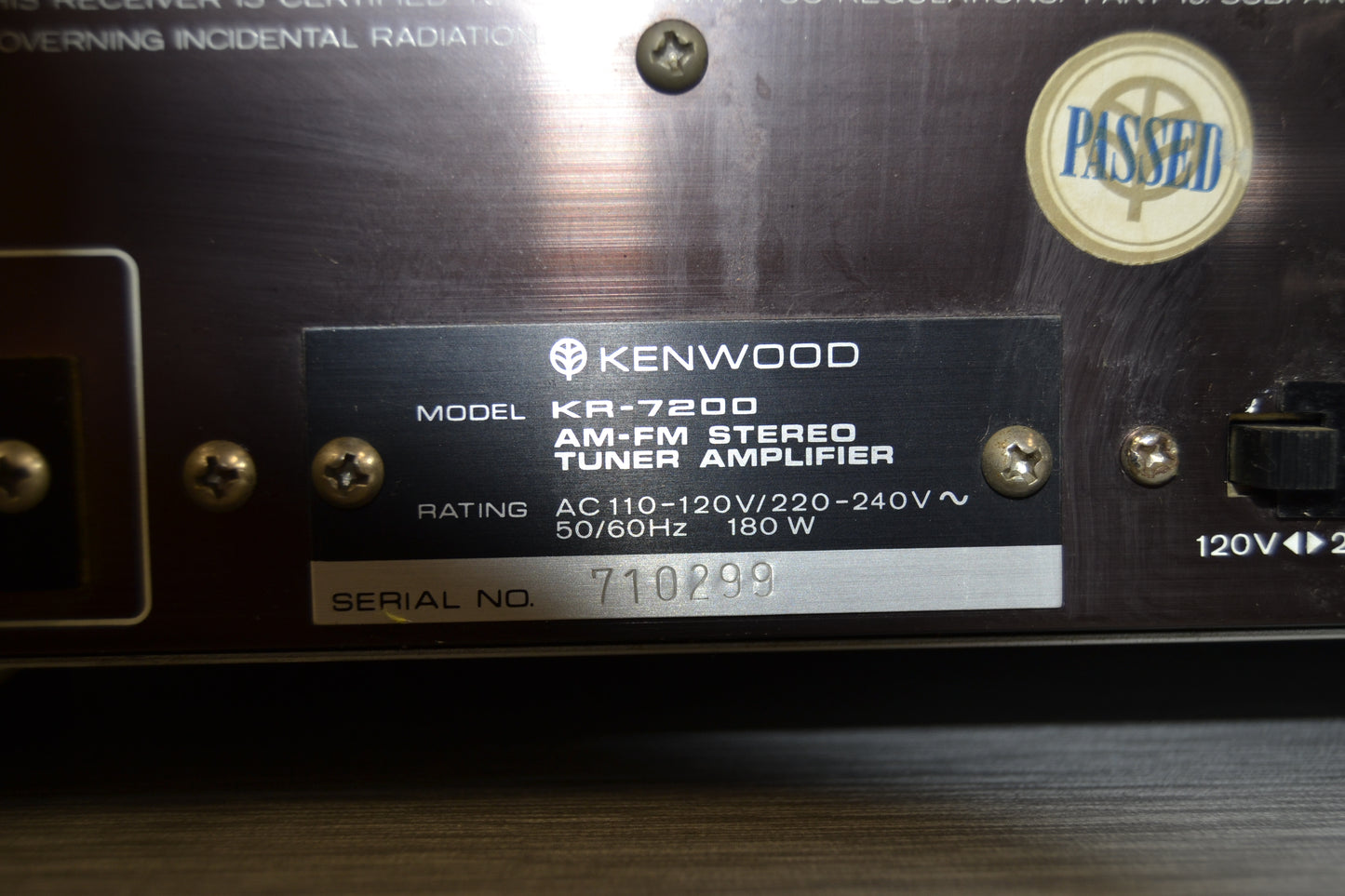

Kenwood KR-7200

AM/FM Stereo Receiver (1972-74)

Specifications

Tuning range: FM, MW

Power output: 55 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 40kHz

Total harmonic distortion: 0.5%

Damping factor: 50

Input sensitivity: 1.25mV (mic), 2.5mV (MM), 180mV (line)

Signal to noise ratio: 55dB (mic), 65dB (MM), 75dB (line)

Output: 180mV (line), 36mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 3 x FET, 1 x IC, 61 x transistors, 42 x diodes, 1 x thermistor

Dimensions: 17-1/8 x 5-3/4 x 14 inches

Weight: 29.5lbs

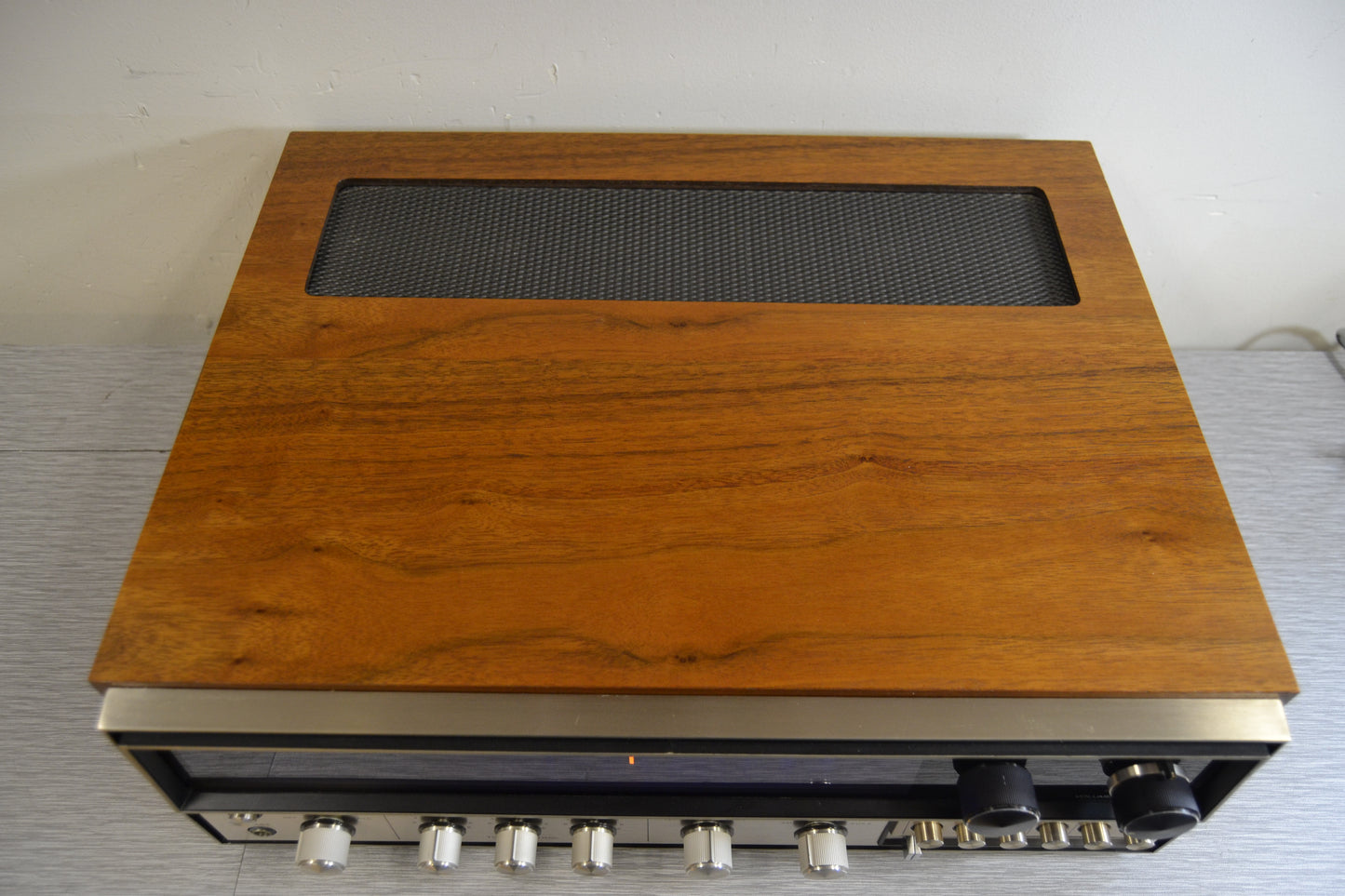

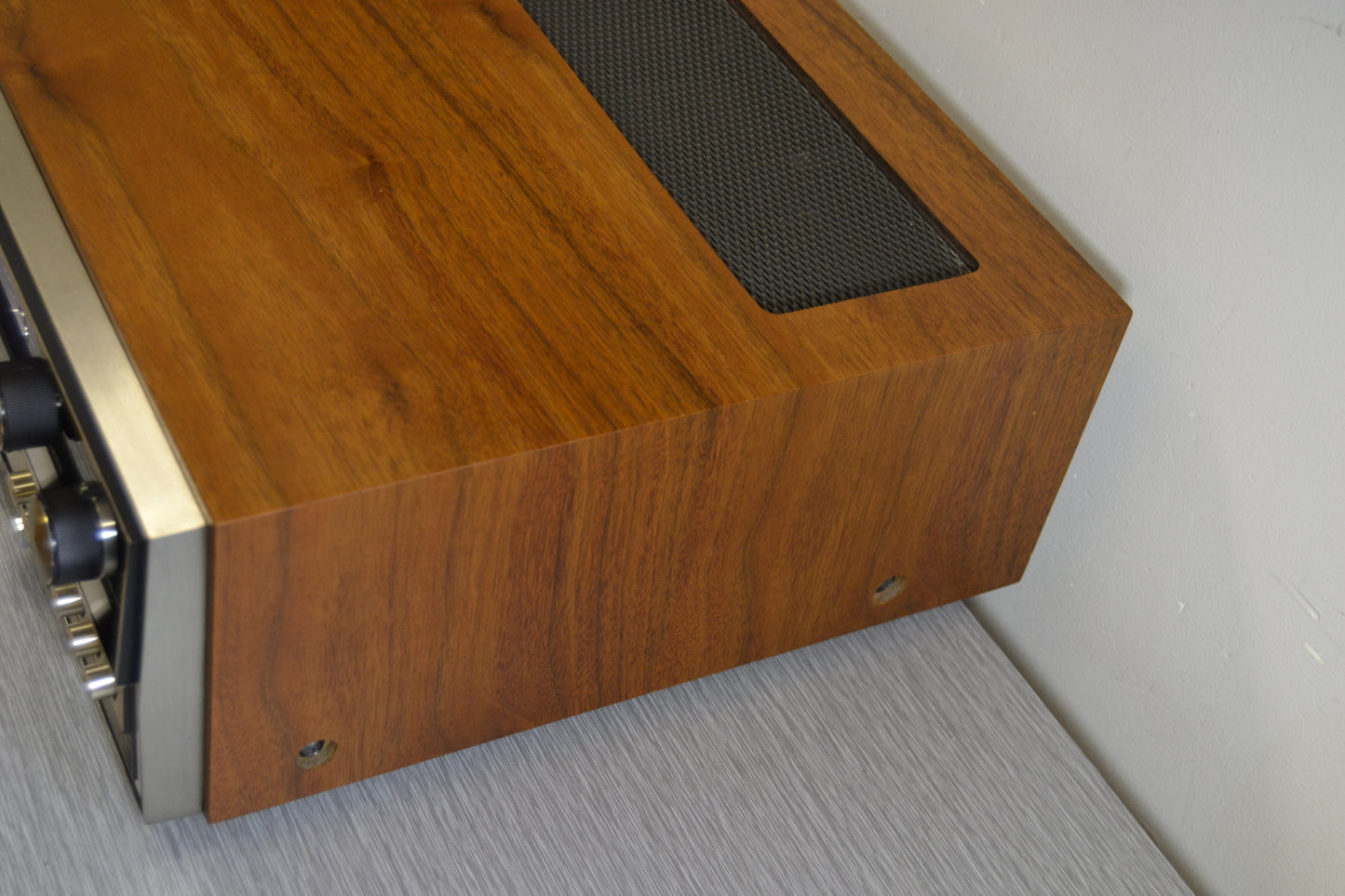

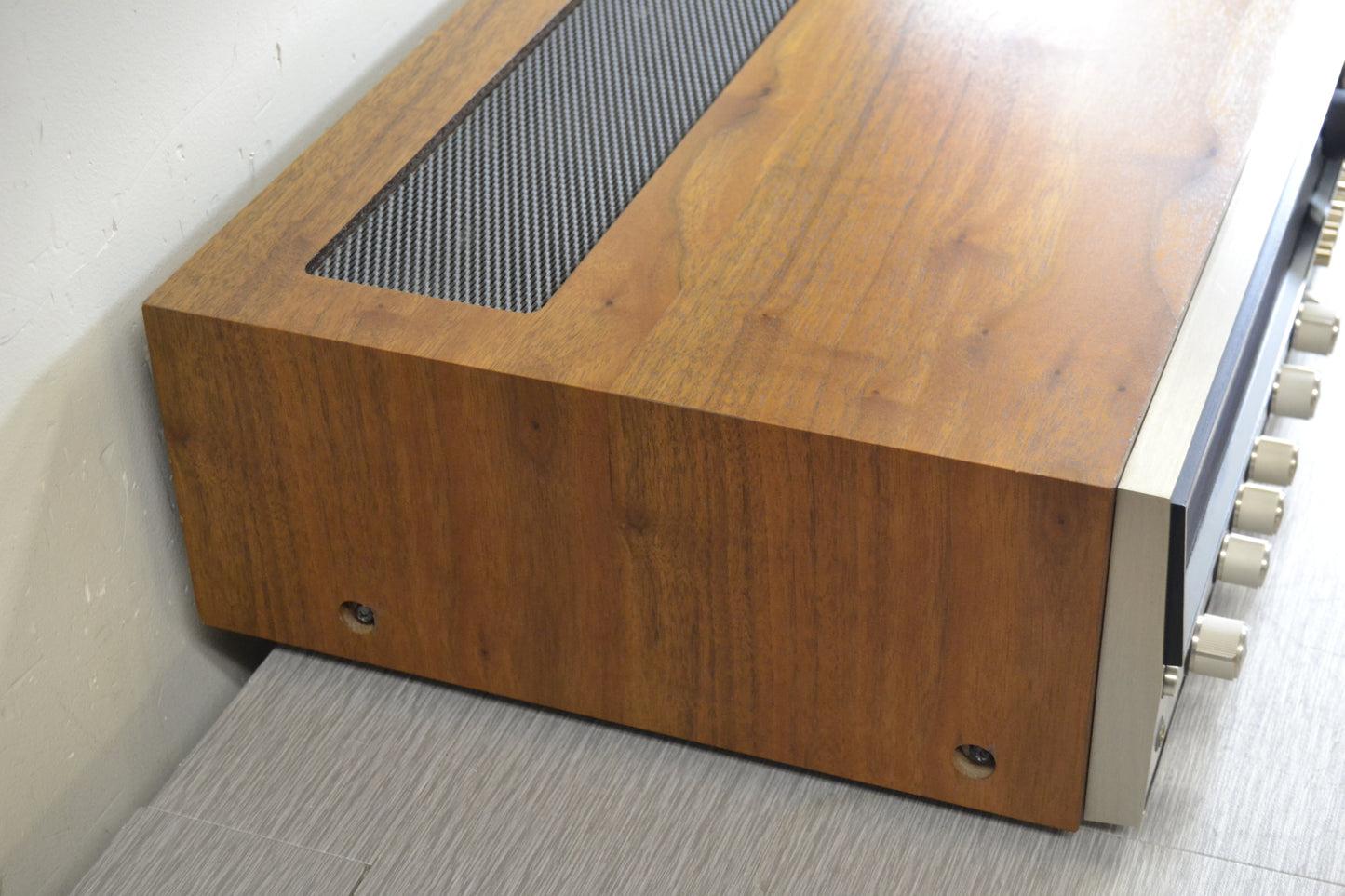

Finish: walnut cabinet
