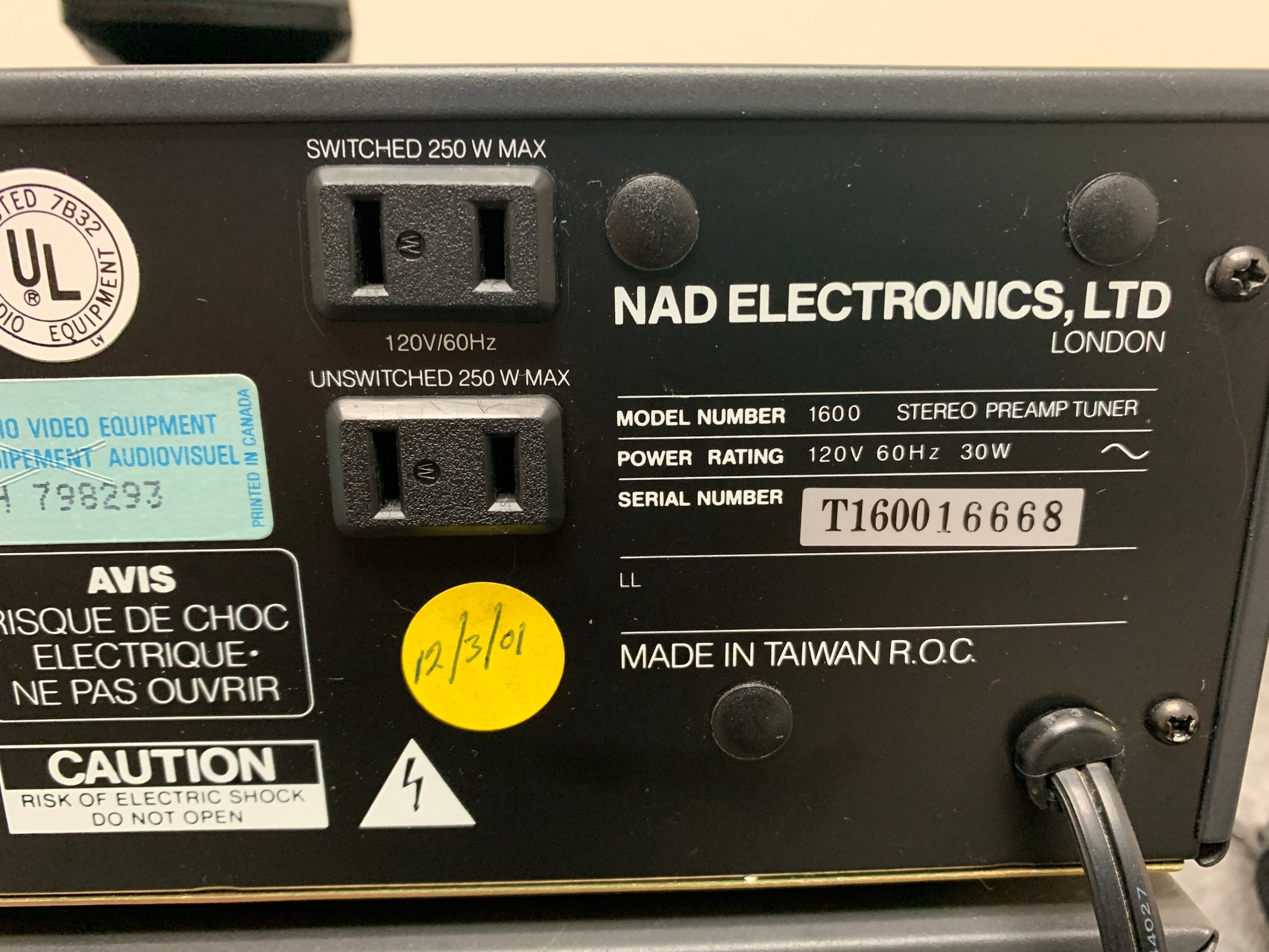

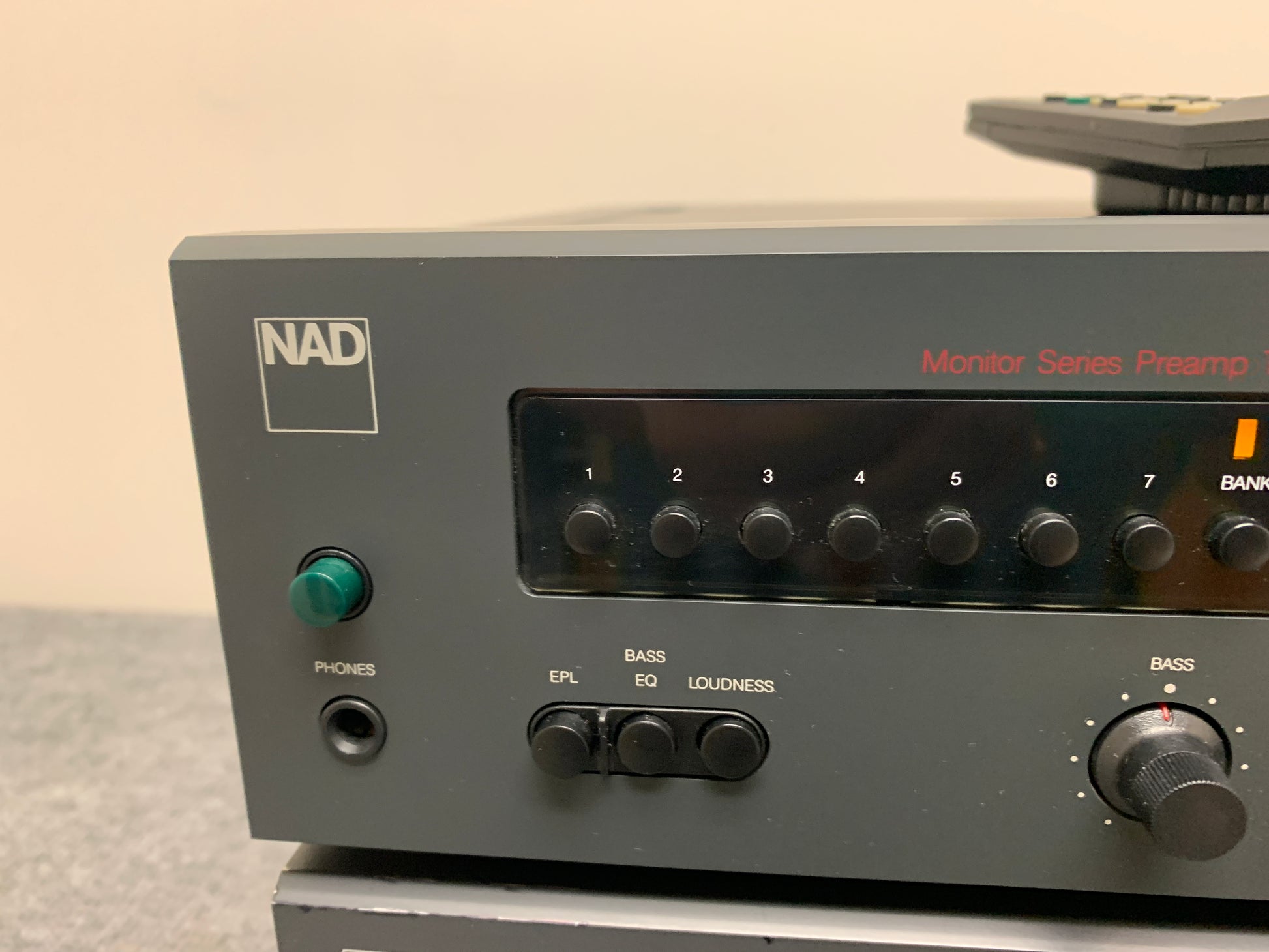

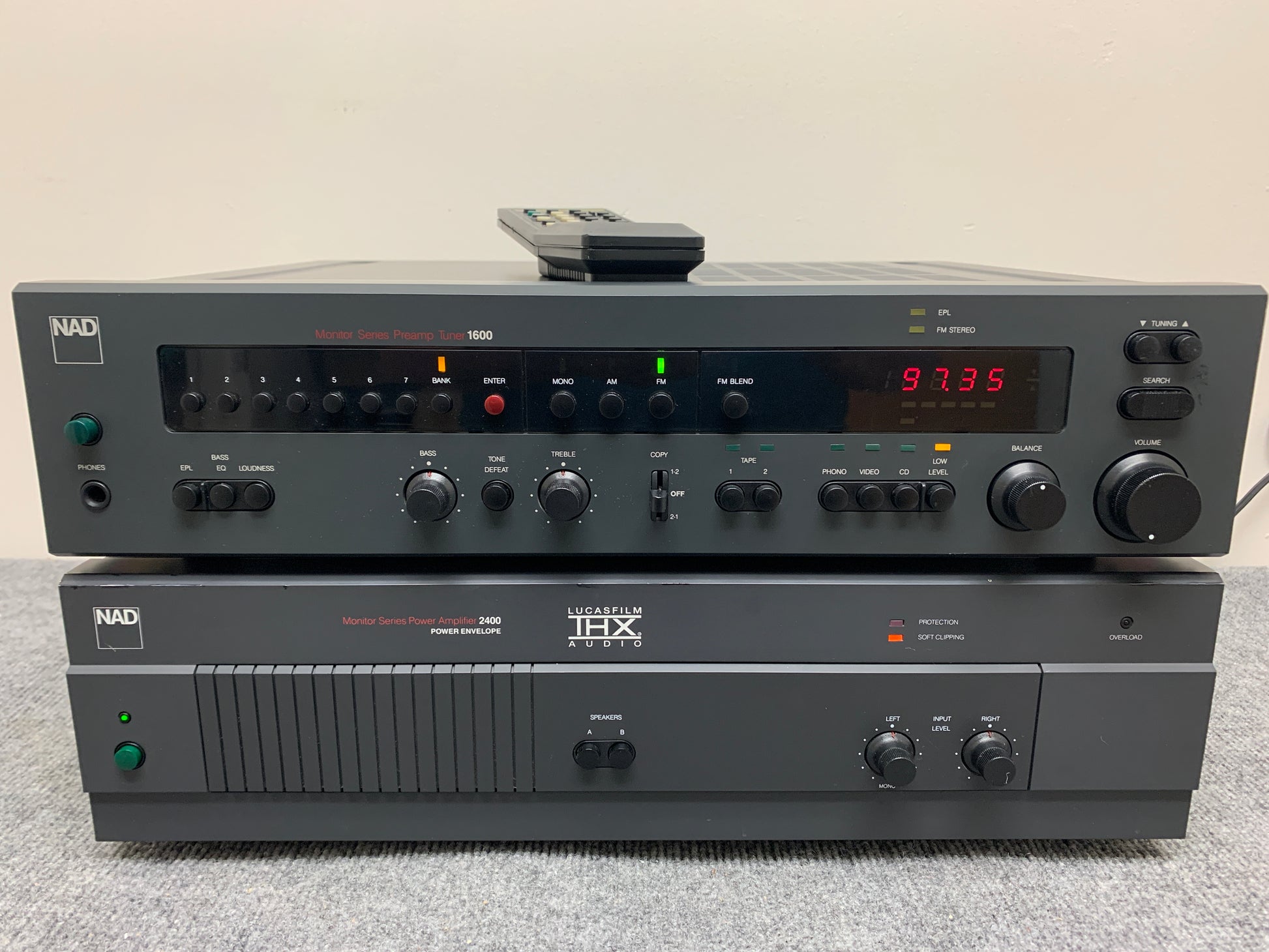

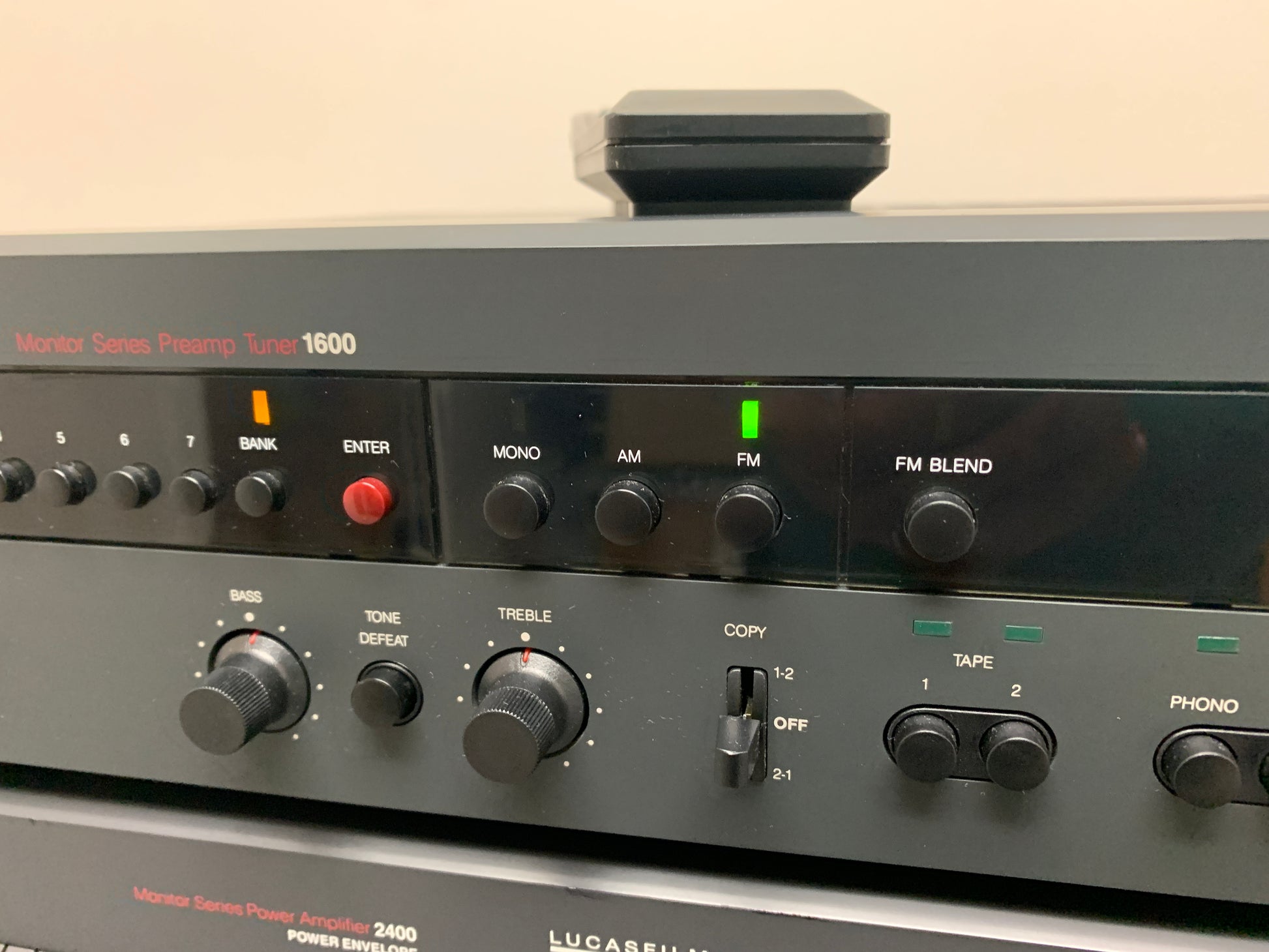

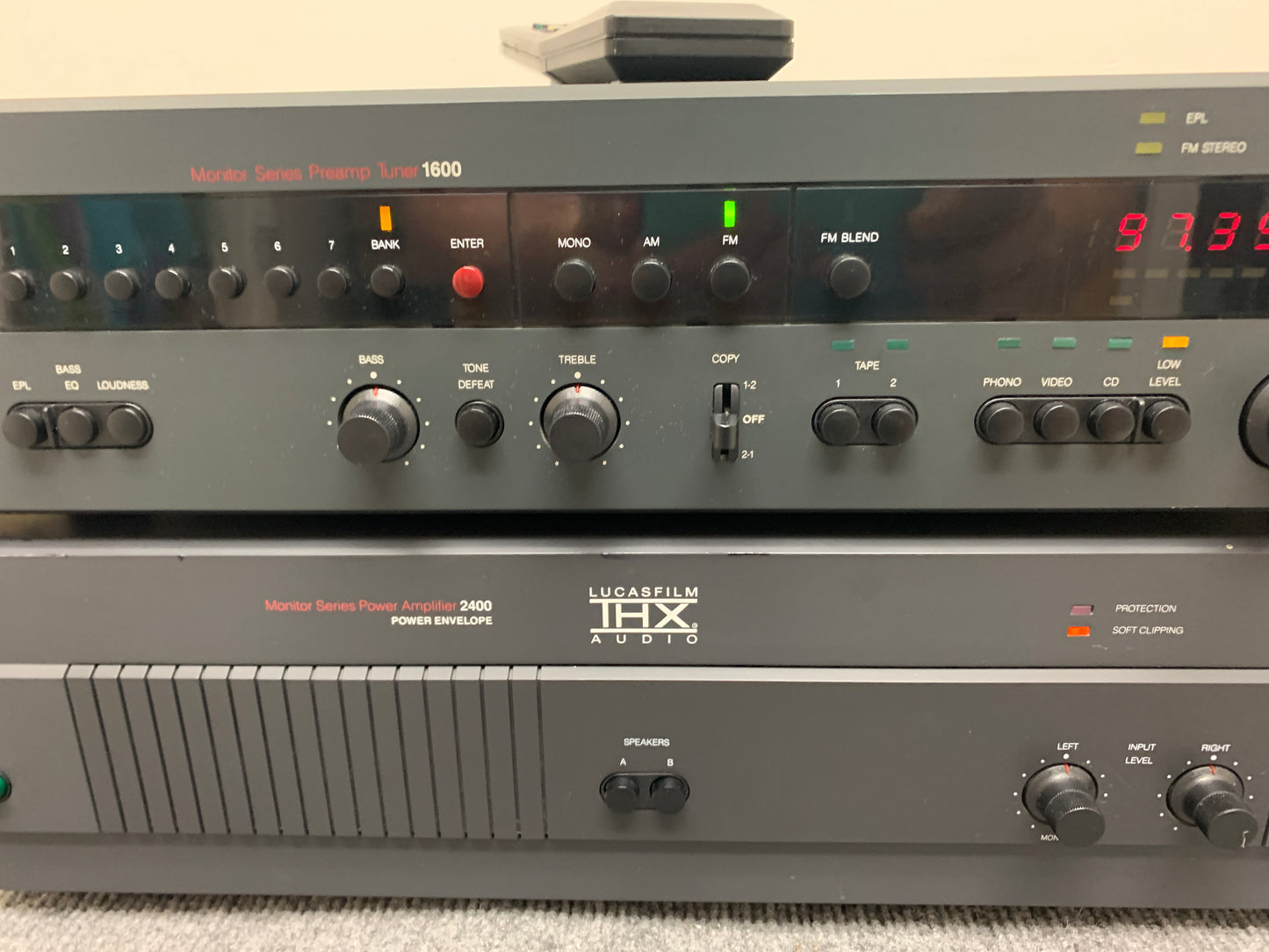

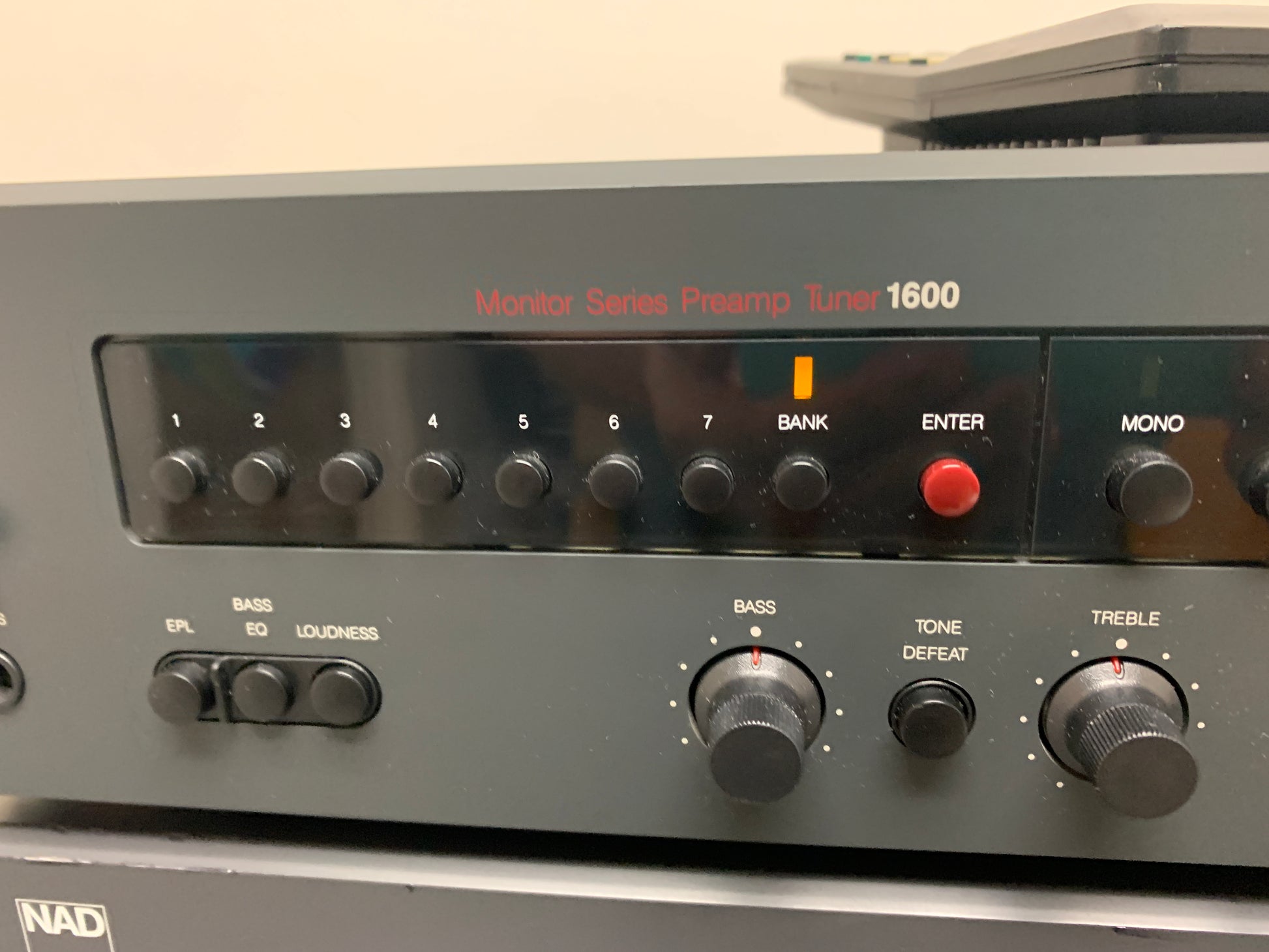

NAD 1600

Remote Tuner Pre Amplifier (1988)

Specifications

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.04%

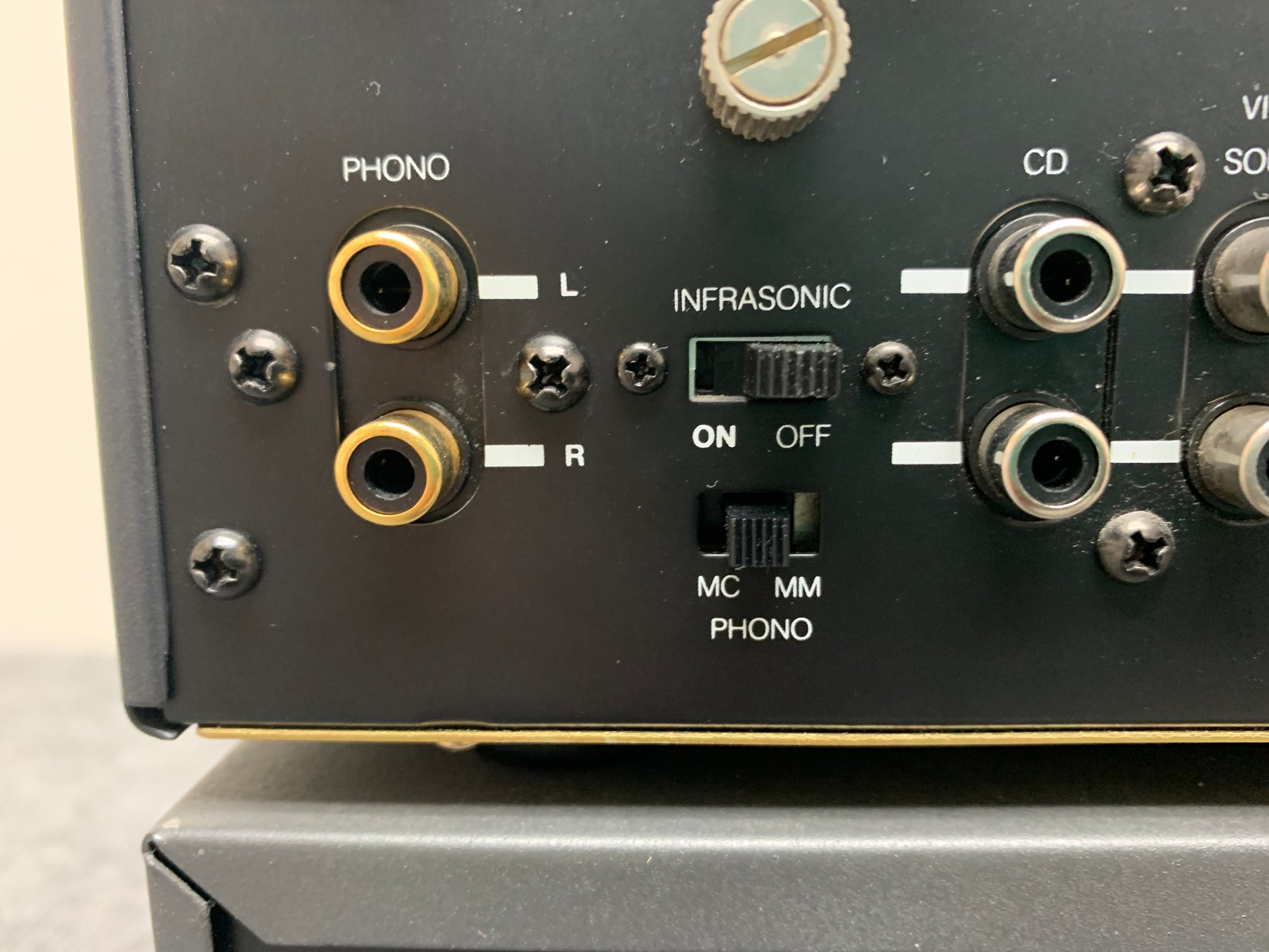

Input sensitivity: 0.1mV (MC), 1.3mV (MM), 80mV (line)

Signal to noise ratio: 75dB (MC), 75dB (MM), 100dB (line)

Output: 10V (Pre out Max)

Dimensions: 435 x 110 x 389mm

Weight: 7.8kg

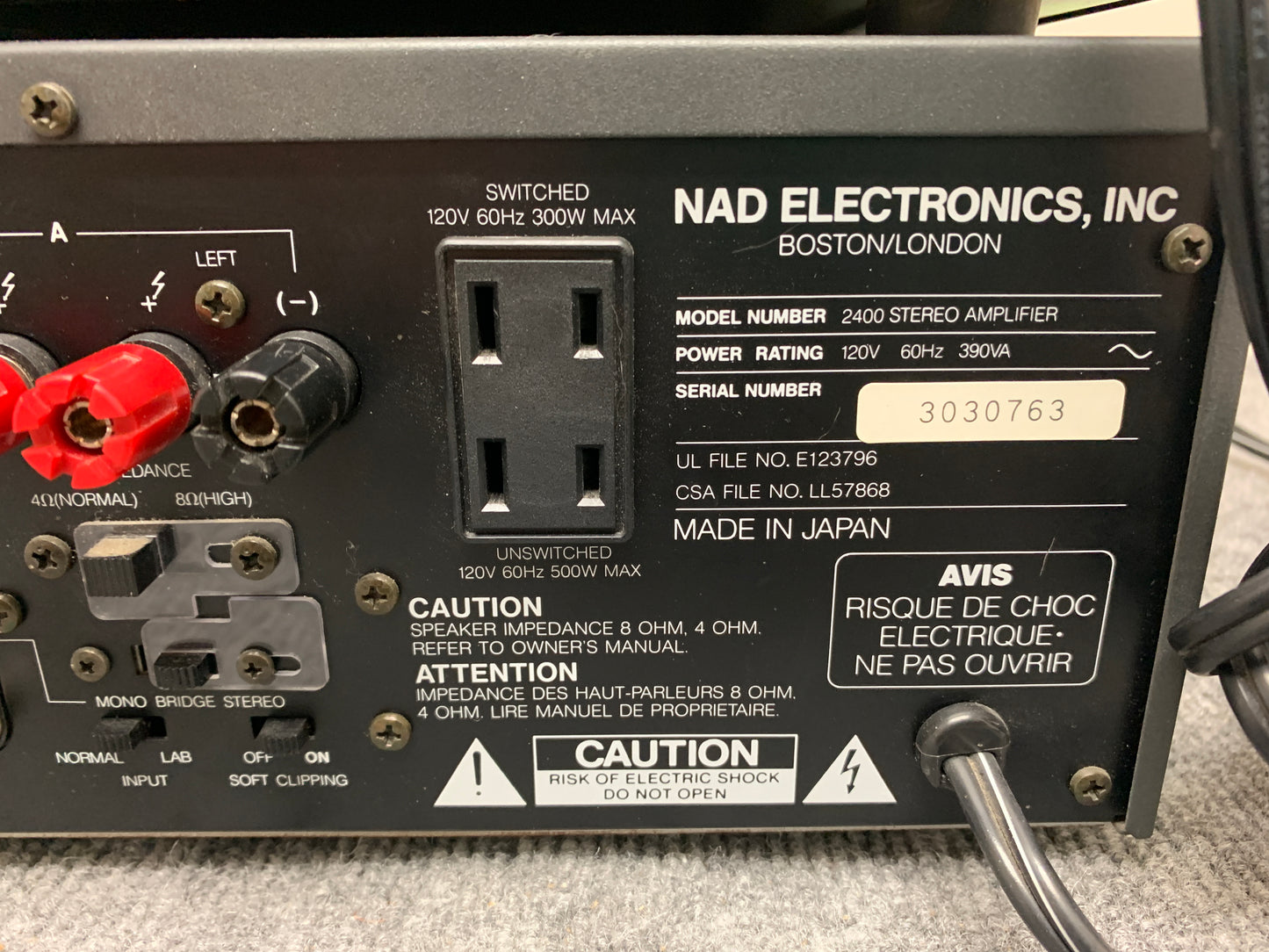

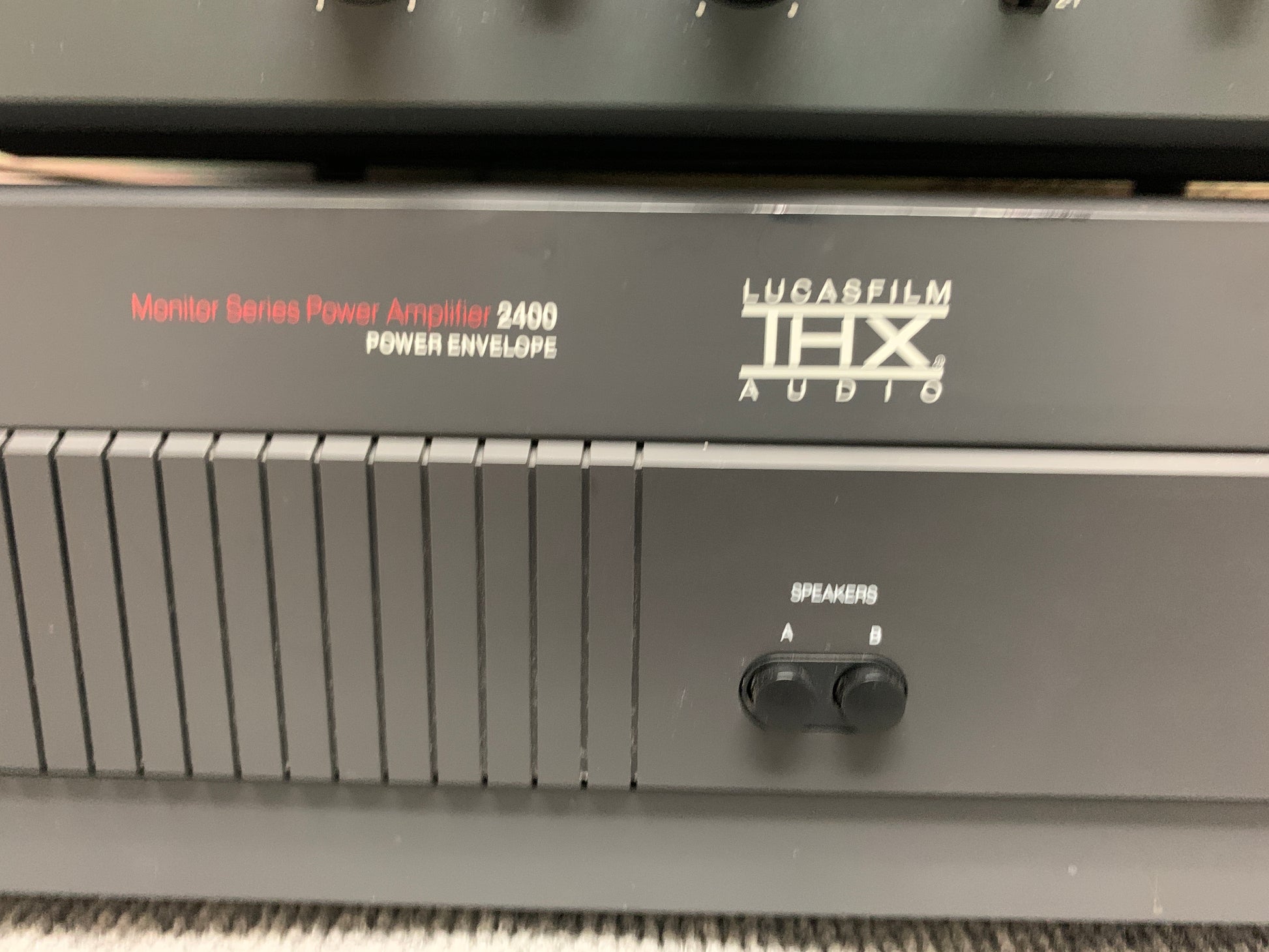

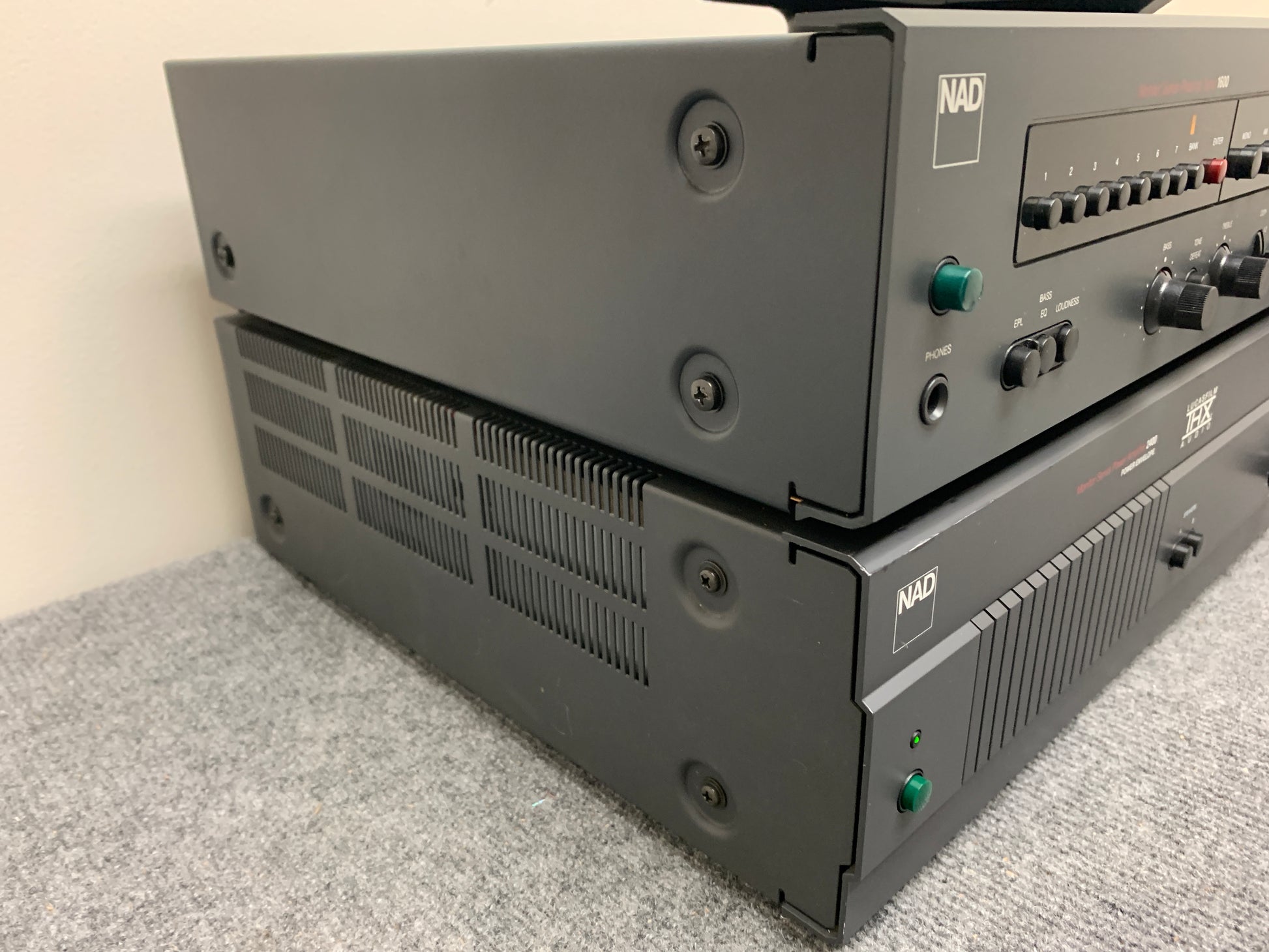

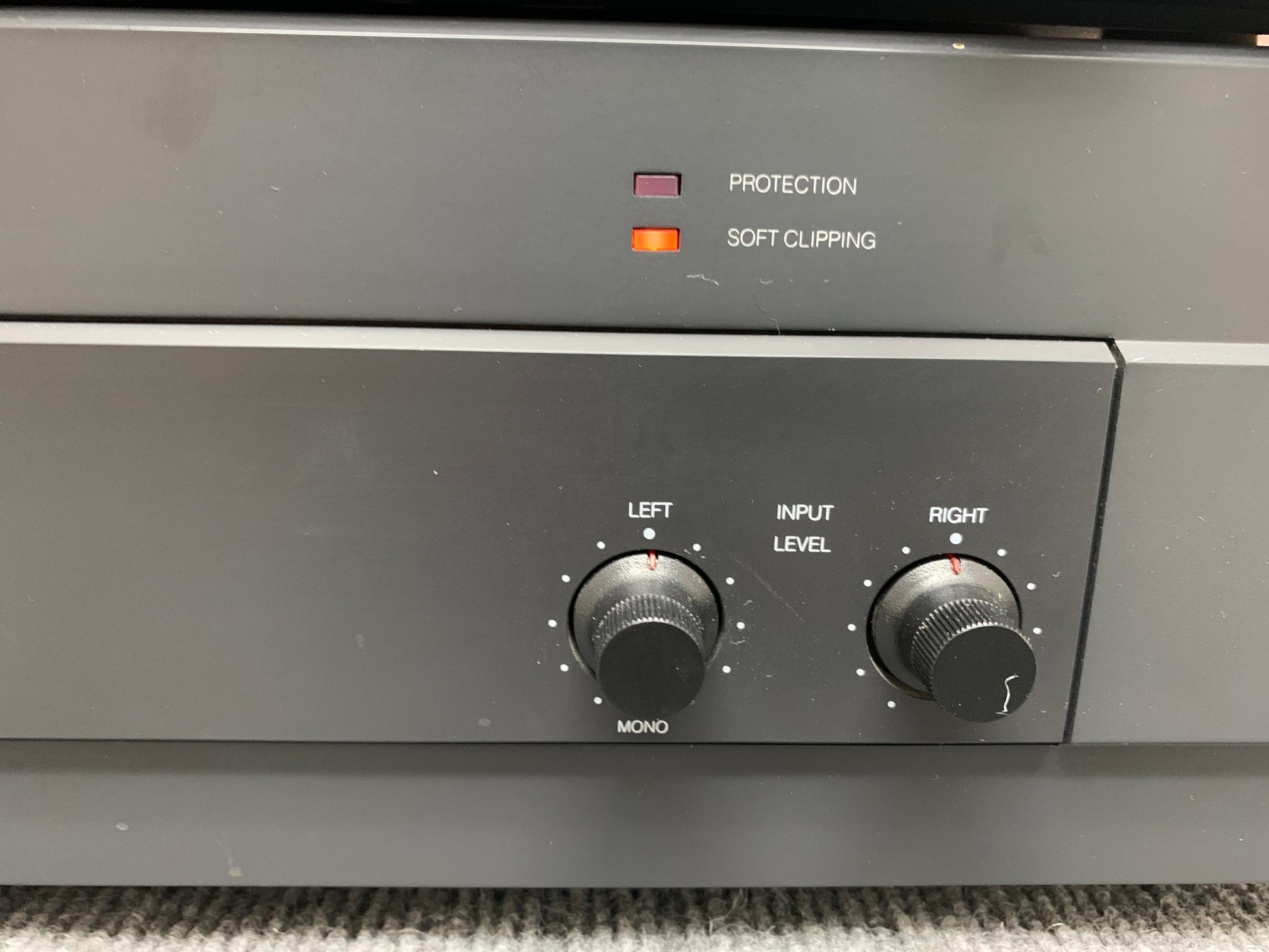

NAD 2400

Stereo Power Amplifier (1989)

Specifications

Power output: 100 watts per channel into 8Ω (stereo), 300 watts into 8Ω (mono)

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.03%

Damping factor: 100

Gain: 29 dB

Input sensitivity: 1V

Signal to noise ratio: 98dB

Speaker load impedance: 4Ω (minimum)

Dimensions: 435 x 120 x 380mm

Weight: 10kg

Year: 1989
