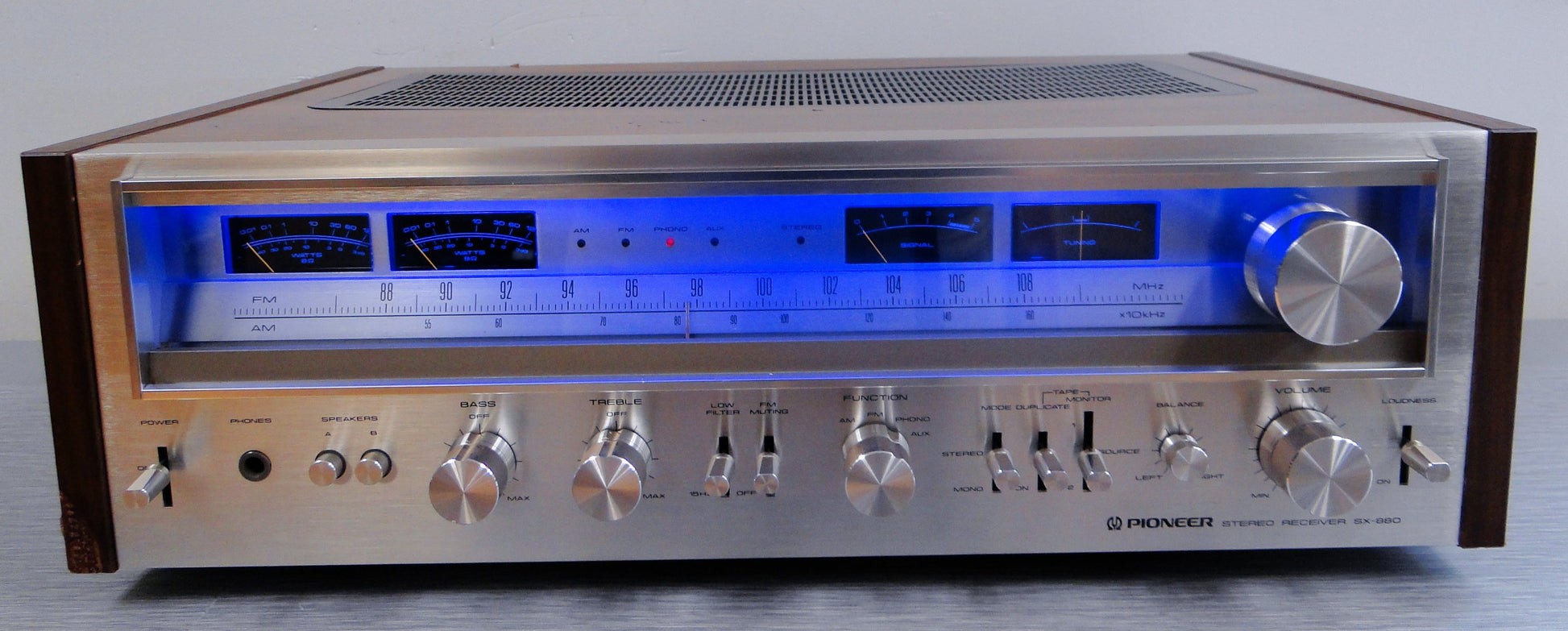

Pioneer SX-880

AM/FM Stereo Receiver (1978)

Specifications

Tuning range: FM, MW

Power output: 60 watts per channel into 8Ω (stereo)

Frequency response: 5Hz to 80kHz

Total harmonic distortion: 0.05%

Damping factor: 30

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 76dB (MM), 95dB (line)

Output: 150mV (line)

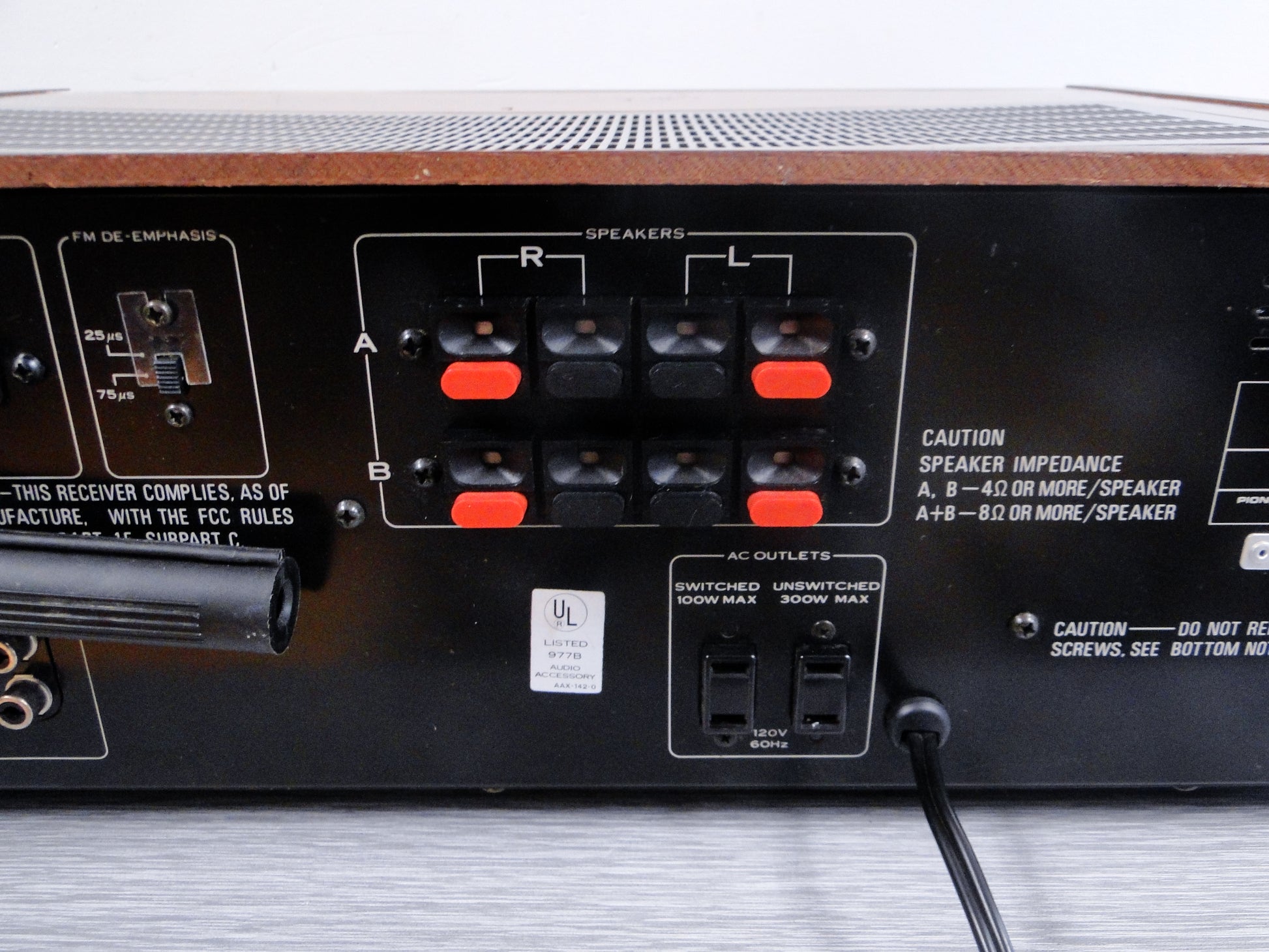

Speaker load impedance: 4Ω (minimum)

Semiconductors: 5 x FET, 9 x IC, 37 x transistors, 37 x diodes

Dimensions: 480 x 140 x 320mm

Weight: 12.2kg
