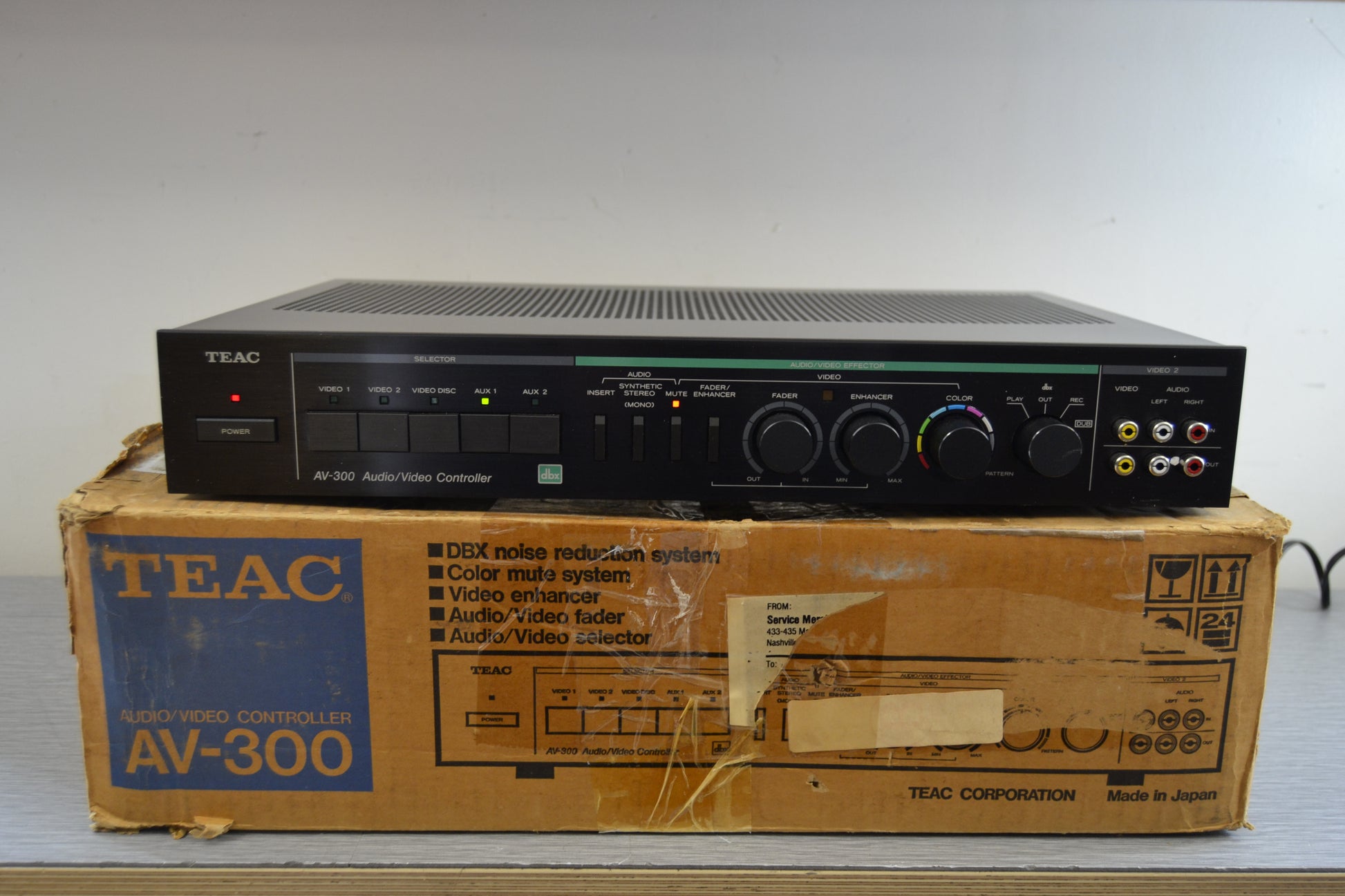

An AV controller equipped with dbx as a noise reduction system.
DbxNR has the effect of reducing tape noise by 30 to 40 dB by compressing and expanding audio signals. In addition to the NR effect, it also expands the dynamic range so that you can record Hi-Fi sound such as CD.

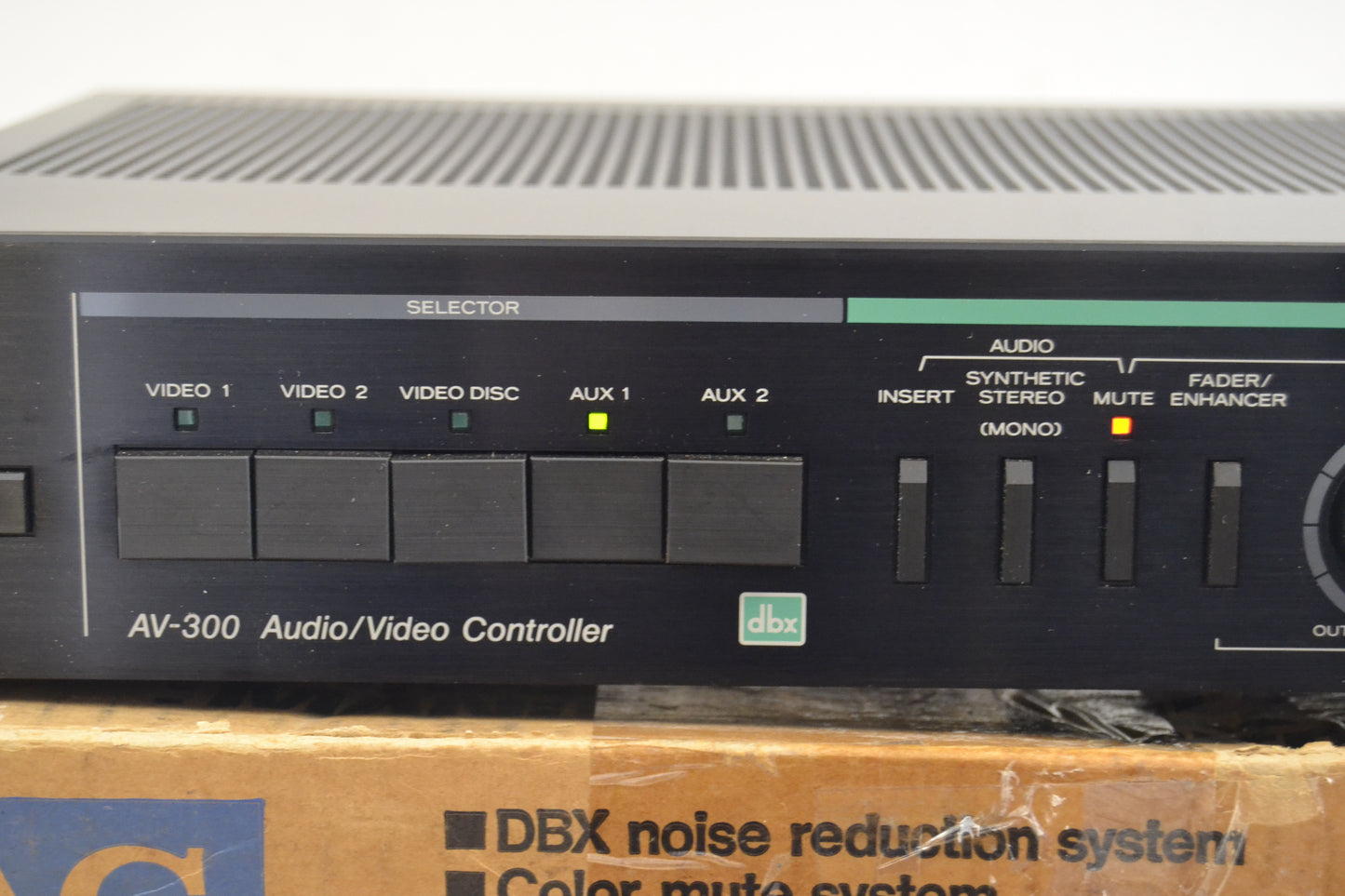

It has two VCR channels, one VCR channel, and two aux channels. Also, the Aux1 input can be simultaneously dubbed into five VCR units, and the other inputs can be simultaneously dubbed into four VCR units.

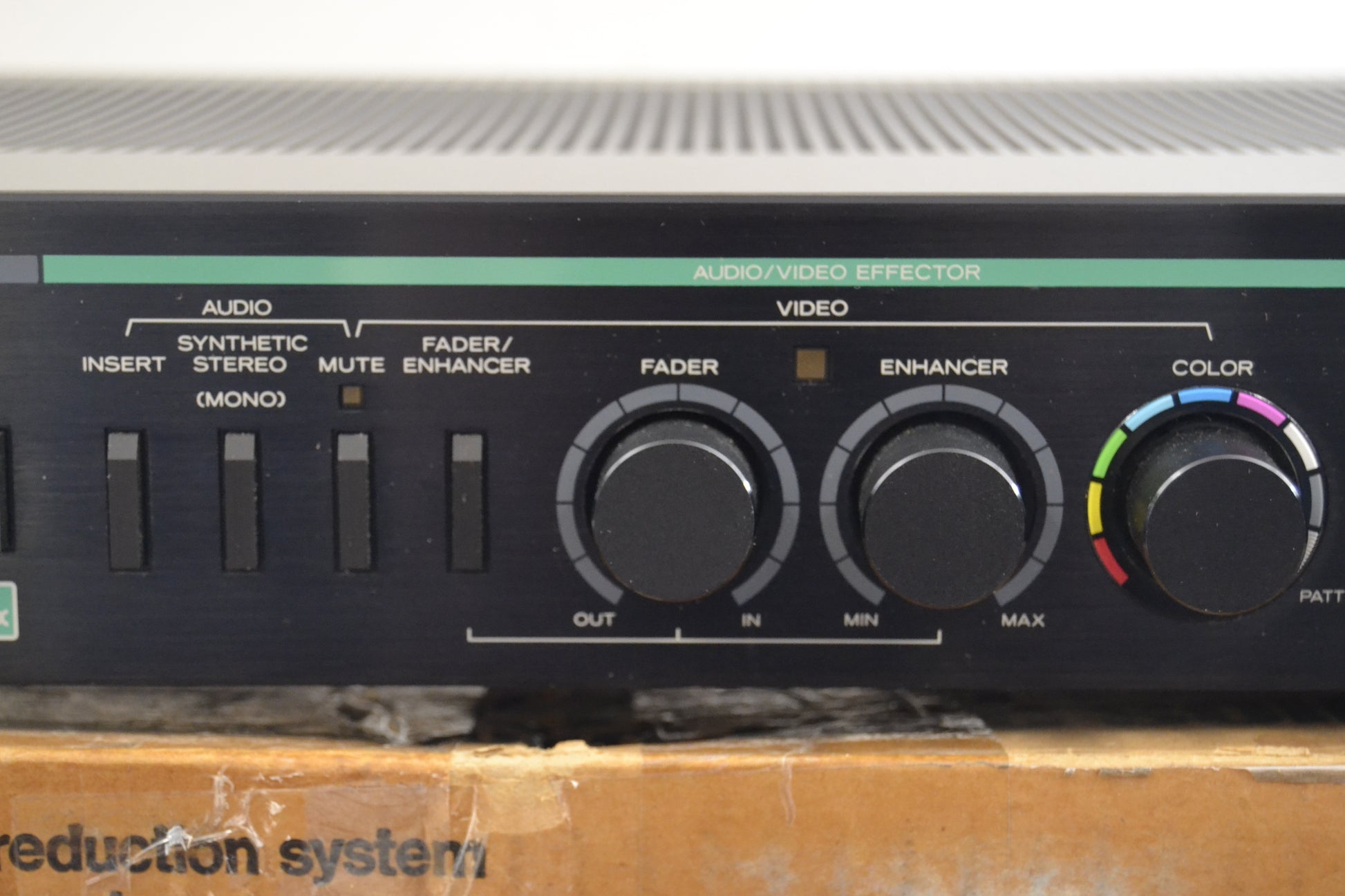

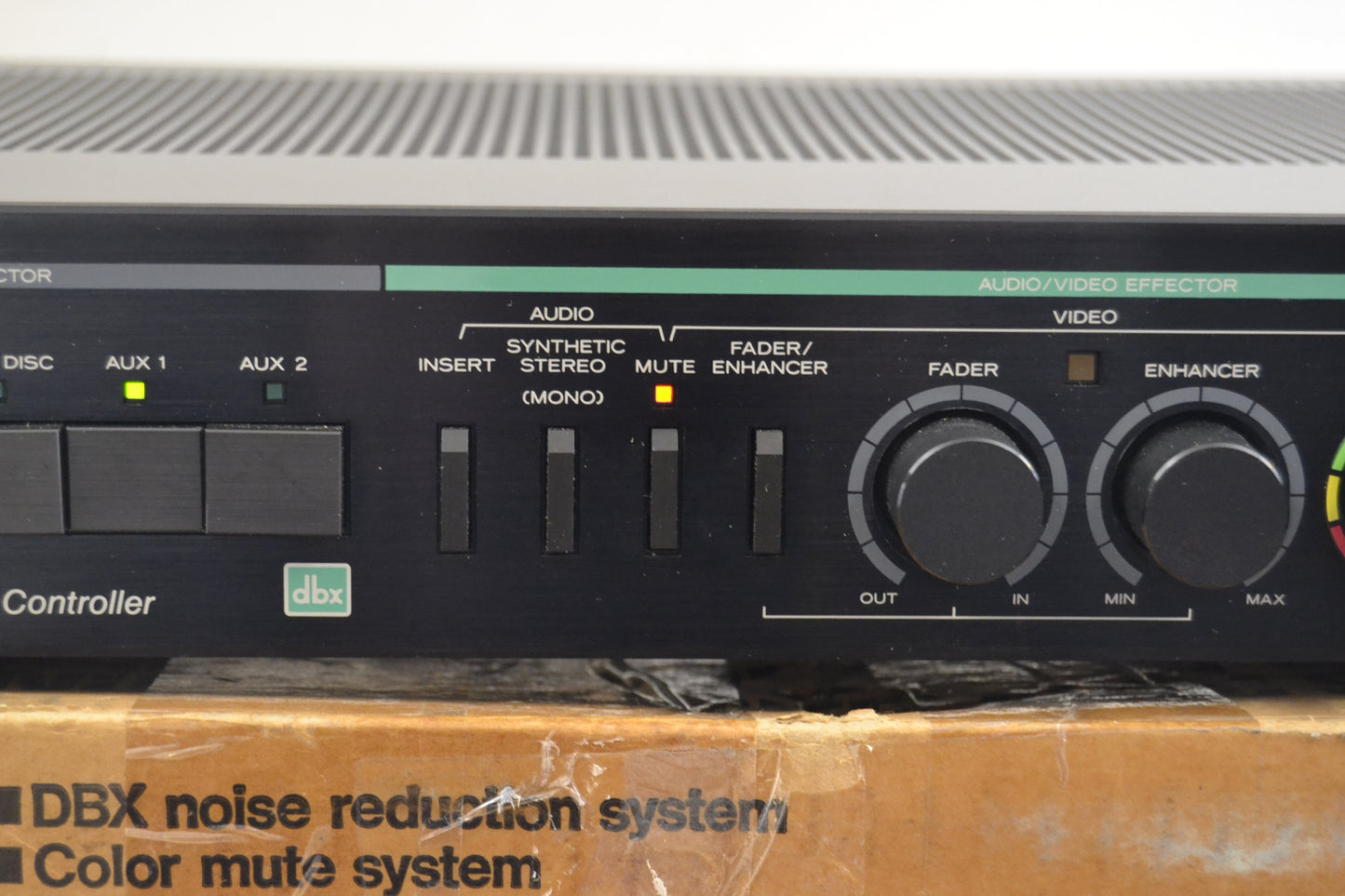

The fader function allows simultaneous fade-in / fade-out of sound and image. It is also equipped with a mute function that can mute sound and image with one touch, and an enhancer function that makes the outline of the image clear.
Synthetic Stereo adds stereo realism and spaciousness to mono audio.
The Insert function allows you to record audio input from the Aux1 to your VCR.
With a built-in color selector, when Mute is ON, the color selected by the selector (8 colors : red, yellow, green, light blue, blue, purple, white and black) or the color pattern is displayed. This allows precise tonal control and recording of the color screen for editing.
Equipped with an RF input / output terminal with a selector, 2 video decks can be connected to a TV with only antenna input, and selection can be made freely.
