AMPLIFIER section 15W+15W Input Sensitivity... eee 220mV
Frequency Response. ............26..... 50 to 20,000 Hz
TUNER Section (FM)
Frequency Range................-. Sensitivity (S/NS00B) <sss4 fee codsadesoadeua was
87.50 to 108.00 MHz 20dBuV
TUNER Section (AM)
Frequency Range................0005. SeCNSIUVIEY (SINZOOB oc nero xcs ec dkerwededeauad
530 to 1710 kHz 60dBuV/m

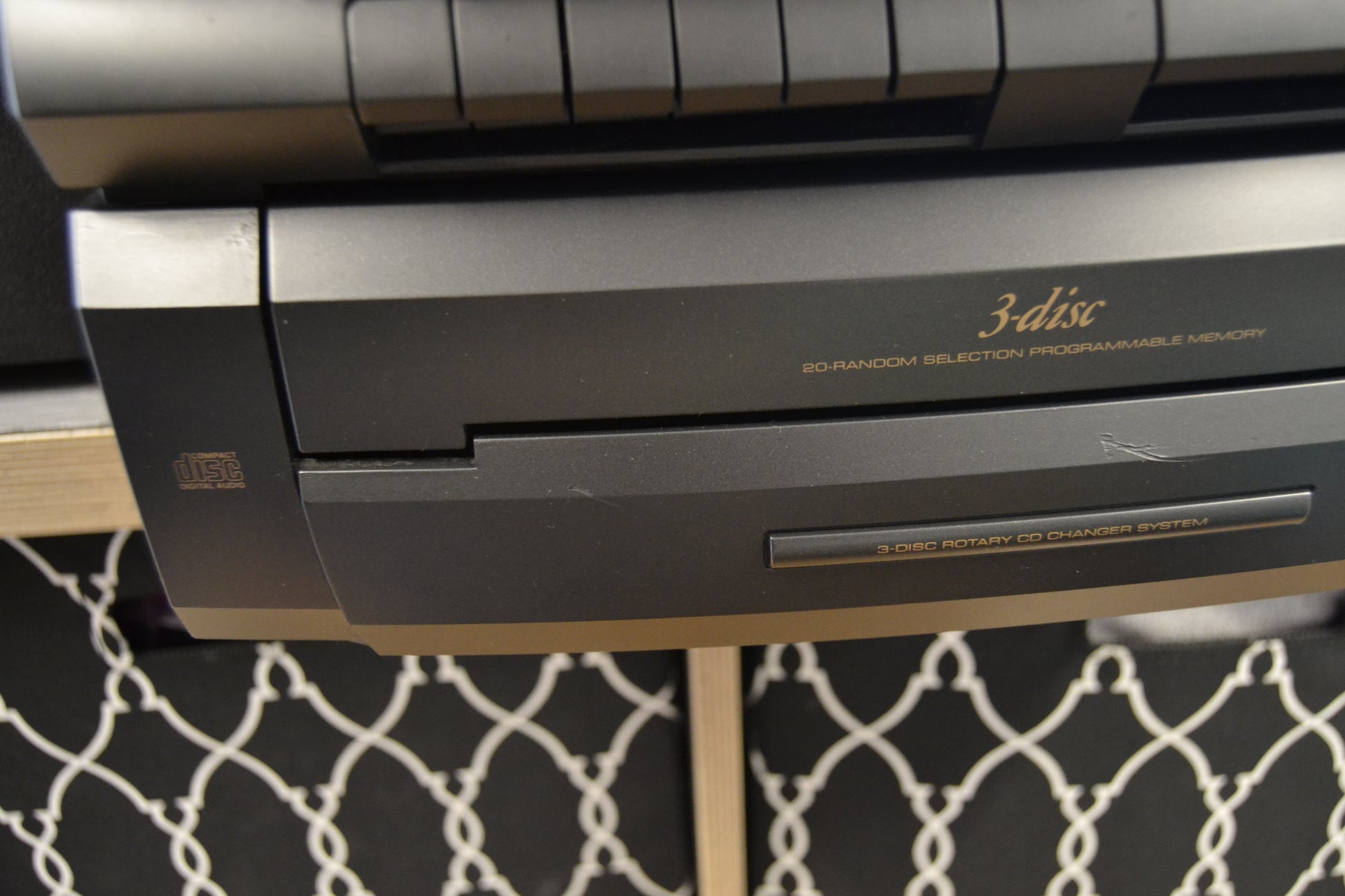

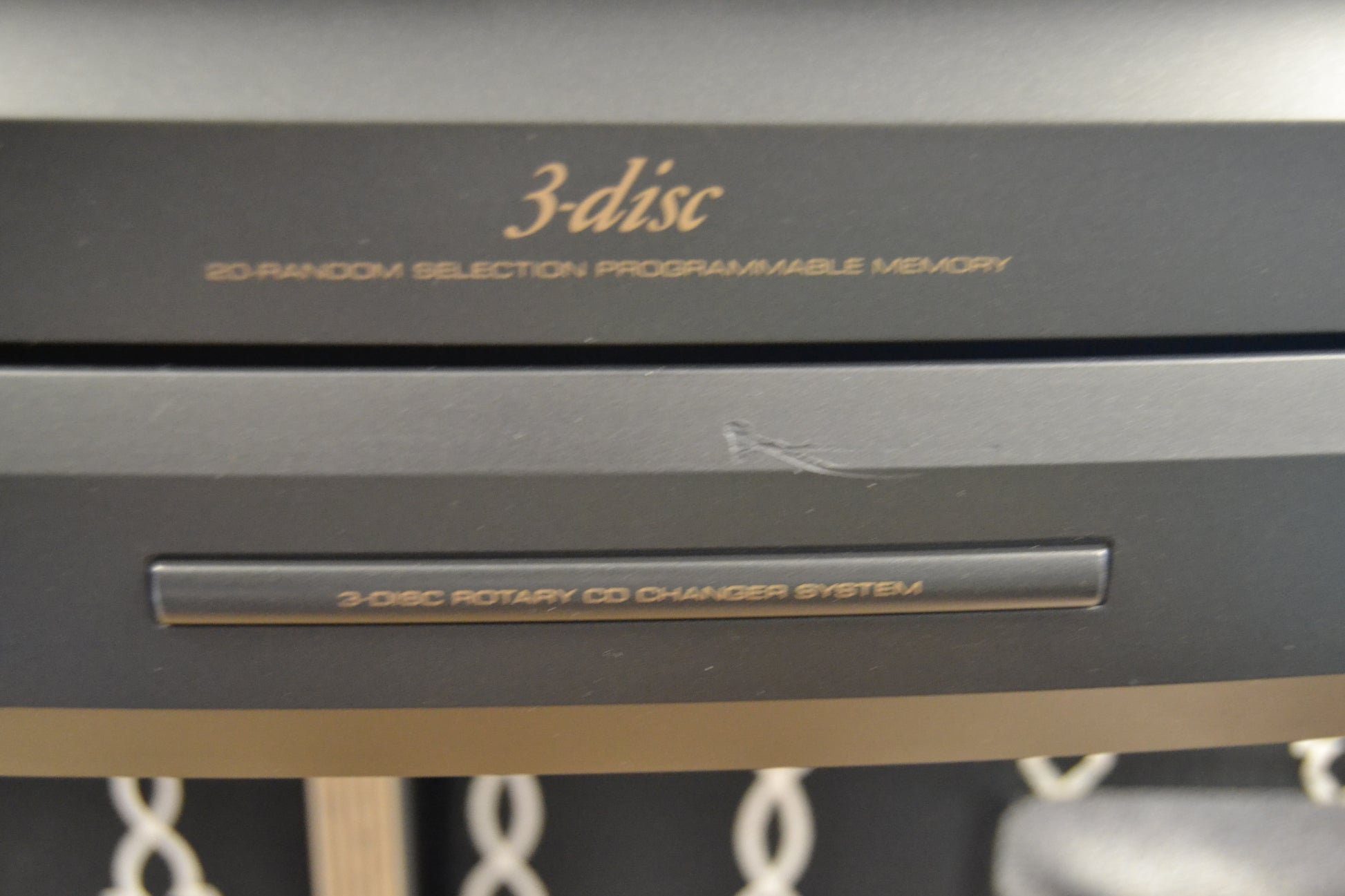

CD PLAYER Section Frequency Response.............. 20 to 20,000 Hz (+1cB) Signal-to-Noise Ratio... 2.0.0.0... 0... ee eee 55dB Wow and Flutter..................000.. Unmeasurable
CASSETTE DECK Section Track System .............00048. 4 track, 2 channel stereo Tape Speed .. 0... ee 4.8cm/sec Wow and Flutter..................00. 0.35% (WRMS ) Frequency Response..................5- 100 to 8,000 Hz

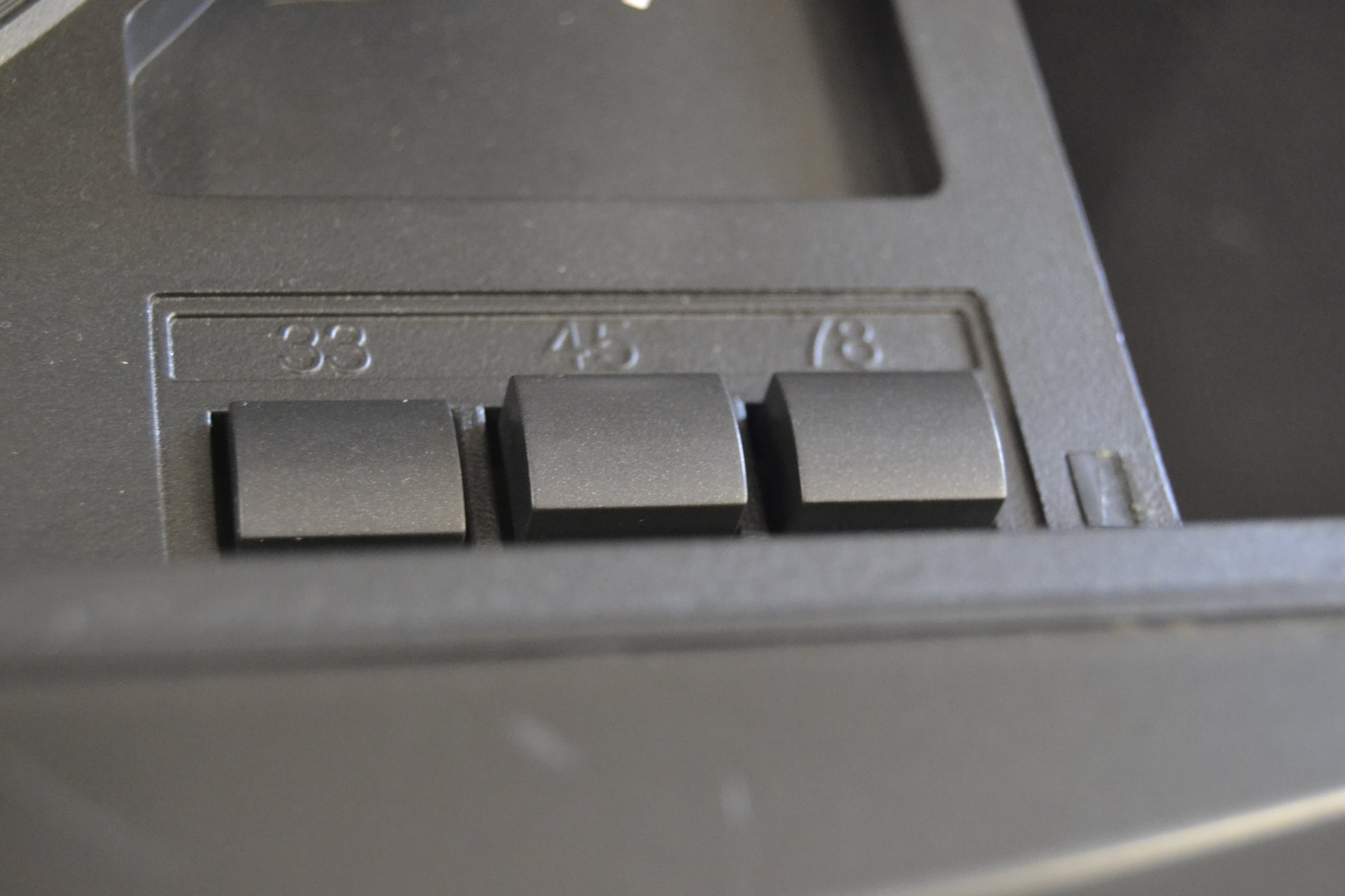

Signal-to-Noise Ratio... 2.0... 0.0.00... 35dB RECORD PLAYER Section NIGP ai ana Sit a he bd se eee it Po ee ae DC servo motor Drive SysteM 2... ee ee Belt Drive DOCCU wastes deem bathe kOe 33-1/3 rpm, 45 rom, 78 rom Wow and Flutter................ less than 2.5%(WRMS) SN MAOe 4 ha a sate ey & ee oe More than 50dB Cartridge type.............0... Ceramic Stereo Cartridge MSs ae oo a ee ek ee eee or ee oe Oe STL-103

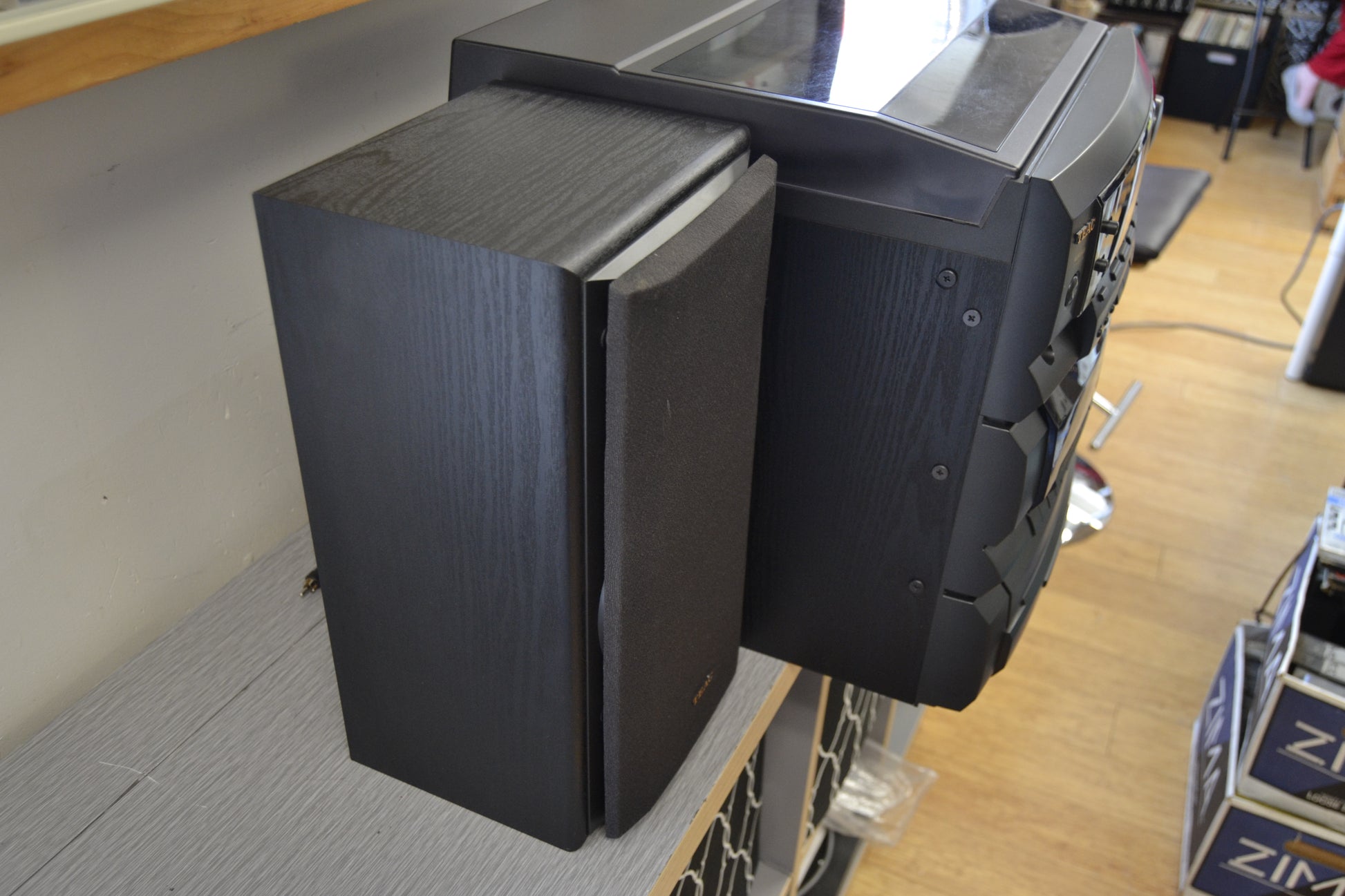

SPEAKER SYSTEM Section
WGC os hs euewegns eee a eee ees eh ds IMIDEGANC EG. 2 aie mG due eo Sse ere eae ee Oe es
2-way bass reflex 6 ohms
GENERAL Power Requirements. ............0.0 00000. 120V, 60Hz Power Consumption. ..... 0.0.00... eee 65 W
Dimension (WxHxD)
MAN UIIE ccs 2 bacieuncnetamnad ee a4 350 x 366 x 37/6 mm (13-3/4" x 14-7/16" x 14-13/16") Speaker... 0... 2... eee eee 200 x 366 x 190 mm (7-7/8" x 14-7/16" x 7-1/2")
Weight Main WAU s-<o%e 4c ese ue once e cease de 8.3 kg (18-5/16 Ib) Speaker ...... 2.0... 000 eee eee 2.6 kg (5-5/8 Ib) x 2
