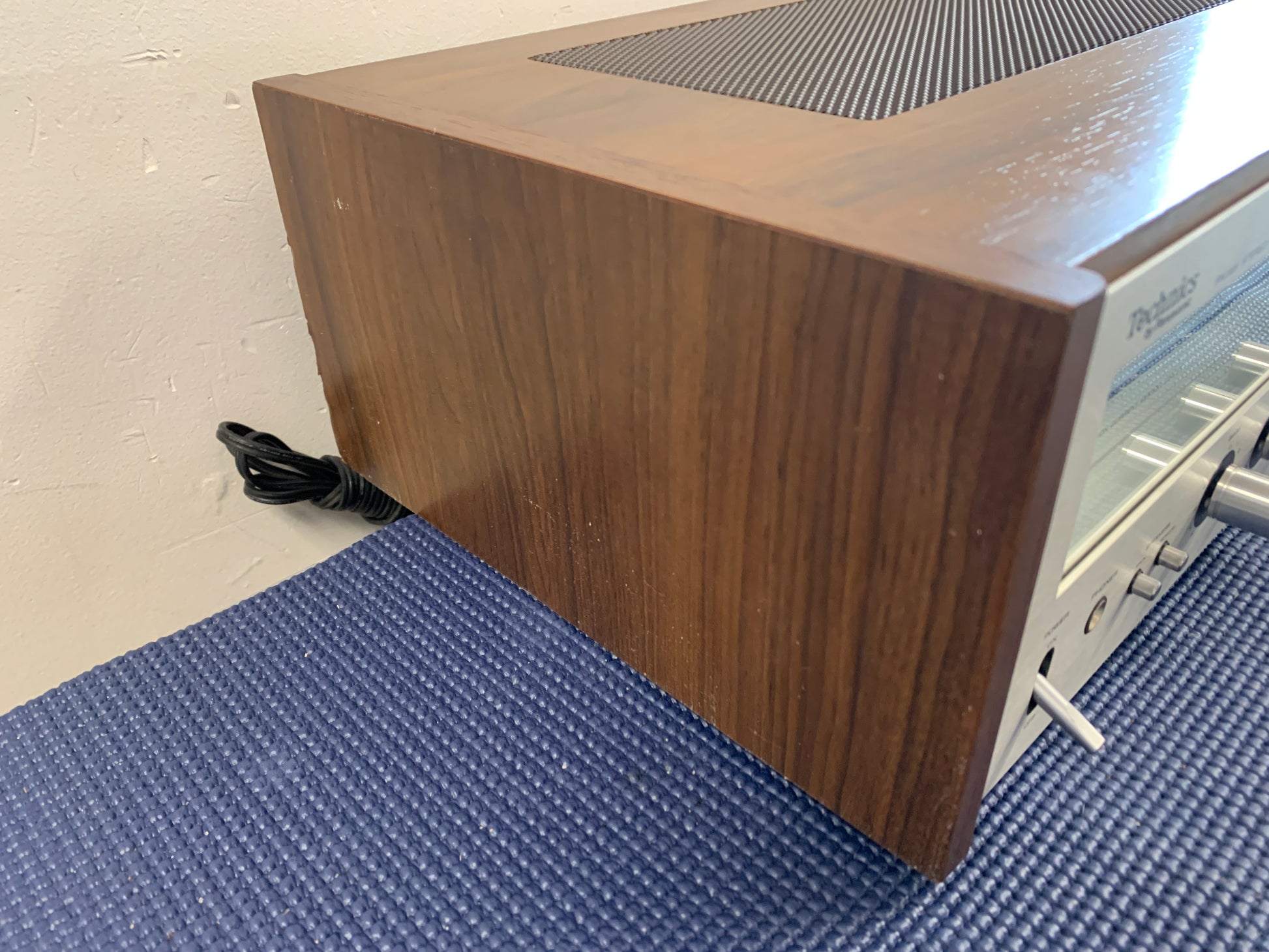

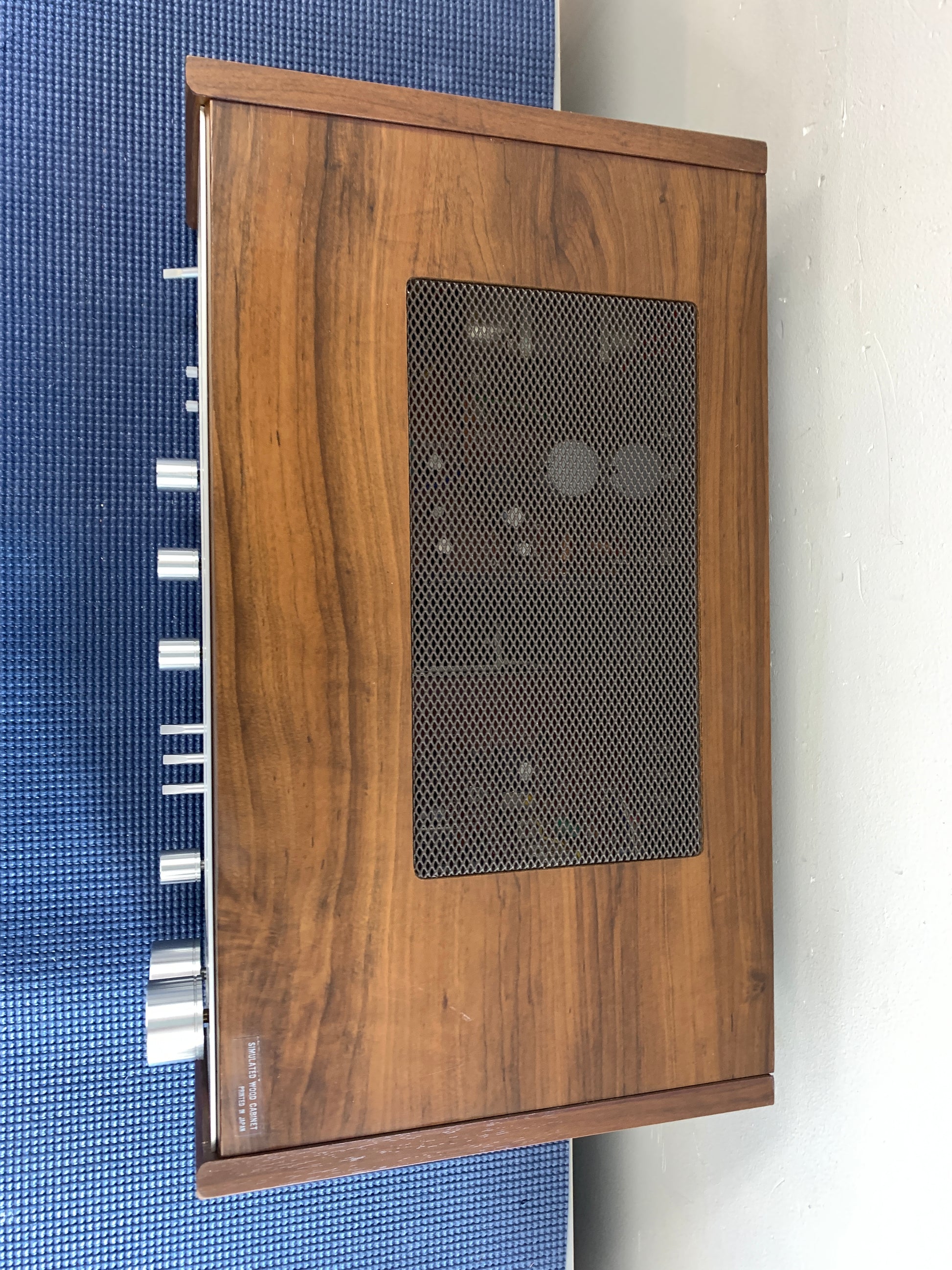

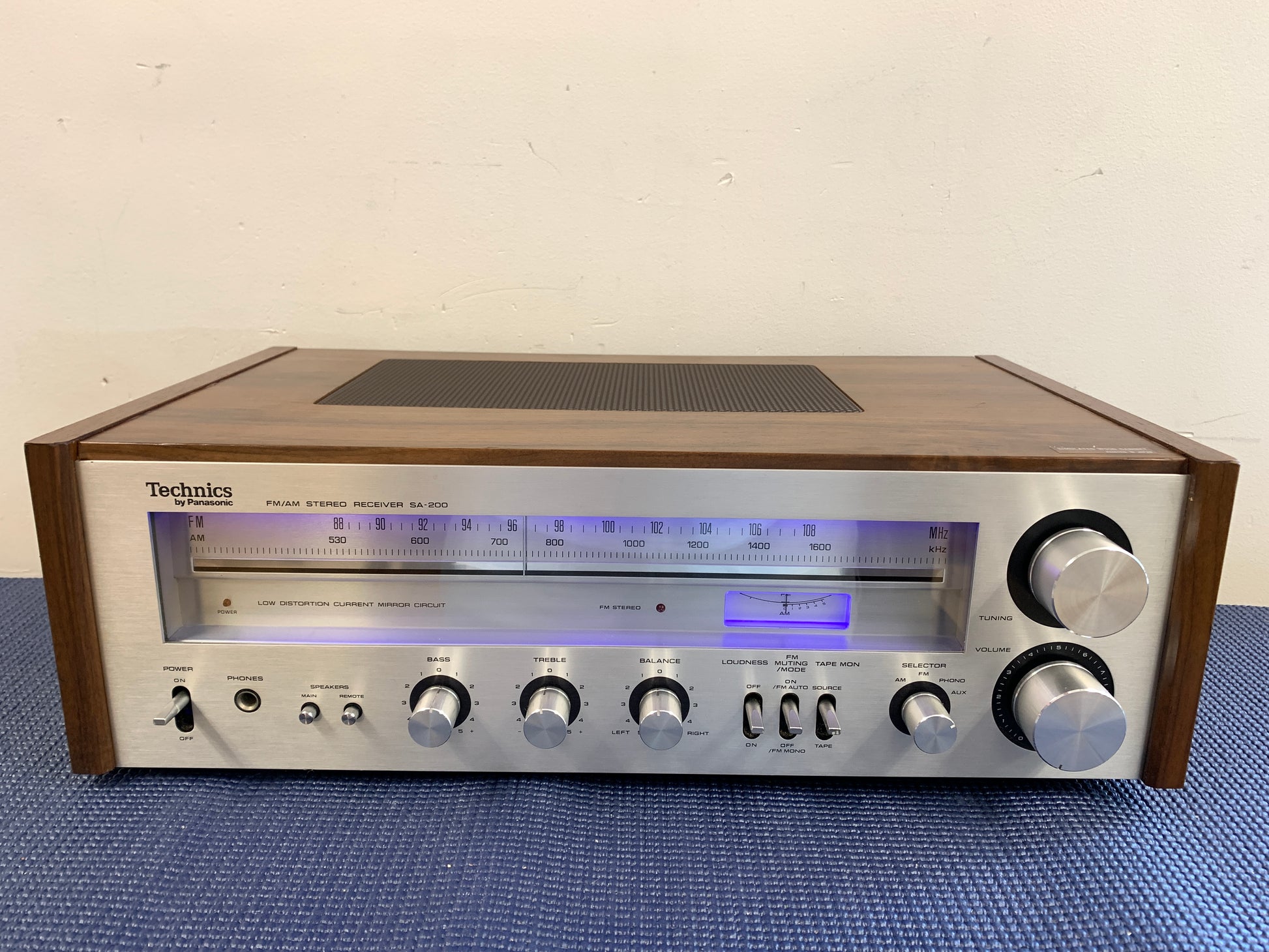

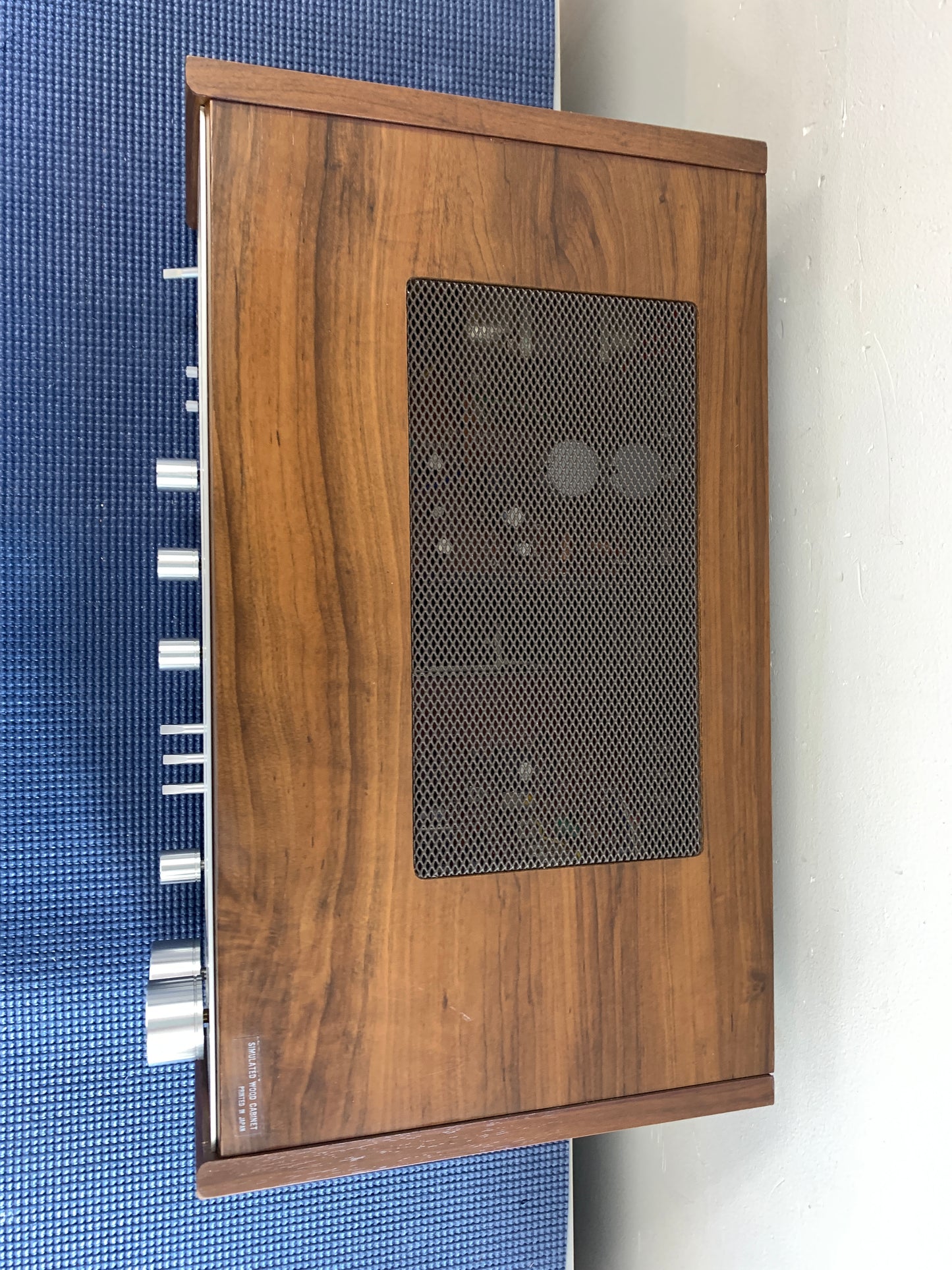

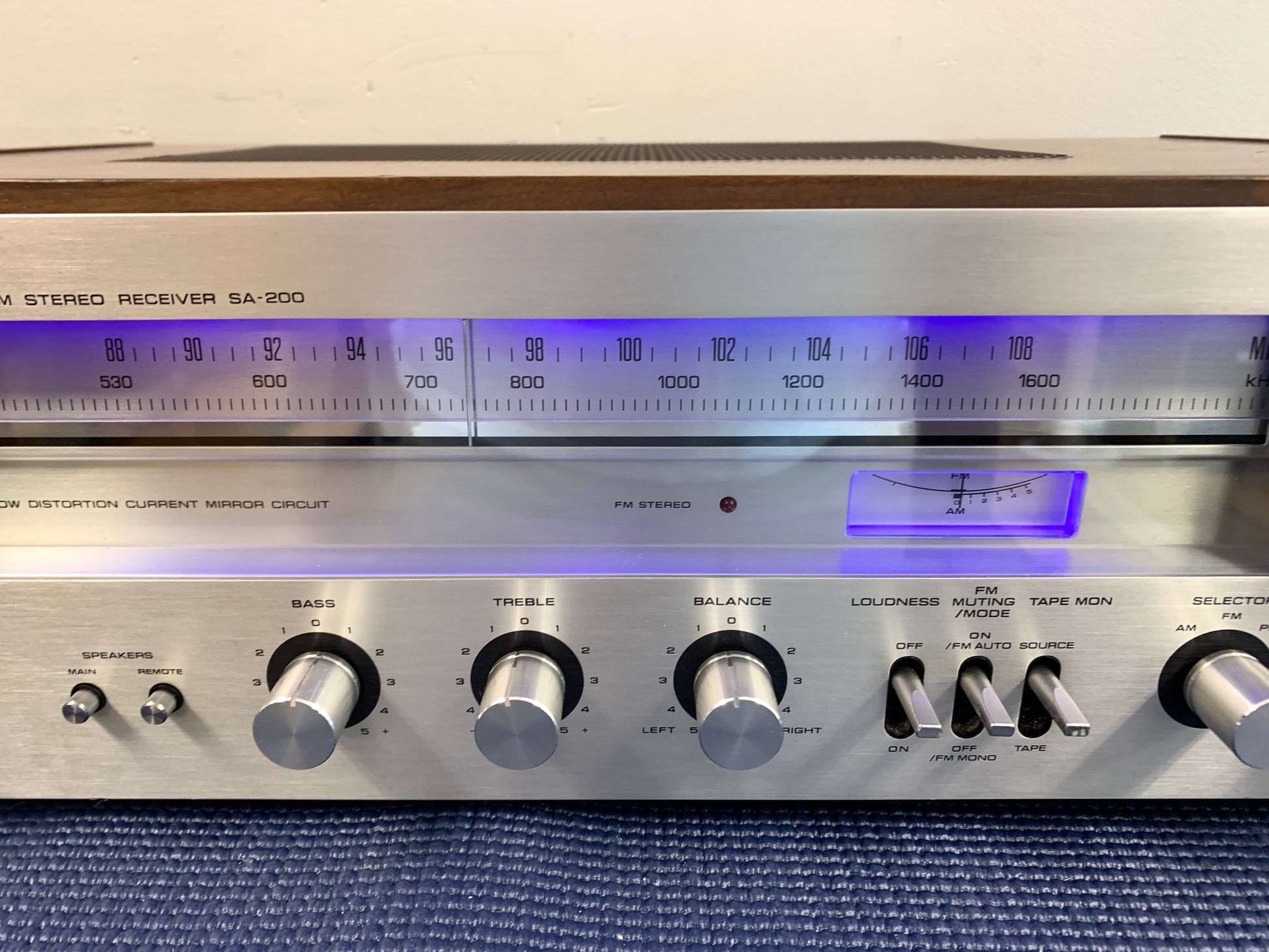

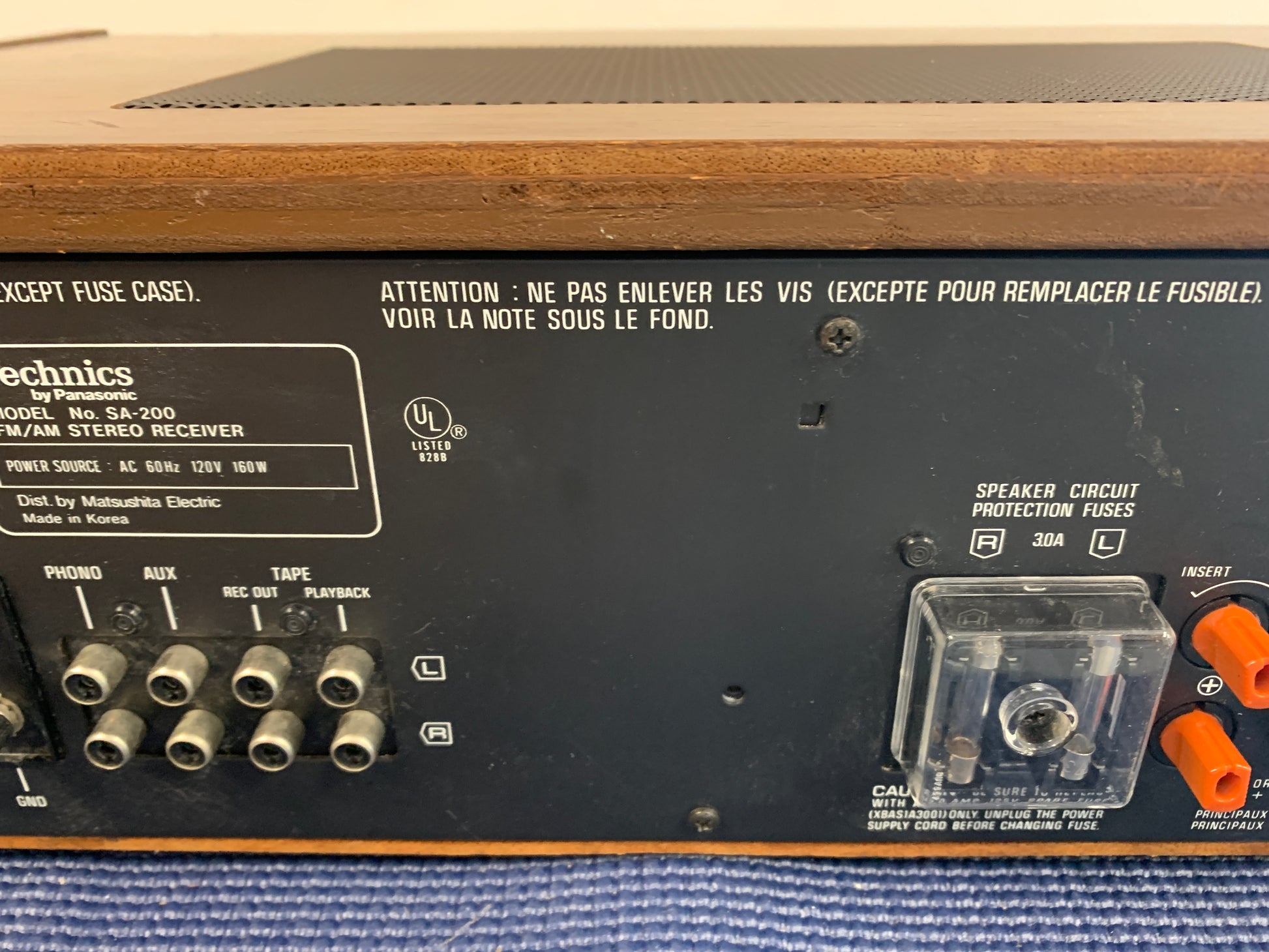

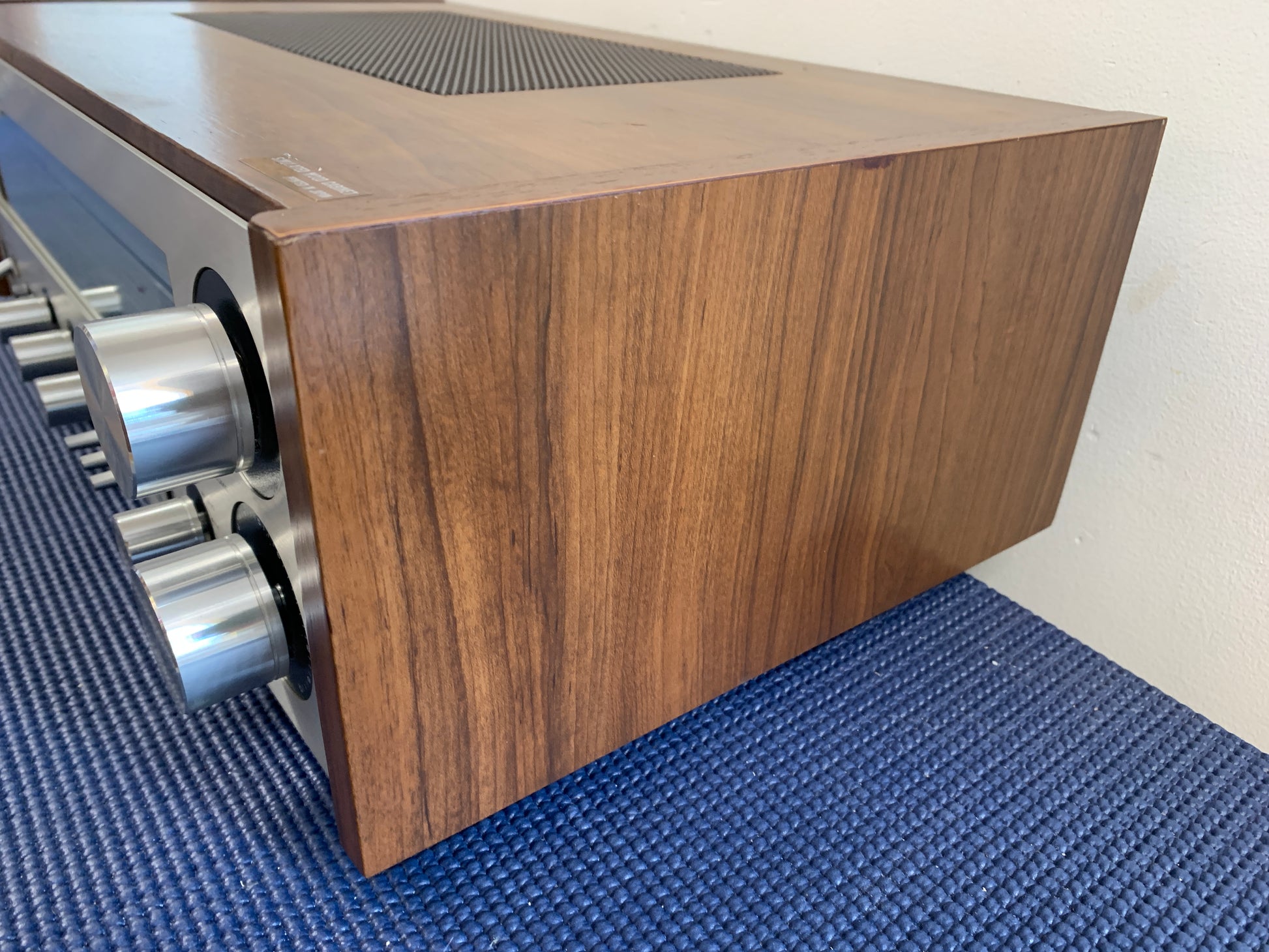

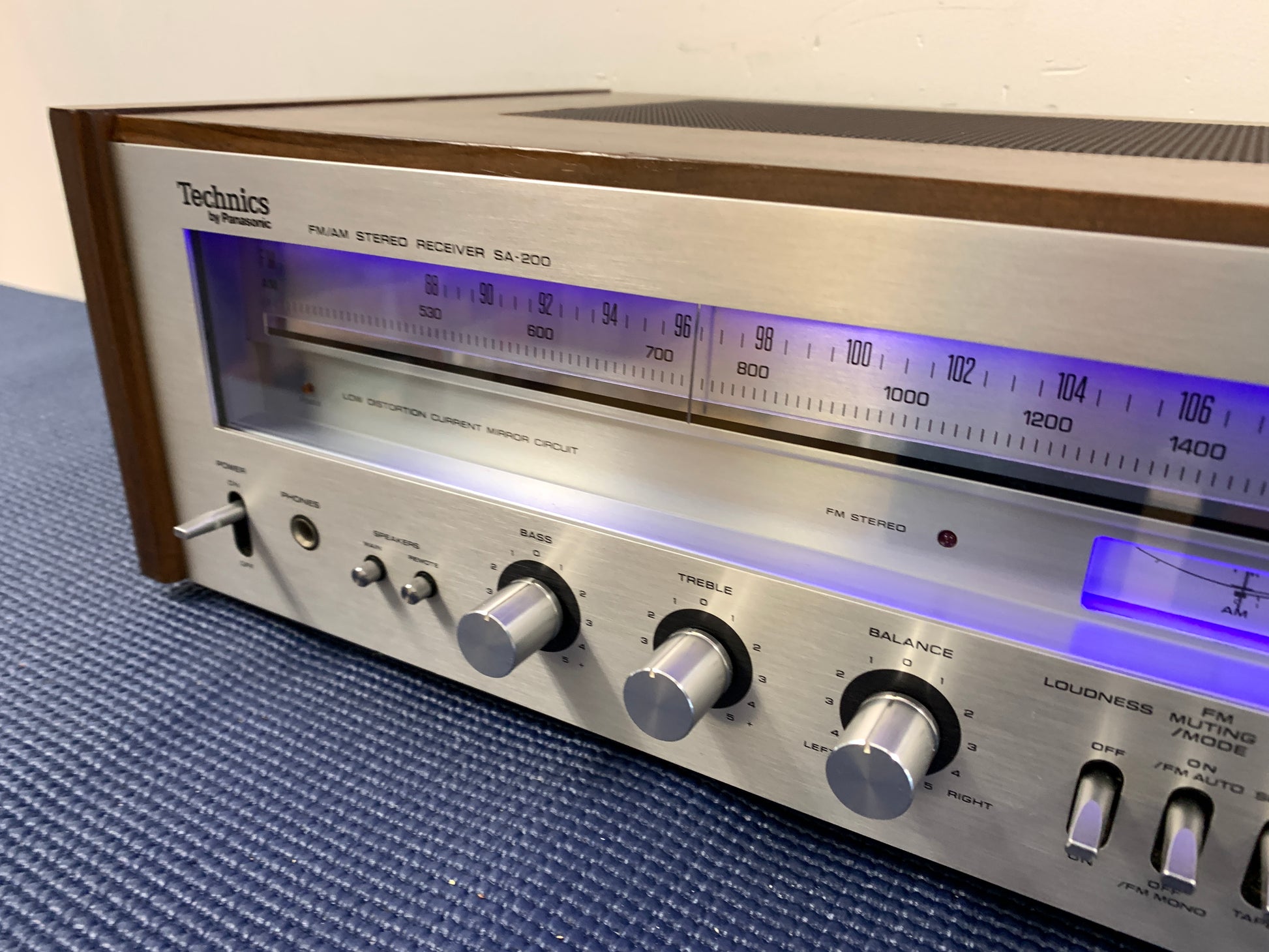

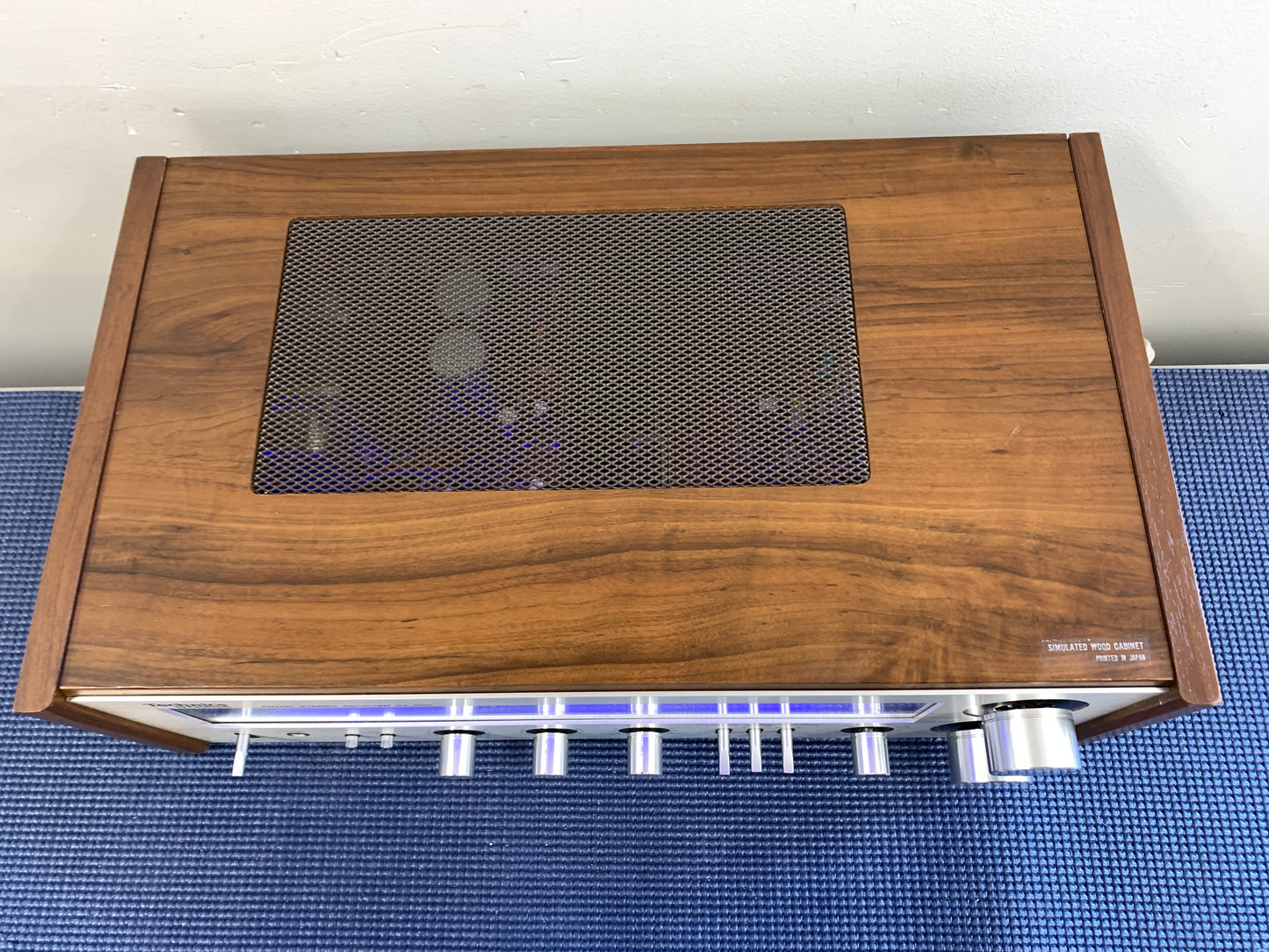

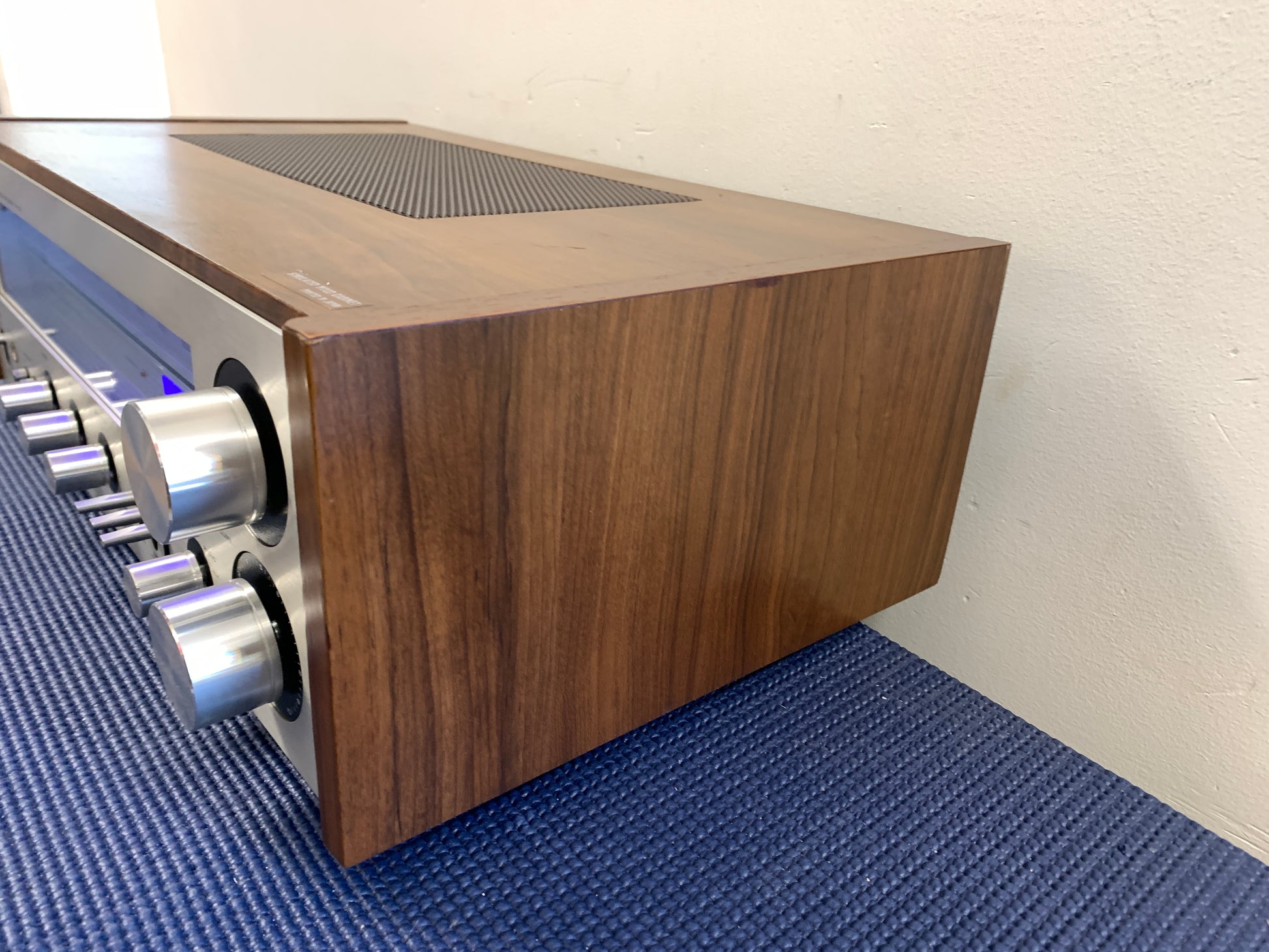

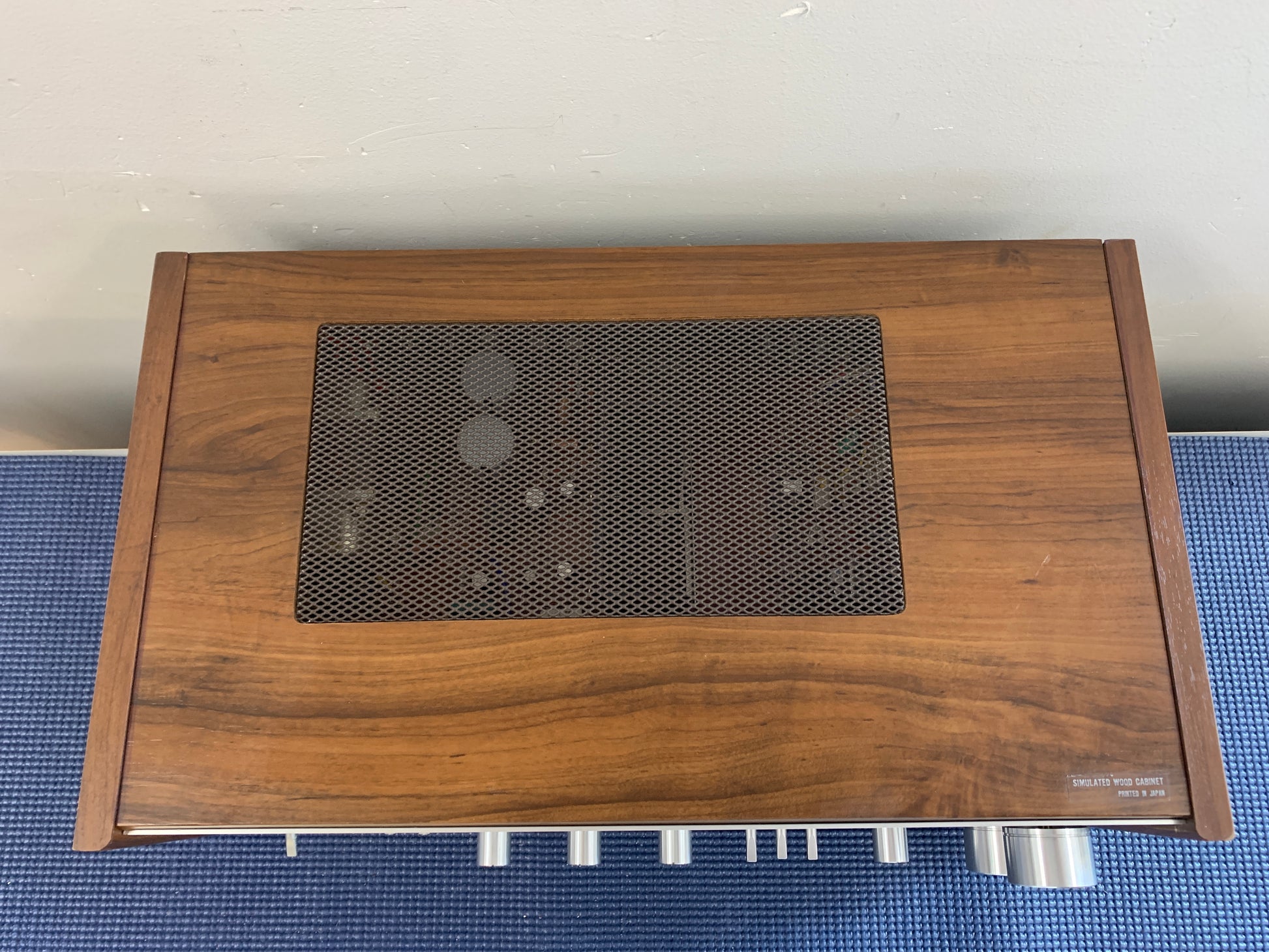

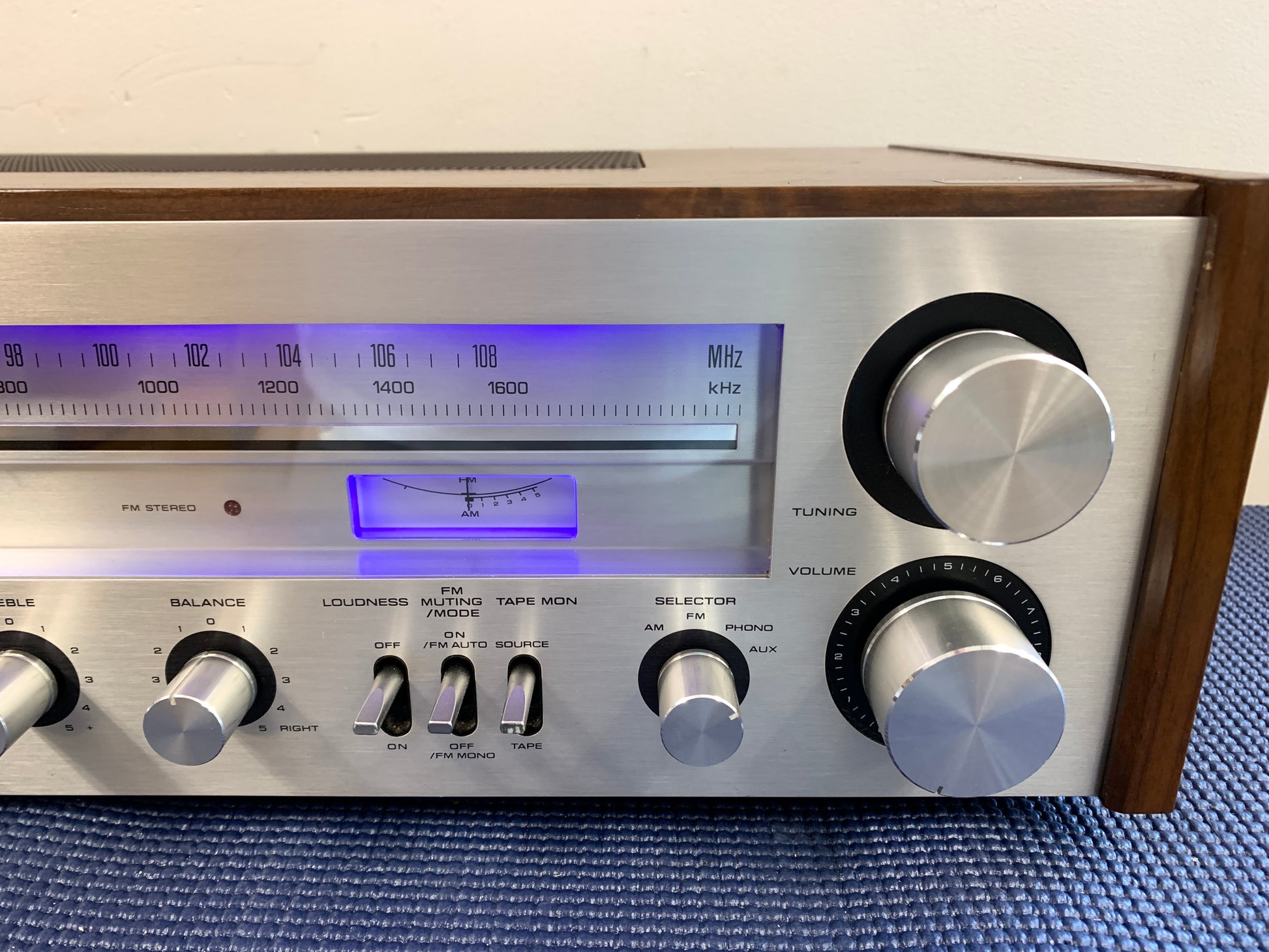

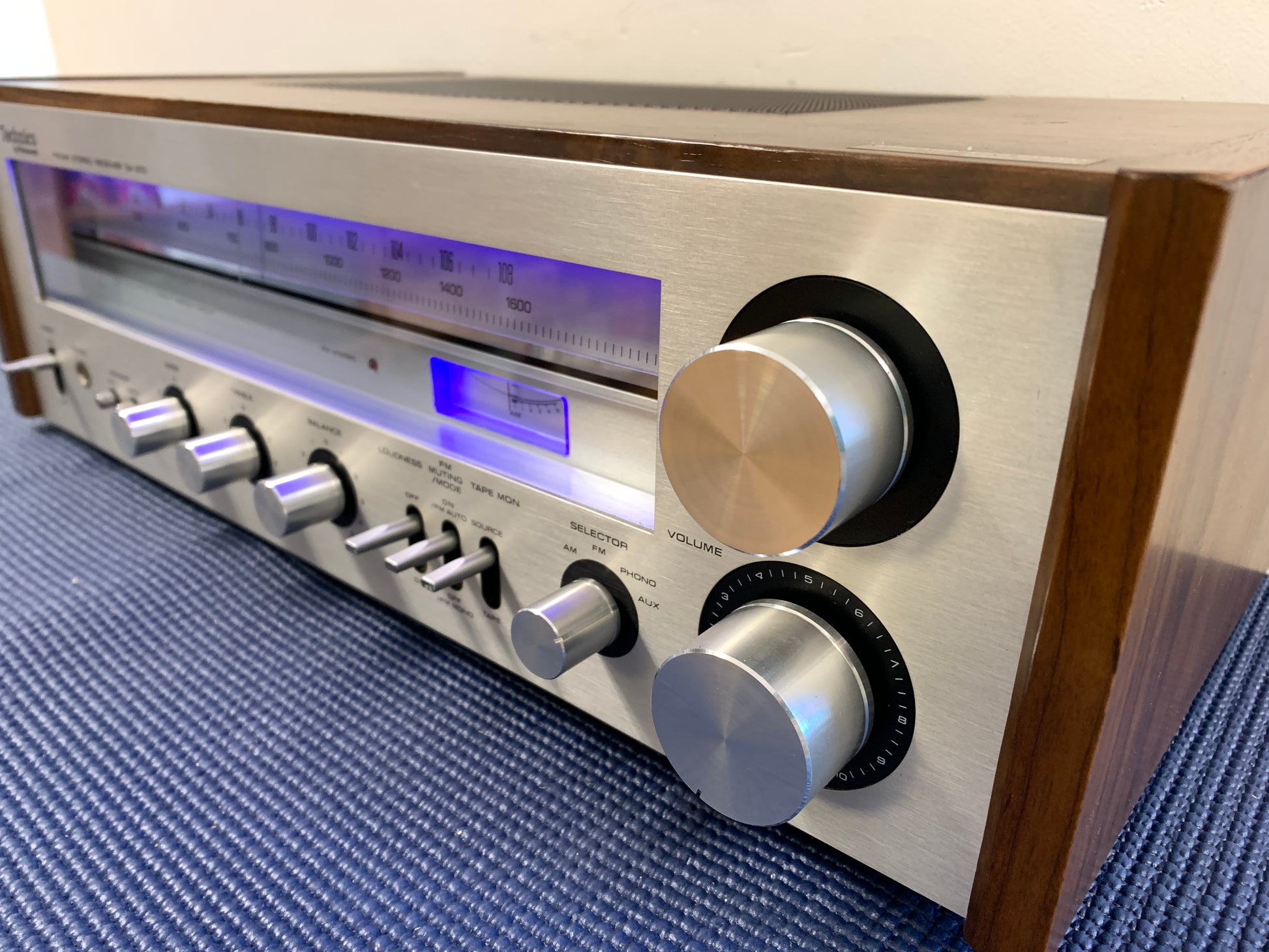

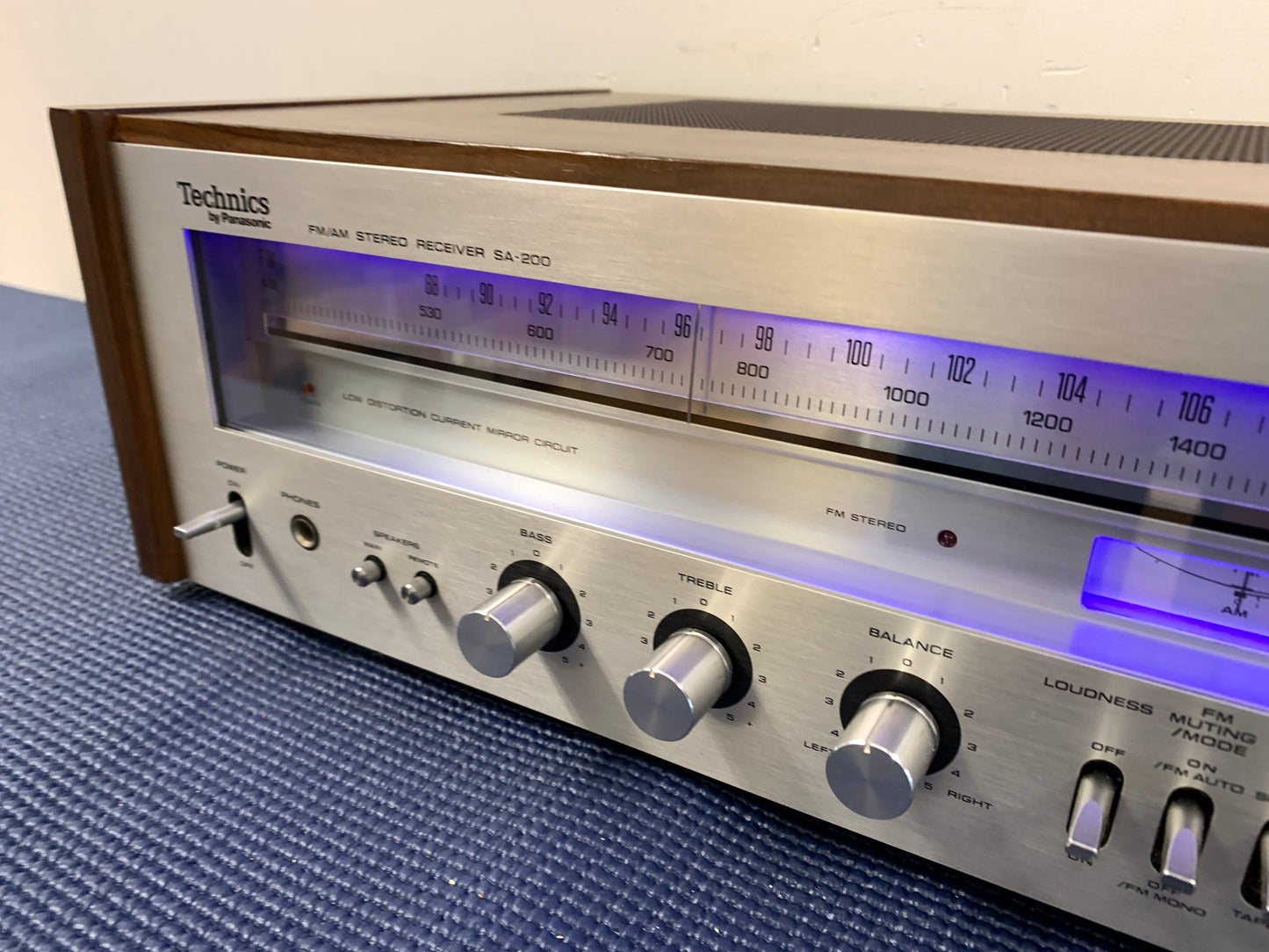

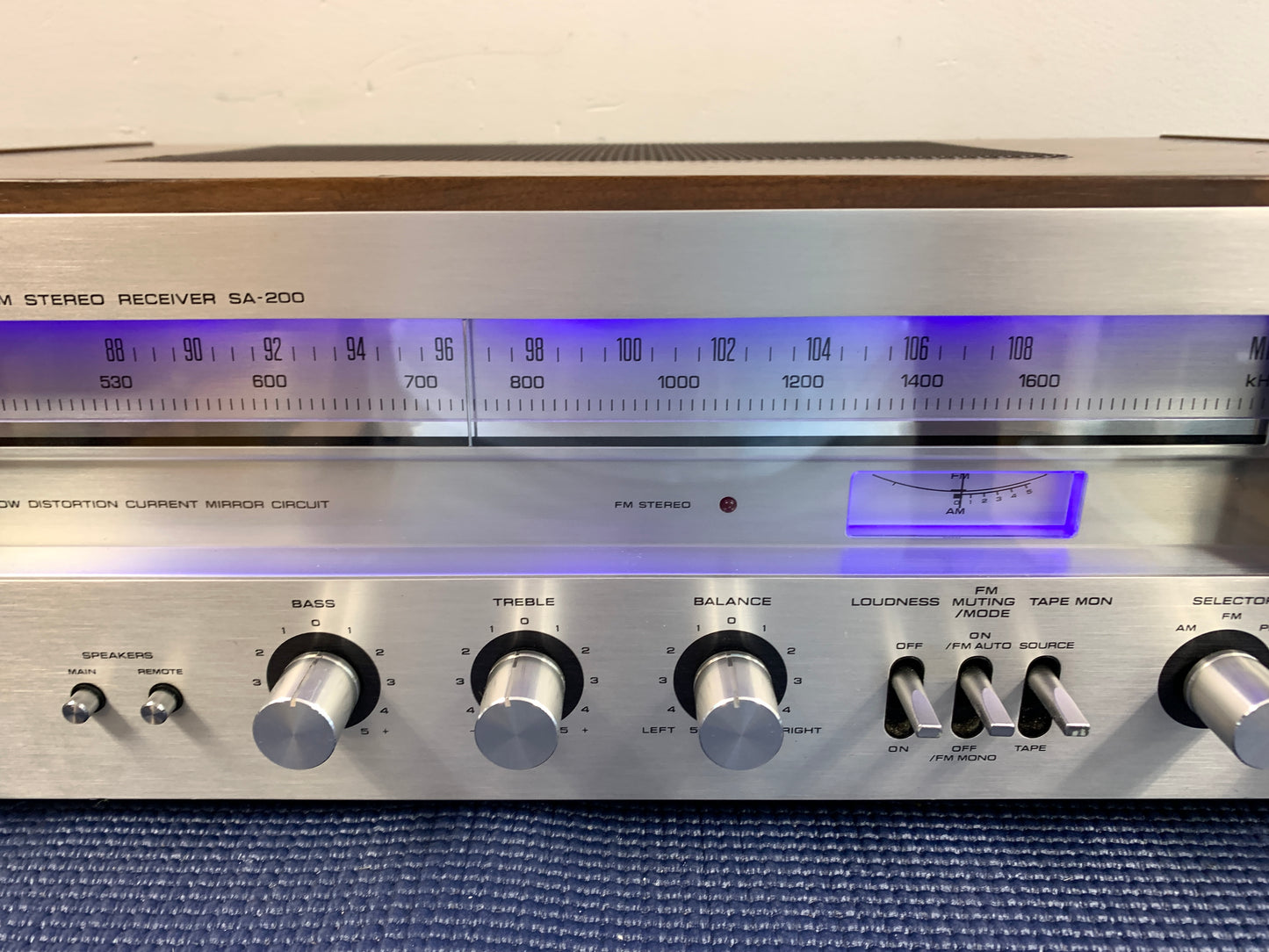

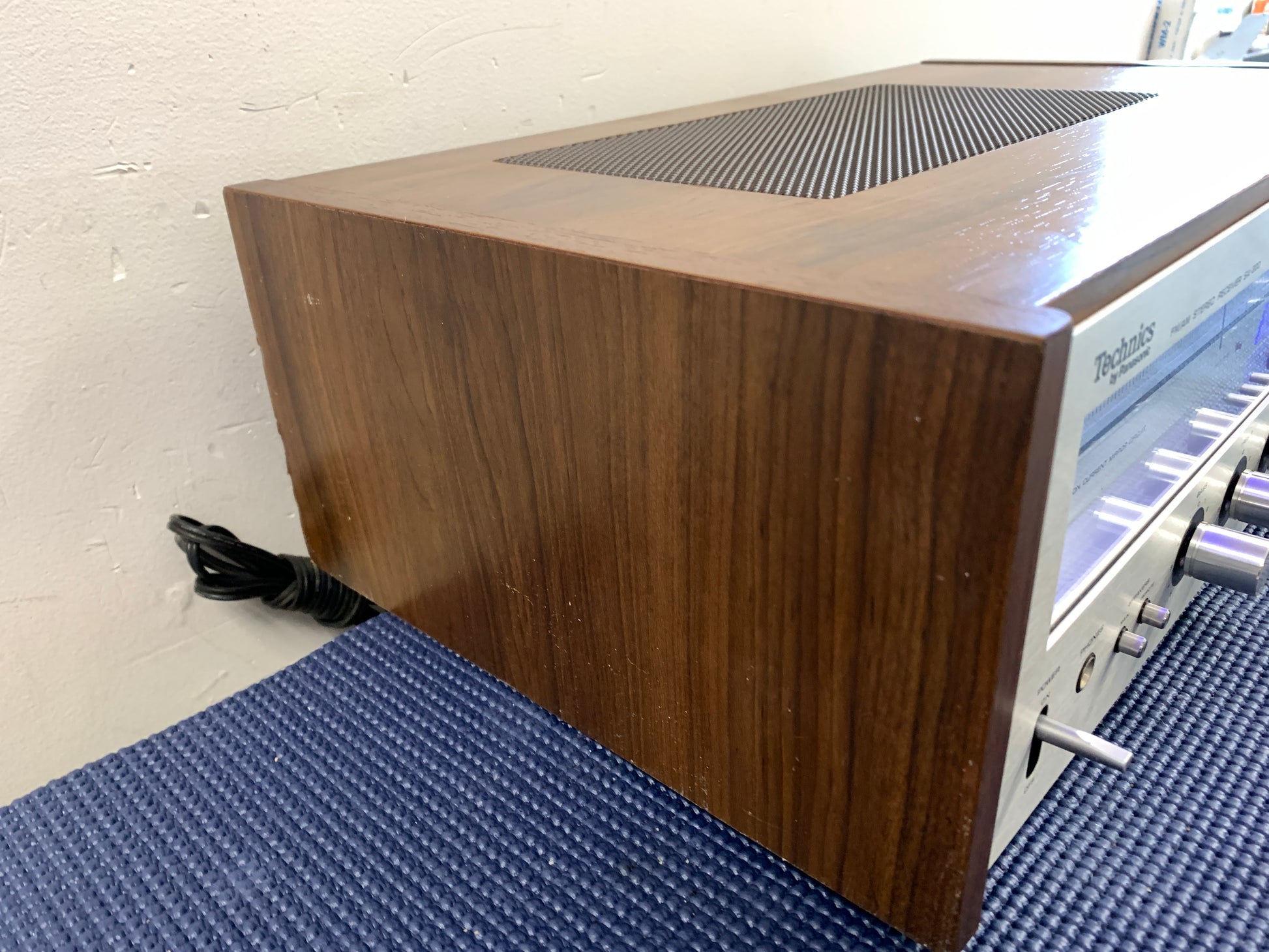

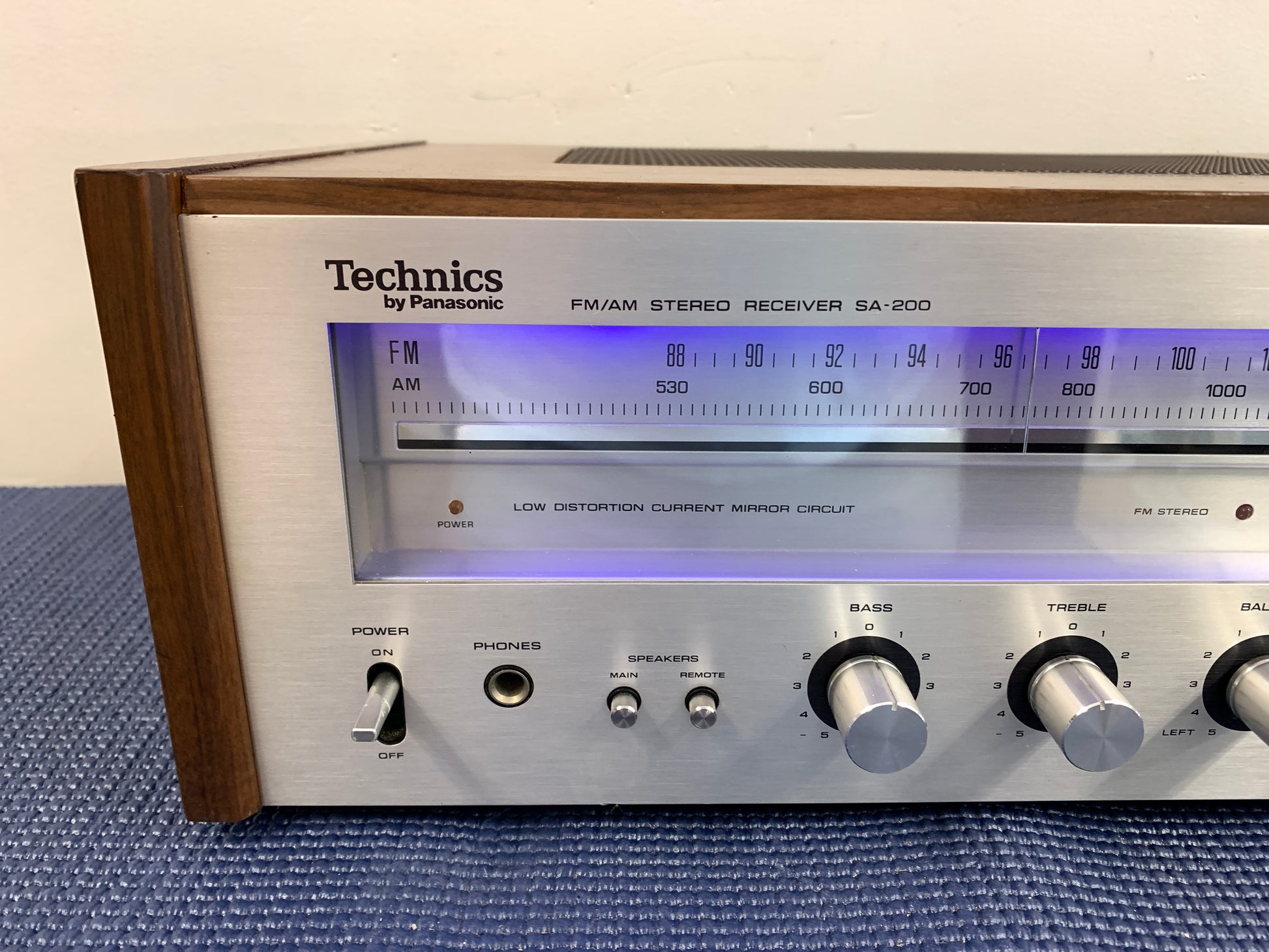

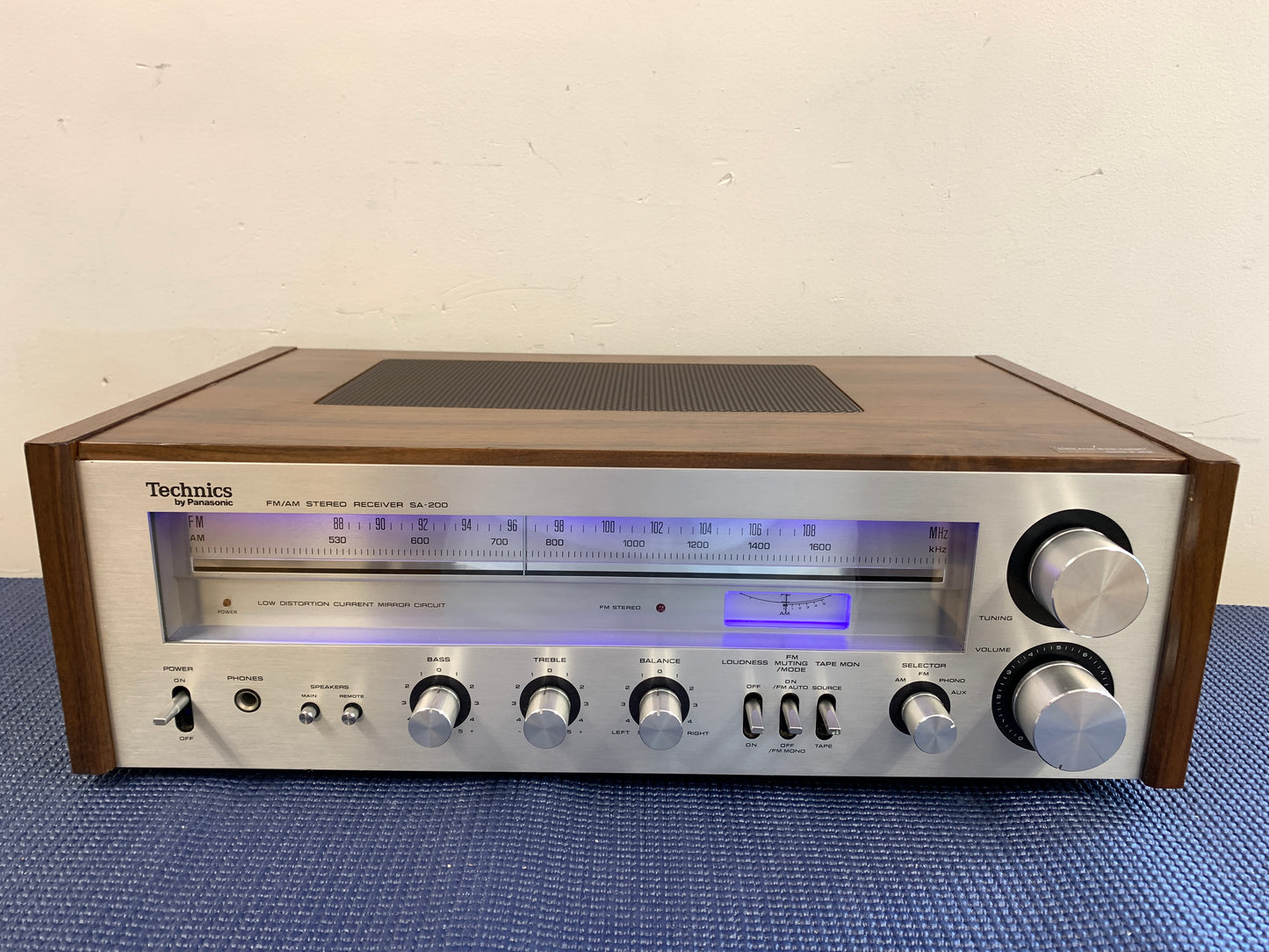

Technics SA-200

AM/FM Stereo Receiver (1978-79)

Specifications

Tuning range: FM, MW

Power output: 25 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 30kHz

Total harmonic distortion: 0.04%

Damping factor: 32

Input sensitivity: 2.5mV (MM), 180mV (DIN), 150mV (line)

Signal to noise ratio: 78dB (MM), 95dB (line)

Channel separation: 55dB (line)

Output: 150mV (line), 30mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Dimensions: 430 x 142 x 300mm

Weight: 7.2kg
