Akai 4000D Reel to Reel Tape Recorder

Akai 4000D Reel to Reel Tape Recorder

Akai

Regular price $400.00 USD
Sale price $400.00 USD Regular price
Sale Sold out

PICTURED REELS ARE NOT INCLUDED

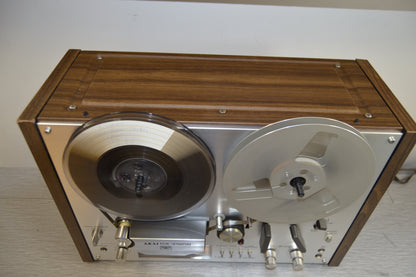

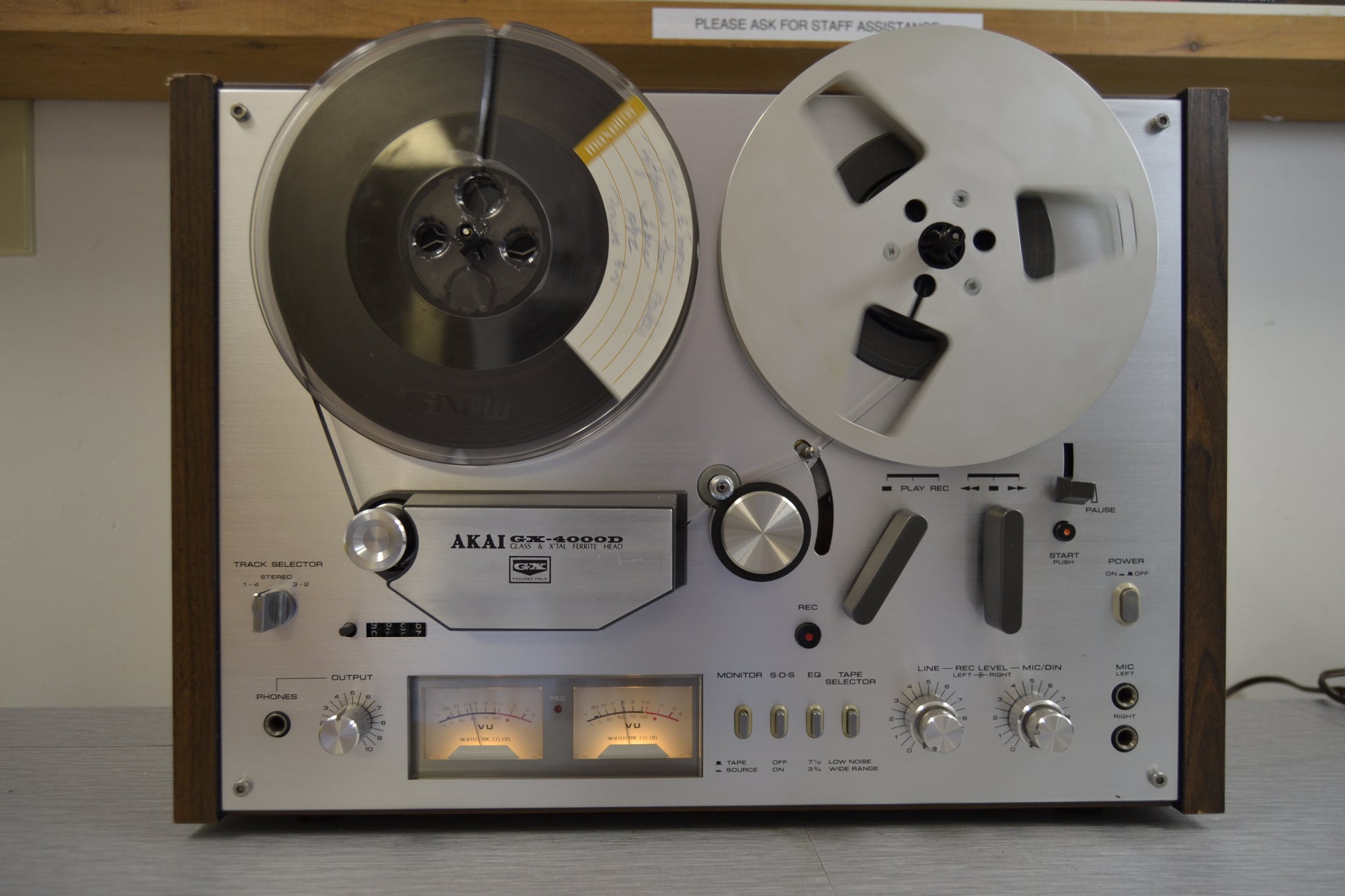

Akai 4000D

Stereo Reel to Reel Tape Recorder (1975-79)


Description

The 4000D is an attractively designed compact tape deck offering multiple connections and controls and quality features among which are Akai's one micron gap heads for high density recording and the well known Dolby Noise Reduction System.

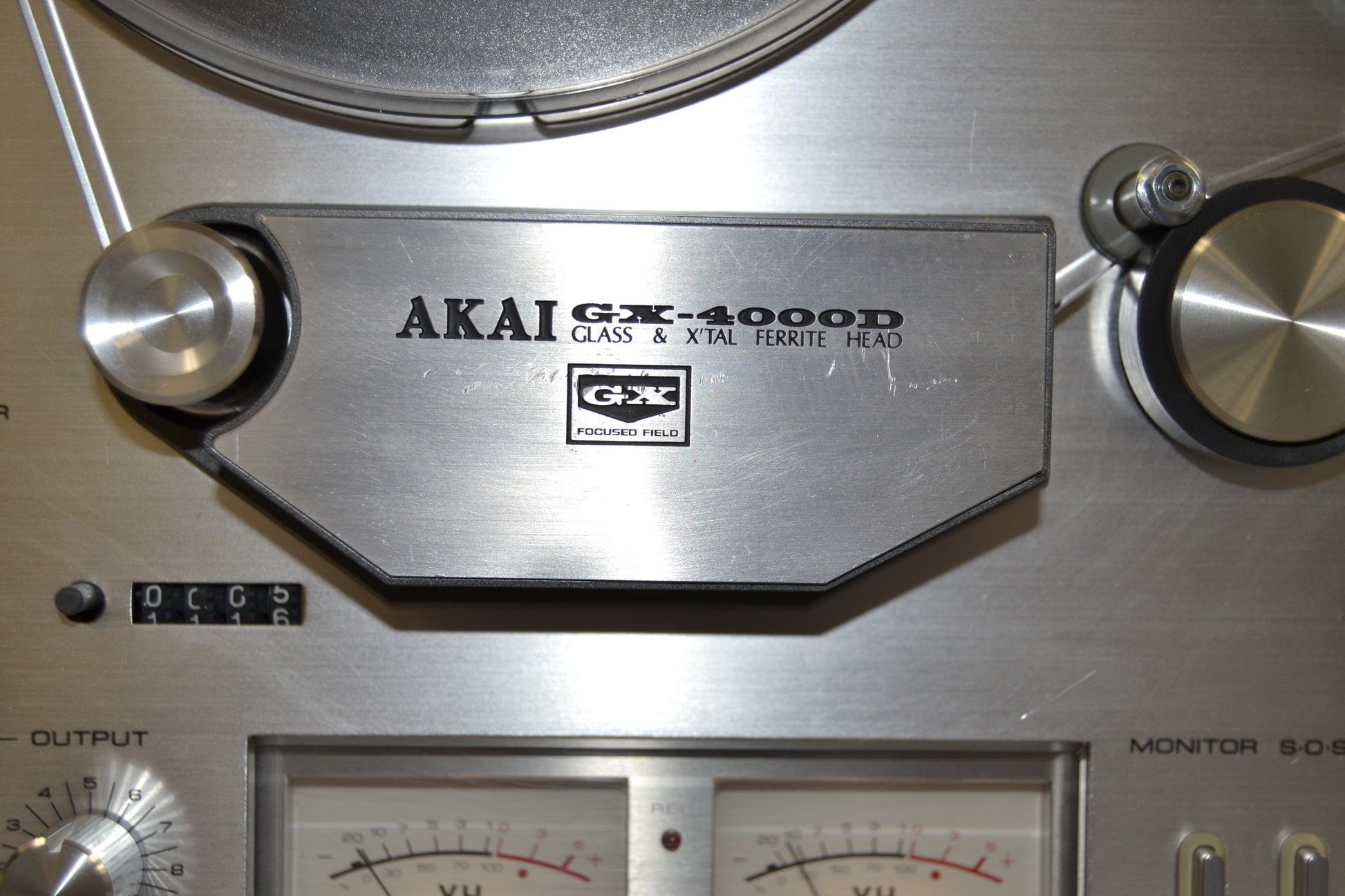

Tape Head

Akai's one-micron gap head is responsible for an amazingly important difference in tape recording. It's the difference between ordinary performance and high density quality recording and playback. Ordinary head gaps are from 2 to 4 microns, but the gap of this outstanding head is only one micron. This high density recording system provides excellent frequency response and clear, high pitched sound is generated as a frequency tone and recorded smoothly without distortion.

Dolby Noise Reduction

With the Dolby Noise Reduction System, hissing noise heretofore thought impossible to eliminate, is reduced to a completely inaudible level. Basically, this circuit boosts the low level signals prior to recording and lowers them by precisely that same amount at playback time. During this revolutionary process, the extraneous noise is eliminated, thus also eliminating tape hiss.

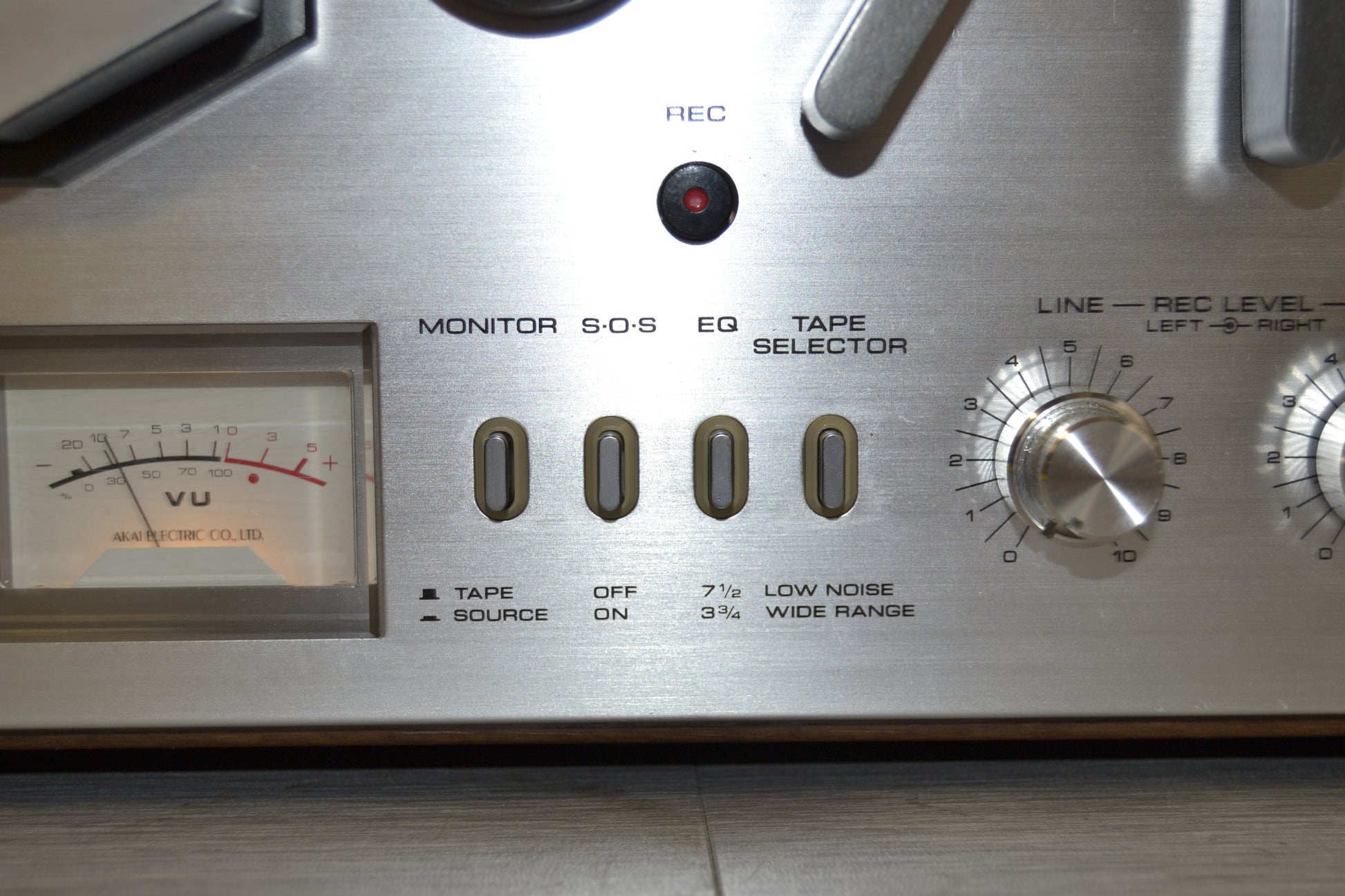

Dual Monitoring

A Tape Monitor Switch and three heads facilitate instant comparison of the recording being made with source signals. Easy confirmation of recording quality results in a more professional recording. The 4000D is also equipped with a front panel headphone jack for monitoring or private headphone listening.

Sound on Sound Recording

Sound-On-Sound is the accumulation of as many individual recordings on a single track as is desired. For instance, record on track 1 and rewind tape. While monitoring the first recording through headphones, record on track 3. Both recordings will merge on track 3. Repeat as many times as is desired by switching Track Selector positions. Convenient for fun or professional use.

Sound with Sound

Record on one track, then rewind tape and record on another track while listening to first recording through headphones. Playback and compare! Especially convenient for repetition and comparison exercises such as when studying a foreign language, etc.

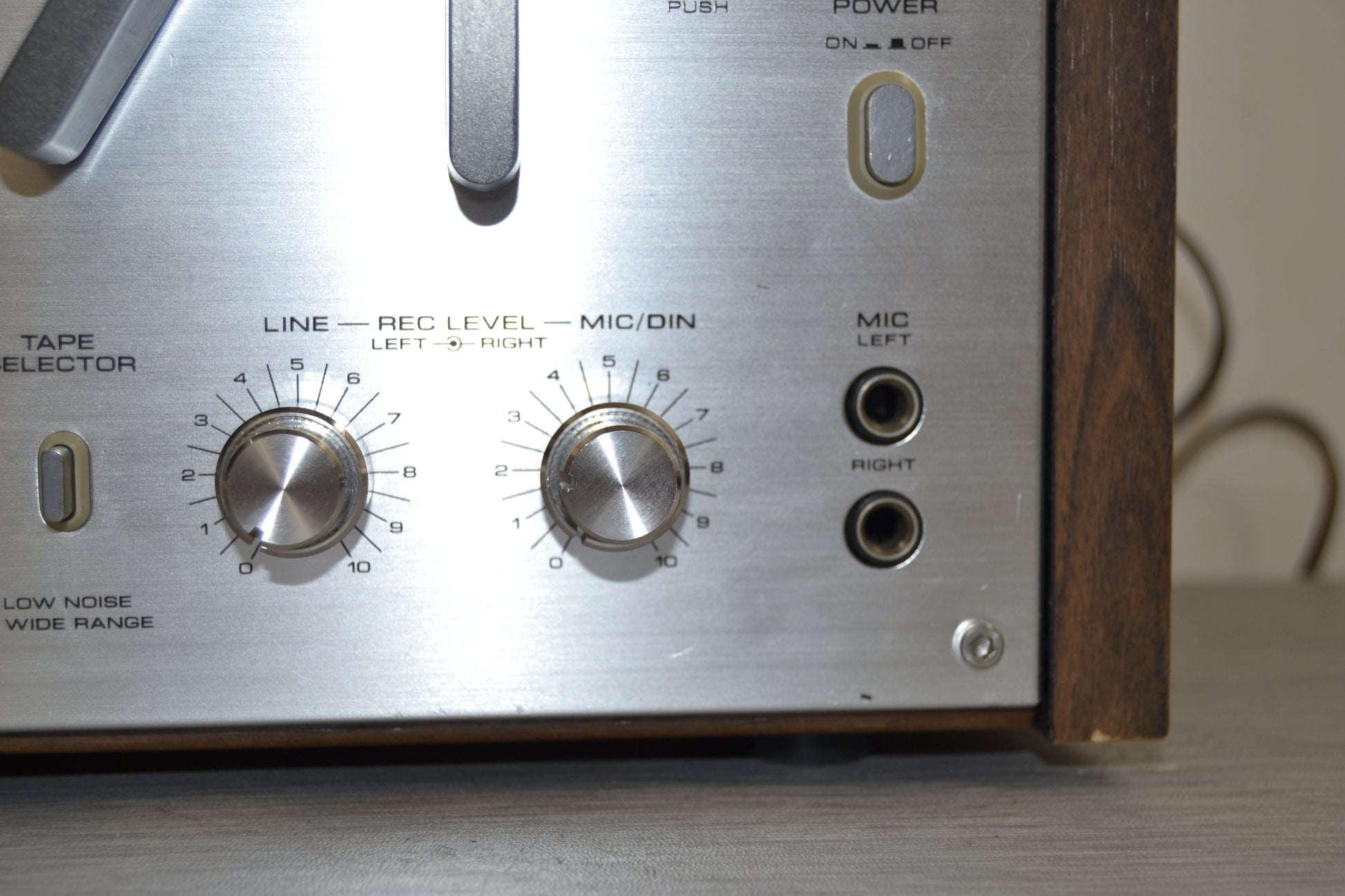

Sound Mixing

Independent line and microphone recording level controls and input jacks enable signals from microphone and line sources to be blended and recorded simultaneously. Record your own vocal style accompanied by your favourite orchestra, etc. Interesting and entertaining.

Automatic Shut Off

Threading the tape through the Automatic Shut-Off Lever and setting the Power Switch to Shut-Off position is all that is necessary to effect Automatic Shut-Off at the end of the tape. A convenient safety feature should the unit be left unattended.

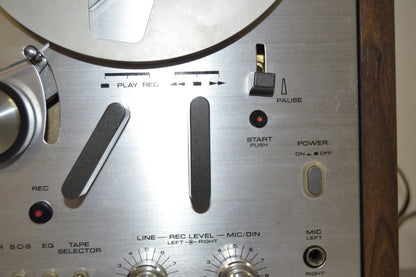

Pause Control

Momentarily stops tape travel during recording or playback. Pause control is especially useful when editing tapes. Simply lift Pause Lever when a certain portion of the program is not desired. Easy Start Button release.

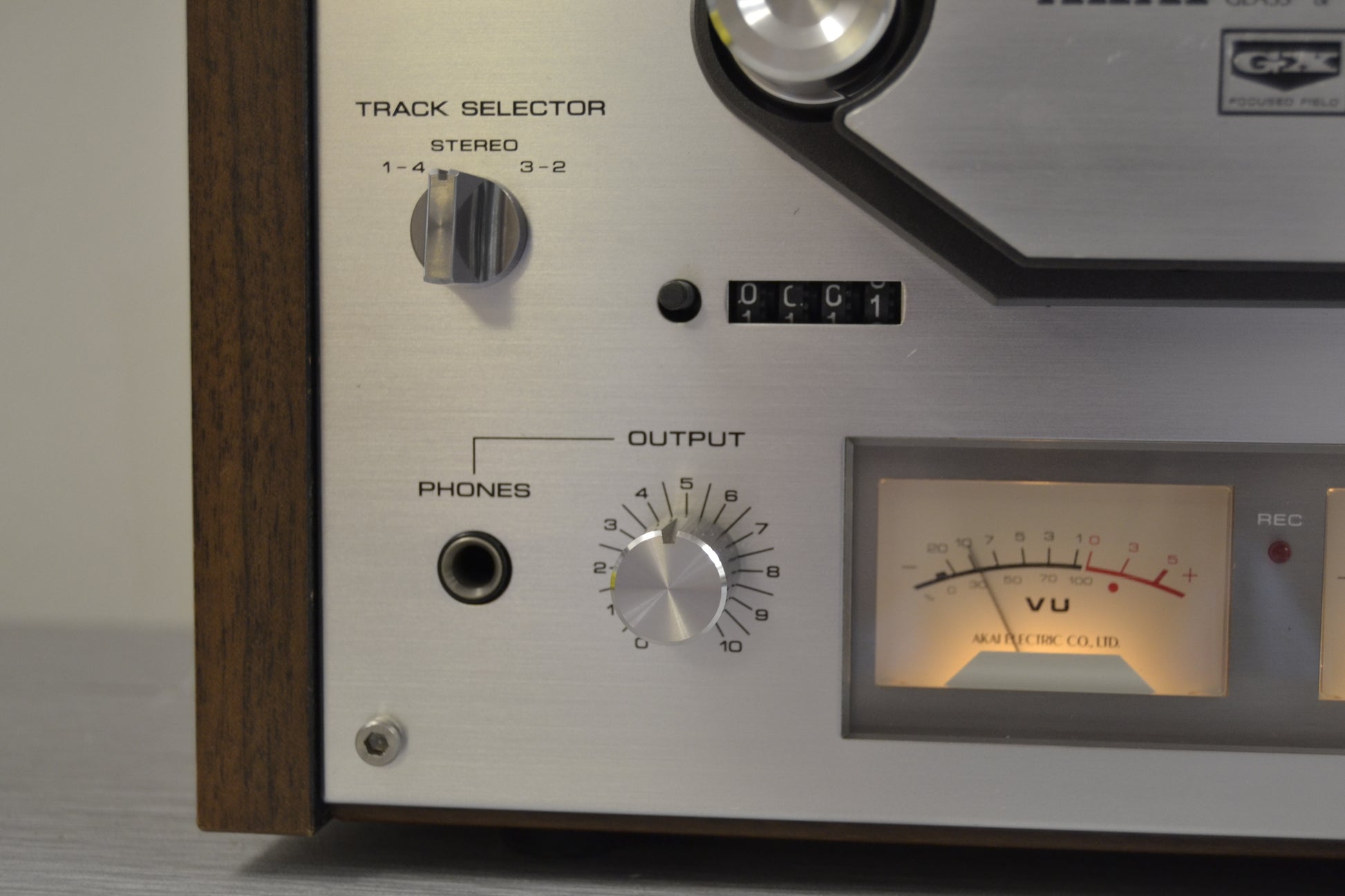

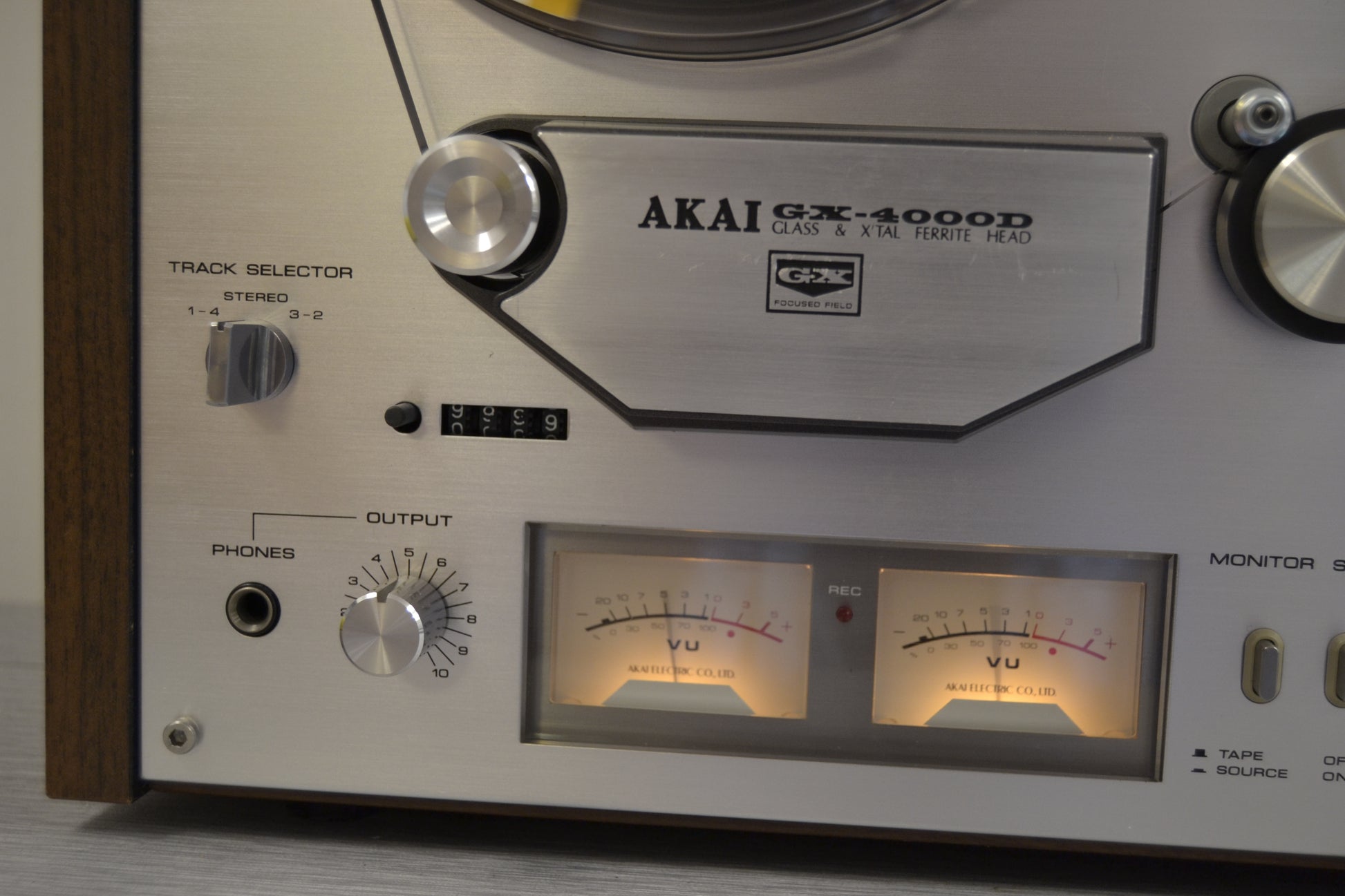

VU Meters

Internally illuminated expanded scale VU Meters provide quick and accurate determination of recording and playback levels.

Sturdy Mechanism

In keeping with Akai's top quality parts utilization policy, the 4000DB also features robust construction and sturdy mechanism. Further, a highly efficient induction type motor assures stable tape travel and ideal starting torque. The characteristics of this motor coupled with a boldly designed flywheel reduces wow and flutter significantly.

Specifications

Track system: 4-track, 2-channel, stereo/monaural system

Heads: 1 x record, 1 x playback, 1 x erase

Motor: 1 x 4-pole induction

Reel size: up to 7 inch reel

Tape speeds: 3 34  7 12 ips

Wow and flutter: 0.15% (7 12 ips)

Frequency response: 30Hz to 23kHz (7 12 ips)

Signal to Noise Ratio: 55dB

Total harmonic distortion: 1%

Crosstalk: 40dB

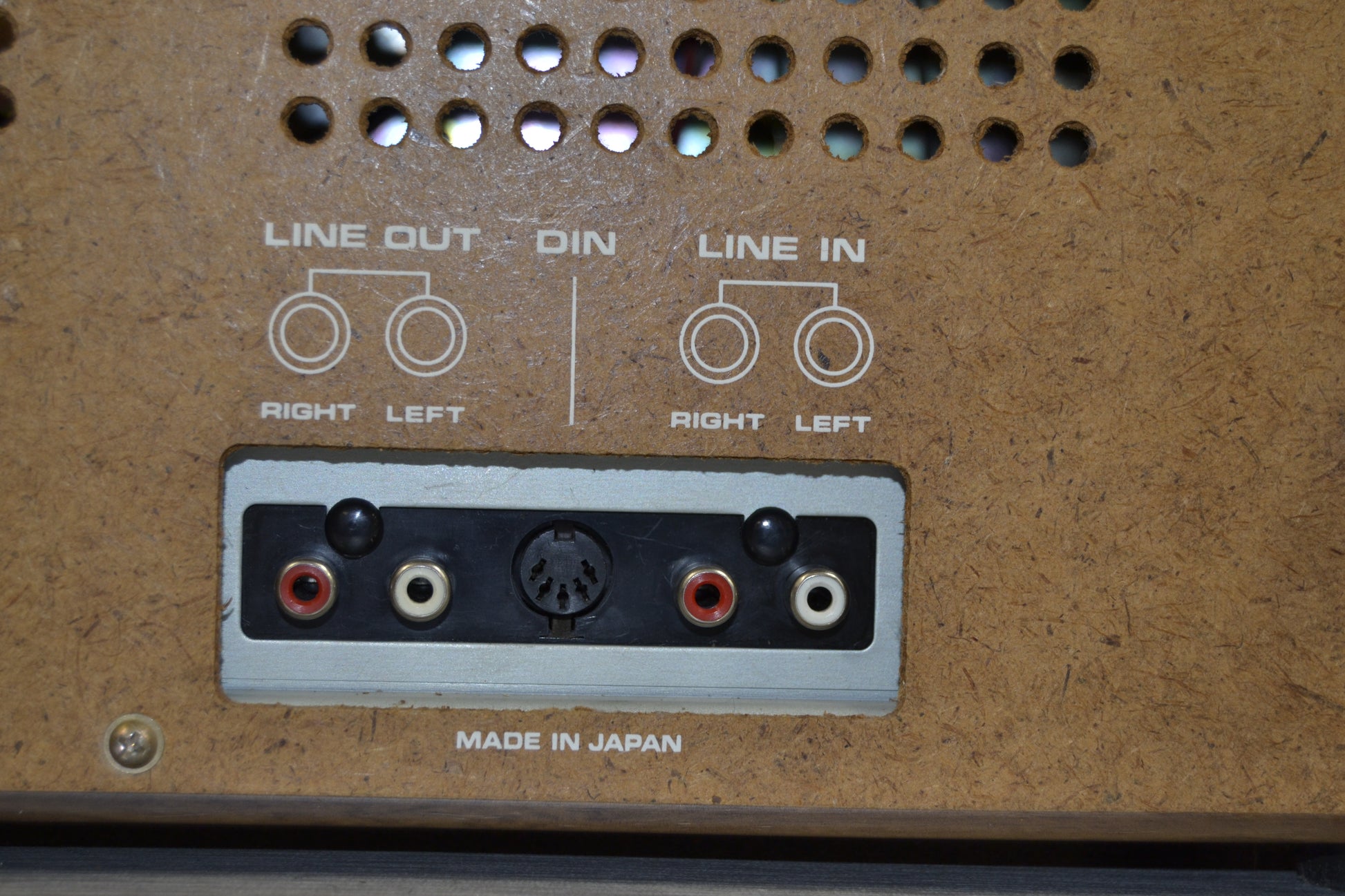

Input: 70mV (line), 0.4mV (mic)

Output: 0.775V (line)

Semiconductors: 27 x transistors, 2 x FET, 4 x IC, 17 x diodes

Dimensions: 406 x 325 x 196mm

Weight: 12kg

Out of stock

There’s something undeniably magnetic about vintage audio gear. The tactile weight of milled aluminum knobs, the warm glow of dial lamps, and—above all—the rich, analog sound that today’s sterile streaming boxes can’t quite replicate. But time is merciless: capacitors dry out, switches oxidize, and those gorgeous walnut cabinets lose their sheen. That’s where the art (and science) of our vintage audio refurbishment comes in.

Why Vintage Audio Still Matters

In the golden era of hi-fi—roughly the mid-1960s through the early 1980s—companies like Marantz, McIntosh, Pioneer, Sansui, and Technics were engaged in an arms race of build quality. This was before cost-cutting plastics and disposable designs; amplifiers were over-engineered, receivers were works of art, and turntables were precision instruments.

Owning one wasn’t just about sound; it was about status and permanence. These machines were built to last a lifetime—or two. The irony? Decades later, they often do, provided they’re given the care they deserve.

The Philosophy of Refurbishment

Refurbishment is not just about fixing; it’s about preserving authenticity while ensuring reliability. The goal is to keep that lush, analog character alive without compromising safety or sound quality.

Some enthusiasts chase museum-level originality—keeping every factory component in place. Others opt for sympathetic modernization, upgrading parts that never existed in the ’70s to improve performance. Both approaches can be valid; it depends on your vision.

The Turntable Store refurbishing process.. step by step

Step 1: The Initial Encounter

When we first meet a 40-year-old amplifier, we resist the urge to plug it in right away. That dusty Marantz 2270 might look gorgeous, but old electrolytics and brittle insulation can short instantly under full voltage.

Instead:

  • We inspect for corrosion, burnt resistors, and leaking capacitors.
  • We use a Variac (variable transformer) to bring up voltage slowly, reforming capacitors rather than shocking them back to life.
  • We check fuses—not just for continuity but for correct ratings.

Tip: A faint musty smell? That’s often the scent of old phenolic boards, not trouble. But a burnt smell? That’s trouble.


Step 2: Deep Cleaning & Control Detox

Dust is the enemy of good sound, that is why we clean the interior carefully with compressed air and a soft brush.

The real magic comes with switches and potentiometers. Over decades, oxidation builds up, causing scratchy controls and dropouts. A deep contact clean in each pot and switch, followed by vigorous cycling, often restores silky-smooth operation.

Step 3: Electrical Resurrection

This is where science meets art:

  • Capacitors: Electrolytic caps often need some attention. We replace out-of-spec caps with high-quality modern equivalents (Nichicon, Panasonic), avoiding over-capacitance unless the power supply can handle it.
  • Resistors: Carbon comp resistors drift over decades. Measure and replace out-of-spec parts.
  • Transistors: Certain vintage transistors (e.g., 2SC458) are notorious for noise. We do swap defective ones for modern low-noise equivalents.
  • Relays & Lamps: Speaker relays oxidize; replace or clean contacts. Dial lamps? Upgrade to warm LEDs for a factory glow without the heat.


Step 4: Cosmetic Glory

Refinishing the walnut cabinet can transform a unit. We do use real wood oil or Danish oil, not polyurethane. We clean the glass dial carefully; those silkscreened letters are fragile.

Knobs? We polish with metal cleaner, but never use abrasives on anodized aluminum.

Faceplate lettering? We avoid harsh chemicals—just mild soap and a microfiber cloth.


Step 5: Calibration & Sonic Check

After the repair and cleaning, it’s time to dial in the performance:

  • We do adjust bias and DC offset on amplifiers for stable operation.
  • On turntables, we re-lube bearings, replace belts, and check speed accuracy.
  • On Cassette Decks and Reel to Reels, we replace belts ( if needed ), we clean and demagnetize the heads before the alignment process ( a must ! )

When done right, the result is astonishing: a sound that breathes—liquid mids, velvet highs, and bass with a tactile presence that modern gear rarely matches.


Our promise for Audiophile-Level Results

  • We Avoid Cheap Parts: That $5 eBay capacitor kit? Hard pass. We use reputable brands.
  • We Don’t Over-Polish: Patina is part of the charm. We aim for “well-loved,” not “plastic surgery.”
  • We Upgrade Discreetly: If we must modernize (like adding gold-plated RCA jacks), we keep it tasteful and reversible.


Why It’s Worth It

The payoff isn’t just sonic—it’s emotional. Restoring a 1970s Marantz or Sansui is like bringing a classic car back to life. Every glowing dial lamp, every smooth rotation of a volume knob, connects you to an era when music mattered enough to build machines like this.

And when you drop the needle on your favorite record and hear that warm, enveloping sound, you’ll know: this wasn’t just a repair. It was a resurrection.
