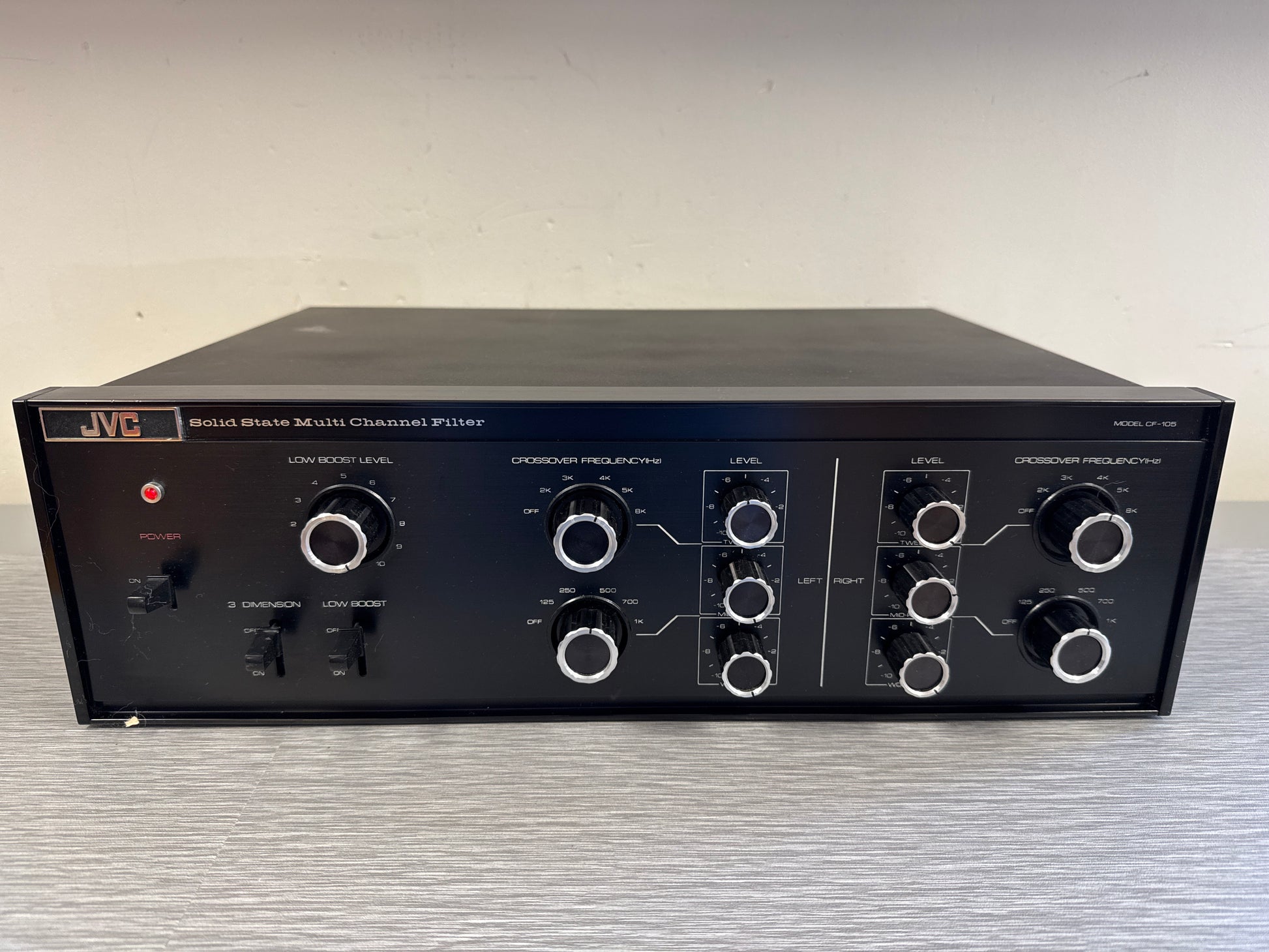

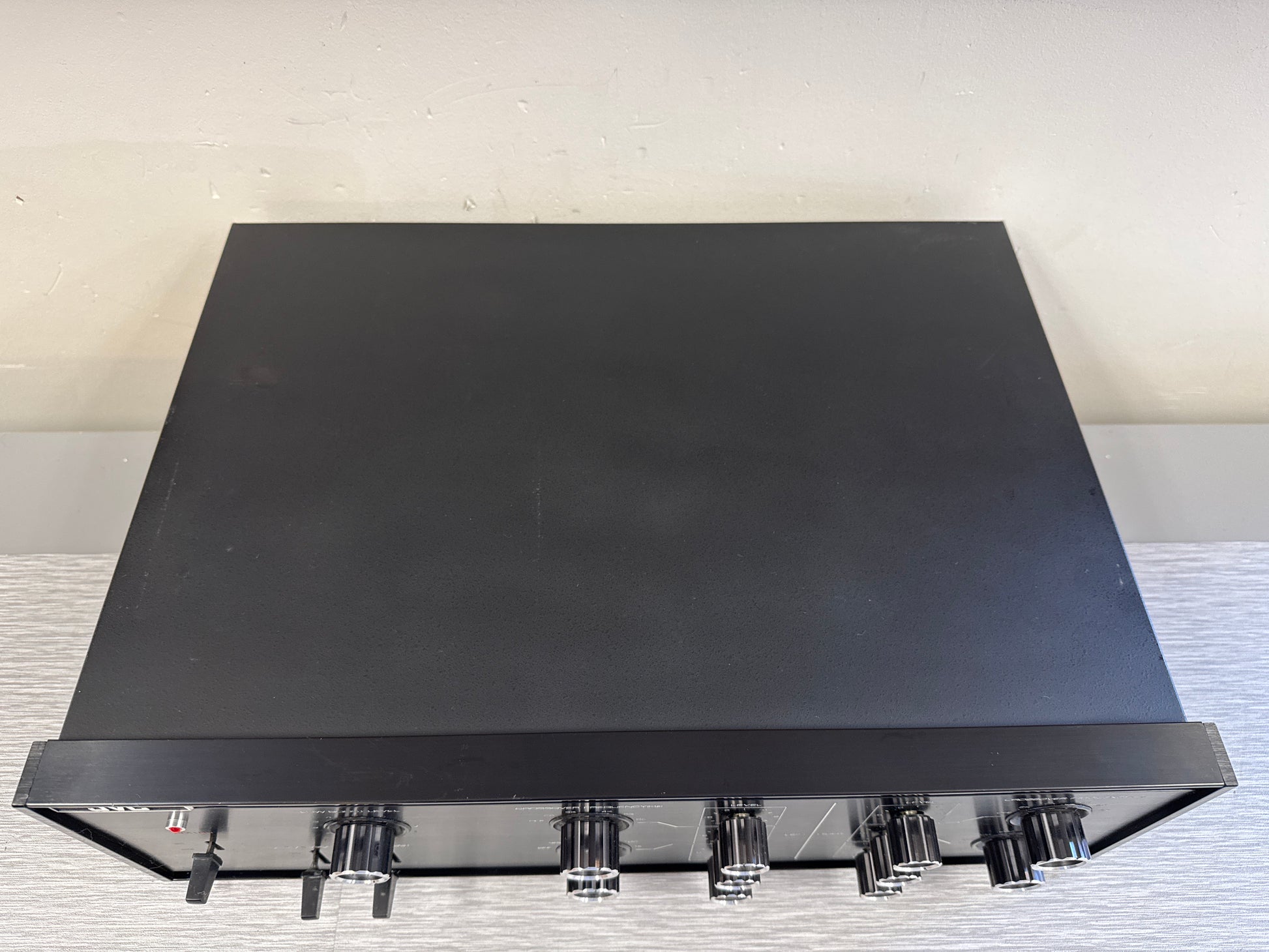

JVC CF-105 Solid State Multi Channel Filter * External Crossover * Equalize your Bi-Amp or Tri-Amp Speakers

JVC CF-105 Solid State Multi Channel Filter * External Crossover * Equalize your Bi-Amp or Tri-Amp Speakers

JVC

Regular price $200.00 USD
Sale price $200.00 USD Regular price
Sale Sold out

Channel divider for 105 series 2-3 channel multi-amplifier.

The CF 105 can be used in 2-channel or 3-channel multi-amp systems as the amplifier is upgraded.

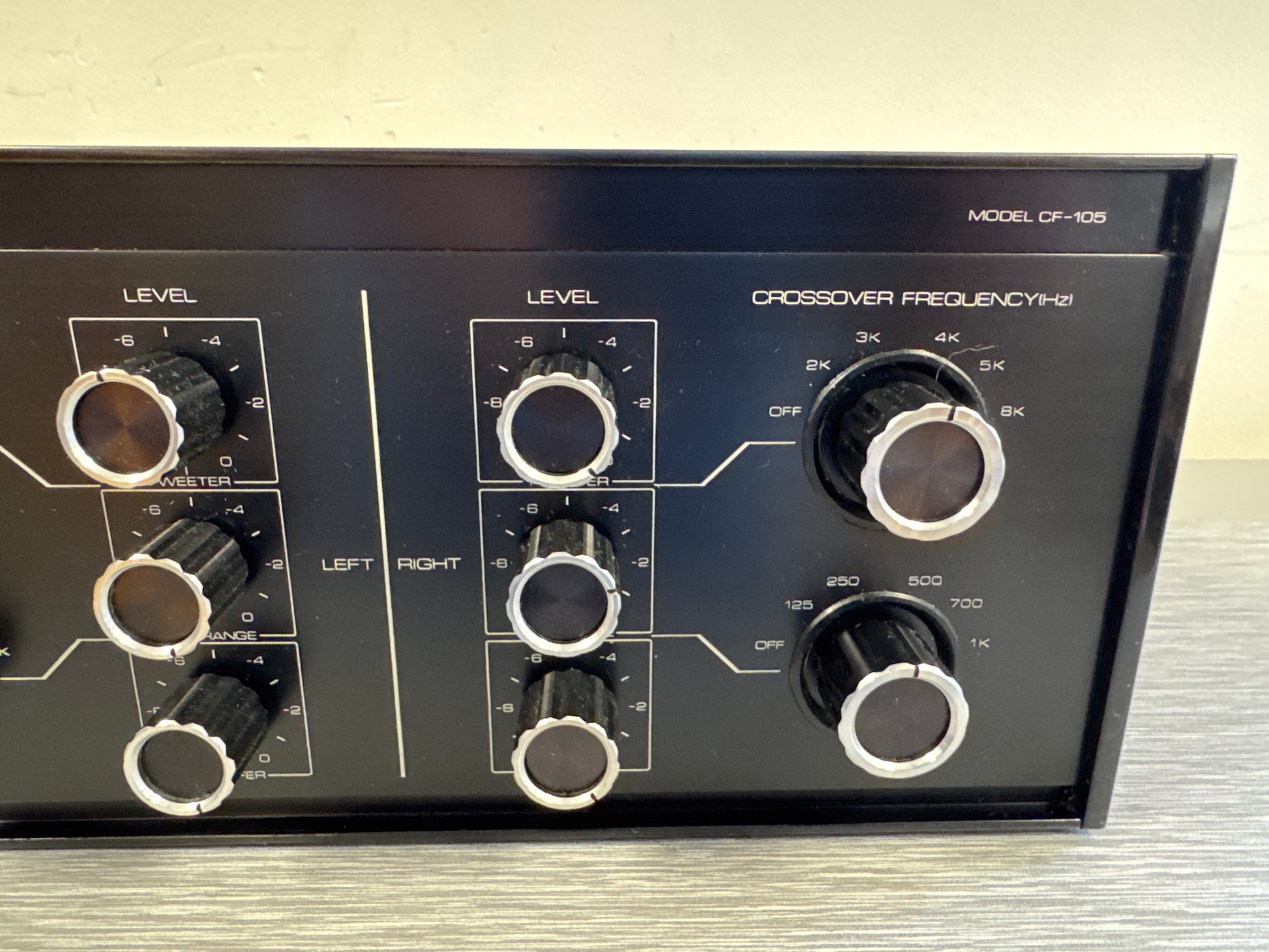

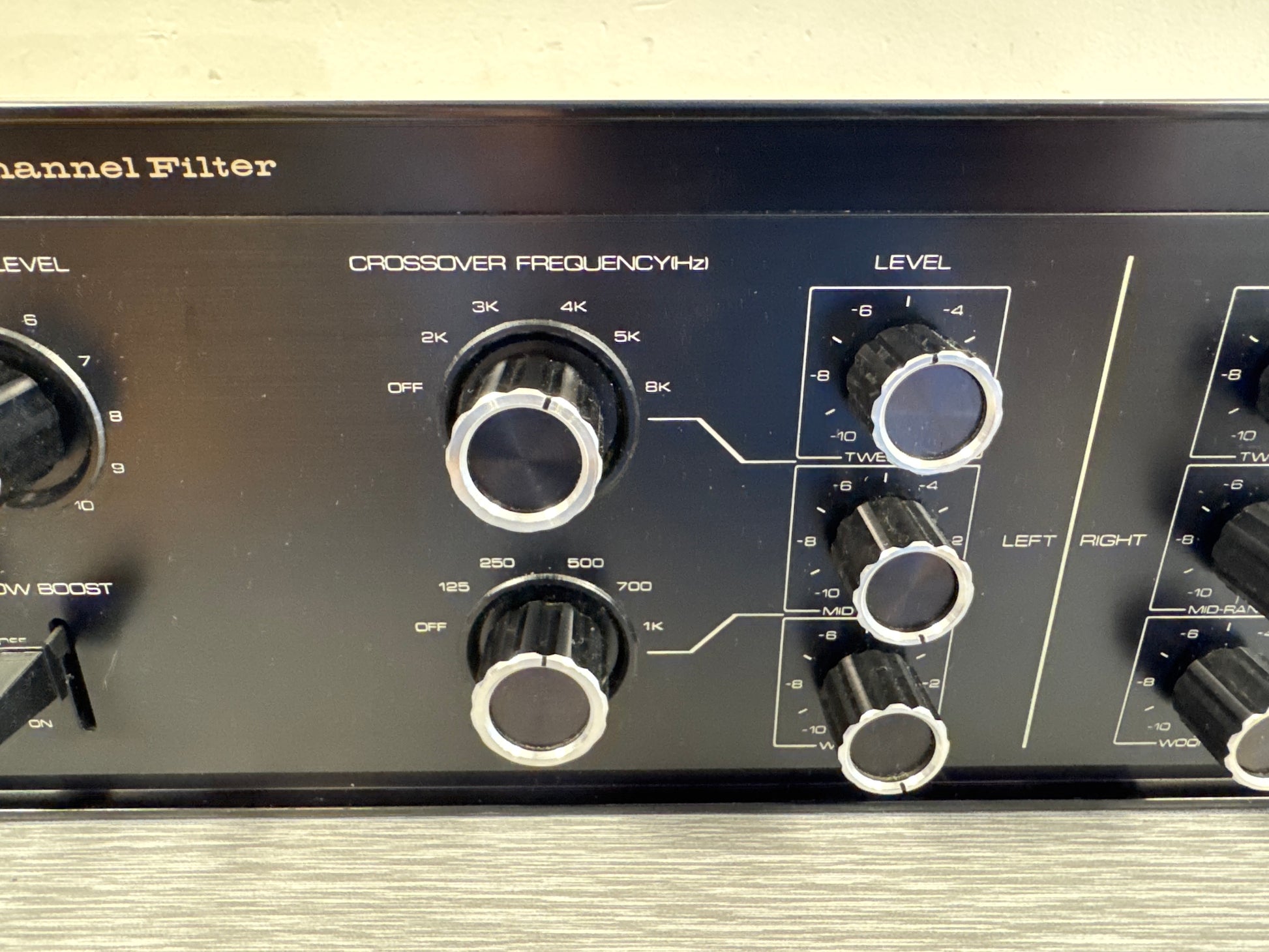

The 10-point crossover frequency allows you to set the optimum crossover frequency.
It is also possible to turn it OFF.

The output stage is equipped with volume type level control for each terminal.

PNP type silicon planar transistor is used.
Compared with the conventional NPN type silicon transistor, it has a feature of low noise in the middle and high range.

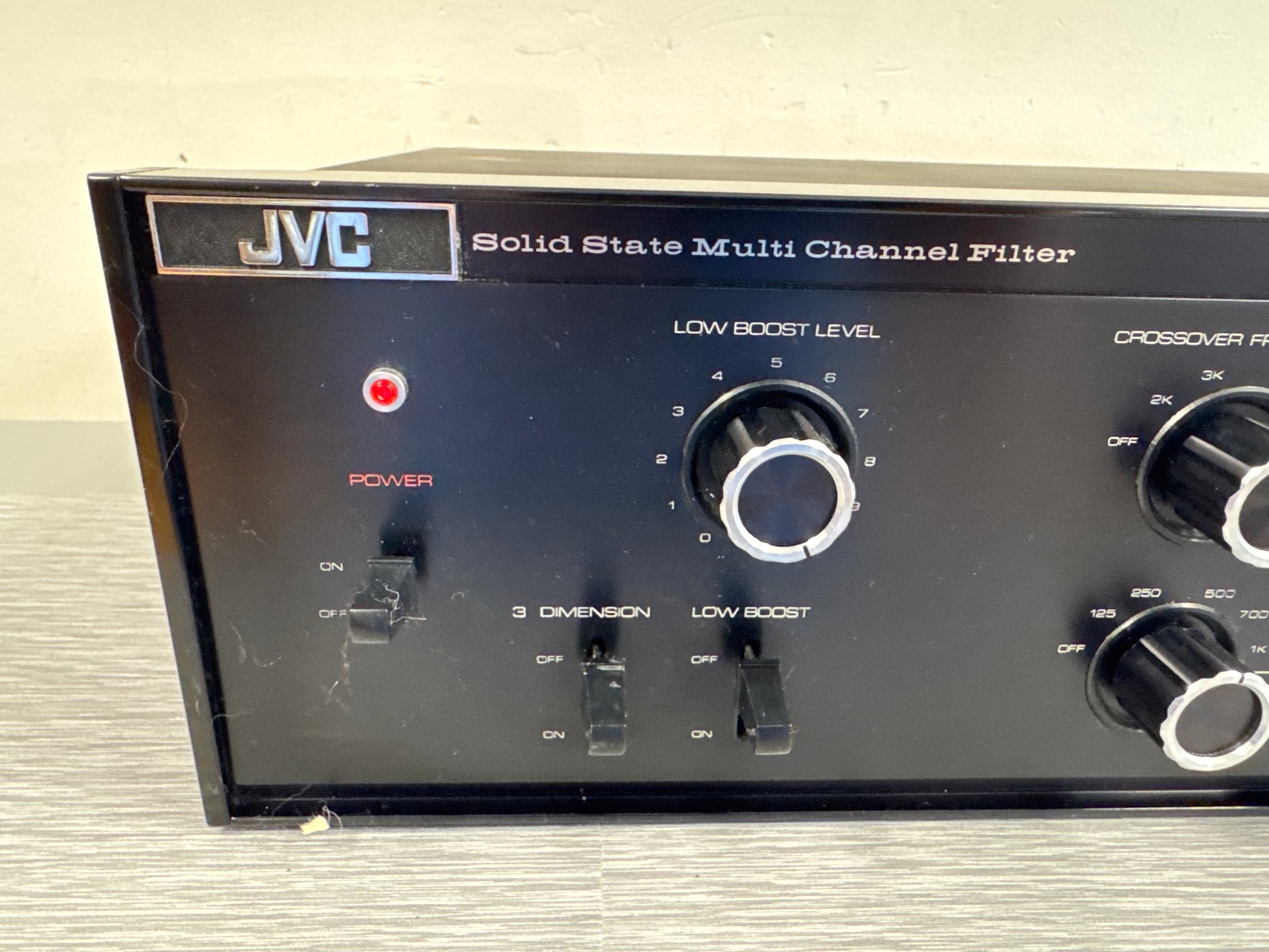

It is equipped with an SEA type low booster.
If you use a multi-amp system instead of a general speaker system, you may feel low bass. To compensate for this, we have installed a low booster unit that can be switched and adjusted.

Equipped with a 3D switch, it is also compatible with 3D system.
In this case, the circuit is configured to mix the Low output.

Output impedance is reduced by using a two stage direct-coupled output circuit with emitter-follower circuit and deep NF for each channel.
This reduces the effect of extending the output signal with a cable.

There was a wooden case as an option sold separately.



Model Rating
Type Channel filter
Lower crossover 125, 250, 500, 700, 1 kHz (Independent Left / Right)
Upper crossover 2k, 3k, 4k, 5k, 8 kHz (Independent Right / Left)
Defeat switch Mounted
Decay rate 18dB/oct
Passband characteristic 0.5 dB ± 0.3 dB
Frequency characteristic 20 Hz to 20 kHz 0.5 dB ± 0.3 dB
Signal-to-noise ratio 70dB
Frequency accuracy + / - 4 per cent
Power adjustment 0 ~ -40dB (L/R Independent Variable)
Harmonic distortion factor 3V(0.1%)
Low boost 60 Hz : 0 to + 10 dB
3D Output Switchable
Residual noise 0.2mV
Allowable input voltage 3V

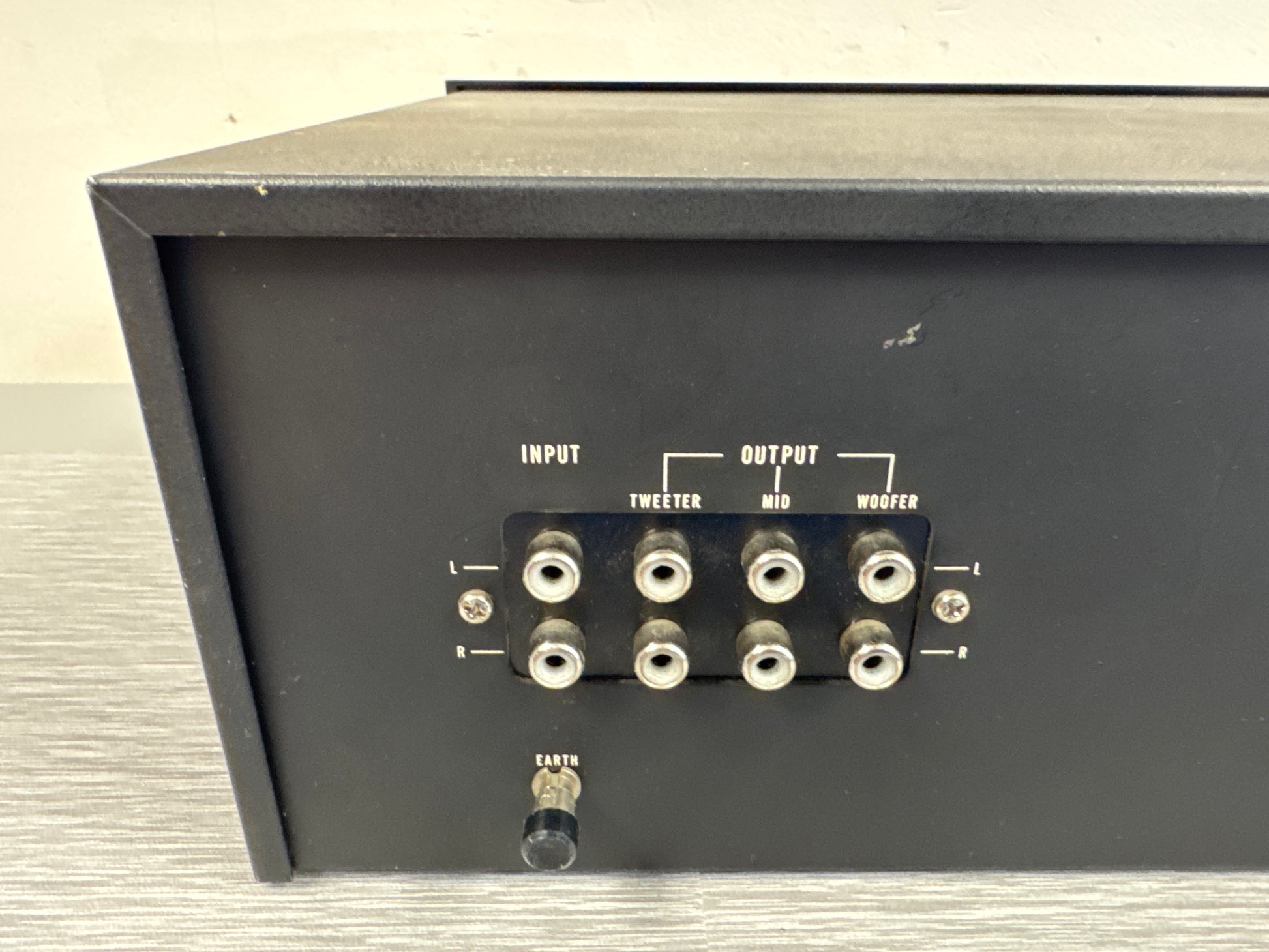

Output channel 2 channels, 3 channels
* Switchable
Semiconductor used Transistor : 26
Diode : 2 pcs

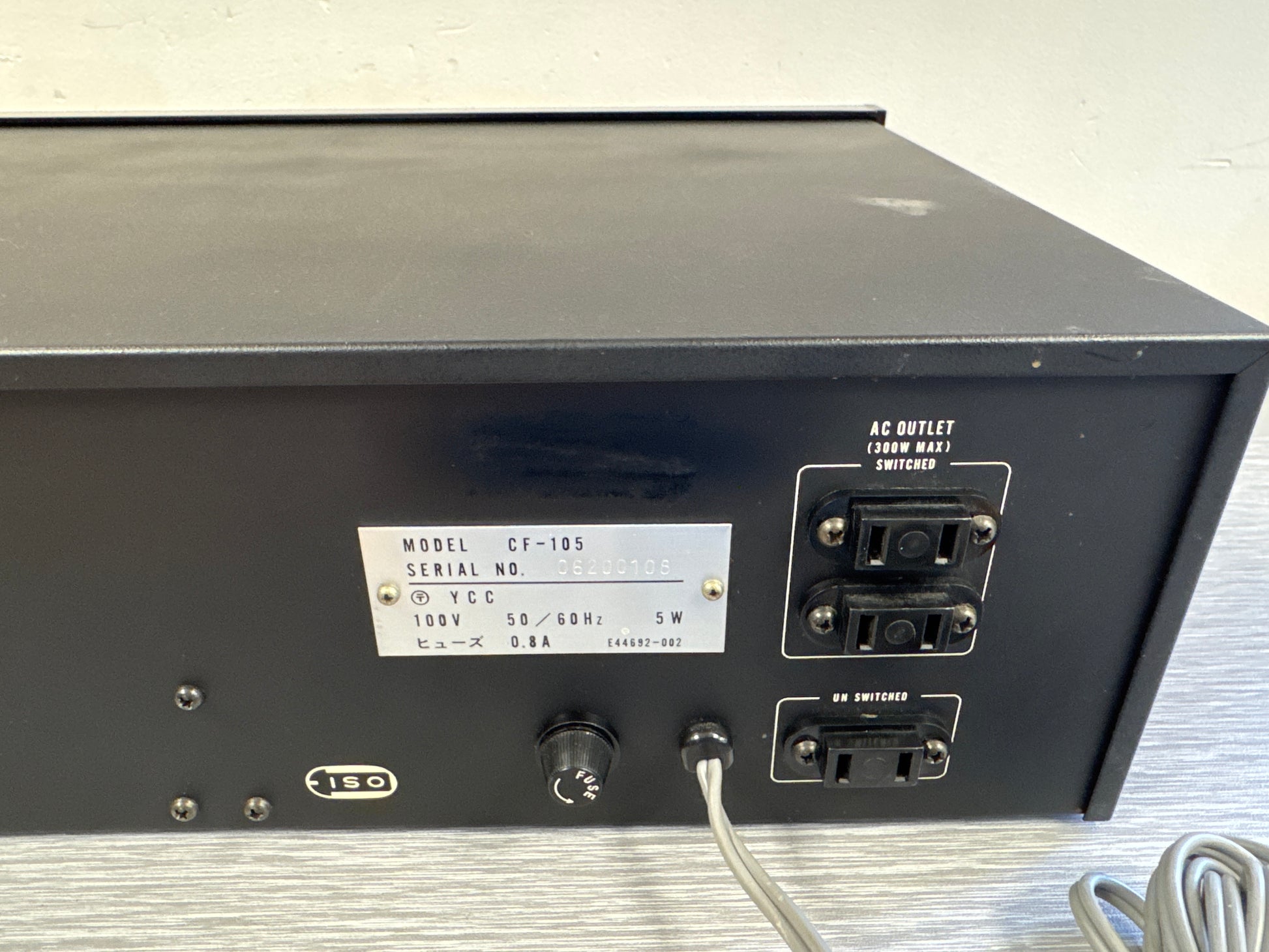

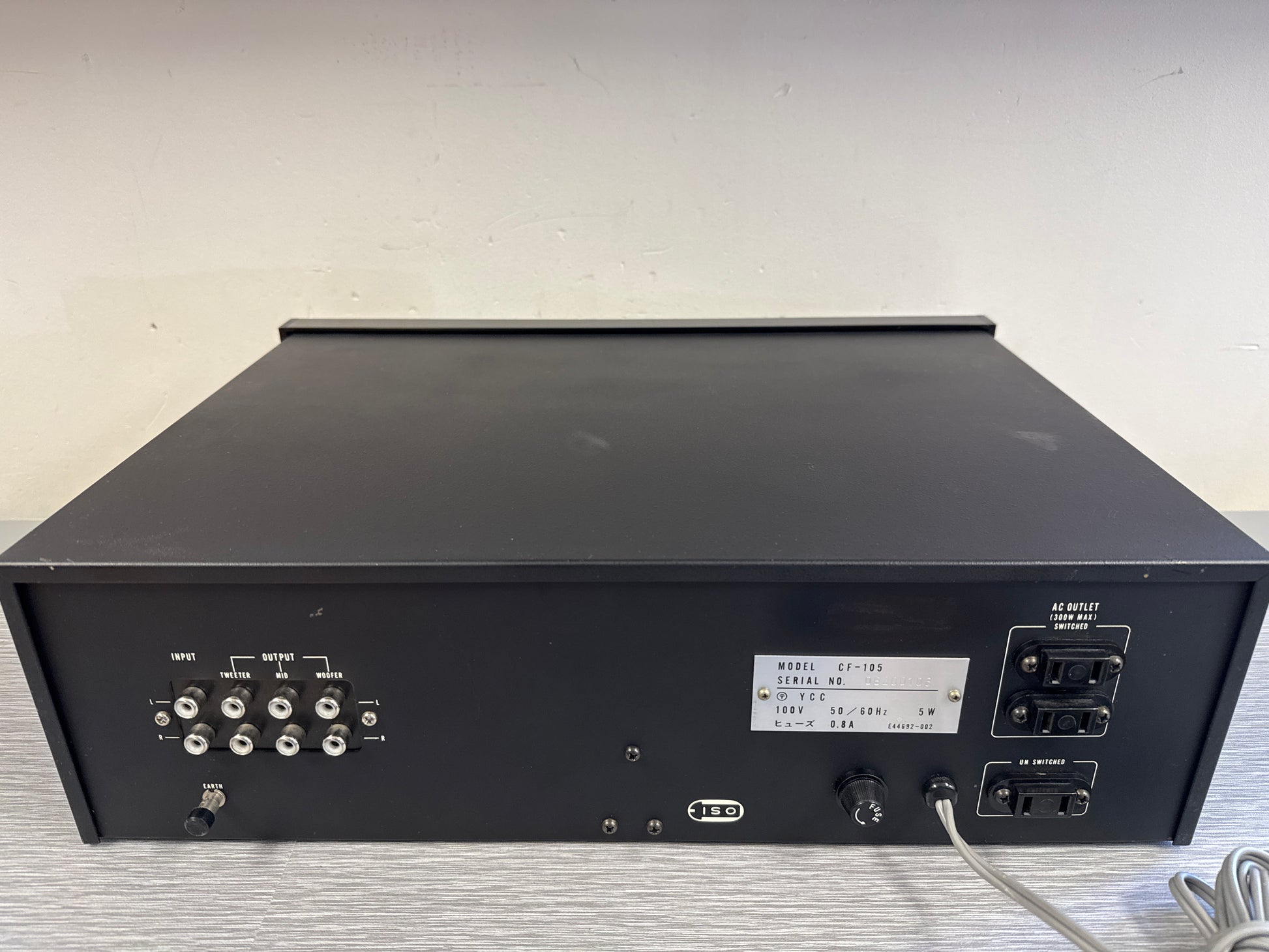

Power outlet Interlocking : 2 systems
Non-linked : 1 system
Total 300W
Power 100 VAC (120V/220V/240V Switchable), 50Hz/60Hz
Power consumption 3W
External dimensions Width 420x Height 138x Depth 296 mm
Weight 7kg
Sold Separately Wooden Case WAC-3 (¥ 5,000)

In stock

Pickup available at 45 Market Square

Usually ready in 24 hours

There’s something undeniably magnetic about vintage audio gear. The tactile weight of milled aluminum knobs, the warm glow of dial lamps, and—above all—the rich, analog sound that today’s sterile streaming boxes can’t quite replicate. But time is merciless: capacitors dry out, switches oxidize, and those gorgeous walnut cabinets lose their sheen. That’s where the art (and science) of our vintage audio refurbishment comes in.

Why Vintage Audio Still Matters

In the golden era of hi-fi—roughly the mid-1960s through the early 1980s—companies like Marantz, McIntosh, Pioneer, Sansui, and Technics were engaged in an arms race of build quality. This was before cost-cutting plastics and disposable designs; amplifiers were over-engineered, receivers were works of art, and turntables were precision instruments.

Owning one wasn’t just about sound; it was about status and permanence. These machines were built to last a lifetime—or two. The irony? Decades later, they often do, provided they’re given the care they deserve.

The Philosophy of Refurbishment

Refurbishment is not just about fixing; it’s about preserving authenticity while ensuring reliability. The goal is to keep that lush, analog character alive without compromising safety or sound quality.

Some enthusiasts chase museum-level originality—keeping every factory component in place. Others opt for sympathetic modernization, upgrading parts that never existed in the ’70s to improve performance. Both approaches can be valid; it depends on your vision.

The Turntable Store refurbishing process.. step by step

Step 1: The Initial Encounter

When we first meet a 40-year-old amplifier, we resist the urge to plug it in right away. That dusty Marantz 2270 might look gorgeous, but old electrolytics and brittle insulation can short instantly under full voltage.

Instead:

  • We inspect for corrosion, burnt resistors, and leaking capacitors.
  • We use a Variac (variable transformer) to bring up voltage slowly, reforming capacitors rather than shocking them back to life.
  • We check fuses—not just for continuity but for correct ratings.

Tip: A faint musty smell? That’s often the scent of old phenolic boards, not trouble. But a burnt smell? That’s trouble.


Step 2: Deep Cleaning & Control Detox

Dust is the enemy of good sound, that is why we clean the interior carefully with compressed air and a soft brush.

The real magic comes with switches and potentiometers. Over decades, oxidation builds up, causing scratchy controls and dropouts. A deep contact clean in each pot and switch, followed by vigorous cycling, often restores silky-smooth operation.

Step 3: Electrical Resurrection

This is where science meets art:

  • Capacitors: Electrolytic caps often need some attention. We replace out-of-spec caps with high-quality modern equivalents (Nichicon, Panasonic), avoiding over-capacitance unless the power supply can handle it.
  • Resistors: Carbon comp resistors drift over decades. Measure and replace out-of-spec parts.
  • Transistors: Certain vintage transistors (e.g., 2SC458) are notorious for noise. We do swap defective ones for modern low-noise equivalents.
  • Relays & Lamps: Speaker relays oxidize; replace or clean contacts. Dial lamps? Upgrade to warm LEDs for a factory glow without the heat.


Step 4: Cosmetic Glory

Refinishing the walnut cabinet can transform a unit. We do use real wood oil or Danish oil, not polyurethane. We clean the glass dial carefully; those silkscreened letters are fragile.

Knobs? We polish with metal cleaner, but never use abrasives on anodized aluminum.

Faceplate lettering? We avoid harsh chemicals—just mild soap and a microfiber cloth.


Step 5: Calibration & Sonic Check

After the repair and cleaning, it’s time to dial in the performance:

  • We do adjust bias and DC offset on amplifiers for stable operation.
  • On turntables, we re-lube bearings, replace belts, and check speed accuracy.
  • On Cassette Decks and Reel to Reels, we replace belts ( if needed ), we clean and demagnetize the heads before the alignment process ( a must ! )

When done right, the result is astonishing: a sound that breathes—liquid mids, velvet highs, and bass with a tactile presence that modern gear rarely matches.


Our promise for Audiophile-Level Results

  • We Avoid Cheap Parts: That $5 eBay capacitor kit? Hard pass. We use reputable brands.
  • We Don’t Over-Polish: Patina is part of the charm. We aim for “well-loved,” not “plastic surgery.”
  • We Upgrade Discreetly: If we must modernize (like adding gold-plated RCA jacks), we keep it tasteful and reversible.


Why It’s Worth It

The payoff isn’t just sonic—it’s emotional. Restoring a 1970s Marantz or Sansui is like bringing a classic car back to life. Every glowing dial lamp, every smooth rotation of a volume knob, connects you to an era when music mattered enough to build machines like this.

And when you drop the needle on your favorite record and hear that warm, enveloping sound, you’ll know: this wasn’t just a repair. It was a resurrection.
