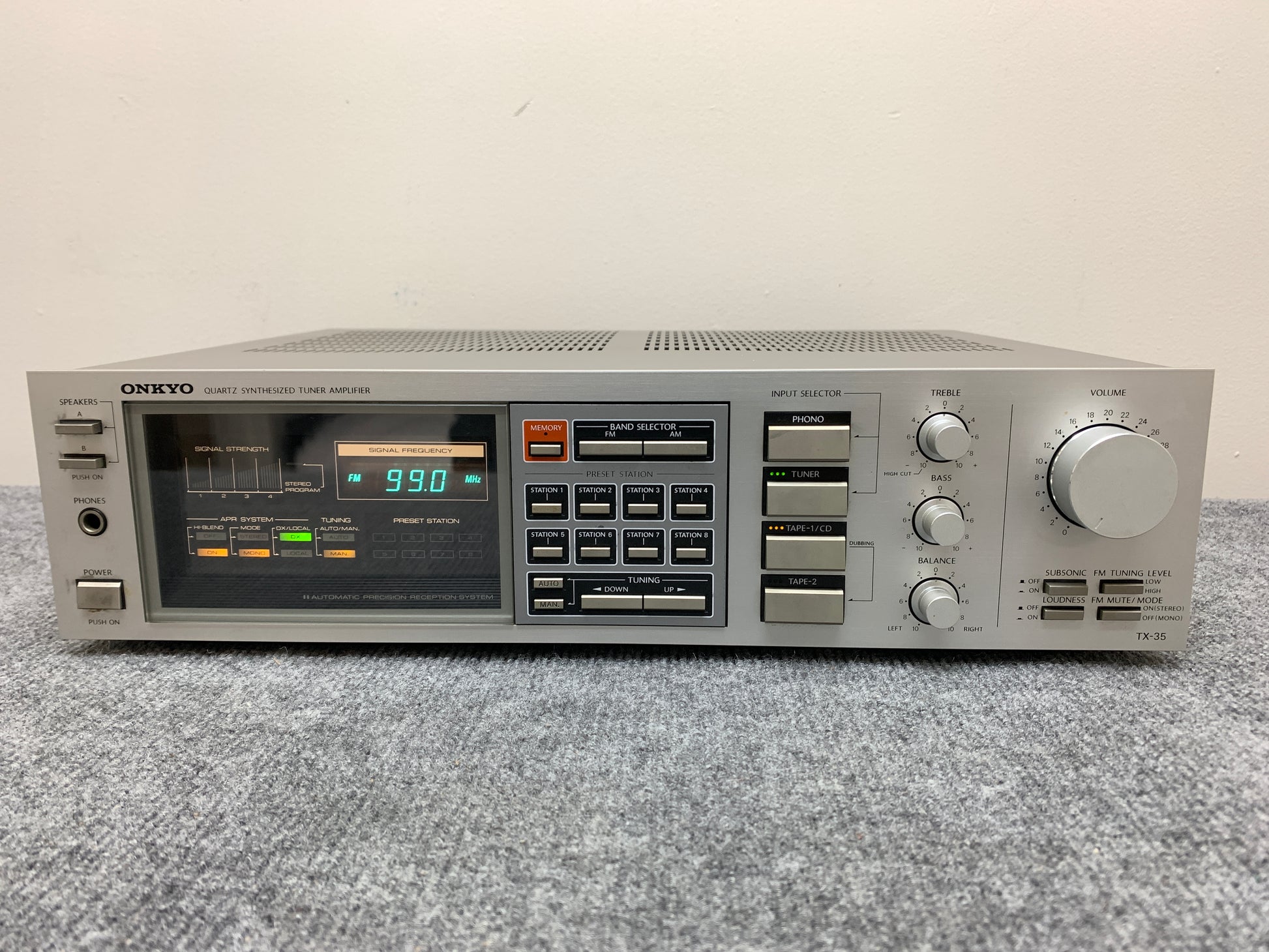

Onkyo TX-35

Quartz Synthesized Tuner Amplifier (1983-84)

Specifications

Tuning range: FM, MW

Power output: 45 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 30kHz

Total harmonic distortion: 0.04%

Damping factor: 35

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 75dB (MM), 80dB (line)

Output: 150mV (line)

Speaker load impedance: 4Ω (minimum)

Semiconductors: 6 x EET, 30 x transistors, 10 x IC, 74 x diodes

Dimensions: 418 x 112 x 340mm

Weight: 7.3kg
