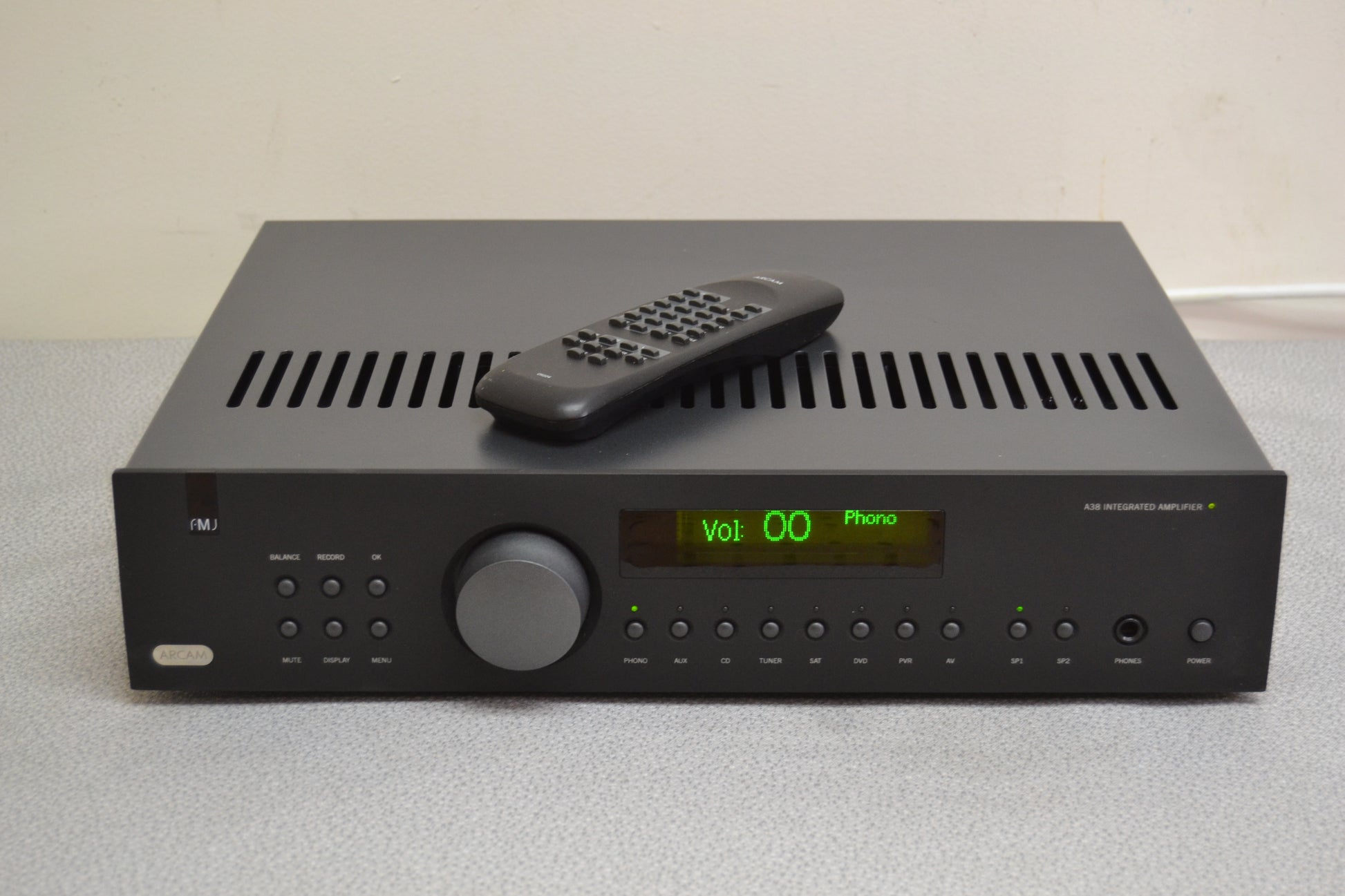

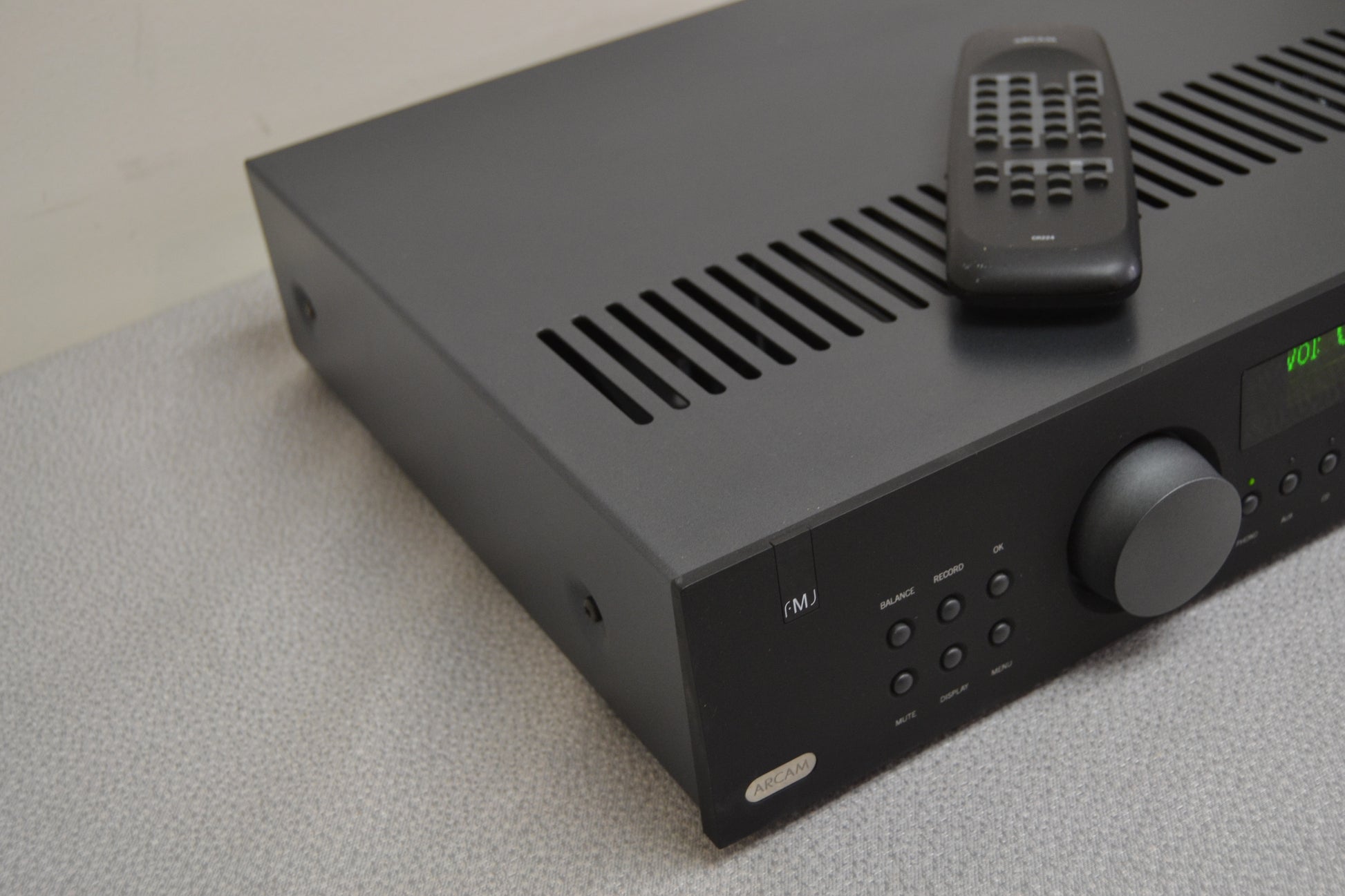

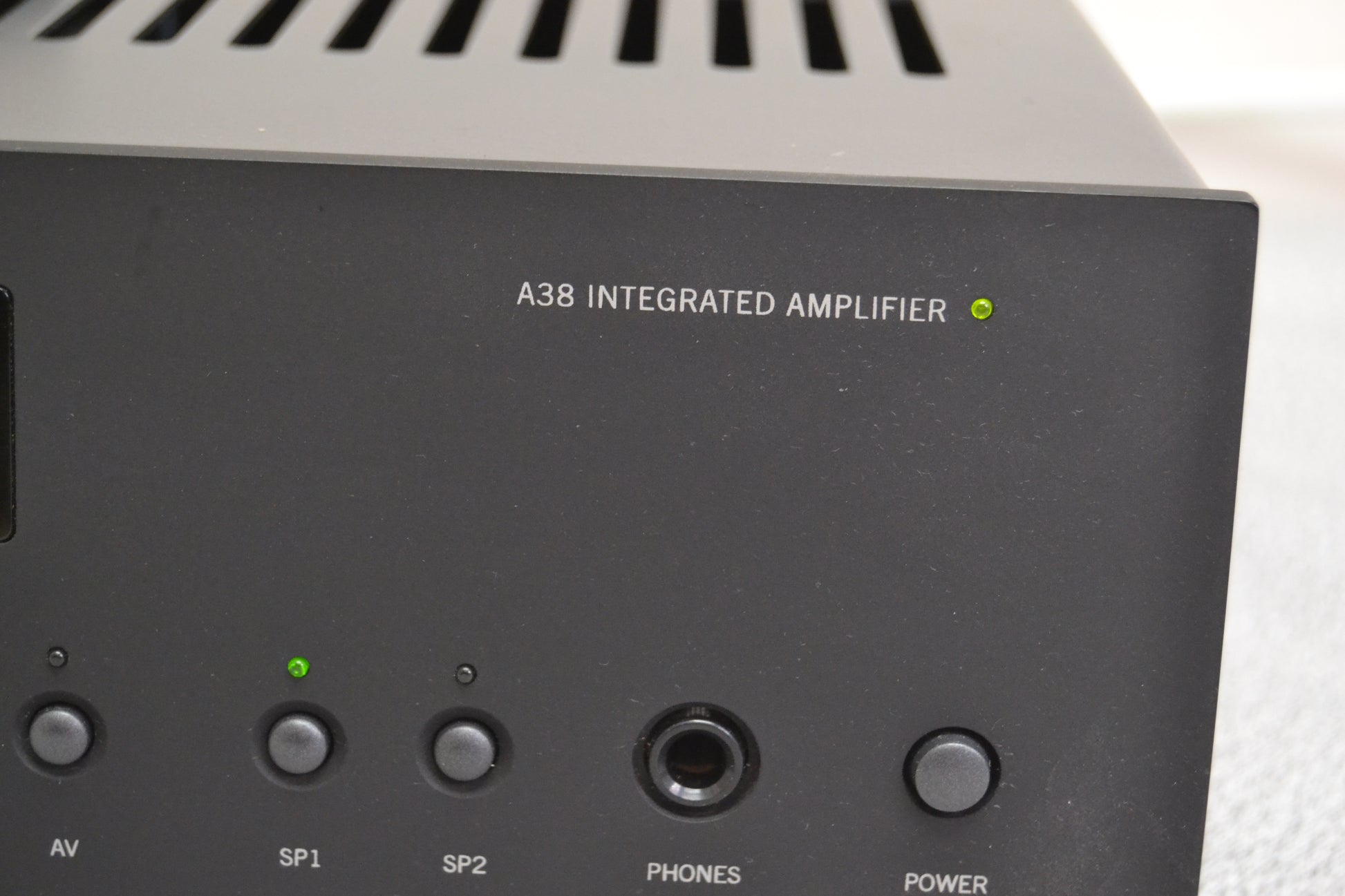

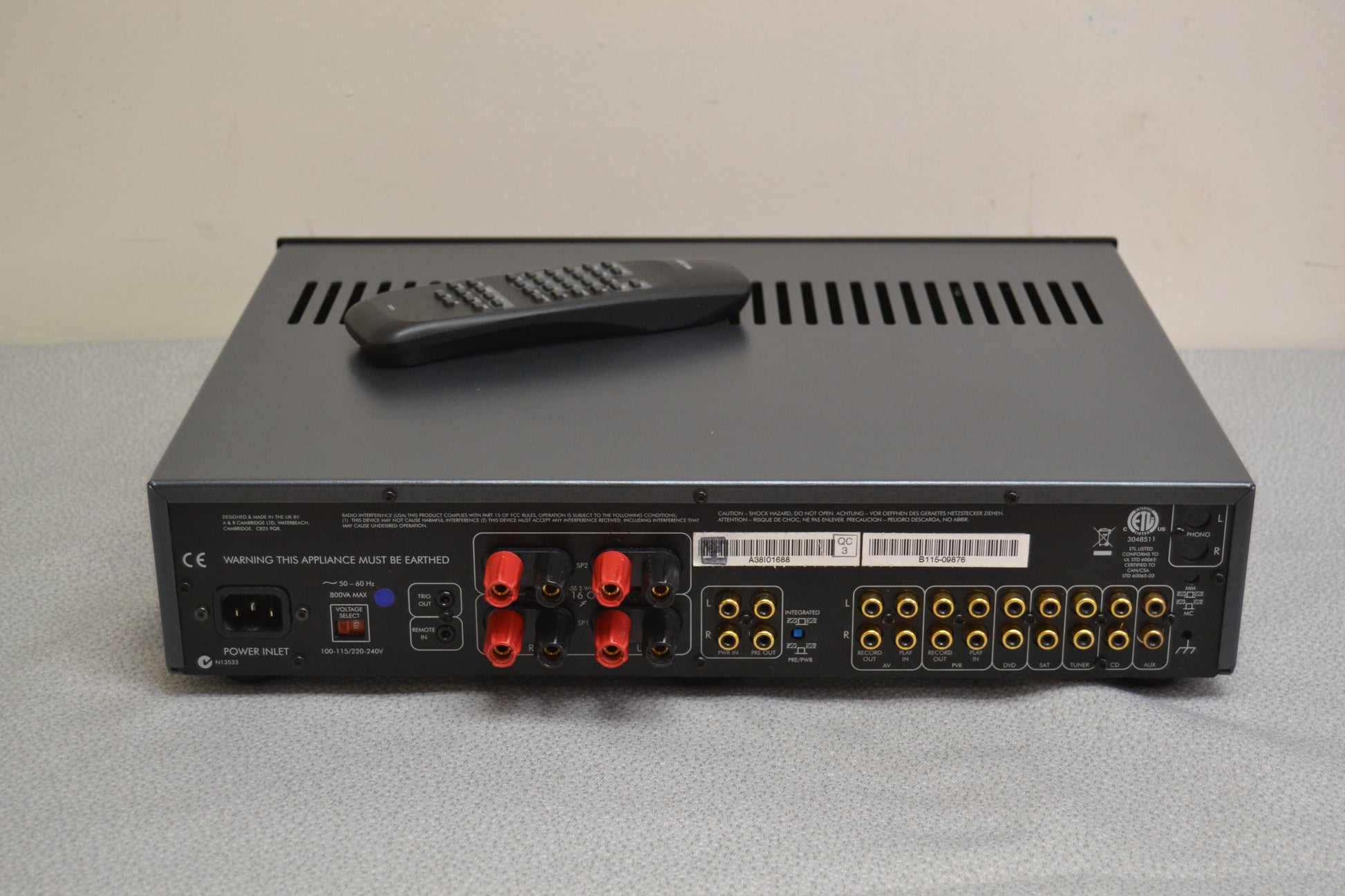

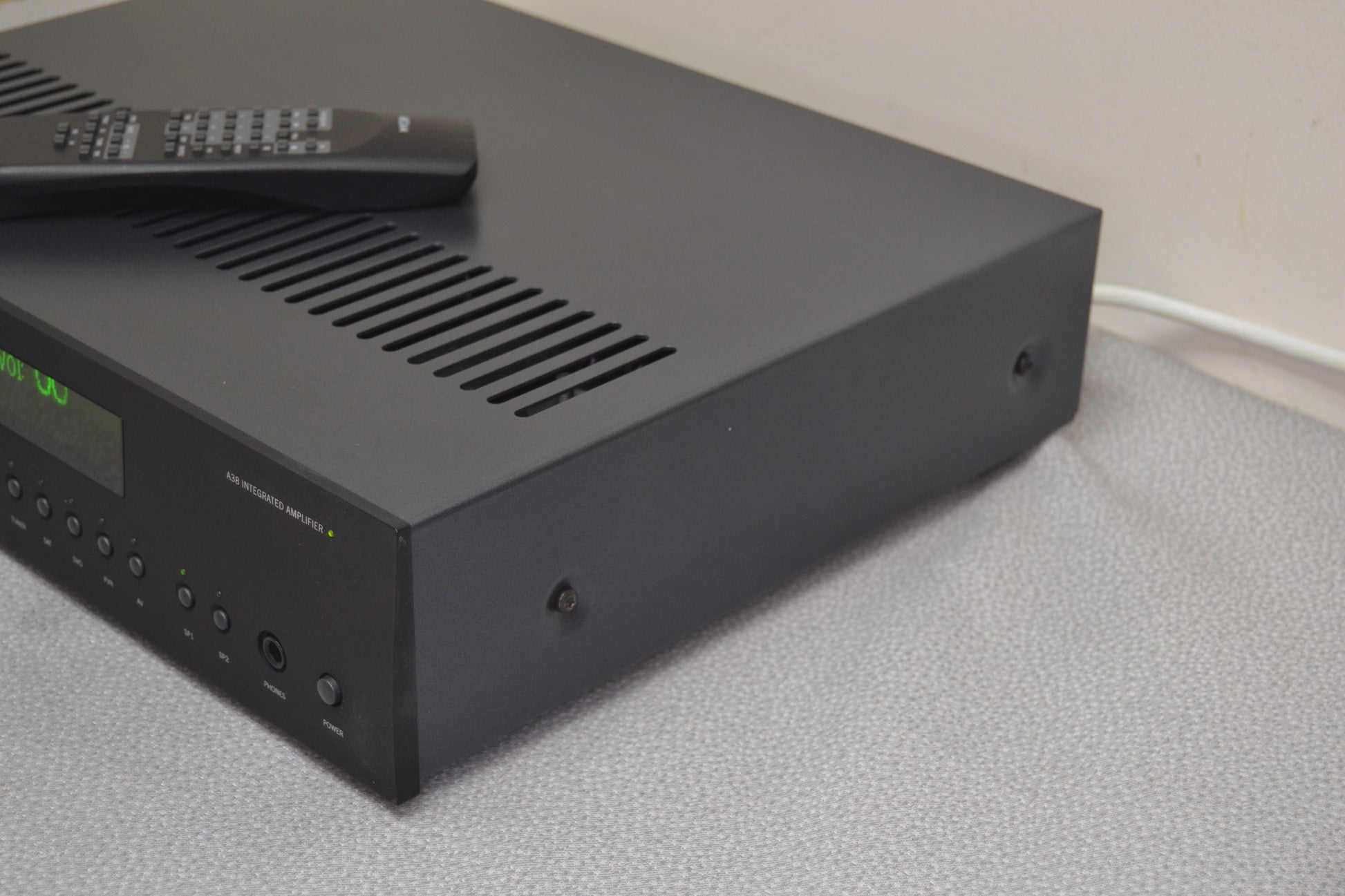

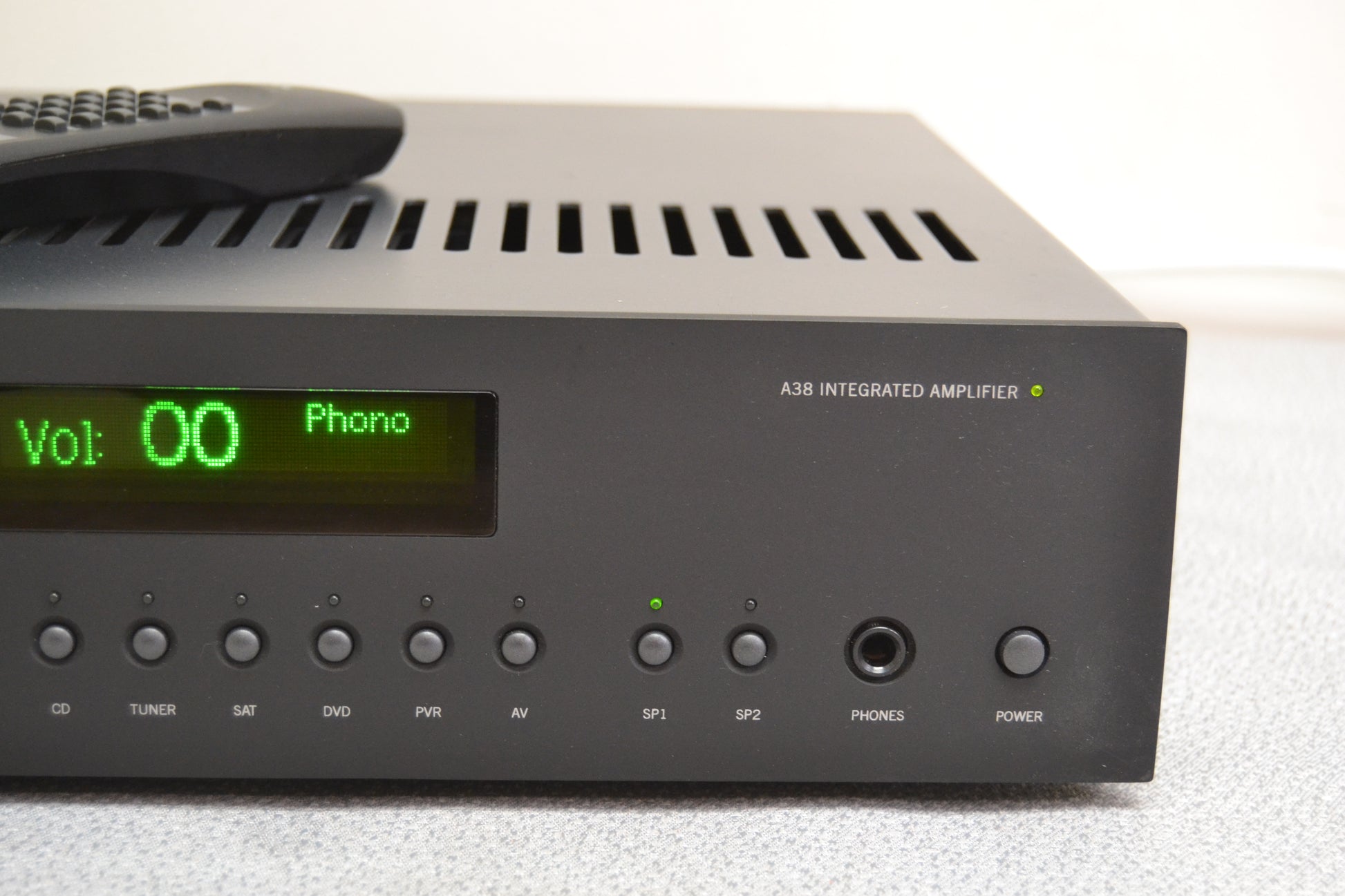

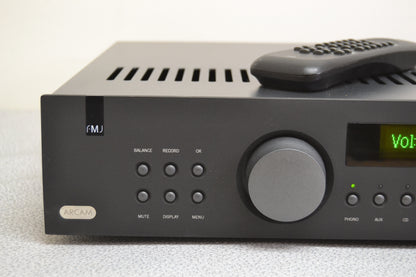

Arcam FMJA38 Stereo Integrated Amplifier * Remote * 105W RMS * No Phono

Arcam FMJA38 Stereo Integrated Amplifier * Remote * 105W RMS * No Phono

Arcam

Regular price $400.00 USD
Sale price $400.00 USD Regular price
Sale Sold out

The A38 features new output device technology which practically eliminates thermal modulation of audio signals to ensure a truly dynamic and transparent reproduction. The brand new preamp design using studio grade components and new power amplifier stages deliver a result which exceeds expectations and raises the bar for specialist integrated amplifiers in general.

With over 30 years of audiophile engineering experience, Arcam is one of the UK’s most respected audio companies. The new A38 stereo integrated amplifier is the latest in a long family line of award winning HiFi.

The A38 design team was given a simple goal; to develop the best performing stereo amplifier Arcam had ever produced. Although a huge task, the team dug deep into the basic structure of amplifier design and the result was a remarkable improvement in fidelity.

An in-house research project yielded a wealth of information concerning the influences of thermal conditions on power amplifier performance. As a result the A38 features a number of new technologies which practically eliminate thermal modulation of audio signals and ensure truly dynamic and enthralling reproduction. New Sanken output devices and dramatically improved thermal coupling provide an extremely stable device temperature resulting in much improved linearity.

The massive torroid based power supply delivers effortless power with a new low noise topology improving transient response. A new pre-amplifier design, featuring hermetically sealed “reed” relays from Arcam’s range topping C31 pre-amplifier; deliver a wonderfully transparent signal to each power amplifier. Reed relays offer extremely low contact resistance and virtually infinite life span. An all new volume control (Burr Brown PGA2320) gives unprecedented linearity and noise performance allowing fine details to be reproduced in startling clarity.

Pre-amplifier section

  • All new audiophile pre-amplifier design with very low noise and distortion
  • Very short audio signal path for cleanest possible sound
  • No tone controls for lowest distortion and noise
  • DC coupled using servo to remove any DC from input signals
  • New improved Burr Brown volume control
  • High quality Burr Brown op-amps in signal path
  • Hermetically sealed reed relay input switching with immeasurable distortion and noise*
  • Four-layer printed circuit boards allow control of power supply reduction of electrical noise
  • Processor mode option for seamless integration with AV surround decoders
  • Audiophile grade Stargate and Rubicon capacitors for signal transparency
  • Optional single stage MM/MC phono preamp

Power amplifier features

  • 105wpc continuous power output (8ohms, both channels driven)
  • 200wpc continuous power output (4ohms, 1kHz, one channel driven)
  • Fully discrete transistor power amp stages with temperature compensation
  • Current feedback design ensuring wide bandwidth for high resolution audio

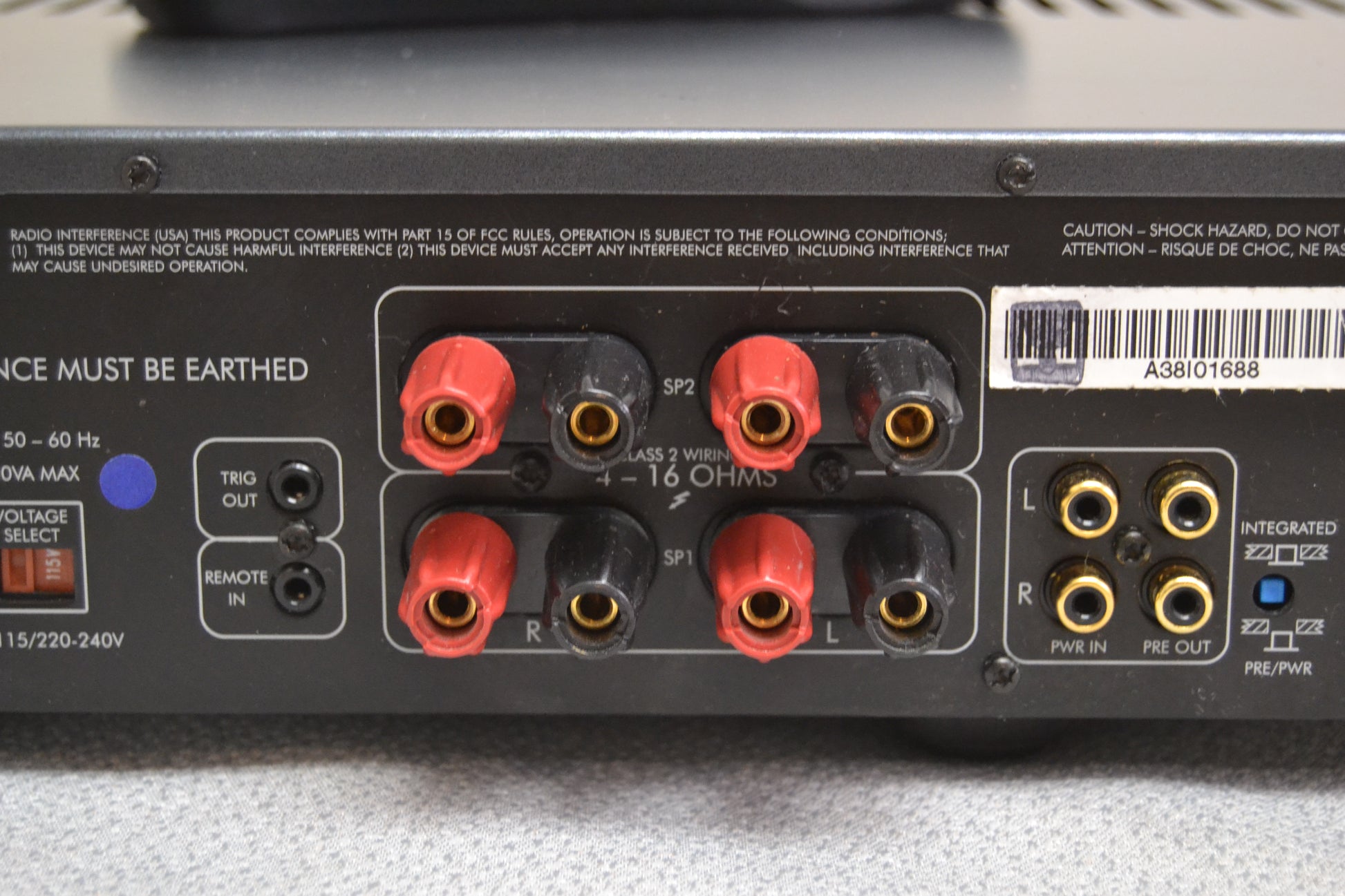

  • Two pairs of individually selectable gold plated speaker outputs
  • All DC coupled signal path for enhanced bass control
  • All new thermal management for exceptional sonic stability

Power supply features

  • Massive toroid mains transformer
  • User switchable between 115v and 230v mains supplies
  • Dual rectified power amp supplies for reduced ground noise
  • Separate smoothing per channel to reduce crosstalk
  • Independently rectified and regulated pre-amp power supplies

General Features

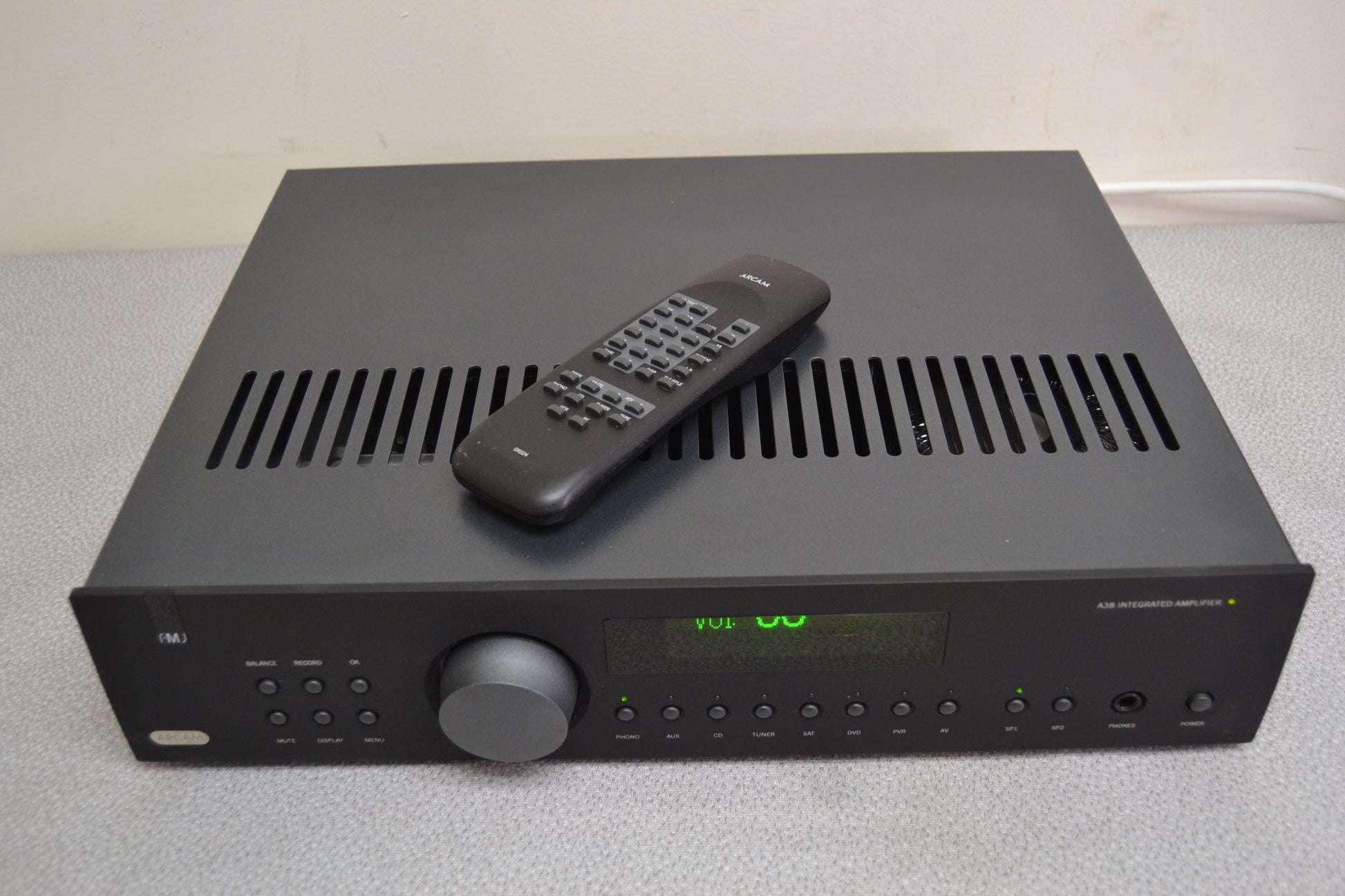

  • Supplied with CR90 system remote control

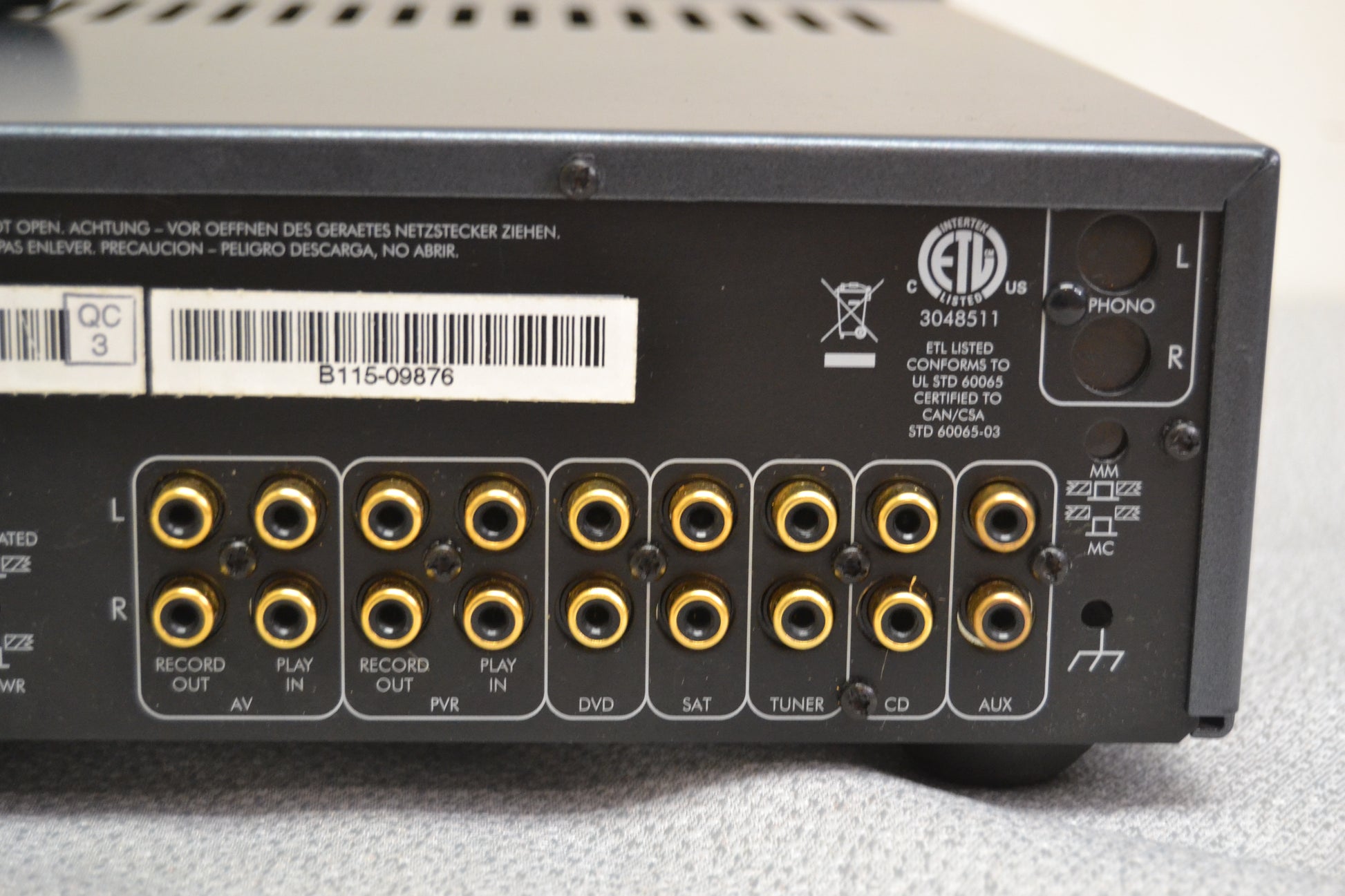

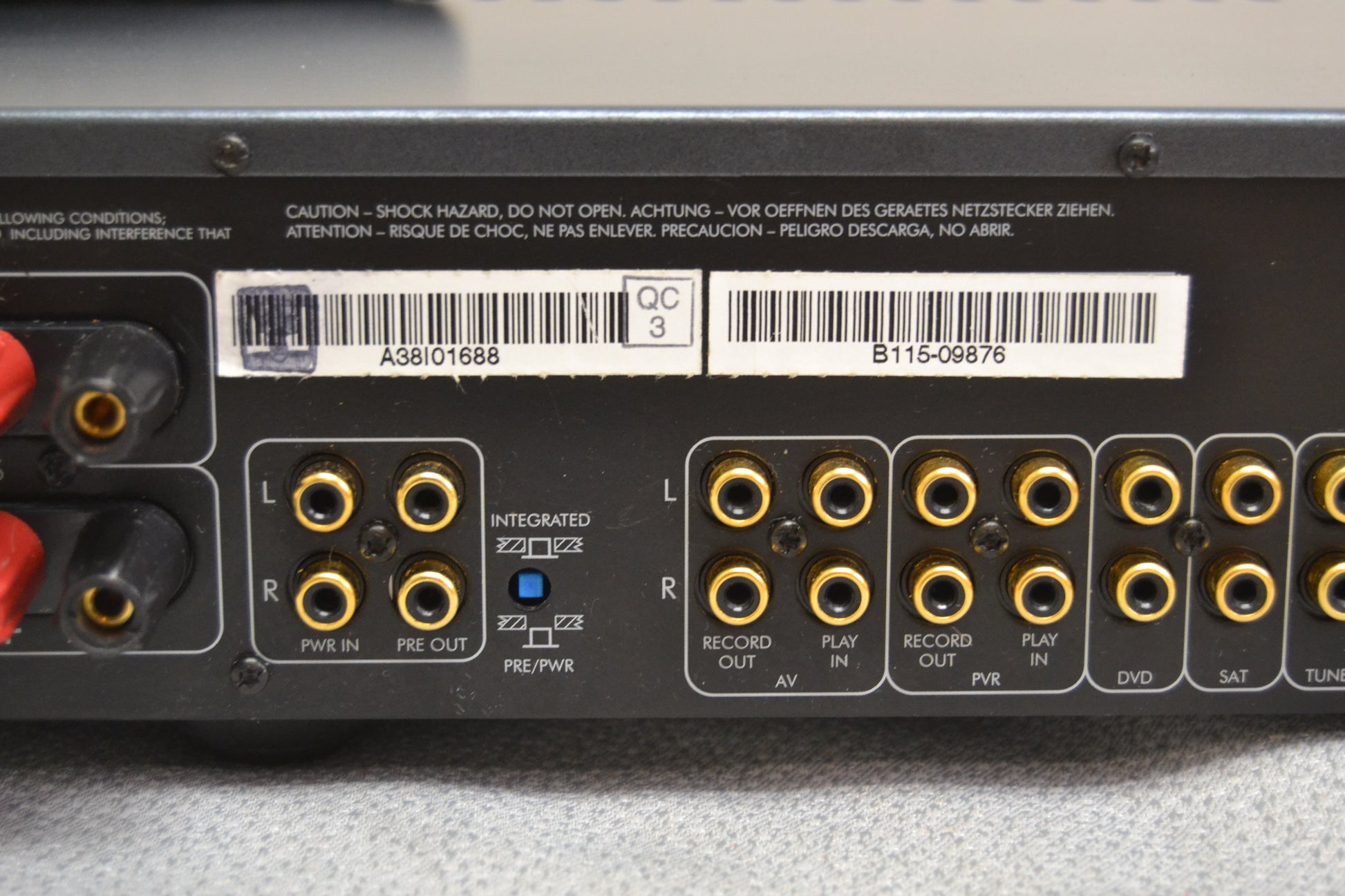

  • All gold plated input / output connectors

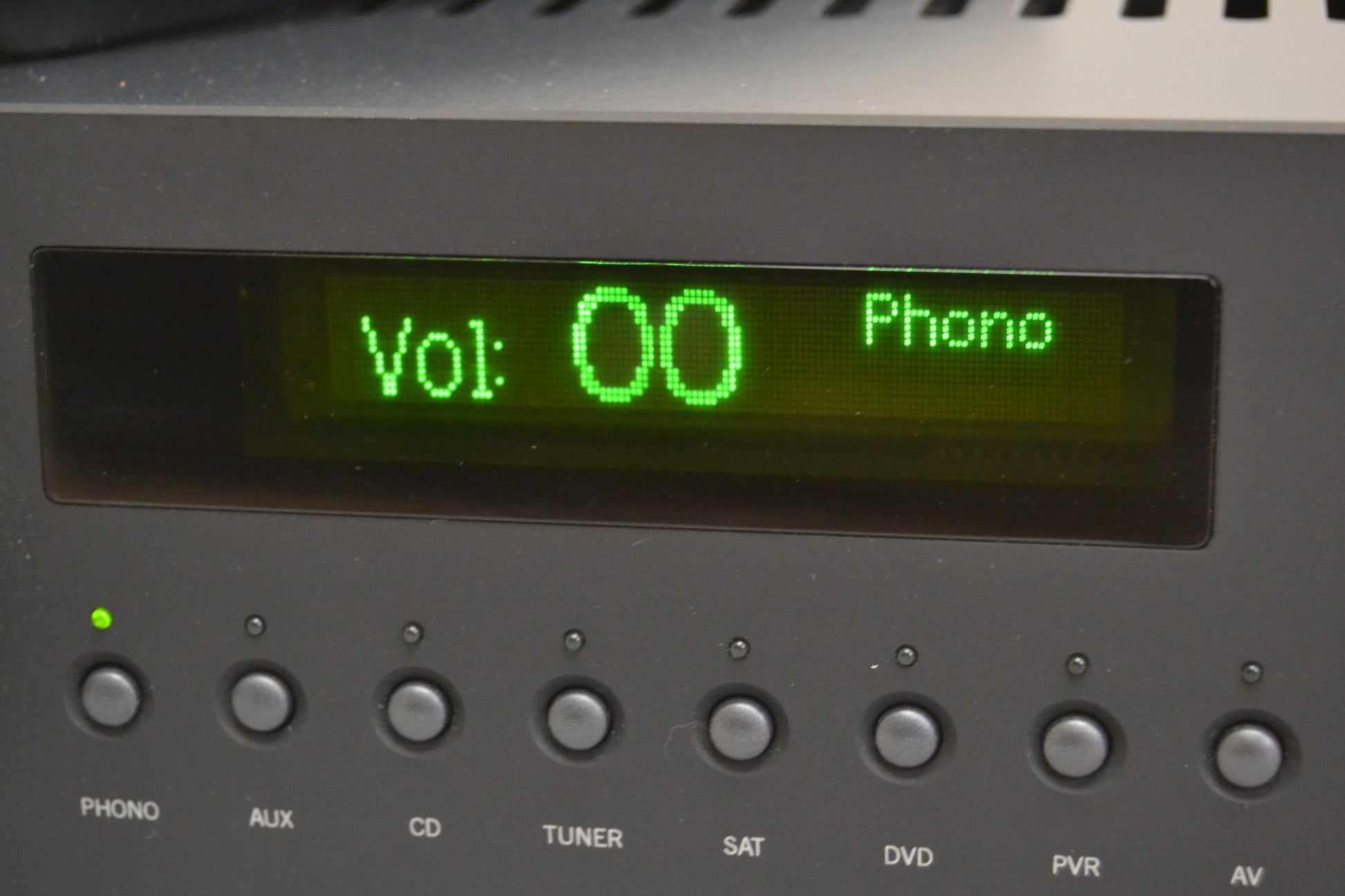

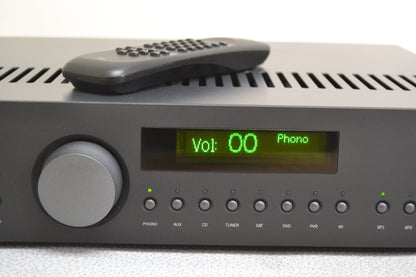

  • Large, clear VFD dot matrix display
  • Size – 430mm (17") wide, 370mm (14") deep, 110mm (4.2") high
  • Weight 9.5kg (20.9lbs) nett, 12.5kg (27.5lbs) packed

In stock

There’s something undeniably magnetic about vintage audio gear. The tactile weight of milled aluminum knobs, the warm glow of dial lamps, and—above all—the rich, analog sound that today’s sterile streaming boxes can’t quite replicate. But time is merciless: capacitors dry out, switches oxidize, and those gorgeous walnut cabinets lose their sheen. That’s where the art (and science) of our vintage audio refurbishment comes in.

Why Vintage Audio Still Matters

In the golden era of hi-fi—roughly the mid-1960s through the early 1980s—companies like Marantz, McIntosh, Pioneer, Sansui, and Technics were engaged in an arms race of build quality. This was before cost-cutting plastics and disposable designs; amplifiers were over-engineered, receivers were works of art, and turntables were precision instruments.

Owning one wasn’t just about sound; it was about status and permanence. These machines were built to last a lifetime—or two. The irony? Decades later, they often do, provided they’re given the care they deserve.

The Philosophy of Refurbishment

Refurbishment is not just about fixing; it’s about preserving authenticity while ensuring reliability. The goal is to keep that lush, analog character alive without compromising safety or sound quality.

Some enthusiasts chase museum-level originality—keeping every factory component in place. Others opt for sympathetic modernization, upgrading parts that never existed in the ’70s to improve performance. Both approaches can be valid; it depends on your vision.

The Turntable Store refurbishing process.. step by step

Step 1: The Initial Encounter

When we first meet a 40-year-old amplifier, we resist the urge to plug it in right away. That dusty Marantz 2270 might look gorgeous, but old electrolytics and brittle insulation can short instantly under full voltage.

Instead:

  • We inspect for corrosion, burnt resistors, and leaking capacitors.
  • We use a Variac (variable transformer) to bring up voltage slowly, reforming capacitors rather than shocking them back to life.
  • We check fuses—not just for continuity but for correct ratings.

Tip: A faint musty smell? That’s often the scent of old phenolic boards, not trouble. But a burnt smell? That’s trouble.


Step 2: Deep Cleaning & Control Detox

Dust is the enemy of good sound, that is why we clean the interior carefully with compressed air and a soft brush.

The real magic comes with switches and potentiometers. Over decades, oxidation builds up, causing scratchy controls and dropouts. A deep contact clean in each pot and switch, followed by vigorous cycling, often restores silky-smooth operation.

Step 3: Electrical Resurrection

This is where science meets art:

  • Capacitors: Electrolytic caps often need some attention. We replace out-of-spec caps with high-quality modern equivalents (Nichicon, Panasonic), avoiding over-capacitance unless the power supply can handle it.
  • Resistors: Carbon comp resistors drift over decades. Measure and replace out-of-spec parts.
  • Transistors: Certain vintage transistors (e.g., 2SC458) are notorious for noise. We do swap defective ones for modern low-noise equivalents.
  • Relays & Lamps: Speaker relays oxidize; replace or clean contacts. Dial lamps? Upgrade to warm LEDs for a factory glow without the heat.


Step 4: Cosmetic Glory

Refinishing the walnut cabinet can transform a unit. We do use real wood oil or Danish oil, not polyurethane. We clean the glass dial carefully; those silkscreened letters are fragile.

Knobs? We polish with metal cleaner, but never use abrasives on anodized aluminum.

Faceplate lettering? We avoid harsh chemicals—just mild soap and a microfiber cloth.


Step 5: Calibration & Sonic Check

After the repair and cleaning, it’s time to dial in the performance:

  • We do adjust bias and DC offset on amplifiers for stable operation.
  • On turntables, we re-lube bearings, replace belts, and check speed accuracy.
  • On Cassette Decks and Reel to Reels, we replace belts ( if needed ), we clean and demagnetize the heads before the alignment process ( a must ! )

When done right, the result is astonishing: a sound that breathes—liquid mids, velvet highs, and bass with a tactile presence that modern gear rarely matches.


Our promise for Audiophile-Level Results

  • We Avoid Cheap Parts: That $5 eBay capacitor kit? Hard pass. We use reputable brands.
  • We Don’t Over-Polish: Patina is part of the charm. We aim for “well-loved,” not “plastic surgery.”
  • We Upgrade Discreetly: If we must modernize (like adding gold-plated RCA jacks), we keep it tasteful and reversible.


Why It’s Worth It

The payoff isn’t just sonic—it’s emotional. Restoring a 1970s Marantz or Sansui is like bringing a classic car back to life. Every glowing dial lamp, every smooth rotation of a volume knob, connects you to an era when music mattered enough to build machines like this.

And when you drop the needle on your favorite record and hear that warm, enveloping sound, you’ll know: this wasn’t just a repair. It was a resurrection.
