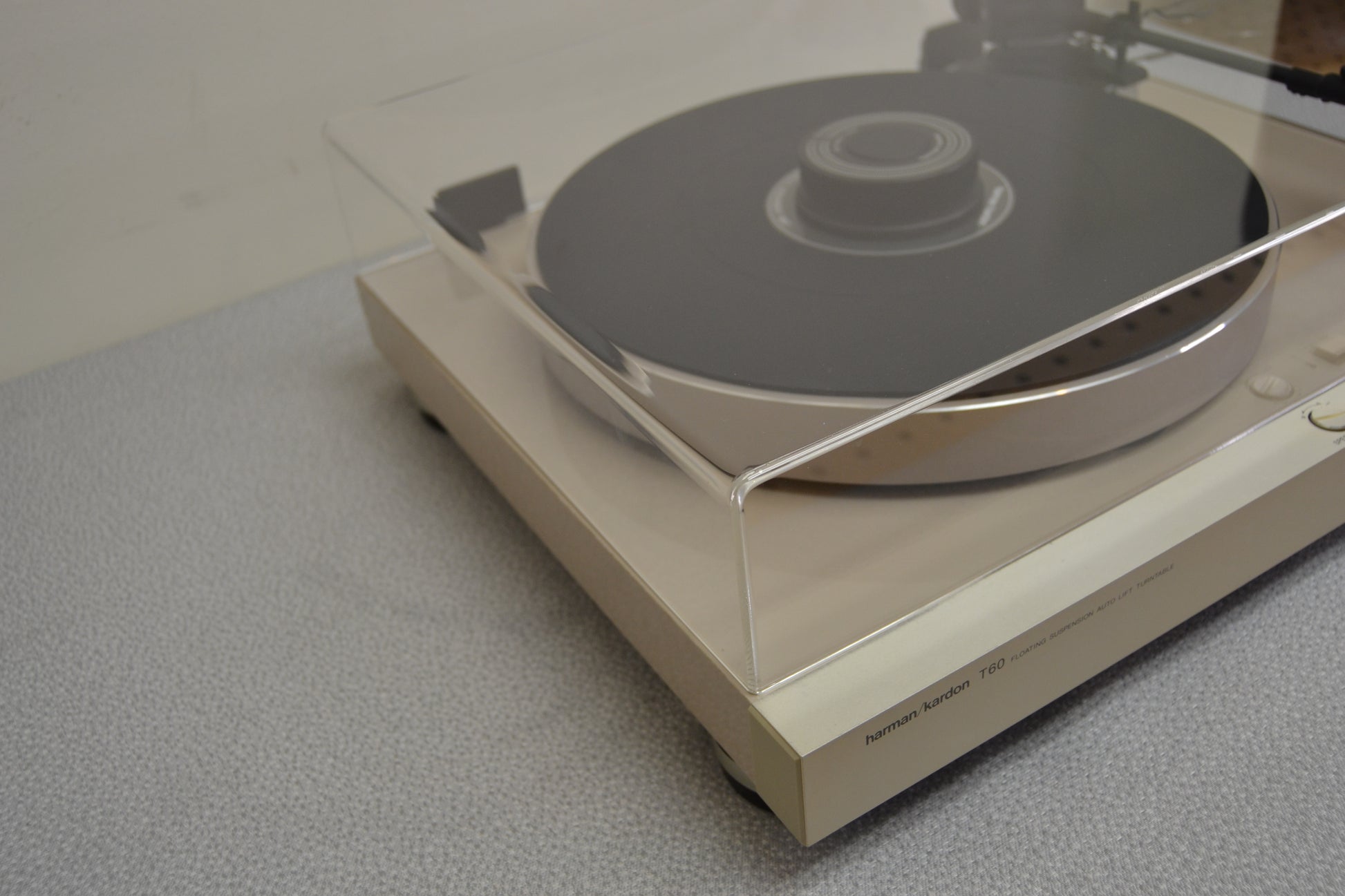

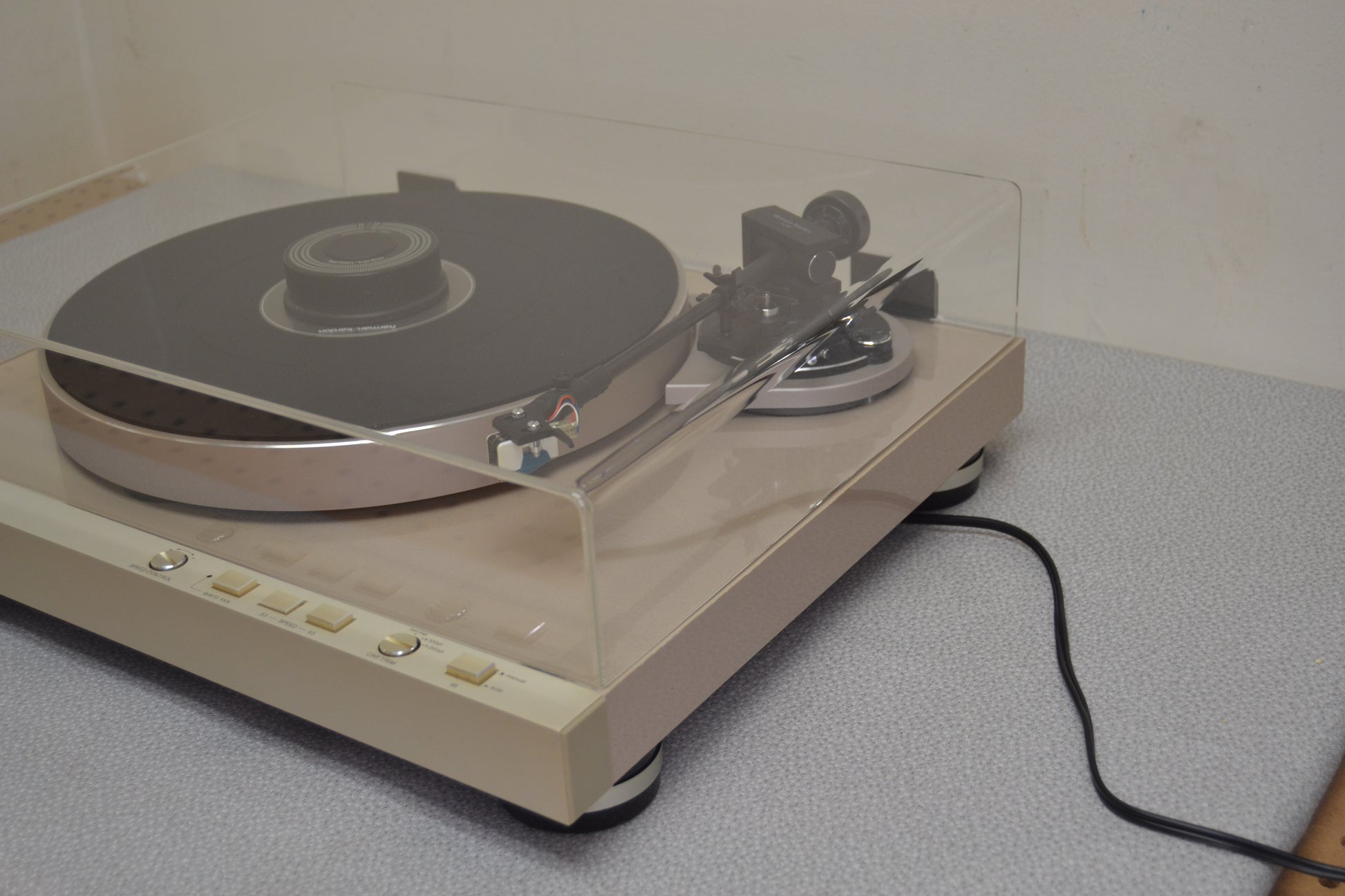

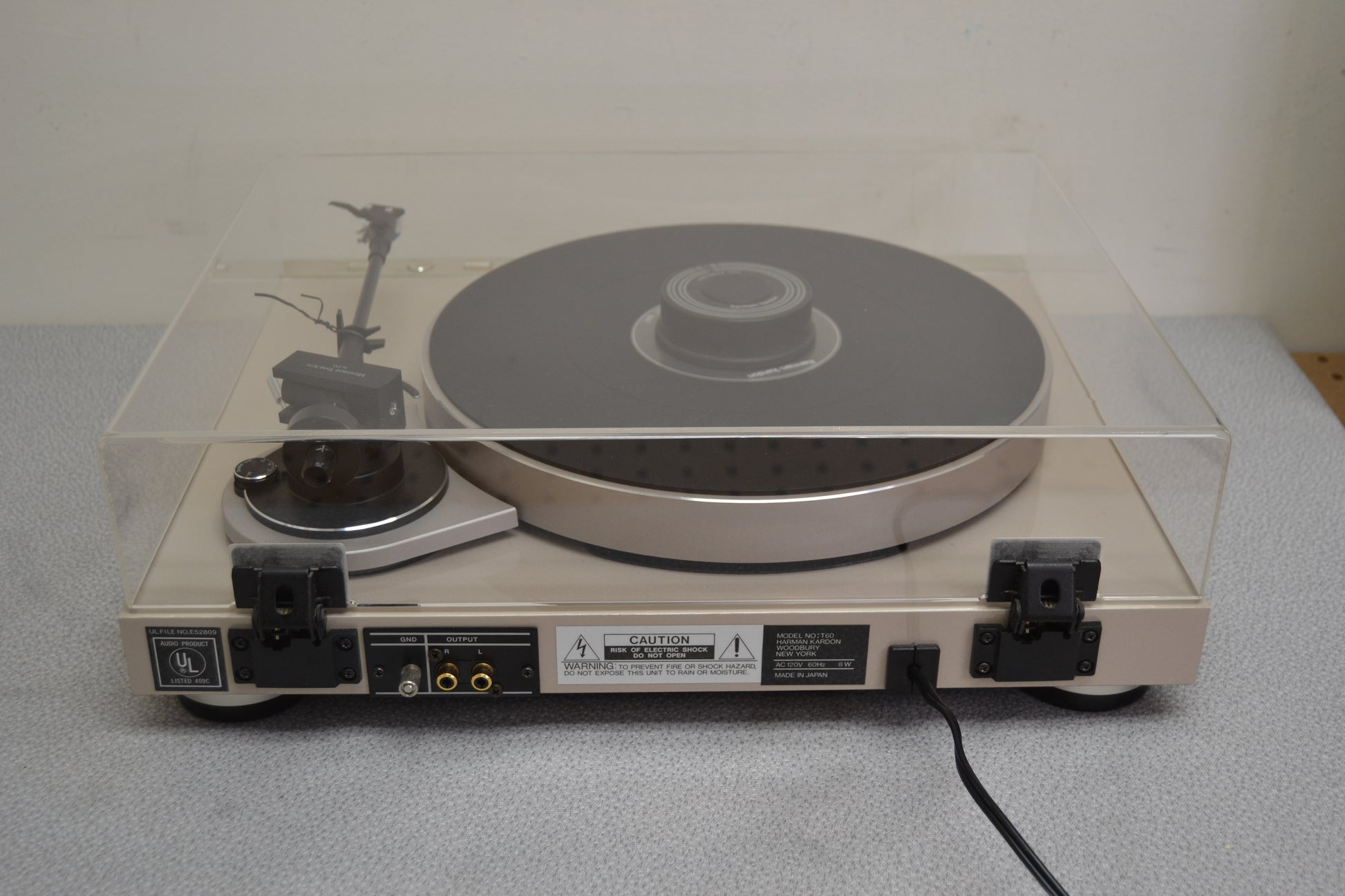

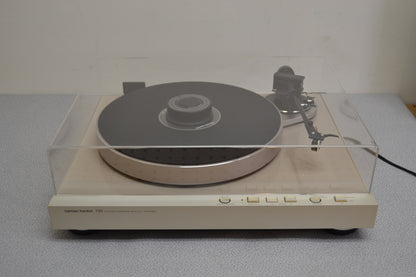

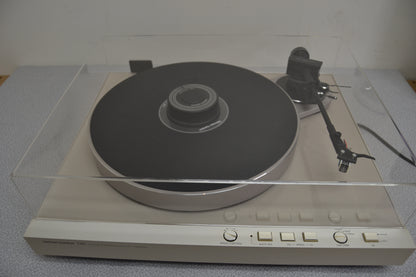

Harman Kardon T-60 Belt Drive Quartz Locked Turntable * NEW Dust Cover

Harman Kardon T-60 Belt Drive Quartz Locked Turntable * NEW Dust Cover

Harman Kardon

Regular price $450.00 USD
Sale price $450.00 USD Regular price
Sale Sold out

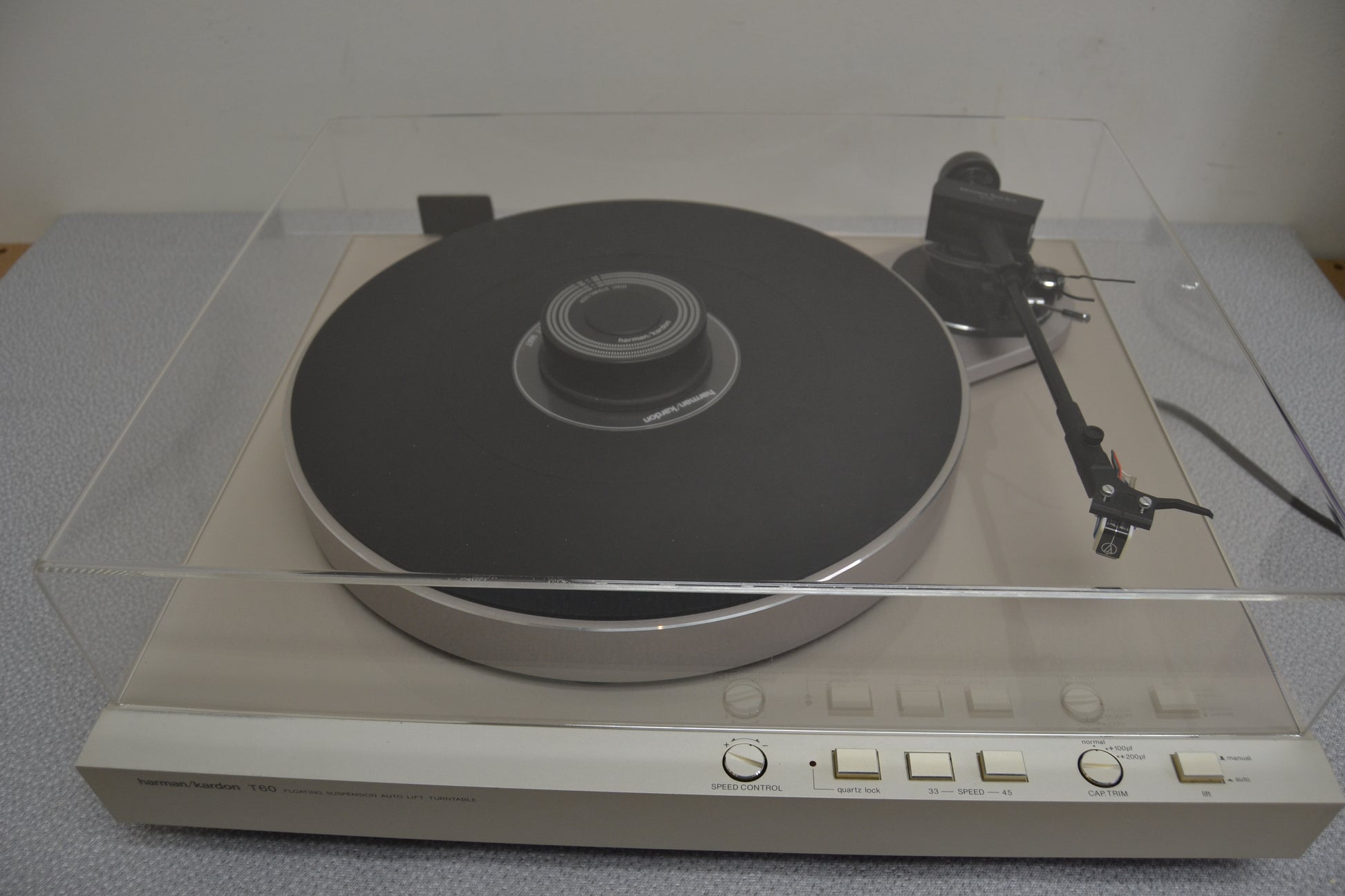

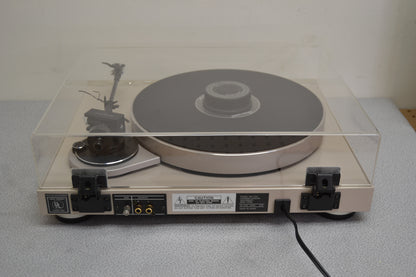

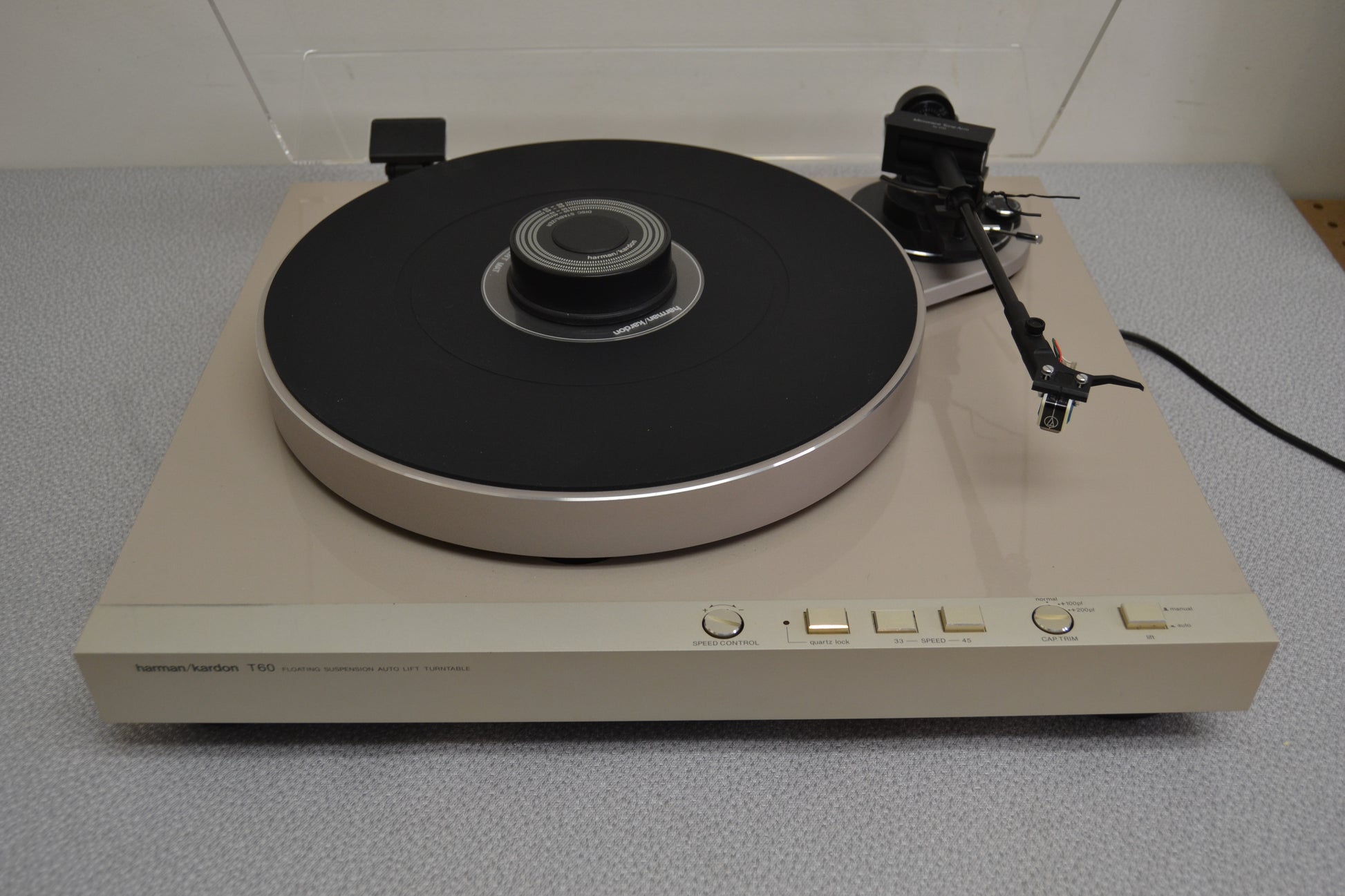

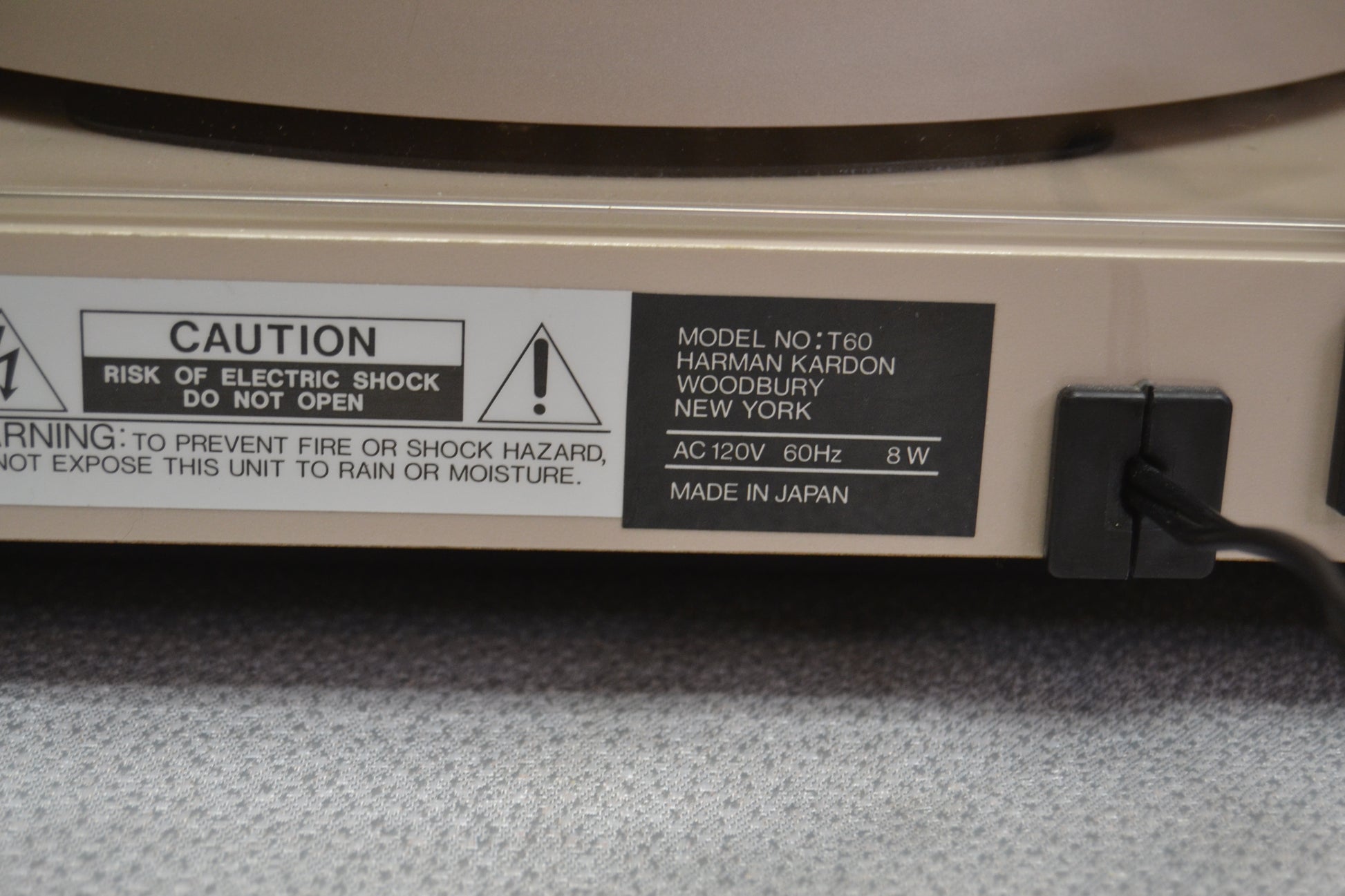

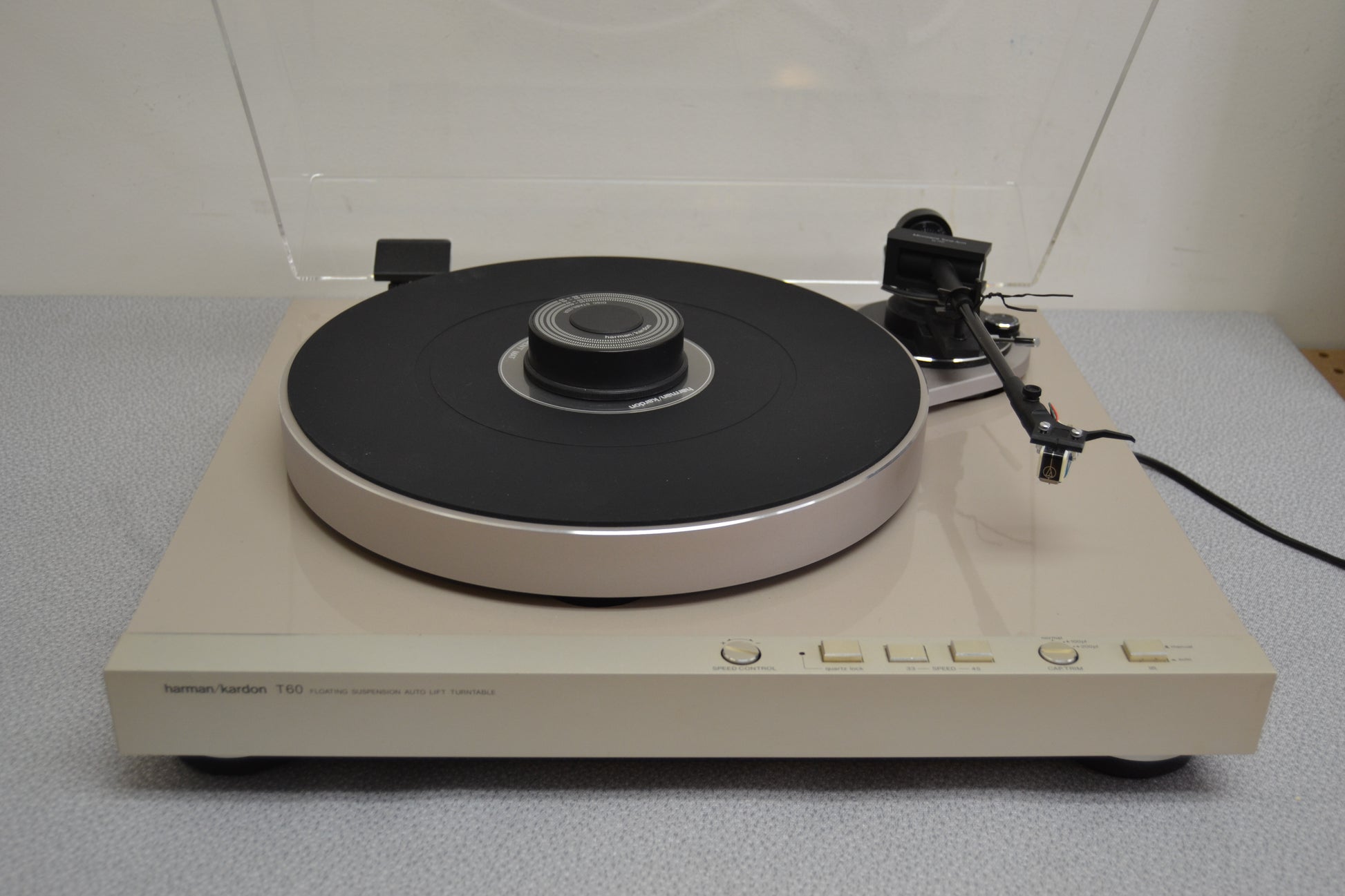

Harman Kardon T60

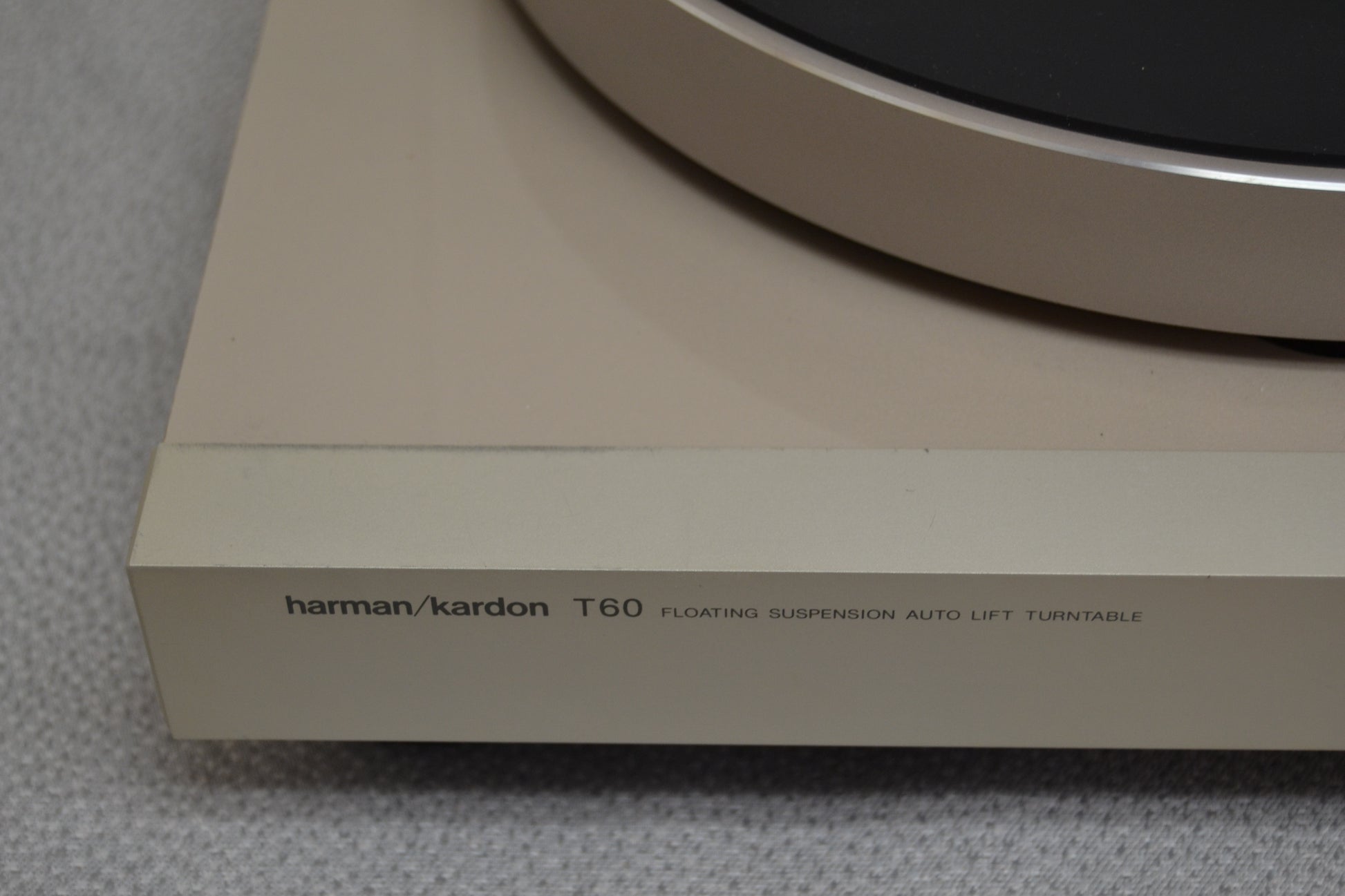

Floating Suspension Auto-Lift Turntable

low mass tonearm


Description

In the Harman Kardon T60, a quartz-lock motor, sensitive to absolute speed rather than rotational deviation, utilizes a quartz tuning element to "sense" 45 and 33rpm to automatically maintain constant speed.

No fine tuning is ever necessary, but if you want to adjust speed manually, you can.

The platter is more massive still than that of the T40 - with the disc stabilizer for tracking accuracy and high density rubber platter mat for vibration damping.

Under the platter, we've put a rubber ring for even further acoustical damping.

An optically sensed auto-lift tonearm is incorporated, eliminating the return mechanism entirely. This minimizes unwanted tonearm and cartridge vibration.

At the tonearm base is a high mass, die-cast aluminium support structure which houses the minimum-friction
microrace bearings.

A sophisticated and unique 3-point floating suspension system is employed in the T60. It is precisely counterbalanced with a weight opposite the tonearm assembly to center the moving mass at the platter spindle.

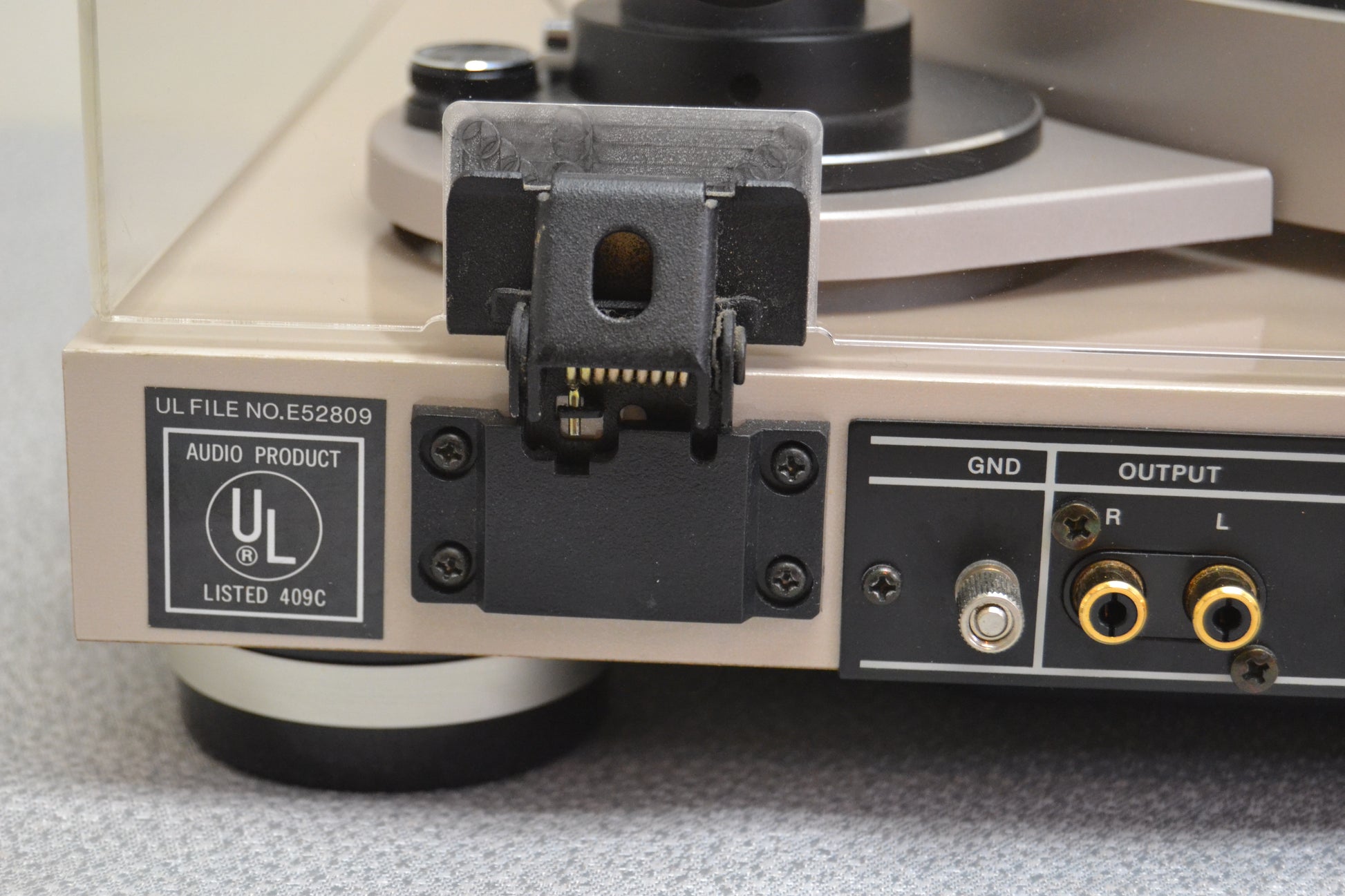

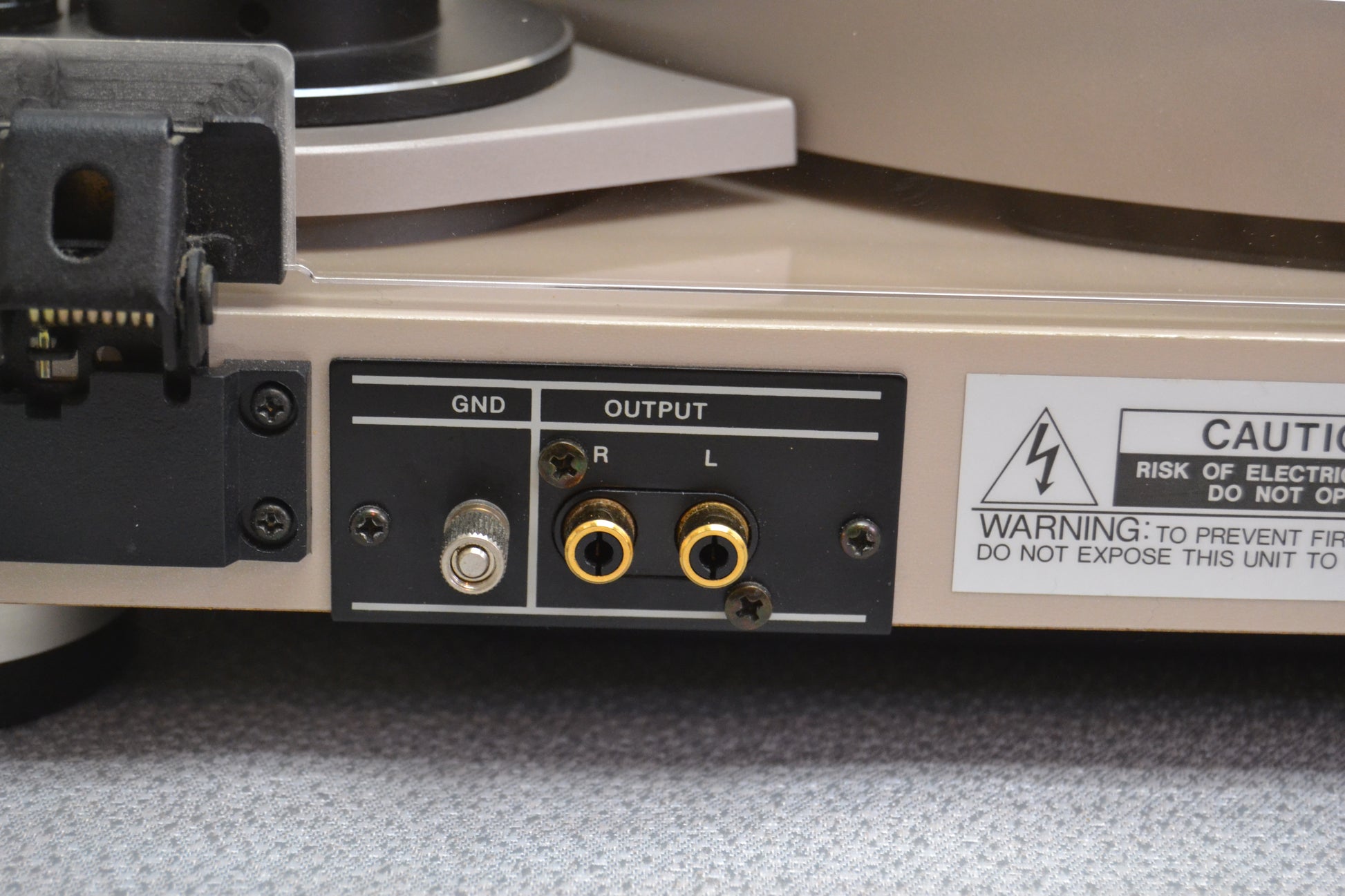

Gold connector plugs at each end of a detachable ultra-low capacitance cable, for better conductance are standard.

Features include:

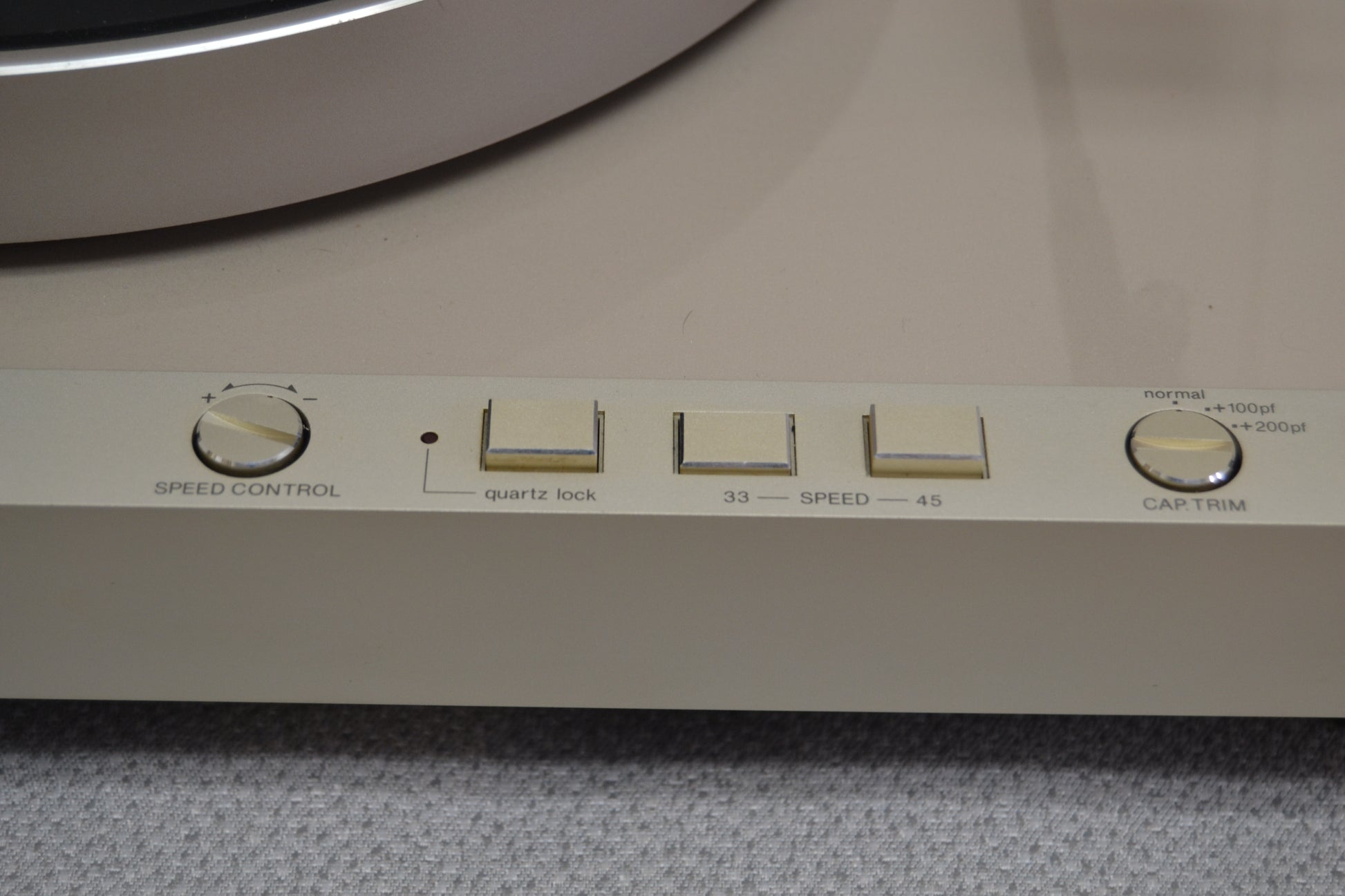

Belt drive, quartz-locked motor with pitch control
3.3 lb. platter
Counterweighted 3-point floating suspension
Optically sensed auto-lift tonearm
Low mass, low friction, straight tonearm with high mass pivot isolation
Acoustically absorbent platter mat
Disc stabilizer
Ultra low capacitance detachable gold tipped phono cables
Carbon fiber headshell

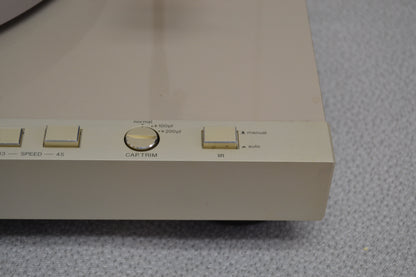

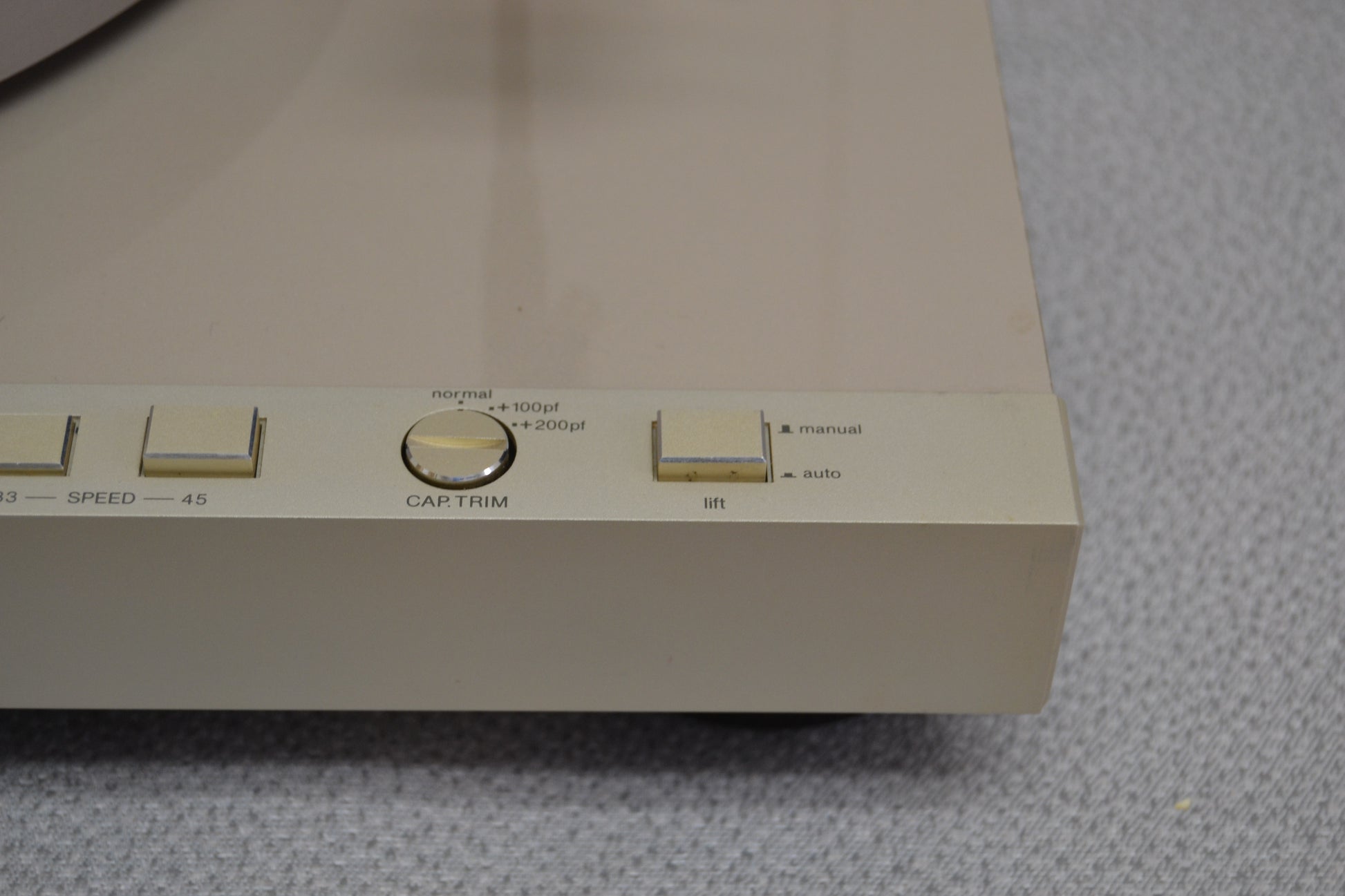

Phono capacitance trim control
Vibration absorbent wood base

Specifications

Type: auto-lift

Wow and flutter: 0.035%

Rumble: -67dB

Pitch range: +-3%

Tonearm effective length: 226mm

Overhang: 18mm

Offset angle: 25.5 degrees

Effective mass: 8g

Tracking force: 0 to 3g

Dimensions: 440 x 148 x 372mm

Weight: 8.0kg

In stock

There’s something undeniably magnetic about vintage audio gear. The tactile weight of milled aluminum knobs, the warm glow of dial lamps, and—above all—the rich, analog sound that today’s sterile streaming boxes can’t quite replicate. But time is merciless: capacitors dry out, switches oxidize, and those gorgeous walnut cabinets lose their sheen. That’s where the art (and science) of our vintage audio refurbishment comes in.

Why Vintage Audio Still Matters

In the golden era of hi-fi—roughly the mid-1960s through the early 1980s—companies like Marantz, McIntosh, Pioneer, Sansui, and Technics were engaged in an arms race of build quality. This was before cost-cutting plastics and disposable designs; amplifiers were over-engineered, receivers were works of art, and turntables were precision instruments.

Owning one wasn’t just about sound; it was about status and permanence. These machines were built to last a lifetime—or two. The irony? Decades later, they often do, provided they’re given the care they deserve.

The Philosophy of Refurbishment

Refurbishment is not just about fixing; it’s about preserving authenticity while ensuring reliability. The goal is to keep that lush, analog character alive without compromising safety or sound quality.

Some enthusiasts chase museum-level originality—keeping every factory component in place. Others opt for sympathetic modernization, upgrading parts that never existed in the ’70s to improve performance. Both approaches can be valid; it depends on your vision.

The Turntable Store refurbishing process.. step by step

Step 1: The Initial Encounter

When we first meet a 40-year-old amplifier, we resist the urge to plug it in right away. That dusty Marantz 2270 might look gorgeous, but old electrolytics and brittle insulation can short instantly under full voltage.

Instead:

  • We inspect for corrosion, burnt resistors, and leaking capacitors.
  • We use a Variac (variable transformer) to bring up voltage slowly, reforming capacitors rather than shocking them back to life.
  • We check fuses—not just for continuity but for correct ratings.

Tip: A faint musty smell? That’s often the scent of old phenolic boards, not trouble. But a burnt smell? That’s trouble.


Step 2: Deep Cleaning & Control Detox

Dust is the enemy of good sound, that is why we clean the interior carefully with compressed air and a soft brush.

The real magic comes with switches and potentiometers. Over decades, oxidation builds up, causing scratchy controls and dropouts. A deep contact clean in each pot and switch, followed by vigorous cycling, often restores silky-smooth operation.

Step 3: Electrical Resurrection

This is where science meets art:

  • Capacitors: Electrolytic caps often need some attention. We replace out-of-spec caps with high-quality modern equivalents (Nichicon, Panasonic), avoiding over-capacitance unless the power supply can handle it.
  • Resistors: Carbon comp resistors drift over decades. Measure and replace out-of-spec parts.
  • Transistors: Certain vintage transistors (e.g., 2SC458) are notorious for noise. We do swap defective ones for modern low-noise equivalents.
  • Relays & Lamps: Speaker relays oxidize; replace or clean contacts. Dial lamps? Upgrade to warm LEDs for a factory glow without the heat.


Step 4: Cosmetic Glory

Refinishing the walnut cabinet can transform a unit. We do use real wood oil or Danish oil, not polyurethane. We clean the glass dial carefully; those silkscreened letters are fragile.

Knobs? We polish with metal cleaner, but never use abrasives on anodized aluminum.

Faceplate lettering? We avoid harsh chemicals—just mild soap and a microfiber cloth.


Step 5: Calibration & Sonic Check

After the repair and cleaning, it’s time to dial in the performance:

  • We do adjust bias and DC offset on amplifiers for stable operation.
  • On turntables, we re-lube bearings, replace belts, and check speed accuracy.
  • On Cassette Decks and Reel to Reels, we replace belts ( if needed ), we clean and demagnetize the heads before the alignment process ( a must ! )

When done right, the result is astonishing: a sound that breathes—liquid mids, velvet highs, and bass with a tactile presence that modern gear rarely matches.


Our promise for Audiophile-Level Results

  • We Avoid Cheap Parts: That $5 eBay capacitor kit? Hard pass. We use reputable brands.
  • We Don’t Over-Polish: Patina is part of the charm. We aim for “well-loved,” not “plastic surgery.”
  • We Upgrade Discreetly: If we must modernize (like adding gold-plated RCA jacks), we keep it tasteful and reversible.


Why It’s Worth It

The payoff isn’t just sonic—it’s emotional. Restoring a 1970s Marantz or Sansui is like bringing a classic car back to life. Every glowing dial lamp, every smooth rotation of a volume knob, connects you to an era when music mattered enough to build machines like this.

And when you drop the needle on your favorite record and hear that warm, enveloping sound, you’ll know: this wasn’t just a repair. It was a resurrection.
