Kenwood

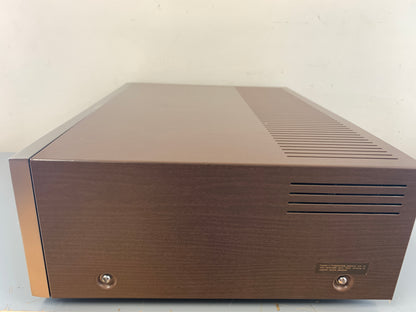

Kenwood TK-88 Stereo Receiver

Kenwood TK-88 Stereo Receiver

Regular price $175.00 USD
Regular price Sale price $175.00 USD
Sale Sold out

General

  • Manufacturer: Kenwood
  • Model: TK-88 U
  • Year of manufacture: 1967 - 1970
  • Made in: Japan
  • Color: silver, black, wood foil
  • Power consumption:
  • Dimensions: 420 x 140 x 310 mm
  • Weight: 10.5 kg
  • Original price approx.: 67'900 Yen (Japan, 1969), 1'100 DM

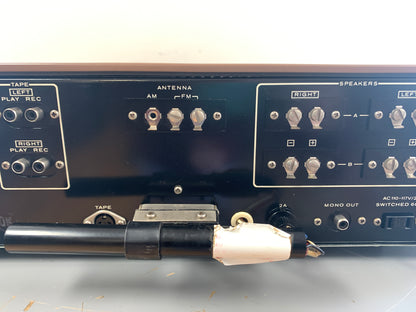

Connections

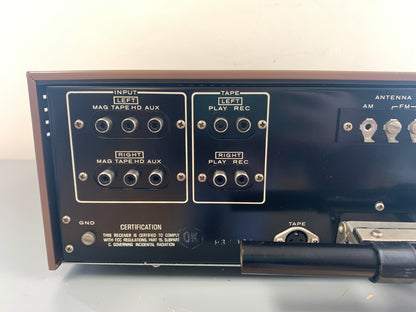

  • Number of inputs:
    • Phono: 2 mV

Tape HD: 2 mV

    • Aux: 150 mV
    • Tape Play:
      • Cinch: 150 mV
      • DIN: 150 mV
    • Antenna: FM (75 Ohm Unbalanced / 300 Ohm Balanced), AM

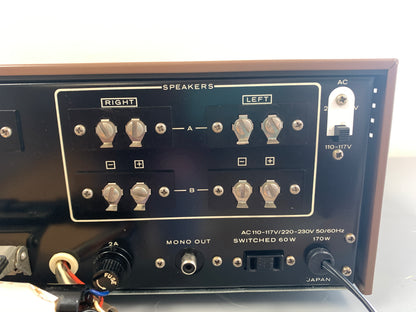

  • Number of Outputs:
    • Tape Rec:
      • Cinch: 160 mV / 50 kOhm
      • DIN: 32 mV

Headphones

    • 2 pairs of speakers


Technical Data Tuner Part

  • Reception: FM, MW
  • Frequencies:
    • FM: 88 - 108 MHz

MW: 535 - 1605 kHz

  • Frequency response:
  • Input sensitivity:
    • FM: 2.0µV
    • MW: 10µV
  • Distortion factor: < 0,6 %
  • Signalrauschabstand: >60 dB
  • Common mode selection: 2.5 dB
  • Channel separation (400 Hz): > 38 dB
  • selectivity:
    • FM: > 45 dB

MW: > 25 dB

  • Co-wave selection:
    • FM: > 80 dB

MW: > 25 dB

  • Spurious wave selection: > 45 dB
  • IF attenuation: 66 dB
  • IF attenuation:
  • AM suppression:


Amplifier Part Specifications

  • Continuous power (at distortion)
    • 8 Ohm: 2 x 28 W
    • 4 Ohm: 2 x 35 W
  • Dynamic power
    • 8 Ohm: 80 W (IHF)
    • 4 Ohm: 90 W (IHF)
  • Total harmonic distortion: < 0.15 % at rated power
  • Attenuation factor: 23 at 8 Ohm
  • Frequency response: 20 - 50000 Hz (±2 dB)
  • Power bandwidth (IHF): 20 - 30000 Hz (0.5% THD, -3 dB)
  • Signal-to-noise ratio:
    • Phono: 60 dB

Tape HD: 60 dB AUX: 70 dB

    • Tape: 70 dB

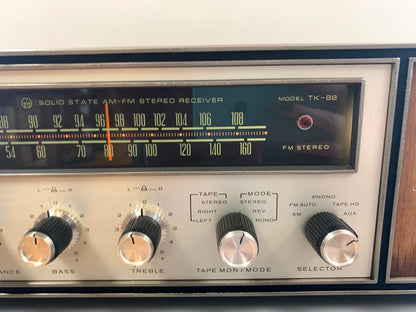

  • Tone control:
    • Bass: ± 10 dB at 50 Hz

Treble: ± 10 dB at 10 kHz

  • Loudness: + 8 dB / 100 Hz, + 3 dB / 10 kHz
  • Low Filter: 80 Hz Cutoff
  • High Filter: 6000 Hz Cutoff

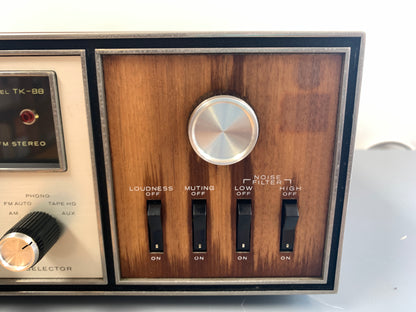

Special Features

  • Center channel output
  • FM Muting
  • Mono Stereo Switch
