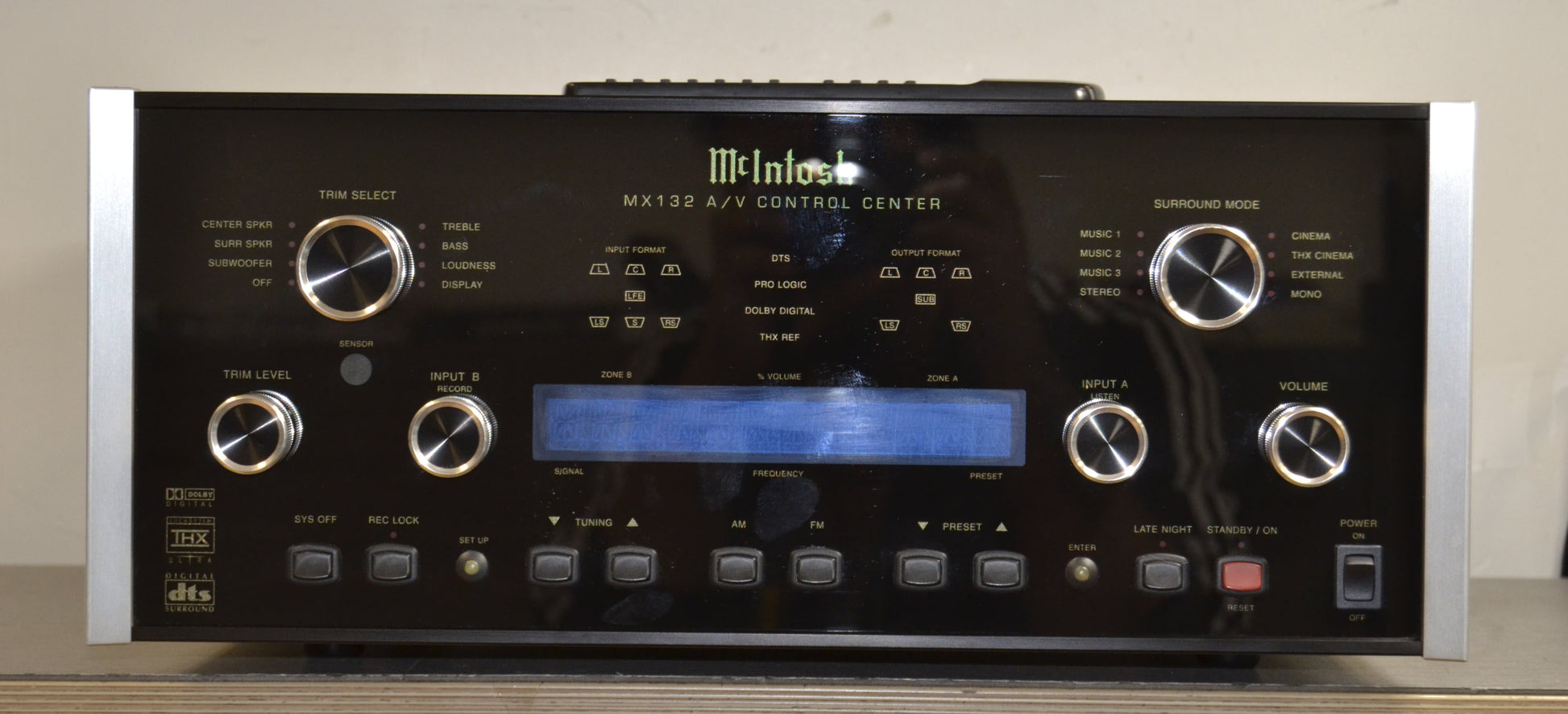

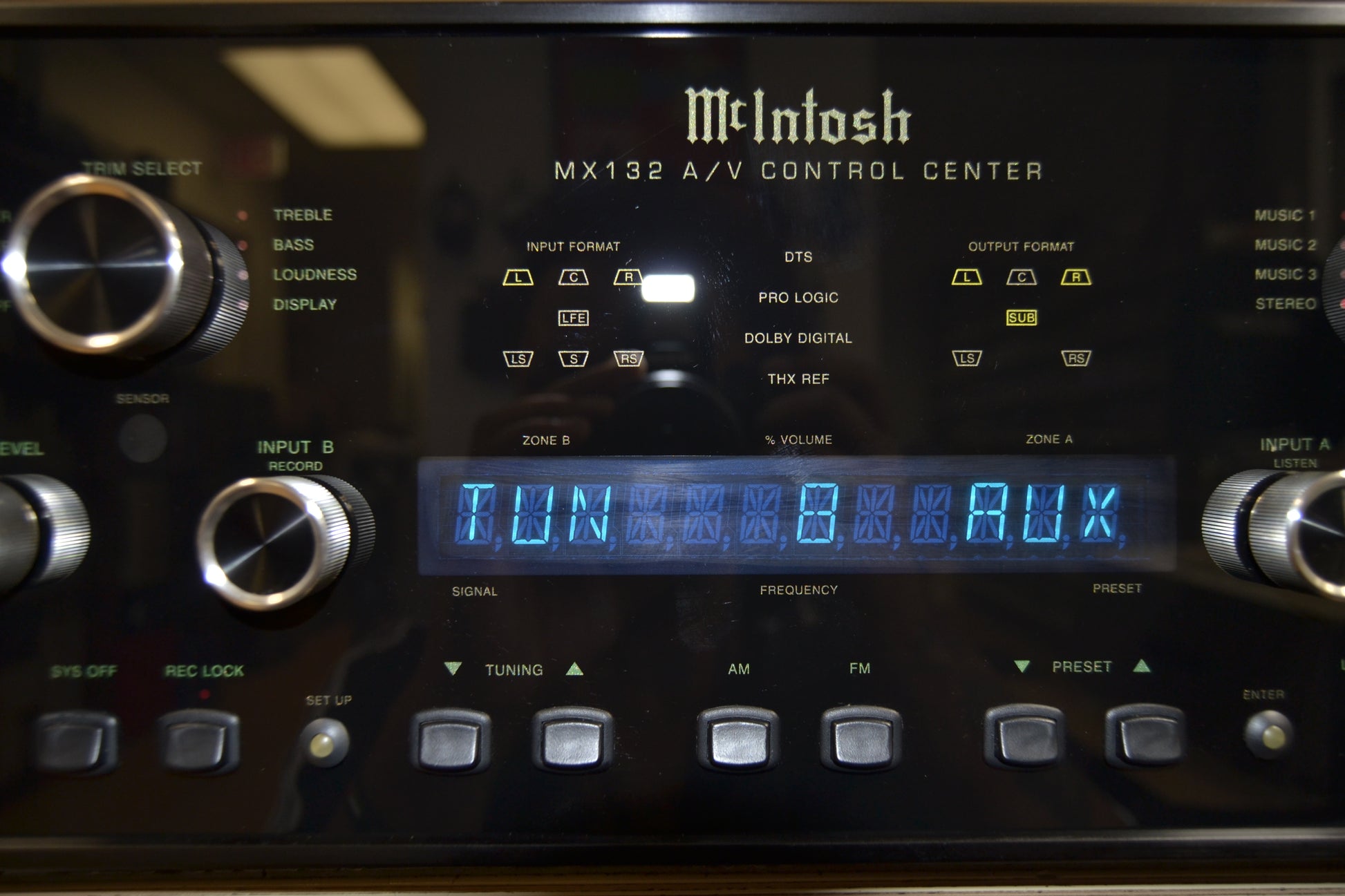

McIntosh MX-132 Stereo Control Center * Remote Control

McIntosh MX-132 Stereo Control Center * Remote Control

McIntosh

Regular price $1,500.00 USD
Sale price $1,500.00 USD Regular price
Sale Sold out
Frequency response:
20Hz to 20kHz
Total harmonic distortion:
0.005%
Gain:
14dB (line)
Input sensitivity:
400mV (line)
Signal to noise ratio:
100dB (line)
Output:
2V (Pre out), 9.5V (Pre out Max)

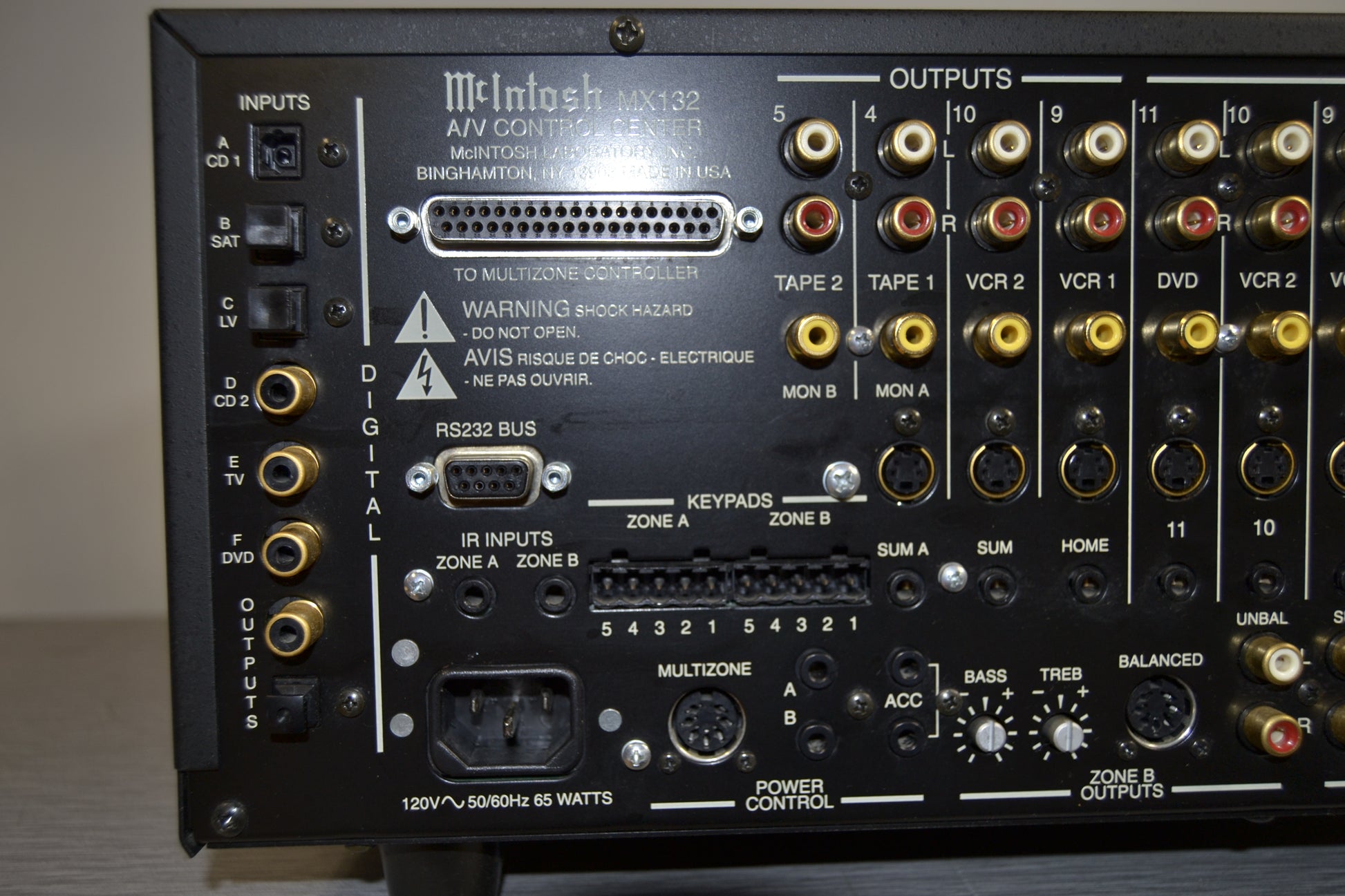

Digital inputs:
coaxial, optical

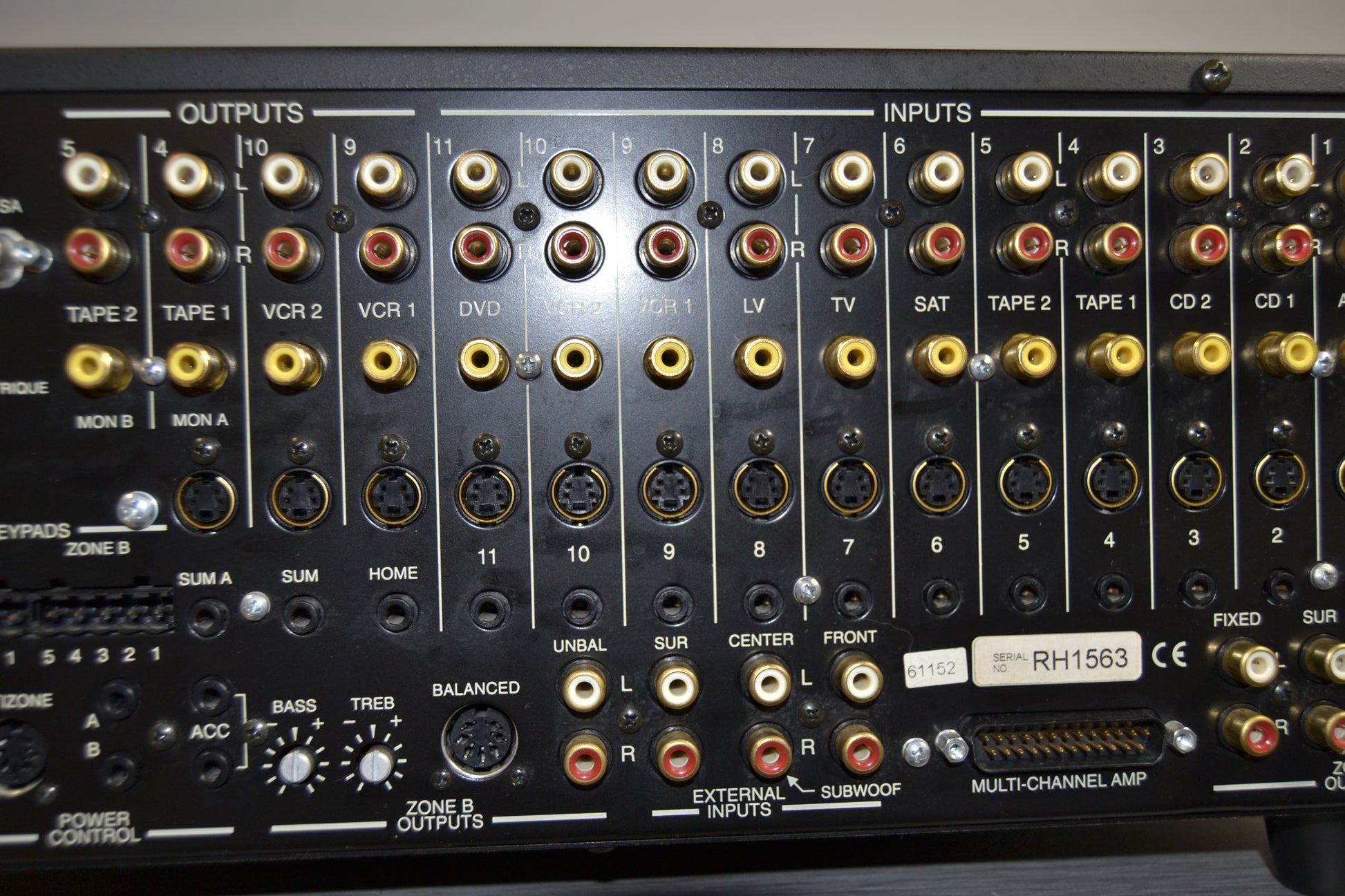

Video Connections:
composite, SVHS
Dimensions:
7.1 x 17.5 x 21 inches
Weight:
33 lbs

What else to know about the McIntosh MX 132?

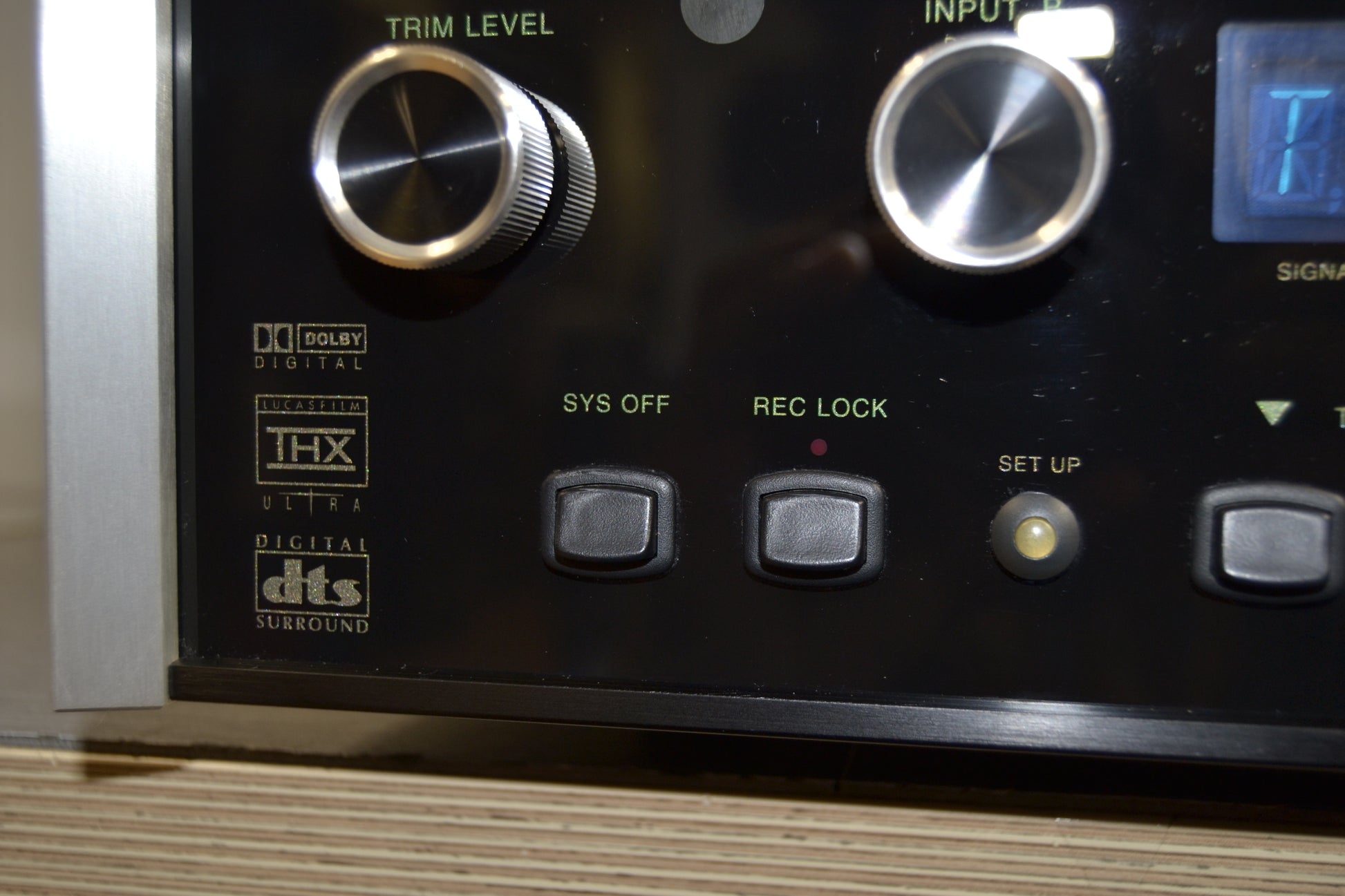

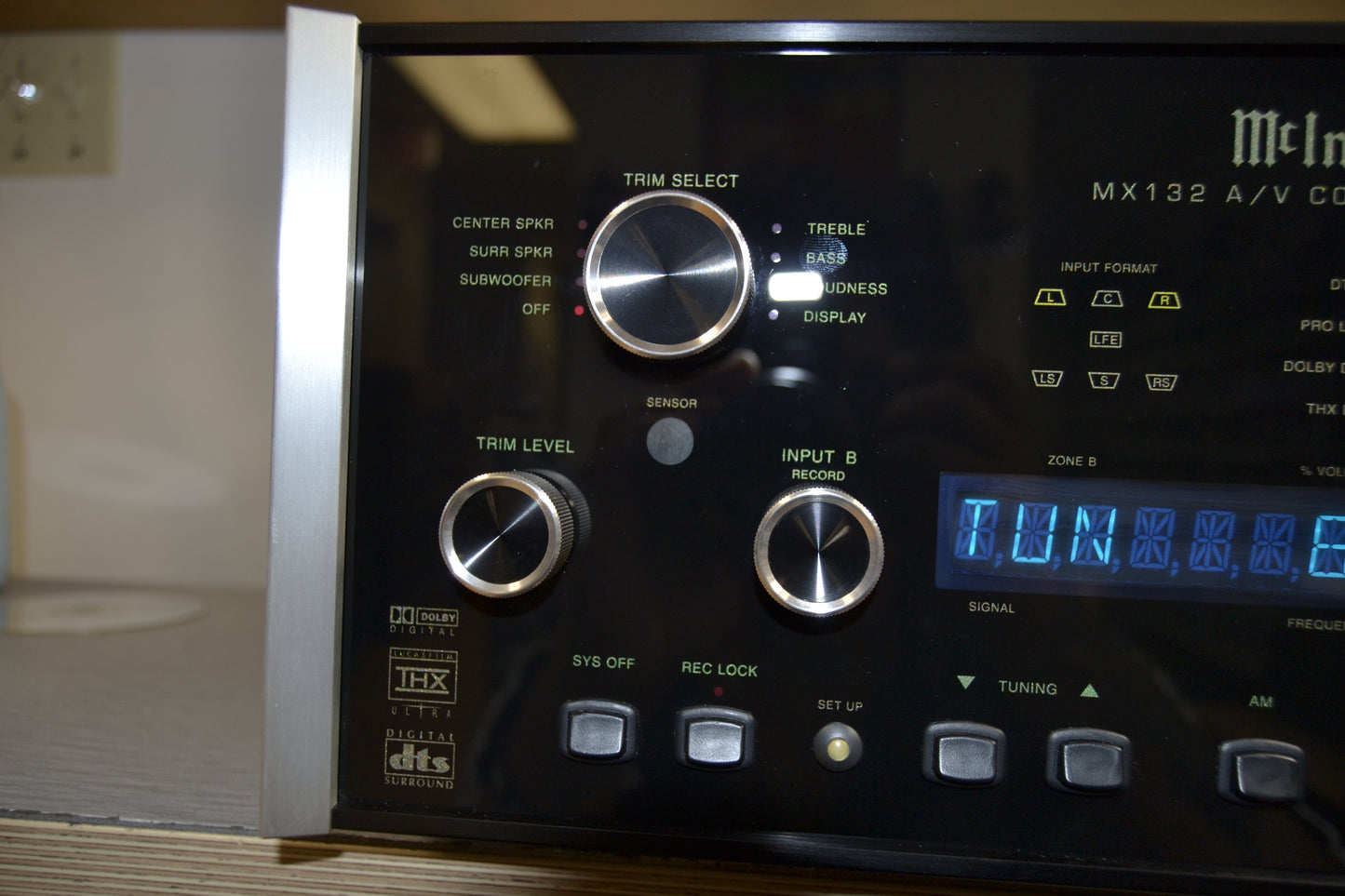

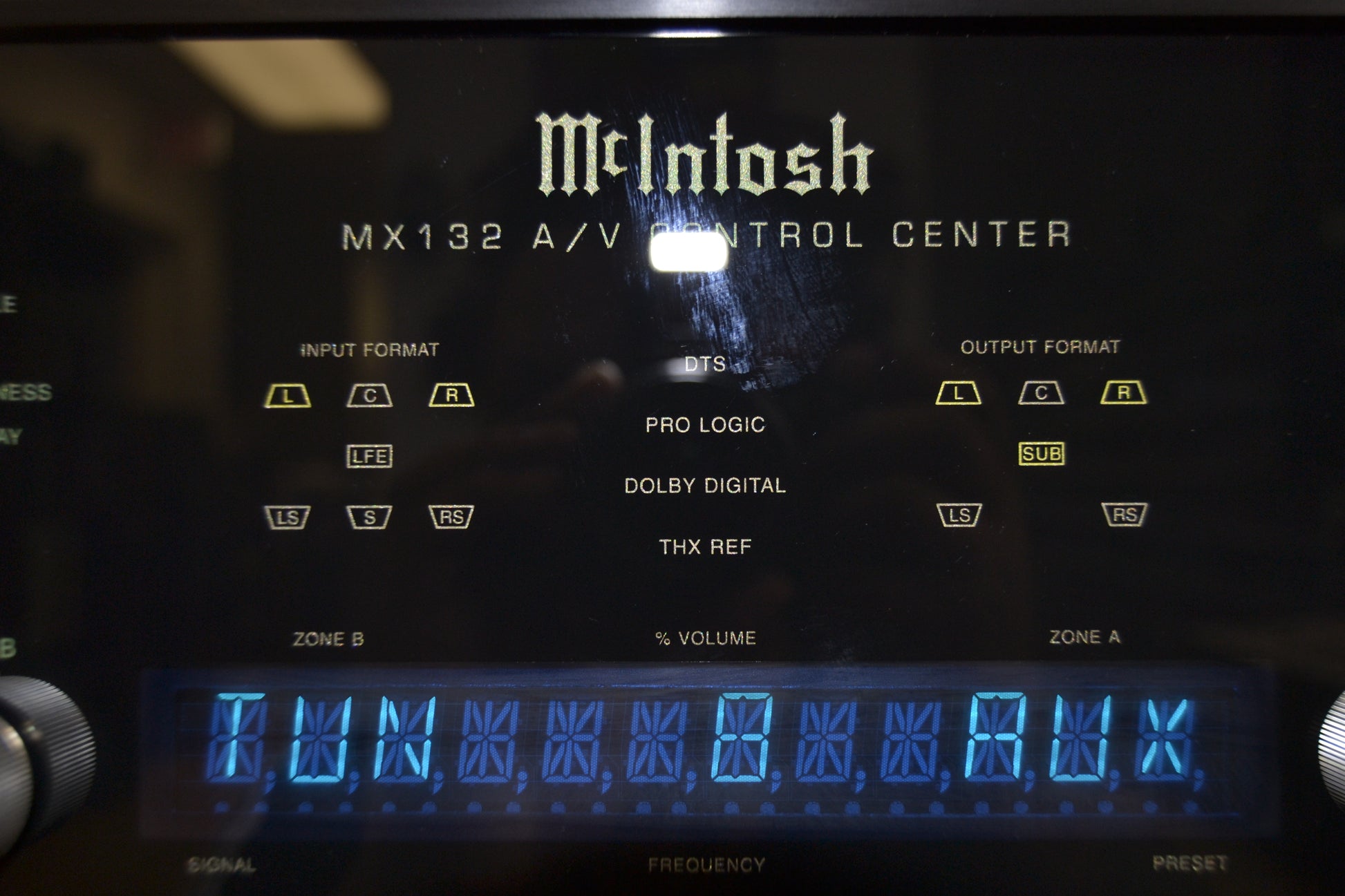

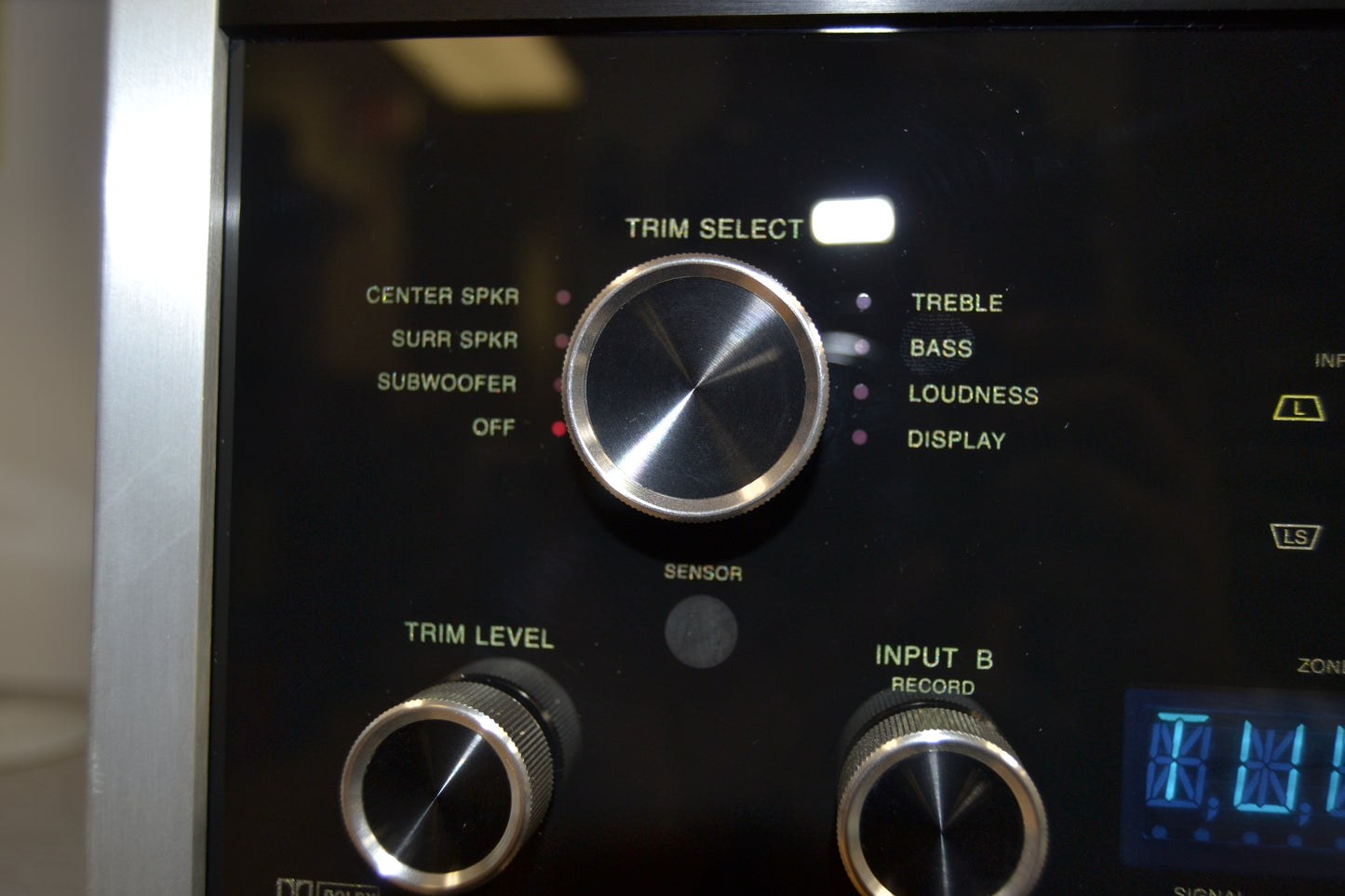

"24-BIT SIGNAL PROCESSING (MX132). The MX132 features one of the most powerful DSP engines available. Three Motorola 24-bit digital signal processors decode Dolby Digital®, Pro Logic, and DTS® soundtracks. One divides a digital bit stream into the Dolby Digital and Pro Logic channels. Another is dedicated to decoding DTS. The third handles bass-channel management as well as ancillary functions. Except in pure Stereo mode, all analog inputs are processed by a 24-bit stereo A/D converter. Three additional 24-bit D/A converters handle the DSP output. HOME THX® CINEMA (MX132). Speaker Position Time Synchronization and Dynamic Decorrelation – two THX enhancements for Dolby Digital – optimize sound in rooms lacking proper speaker locations. TRIM SELECT (MX132). Settings for subwoofer, surround speakers, center speaker, treble, bass, loudness, and display can be adjusted using the TRIM LEVEL knob or via remote. The settings are shown on the MX132’s large display. For each operating mode only the appropriate trim options can be accessed. ON-SCREEN SETUP (MX132). All speaker size selection, room calibration, and custom sound enhancement features can be set from the listening position via remote control. CONTROL DATA OUTPUTS (MX132). To facilitate system integration, the MX132 outputs control data for source components. This allows remote operation of non-McIntosh components either by direct connection to compatible data inputs or via a McIntosh Remote Translator. REMOTE POWER CONTROL (MX132 + MC7205). The MC7205 receives power on/off data via its cable link to the MX132. In addition, power control jacks provide the same capability when the units are used independently. A special multipin jack on the MX132 connects to the PC3 AC Power Controller (see “Companions” section). SUPER-TRACKING VOLUME CONTROL (MX132). Level differences among channels in a stereo or surround system compromise sound imaging. The MX132 uses an electronic volume control with tracking accuracy better than 0.5dB for all six channels. ACTIVE VARIABLE LOUDNESS COMPENSATION (MX132). Typical loudness circuits apply a fixed amount of compensation for listening at low volume. The MX132 includes a separate loudness circuit that applies compensation proportionately. When off, the loudness circuit elements are completely removed from the signal path. MATCHED AND BUFFERED VIDEO SWITCHING (MX132). High-resolution video sources such as DVDs demand high-quality video switching. Each MX132 video input is termi- nated with 75 ohms to maintain a proper impedance match. Video buffer amps feed the two monitor video outputs, ensuring no loss in picture quality. Built-in digital comb filters convert composite video to S-video, allowing use of S-video outputs for all video sources. AUTOMATIC INPUT LEVEL CONTROL (MX132). The analog input to the DSP features a circuit similar to the Power Guard® used in McIntosh amplifiers. AILC continuously mon- itors input voltage and if overdrive occurs reduces the input level, preventing distortion. BALANCED CONNECTIONS (MX132 Zone B). A balanced connection provides 40dB more noise protection than an unbalanced connection. The balanced output of the MX132’s Zone B allows distant placement of a Zone B amp without compromising sound." - McIntosh



http://www.mcintoshcompendium.com/Compendium%20Docs/Home%20Theater%20Controllers/PDFs/MX132.pdf



In stock

There’s something undeniably magnetic about vintage audio gear. The tactile weight of milled aluminum knobs, the warm glow of dial lamps, and—above all—the rich, analog sound that today’s sterile streaming boxes can’t quite replicate. But time is merciless: capacitors dry out, switches oxidize, and those gorgeous walnut cabinets lose their sheen. That’s where the art (and science) of our vintage audio refurbishment comes in.

Why Vintage Audio Still Matters

In the golden era of hi-fi—roughly the mid-1960s through the early 1980s—companies like Marantz, McIntosh, Pioneer, Sansui, and Technics were engaged in an arms race of build quality. This was before cost-cutting plastics and disposable designs; amplifiers were over-engineered, receivers were works of art, and turntables were precision instruments.

Owning one wasn’t just about sound; it was about status and permanence. These machines were built to last a lifetime—or two. The irony? Decades later, they often do, provided they’re given the care they deserve.

The Philosophy of Refurbishment

Refurbishment is not just about fixing; it’s about preserving authenticity while ensuring reliability. The goal is to keep that lush, analog character alive without compromising safety or sound quality.

Some enthusiasts chase museum-level originality—keeping every factory component in place. Others opt for sympathetic modernization, upgrading parts that never existed in the ’70s to improve performance. Both approaches can be valid; it depends on your vision.

The Turntable Store refurbishing process.. step by step

Step 1: The Initial Encounter

When we first meet a 40-year-old amplifier, we resist the urge to plug it in right away. That dusty Marantz 2270 might look gorgeous, but old electrolytics and brittle insulation can short instantly under full voltage.

Instead:

  • We inspect for corrosion, burnt resistors, and leaking capacitors.
  • We use a Variac (variable transformer) to bring up voltage slowly, reforming capacitors rather than shocking them back to life.
  • We check fuses—not just for continuity but for correct ratings.

Tip: A faint musty smell? That’s often the scent of old phenolic boards, not trouble. But a burnt smell? That’s trouble.


Step 2: Deep Cleaning & Control Detox

Dust is the enemy of good sound, that is why we clean the interior carefully with compressed air and a soft brush.

The real magic comes with switches and potentiometers. Over decades, oxidation builds up, causing scratchy controls and dropouts. A deep contact clean in each pot and switch, followed by vigorous cycling, often restores silky-smooth operation.

Step 3: Electrical Resurrection

This is where science meets art:

  • Capacitors: Electrolytic caps often need some attention. We replace out-of-spec caps with high-quality modern equivalents (Nichicon, Panasonic), avoiding over-capacitance unless the power supply can handle it.
  • Resistors: Carbon comp resistors drift over decades. Measure and replace out-of-spec parts.
  • Transistors: Certain vintage transistors (e.g., 2SC458) are notorious for noise. We do swap defective ones for modern low-noise equivalents.
  • Relays & Lamps: Speaker relays oxidize; replace or clean contacts. Dial lamps? Upgrade to warm LEDs for a factory glow without the heat.


Step 4: Cosmetic Glory

Refinishing the walnut cabinet can transform a unit. We do use real wood oil or Danish oil, not polyurethane. We clean the glass dial carefully; those silkscreened letters are fragile.

Knobs? We polish with metal cleaner, but never use abrasives on anodized aluminum.

Faceplate lettering? We avoid harsh chemicals—just mild soap and a microfiber cloth.


Step 5: Calibration & Sonic Check

After the repair and cleaning, it’s time to dial in the performance:

  • We do adjust bias and DC offset on amplifiers for stable operation.
  • On turntables, we re-lube bearings, replace belts, and check speed accuracy.
  • On Cassette Decks and Reel to Reels, we replace belts ( if needed ), we clean and demagnetize the heads before the alignment process ( a must ! )

When done right, the result is astonishing: a sound that breathes—liquid mids, velvet highs, and bass with a tactile presence that modern gear rarely matches.


Our promise for Audiophile-Level Results

  • We Avoid Cheap Parts: That $5 eBay capacitor kit? Hard pass. We use reputable brands.
  • We Don’t Over-Polish: Patina is part of the charm. We aim for “well-loved,” not “plastic surgery.”
  • We Upgrade Discreetly: If we must modernize (like adding gold-plated RCA jacks), we keep it tasteful and reversible.


Why It’s Worth It

The payoff isn’t just sonic—it’s emotional. Restoring a 1970s Marantz or Sansui is like bringing a classic car back to life. Every glowing dial lamp, every smooth rotation of a volume knob, connects you to an era when music mattered enough to build machines like this.

And when you drop the needle on your favorite record and hear that warm, enveloping sound, you’ll know: this wasn’t just a repair. It was a resurrection.
