Monster HTS 5100 Reference PowerCenter DBS-ready line conditioner/surge suppressor

Monster HTS 5100 Reference PowerCenter DBS-ready line conditioner/surge suppressor

Monster Power

Regular price $220.00 USD
Sale price $220.00 USD Regular price
Sale Sold out
Shipping calculated at checkout.

About the Monster HTS 5100 Reference PowerCenter

by Crutchfield'sJames Ralston

Don't leave your home theater vulnerable to harmful power surges, or to the line noise that can degrade performance — give your system the protection it deserves with Monster Power's HTS 5100! Monster's finest home theater PowerCenter, it delivers rock-solid surge protection, plus state-of-the-art power conditioning for the best possible picture and sound.

Boasting Monster's Stage 4 (v.2.0) Clean Power™ circuitry, the HTS 5100 virtually does away with EMI (electromagnetic interference) and RFI (radio frequency interference) that can degrade audio and video quality. Five isolated AC filter banks — each designed to combat the line noise produced by a specific type of equipment — provide the ultimate defense against cross-component interference. Two discrete Digital Isolation Filters, for example, prevent the broadband noise produced by digital components from interfering with the performance of analog equipment.

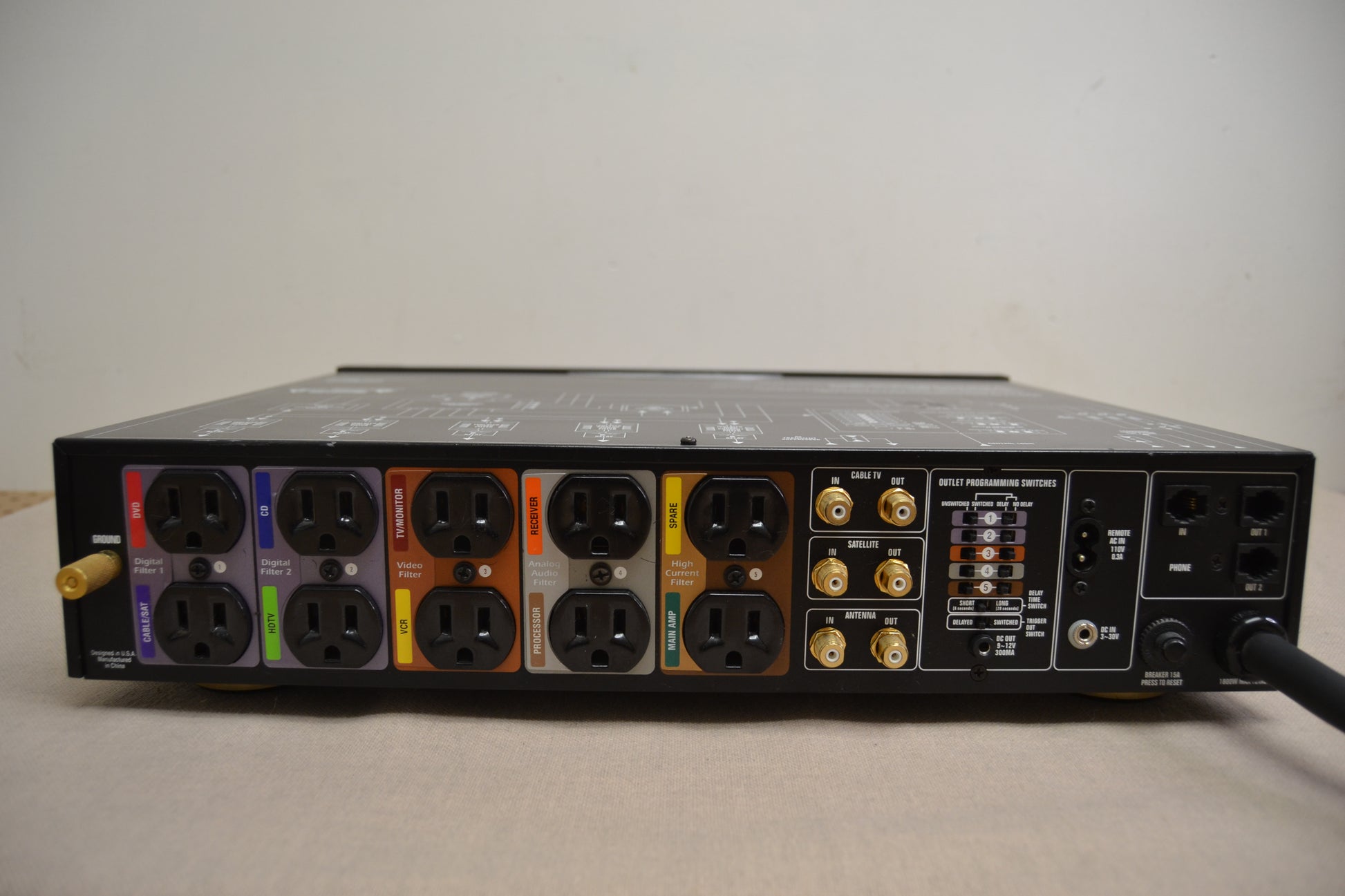

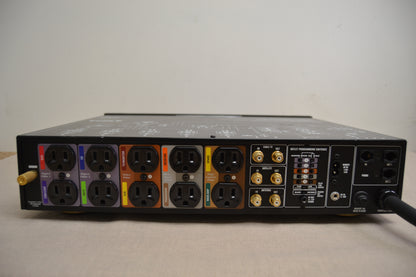

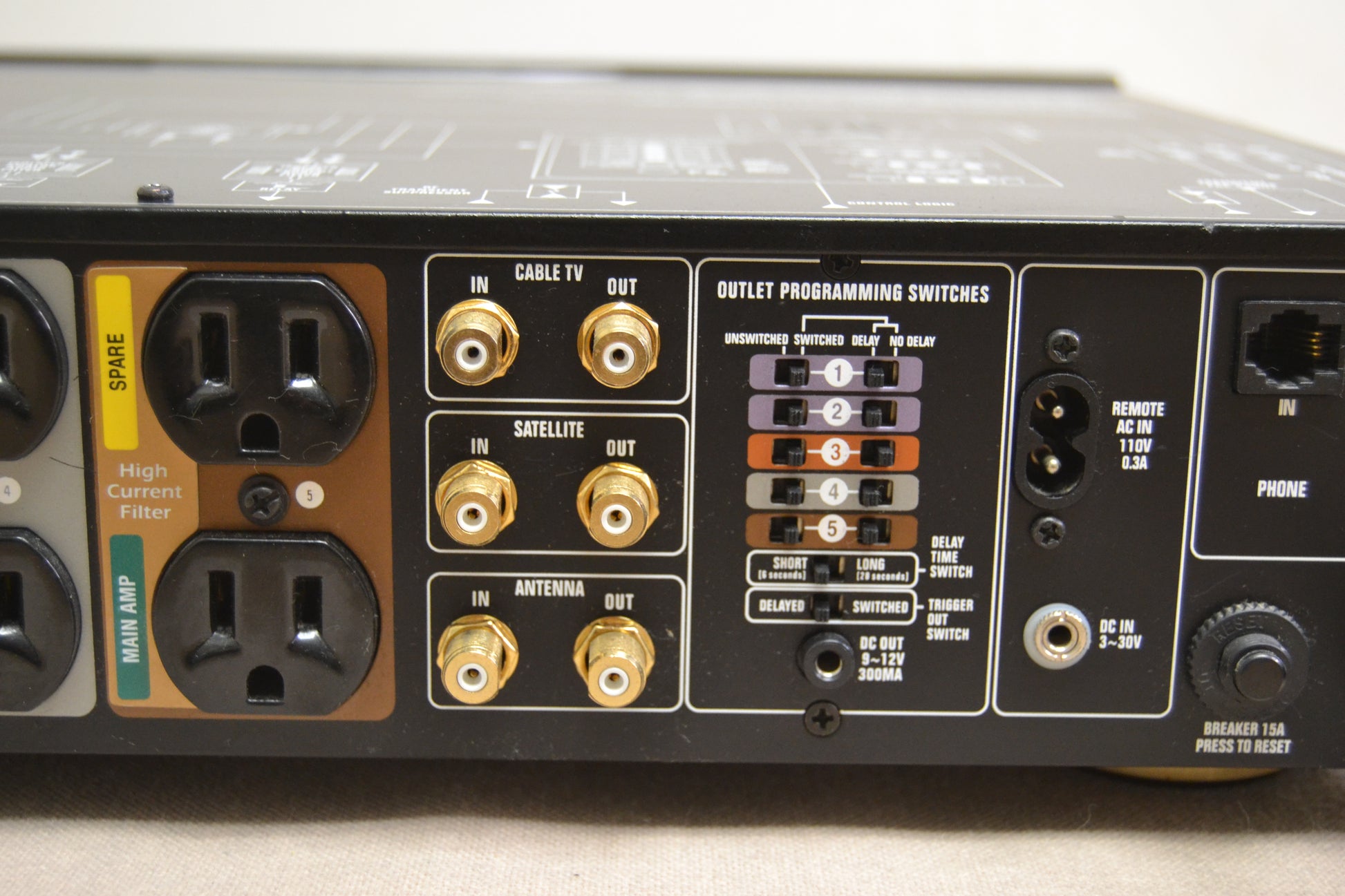

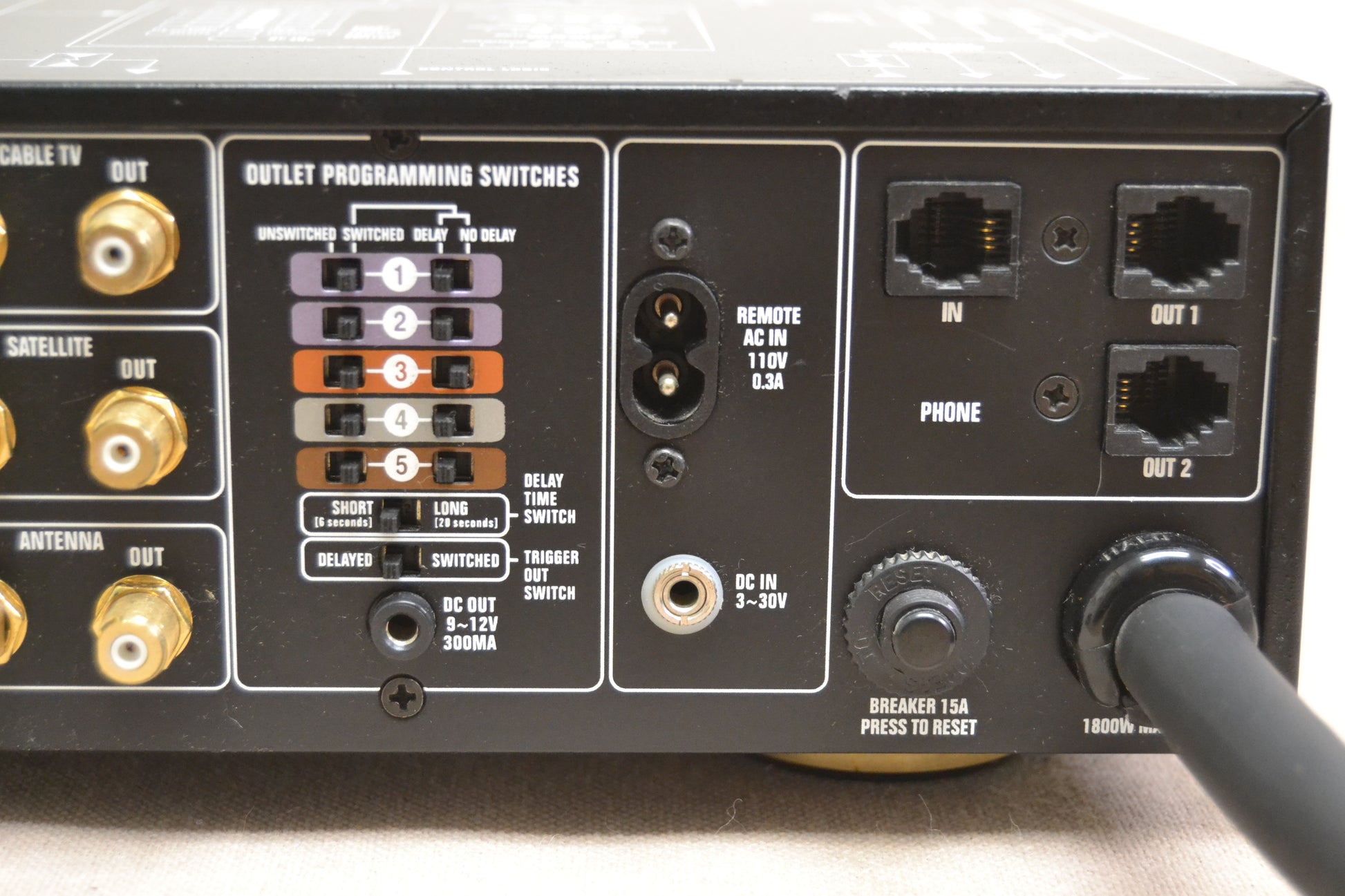

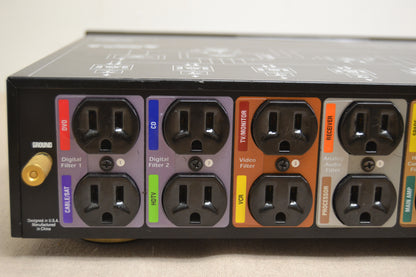

Ten color-coded, rear-panel outlets (divided into five pairs, each pair with its own filter bank) accommodate truly extensive systems. Individual slide switches let you set each outlet pair as "unswitched," "switched," or "switched with delay." For added flexibility, you can even program each pair's delay length to 6 or 20 seconds. Sequential power-up prevents sudden turn-on surges that can result in audible thumps and pops from your speakers.

With three sets of gold-plated coaxial inputs/outputs and special RF circuitry, the HTS5100 offers line conditioning and protection for cable, DBS, and antenna feeds — with minimal signal loss. An RJ-14 splitter provides phone line surge protection for DBS receivers, TiVo recorders, or other components requiring a direct phone line connection.

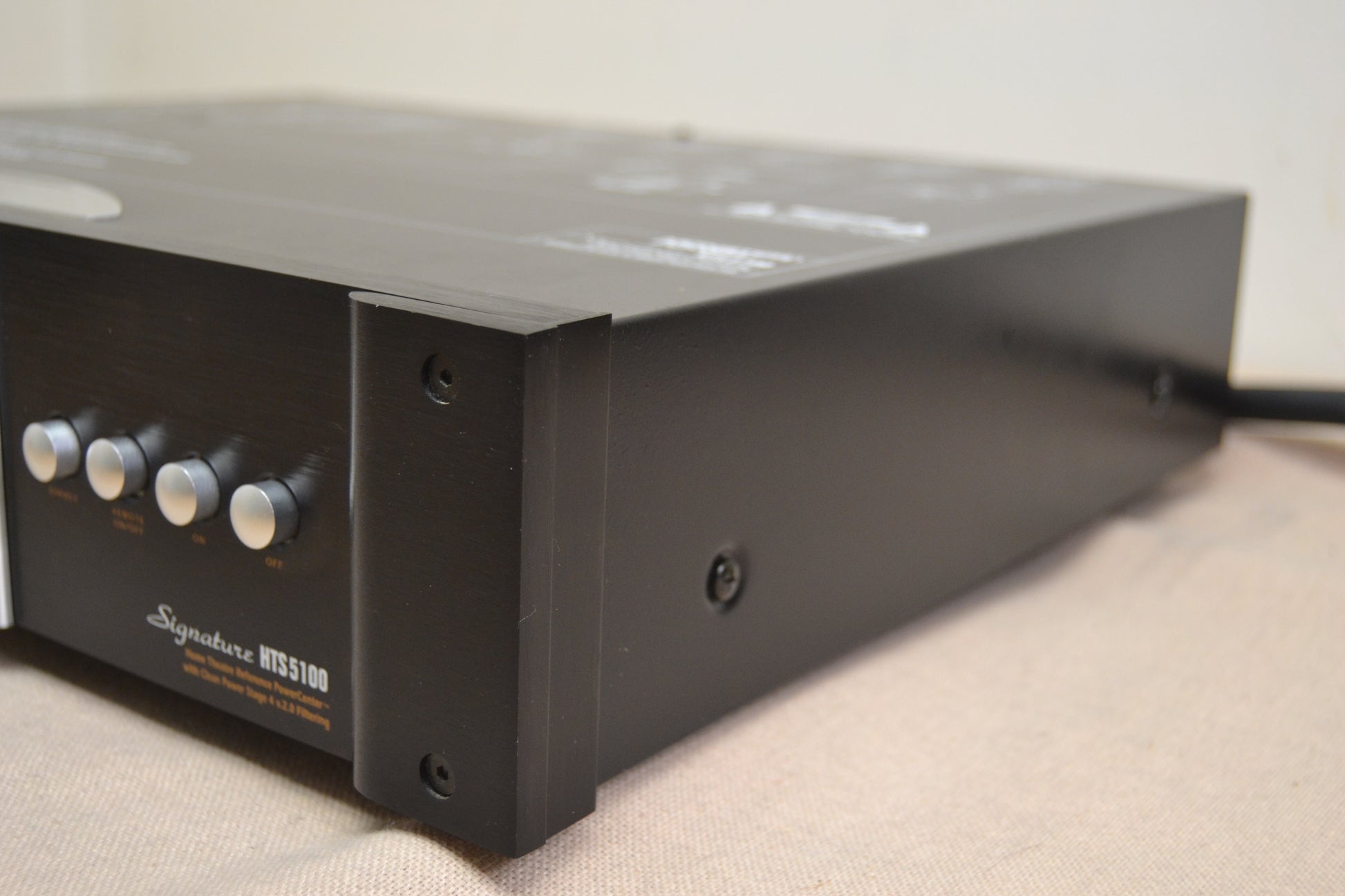

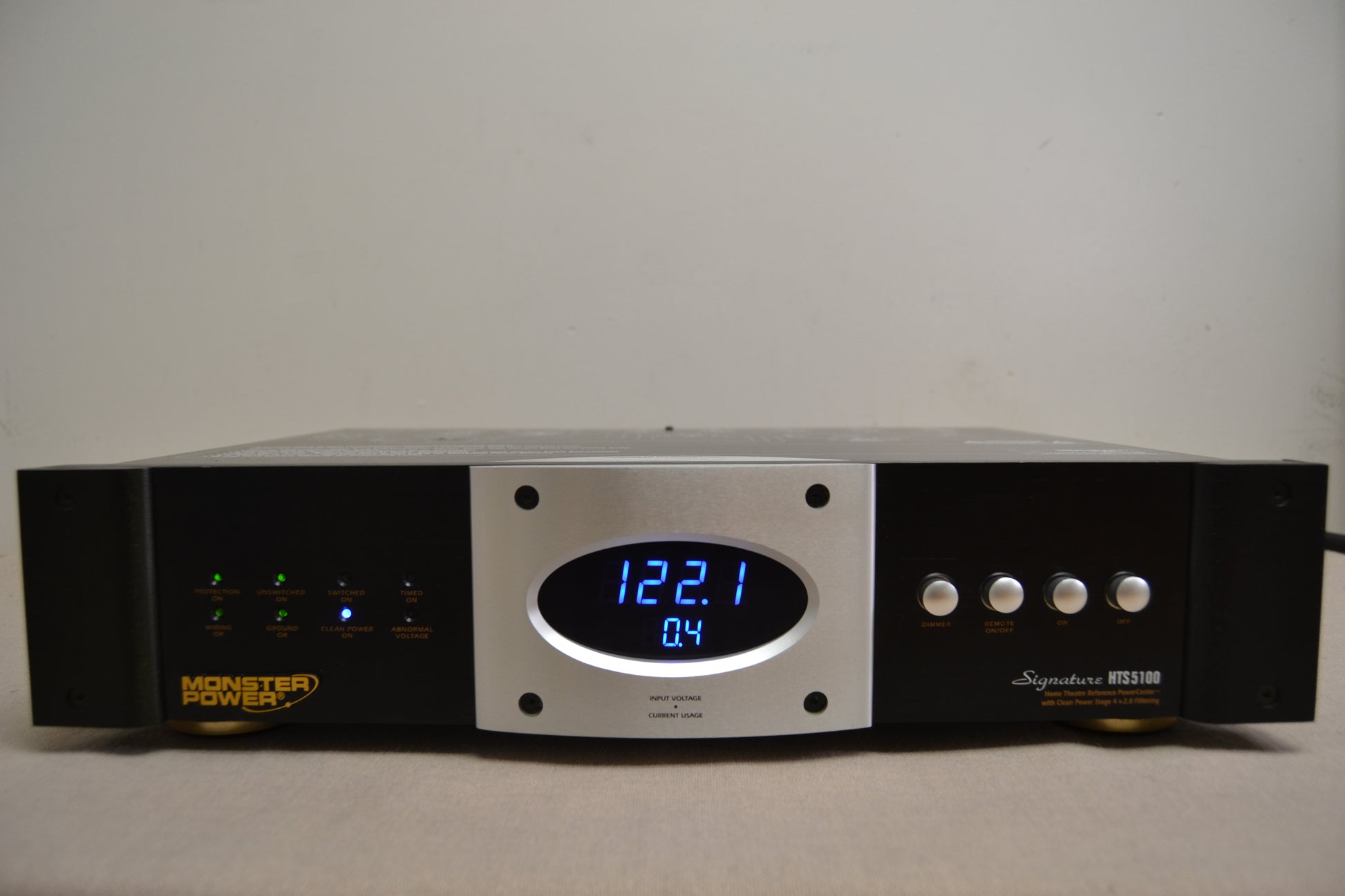

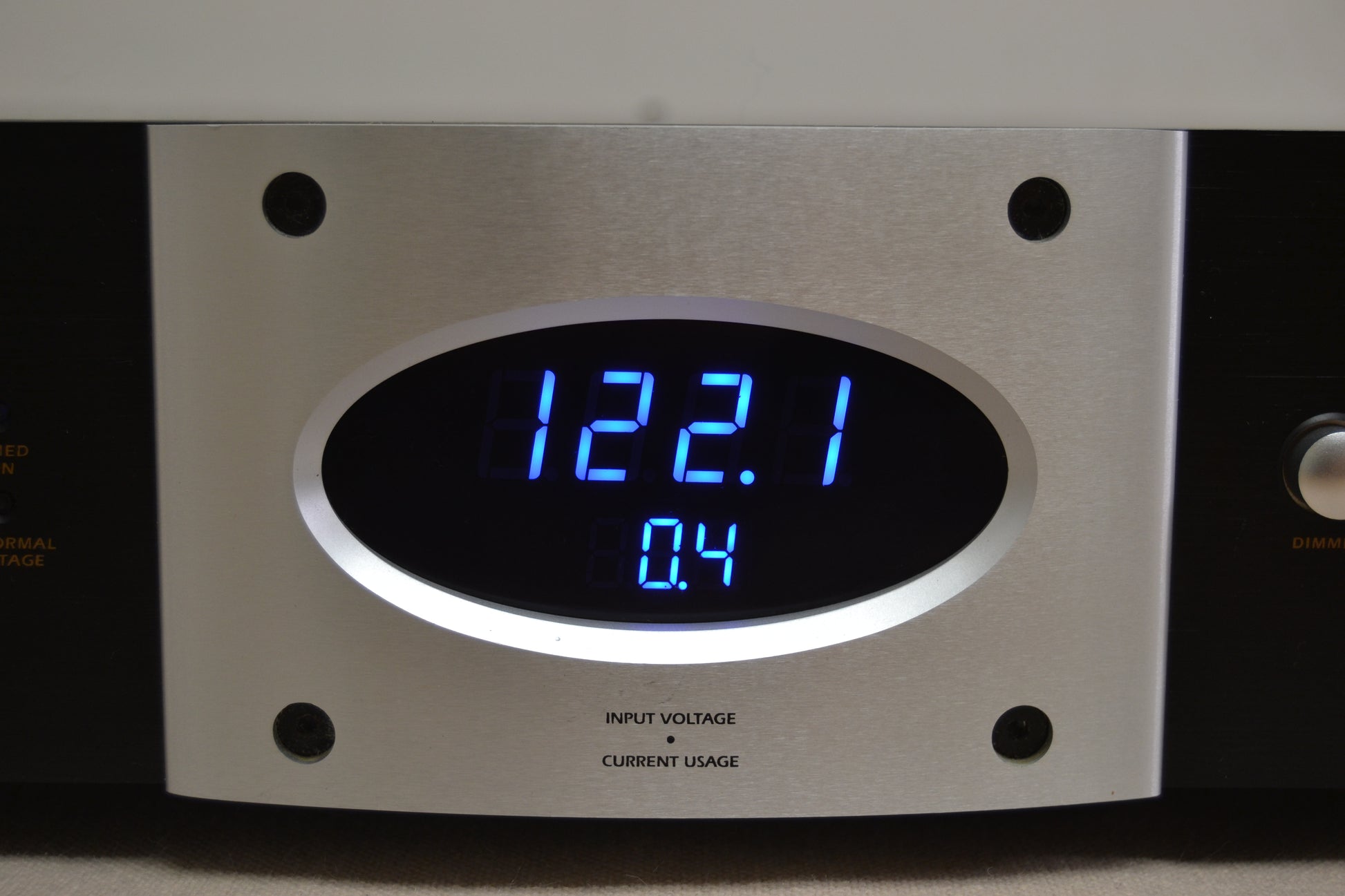

Dual illuminated digital meters on the front panel let you monitor the incoming voltage and total current draw. The HTS 5100's handsome, component-width chassis allows for easy stacking, or you can rack-mount it with the included metal rack ears. Remote AC and DC control means you can turn the PowerCenter on and off via your receiver, preamp, or a home automated control system.

Details:

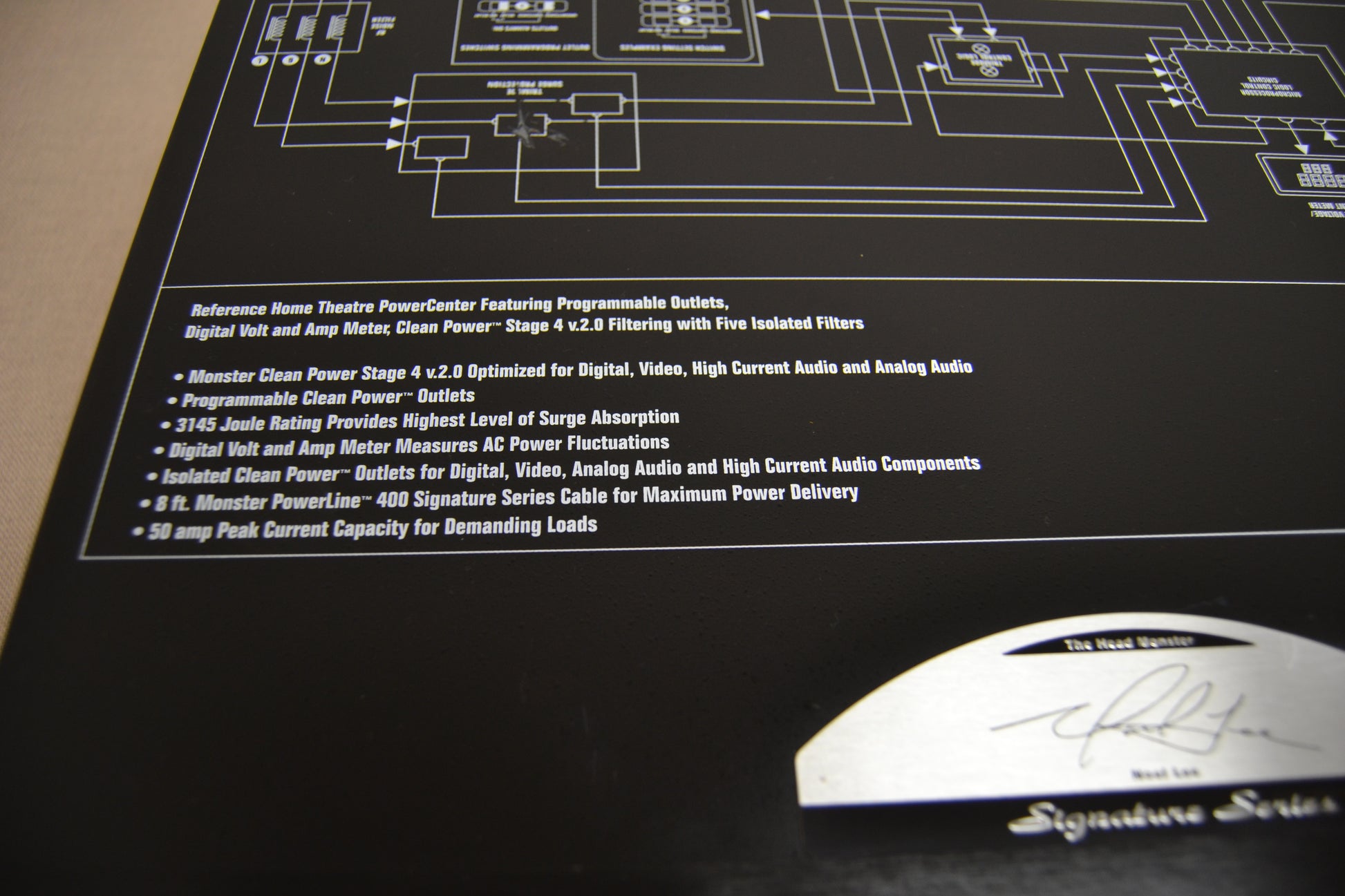

  • Monster Clean Power Stage 4 (v.2.0) isolated audio and video filters
  • surge absorption up to 3145 joules

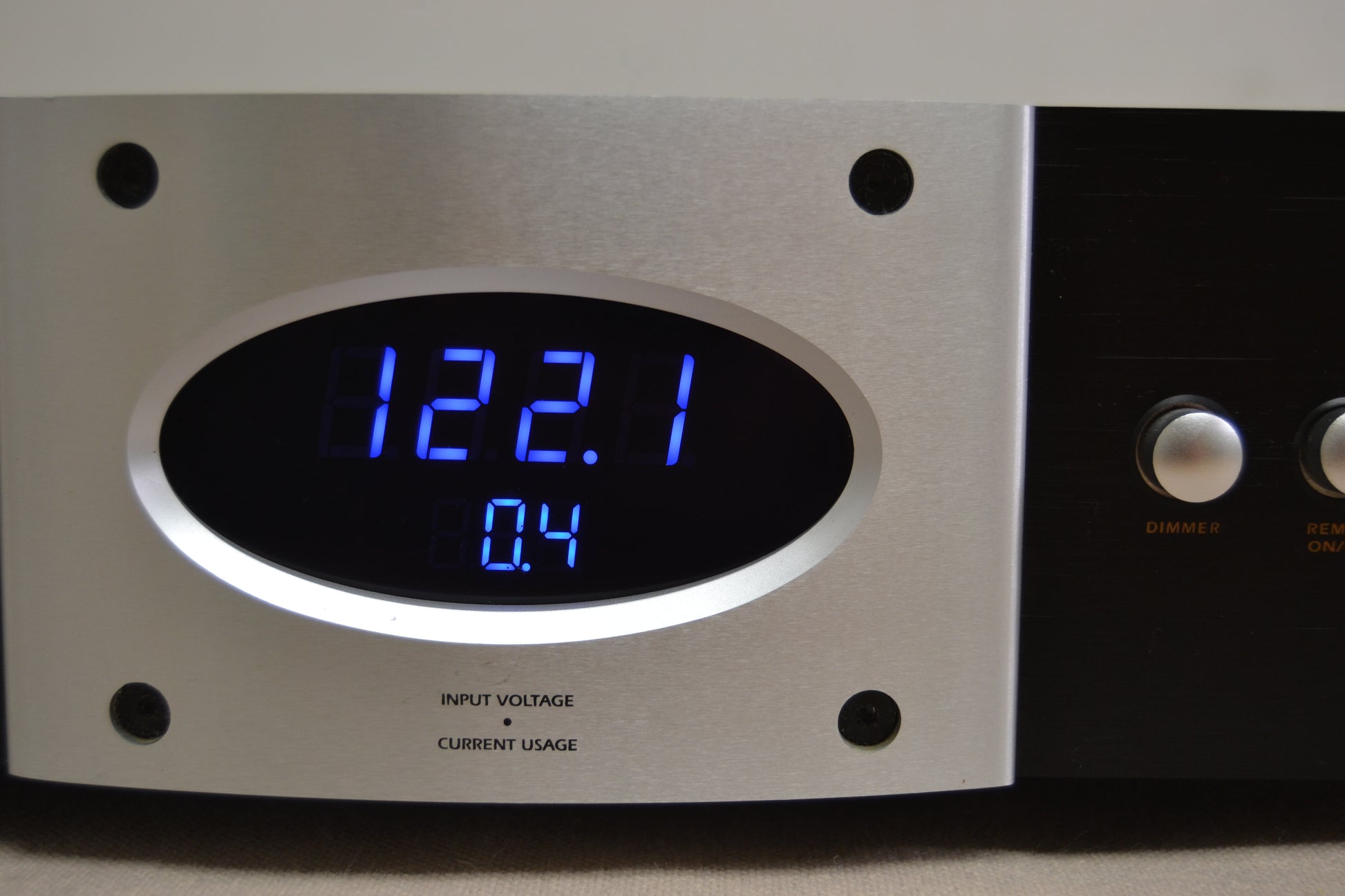

  • illuminated digital voltage and current meters on front panel

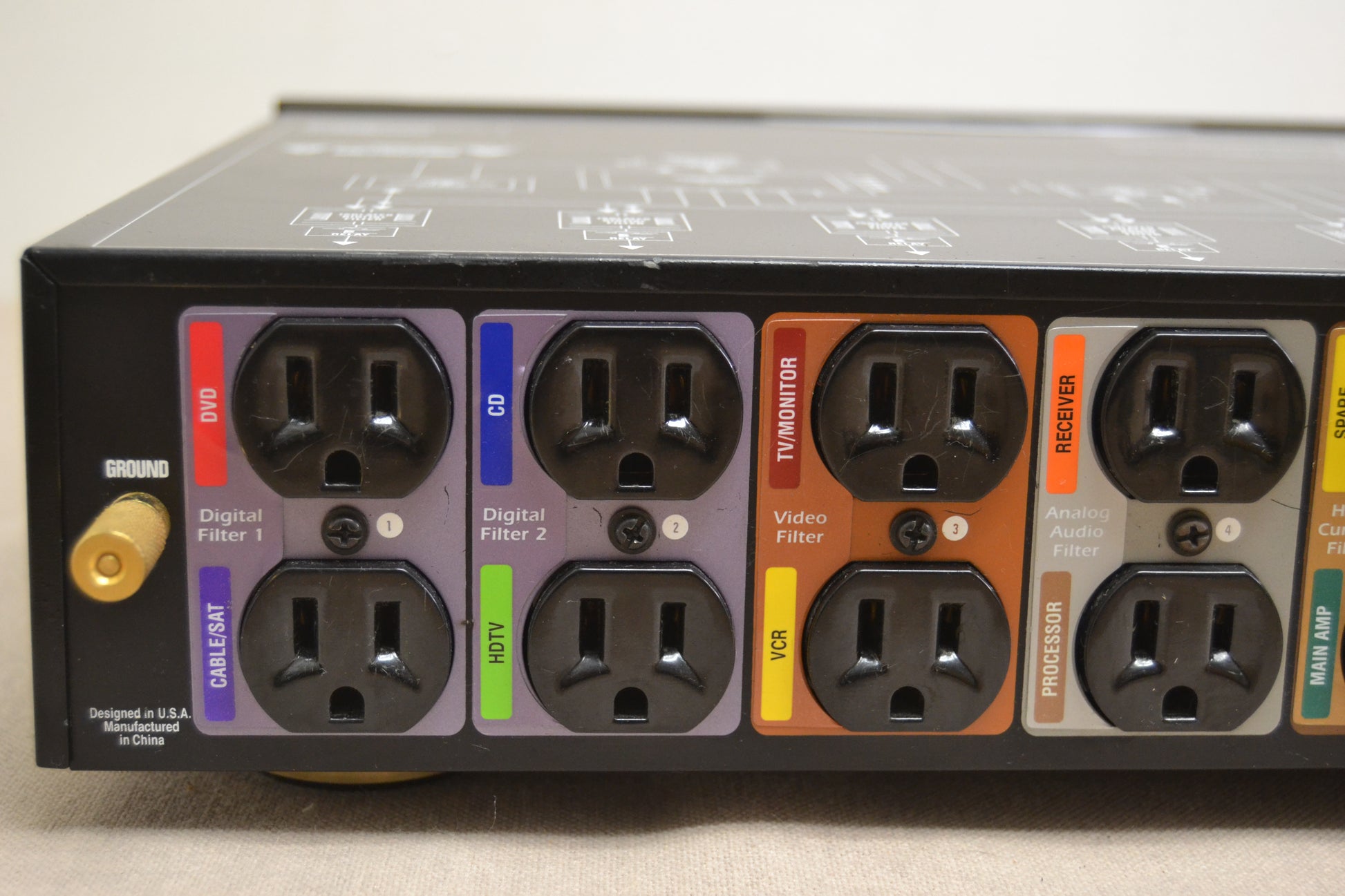

  • 10 rear-panel AC outlets; each outlet pair has its own discrete filter section and can be programmed as "unswitched", "switched", or "switched with delay"
  • four outlets with Digital Isolation Filter (two discrete filter banks)
  • two outlets with Video Filter
  • two outlets with Analog Audio Filter
  • two outlets with High Current Audio Filter
  • 3 sets of gold-plated coax inputs/outputs for cable TV, satellite TV, and antenna
  • RJ-14 phone splitter (one input, two outputs)
  • gold-plated ground post thumb screw for any ungrounded components
  • remote AC control allows you to turn the PowerCenter on and off via a receiver or preamplifier (remote cable included)
  • remote DC control lets you turn the PowerCenter on and off via a Home Automated Control System (1/8" DC input jack, 3-30V, cord not included)

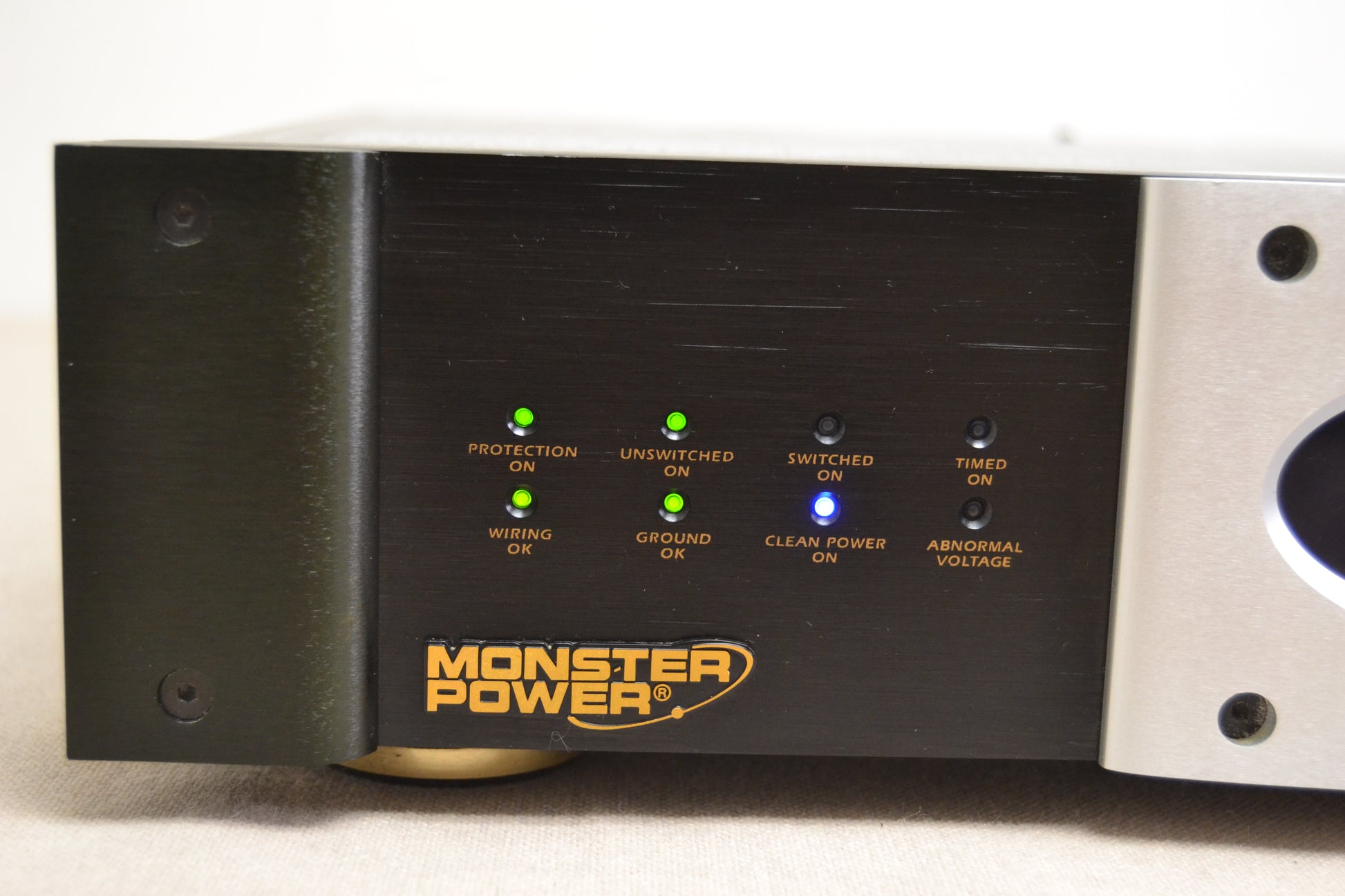

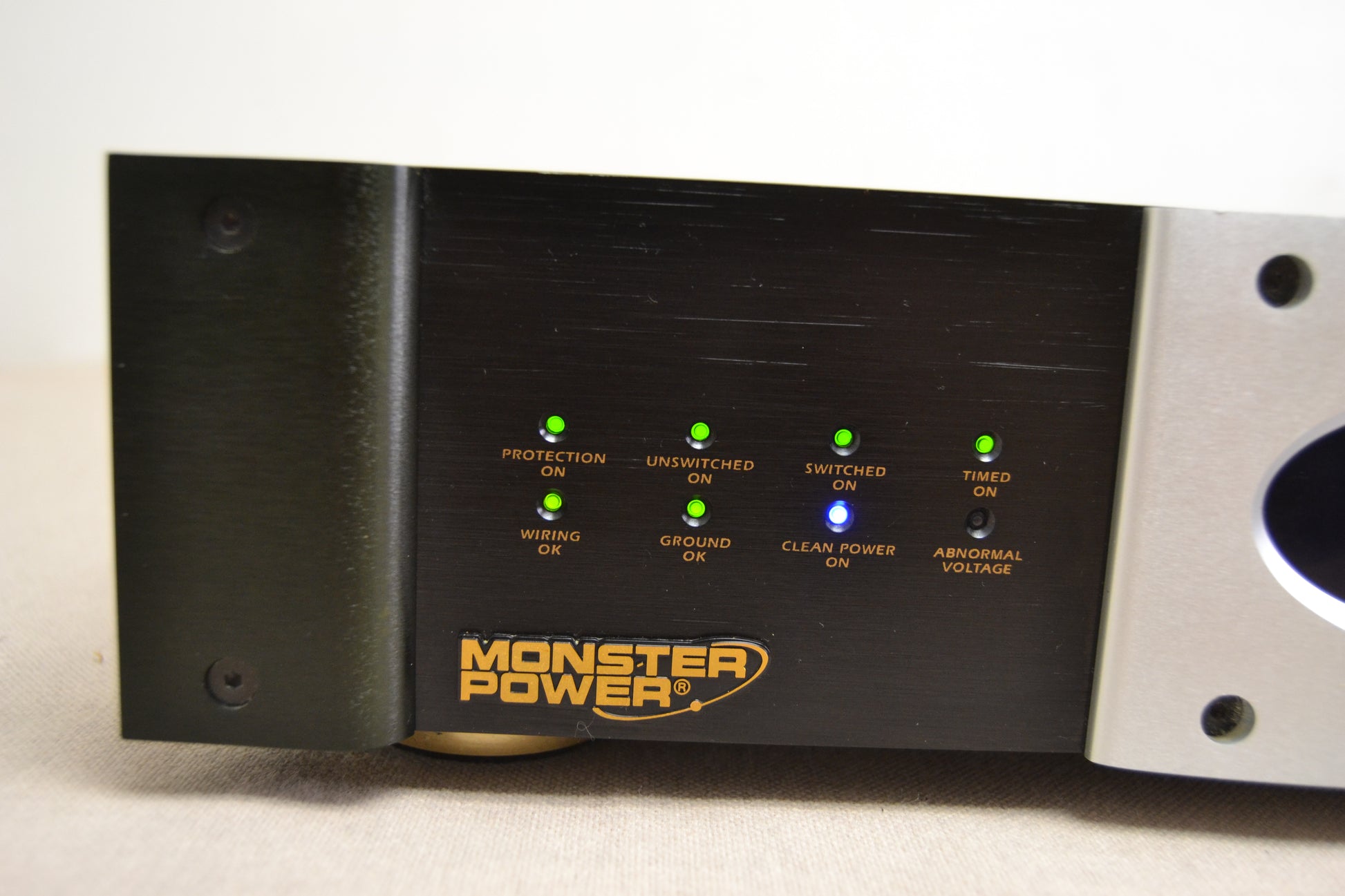

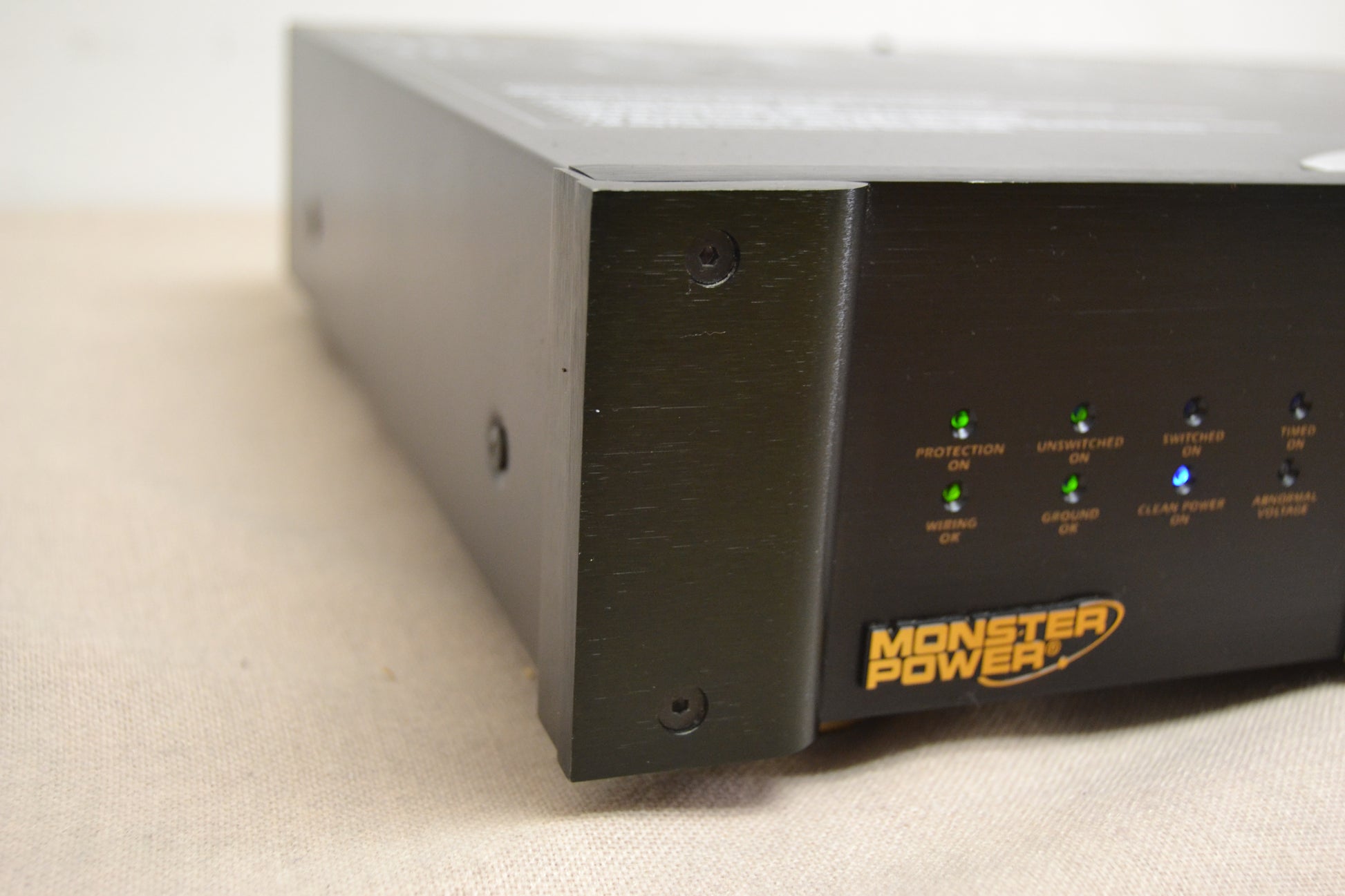

  • LED indicators for "Protection On", "Unswitched On", "Switched On", "Timed On", "Wiring OK", "Ground OK", "Clean Power On", and "Abnormal Voltage"
  • 8-foot PowerLine™ 300 power cord with 24k gold-plated contacts
  • includes Monster coax video cable and Monster RJ14 telephone cord
  • color-coded outlets and cord labels
  • rack-mountable with included metal rack ears (installation requires 3/32" Allen key, not included)
  • 17-1/8"W x 4"H x 15-3/8"D (with rack-mount ears: 19-1/8"W x 4"H x 15-3/8")

In stock

There’s something undeniably magnetic about vintage audio gear. The tactile weight of milled aluminum knobs, the warm glow of dial lamps, and—above all—the rich, analog sound that today’s sterile streaming boxes can’t quite replicate. But time is merciless: capacitors dry out, switches oxidize, and those gorgeous walnut cabinets lose their sheen. That’s where the art (and science) of our vintage audio refurbishment comes in.

Why Vintage Audio Still Matters

In the golden era of hi-fi—roughly the mid-1960s through the early 1980s—companies like Marantz, McIntosh, Pioneer, Sansui, and Technics were engaged in an arms race of build quality. This was before cost-cutting plastics and disposable designs; amplifiers were over-engineered, receivers were works of art, and turntables were precision instruments.

Owning one wasn’t just about sound; it was about status and permanence. These machines were built to last a lifetime—or two. The irony? Decades later, they often do, provided they’re given the care they deserve.

The Philosophy of Refurbishment

Refurbishment is not just about fixing; it’s about preserving authenticity while ensuring reliability. The goal is to keep that lush, analog character alive without compromising safety or sound quality.

Some enthusiasts chase museum-level originality—keeping every factory component in place. Others opt for sympathetic modernization, upgrading parts that never existed in the ’70s to improve performance. Both approaches can be valid; it depends on your vision.

The Turntable Store refurbishing process.. step by step

Step 1: The Initial Encounter

When we first meet a 40-year-old amplifier, we resist the urge to plug it in right away. That dusty Marantz 2270 might look gorgeous, but old electrolytics and brittle insulation can short instantly under full voltage.

Instead:

  • We inspect for corrosion, burnt resistors, and leaking capacitors.
  • We use a Variac (variable transformer) to bring up voltage slowly, reforming capacitors rather than shocking them back to life.
  • We check fuses—not just for continuity but for correct ratings.

Tip: A faint musty smell? That’s often the scent of old phenolic boards, not trouble. But a burnt smell? That’s trouble.


Step 2: Deep Cleaning & Control Detox

Dust is the enemy of good sound, that is why we clean the interior carefully with compressed air and a soft brush.

The real magic comes with switches and potentiometers. Over decades, oxidation builds up, causing scratchy controls and dropouts. A deep contact clean in each pot and switch, followed by vigorous cycling, often restores silky-smooth operation.

Step 3: Electrical Resurrection

This is where science meets art:

  • Capacitors: Electrolytic caps often need some attention. We replace out-of-spec caps with high-quality modern equivalents (Nichicon, Panasonic), avoiding over-capacitance unless the power supply can handle it.
  • Resistors: Carbon comp resistors drift over decades. Measure and replace out-of-spec parts.
  • Transistors: Certain vintage transistors (e.g., 2SC458) are notorious for noise. We do swap defective ones for modern low-noise equivalents.
  • Relays & Lamps: Speaker relays oxidize; replace or clean contacts. Dial lamps? Upgrade to warm LEDs for a factory glow without the heat.


Step 4: Cosmetic Glory

Refinishing the walnut cabinet can transform a unit. We do use real wood oil or Danish oil, not polyurethane. We clean the glass dial carefully; those silkscreened letters are fragile.

Knobs? We polish with metal cleaner, but never use abrasives on anodized aluminum.

Faceplate lettering? We avoid harsh chemicals—just mild soap and a microfiber cloth.


Step 5: Calibration & Sonic Check

After the repair and cleaning, it’s time to dial in the performance:

  • We do adjust bias and DC offset on amplifiers for stable operation.
  • On turntables, we re-lube bearings, replace belts, and check speed accuracy.
  • On Cassette Decks and Reel to Reels, we replace belts ( if needed ), we clean and demagnetize the heads before the alignment process ( a must ! )

When done right, the result is astonishing: a sound that breathes—liquid mids, velvet highs, and bass with a tactile presence that modern gear rarely matches.


Our promise for Audiophile-Level Results

  • We Avoid Cheap Parts: That $5 eBay capacitor kit? Hard pass. We use reputable brands.
  • We Don’t Over-Polish: Patina is part of the charm. We aim for “well-loved,” not “plastic surgery.”
  • We Upgrade Discreetly: If we must modernize (like adding gold-plated RCA jacks), we keep it tasteful and reversible.


Why It’s Worth It

The payoff isn’t just sonic—it’s emotional. Restoring a 1970s Marantz or Sansui is like bringing a classic car back to life. Every glowing dial lamp, every smooth rotation of a volume knob, connects you to an era when music mattered enough to build machines like this.

And when you drop the needle on your favorite record and hear that warm, enveloping sound, you’ll know: this wasn’t just a repair. It was a resurrection.
