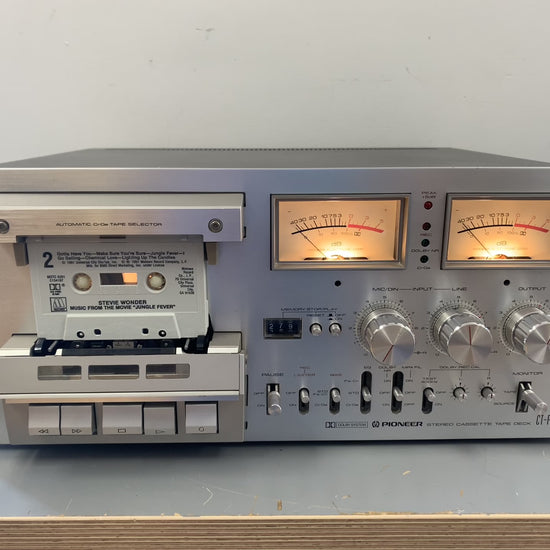

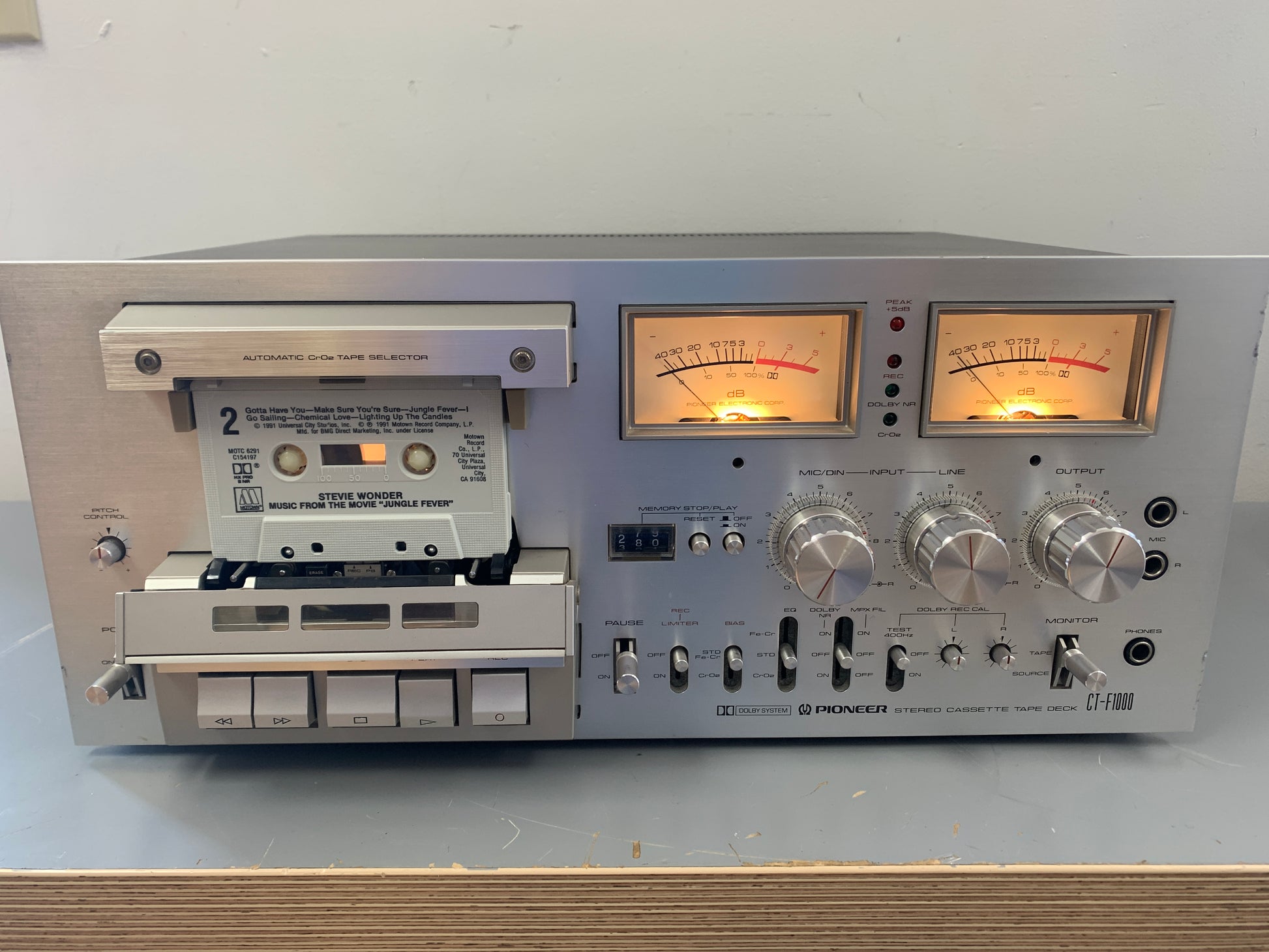

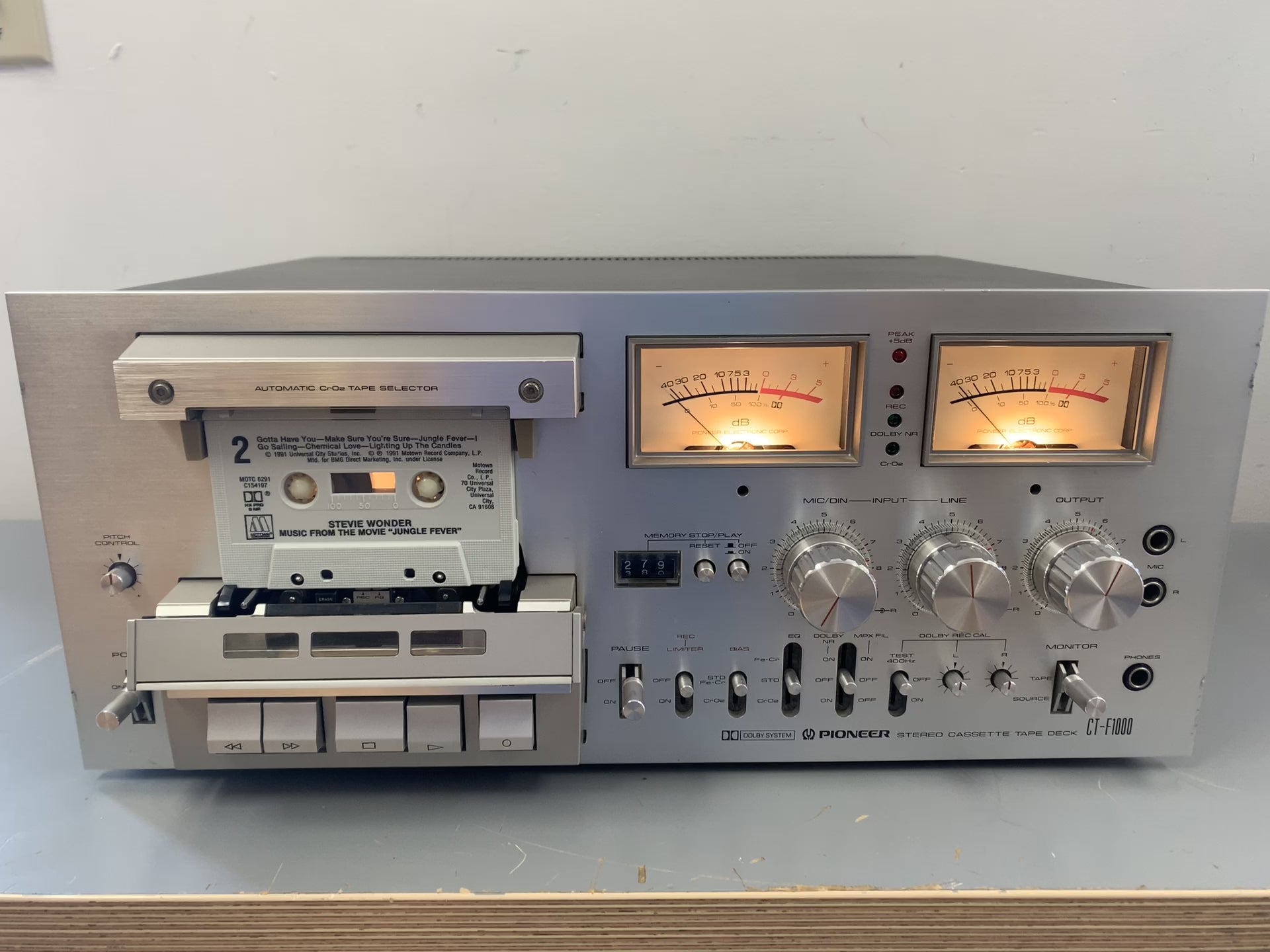

Pioneer CT-F1000
Stereo Cassette Tape Deck (1977-79)
Description

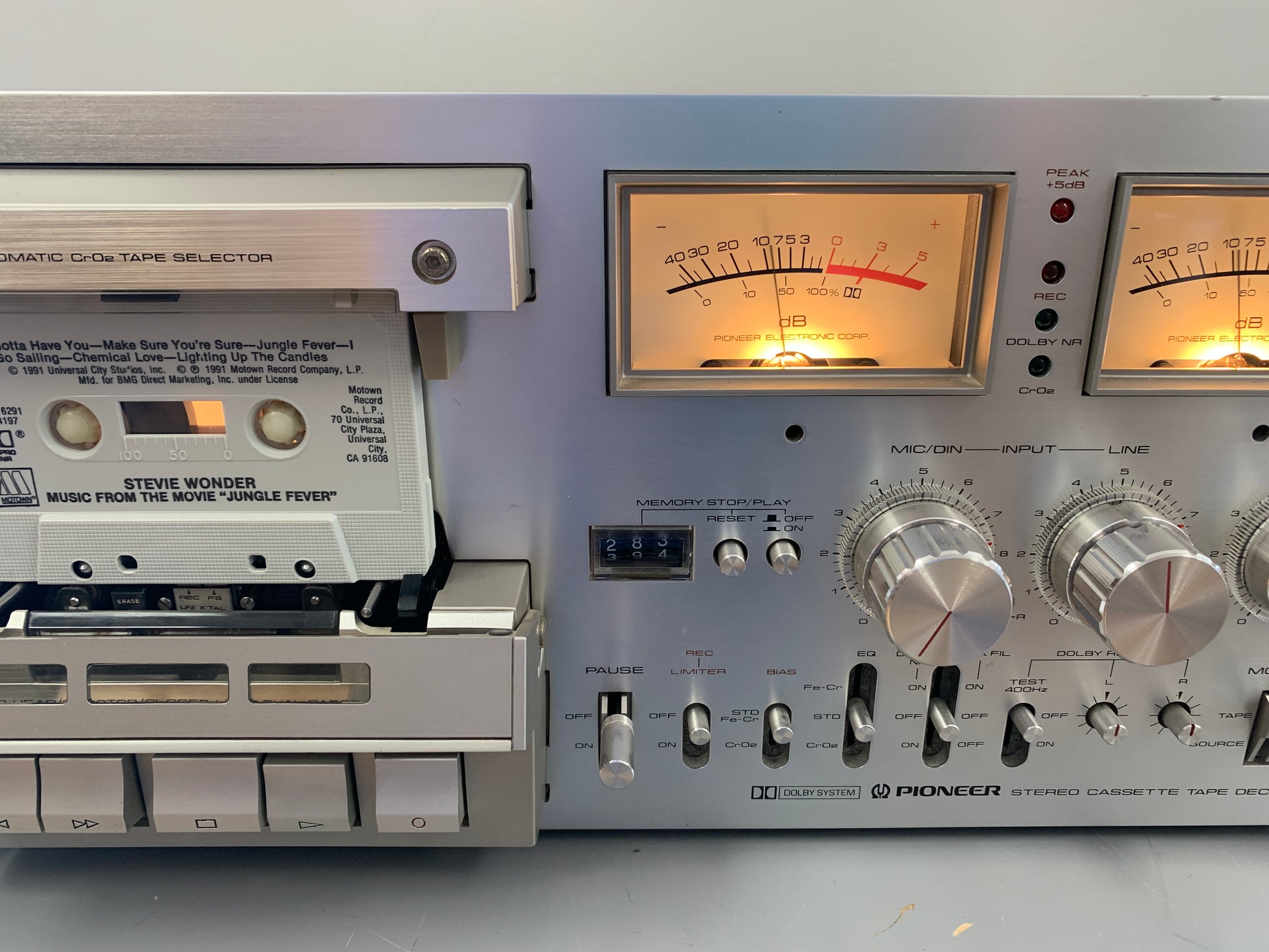

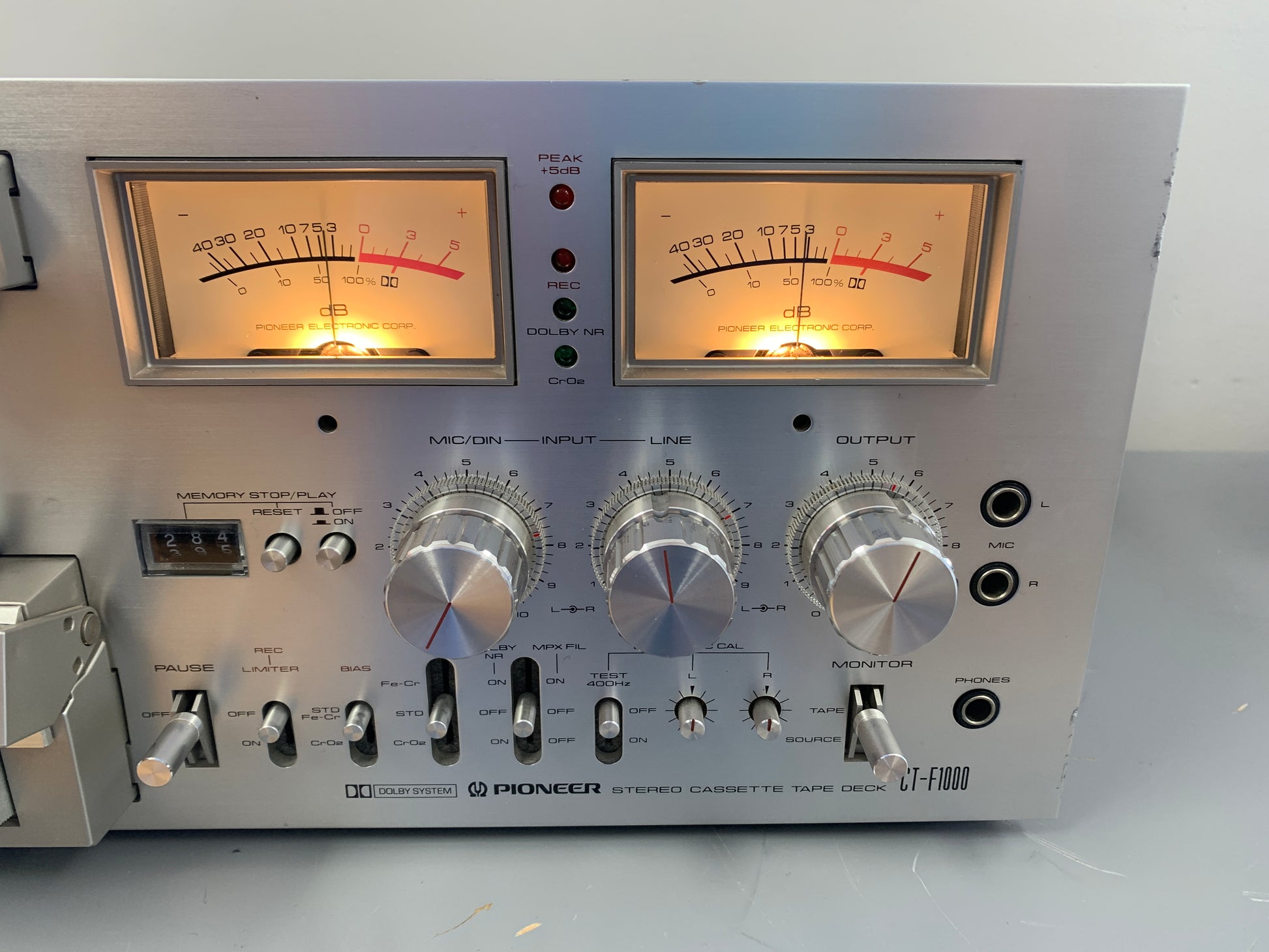

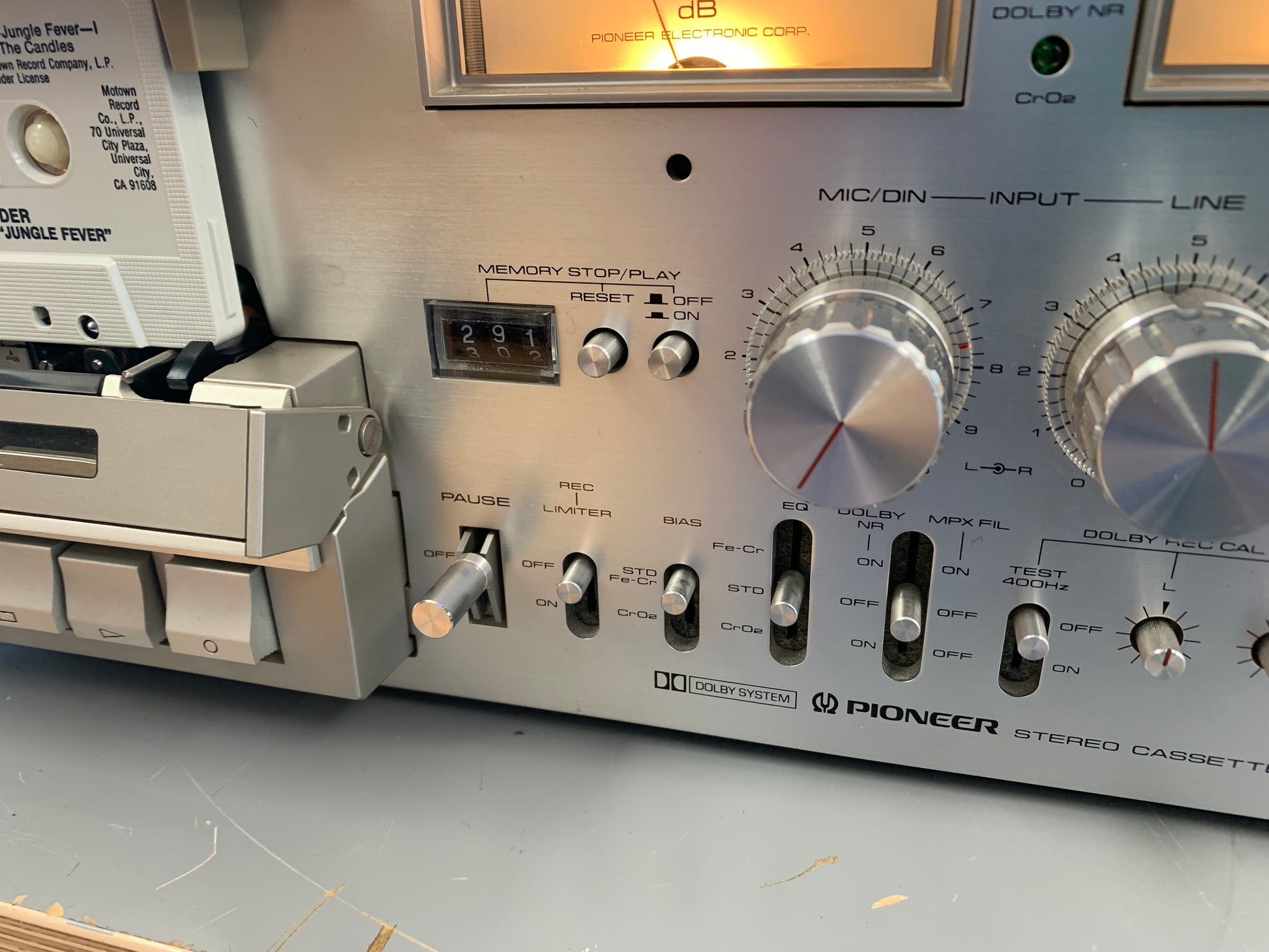

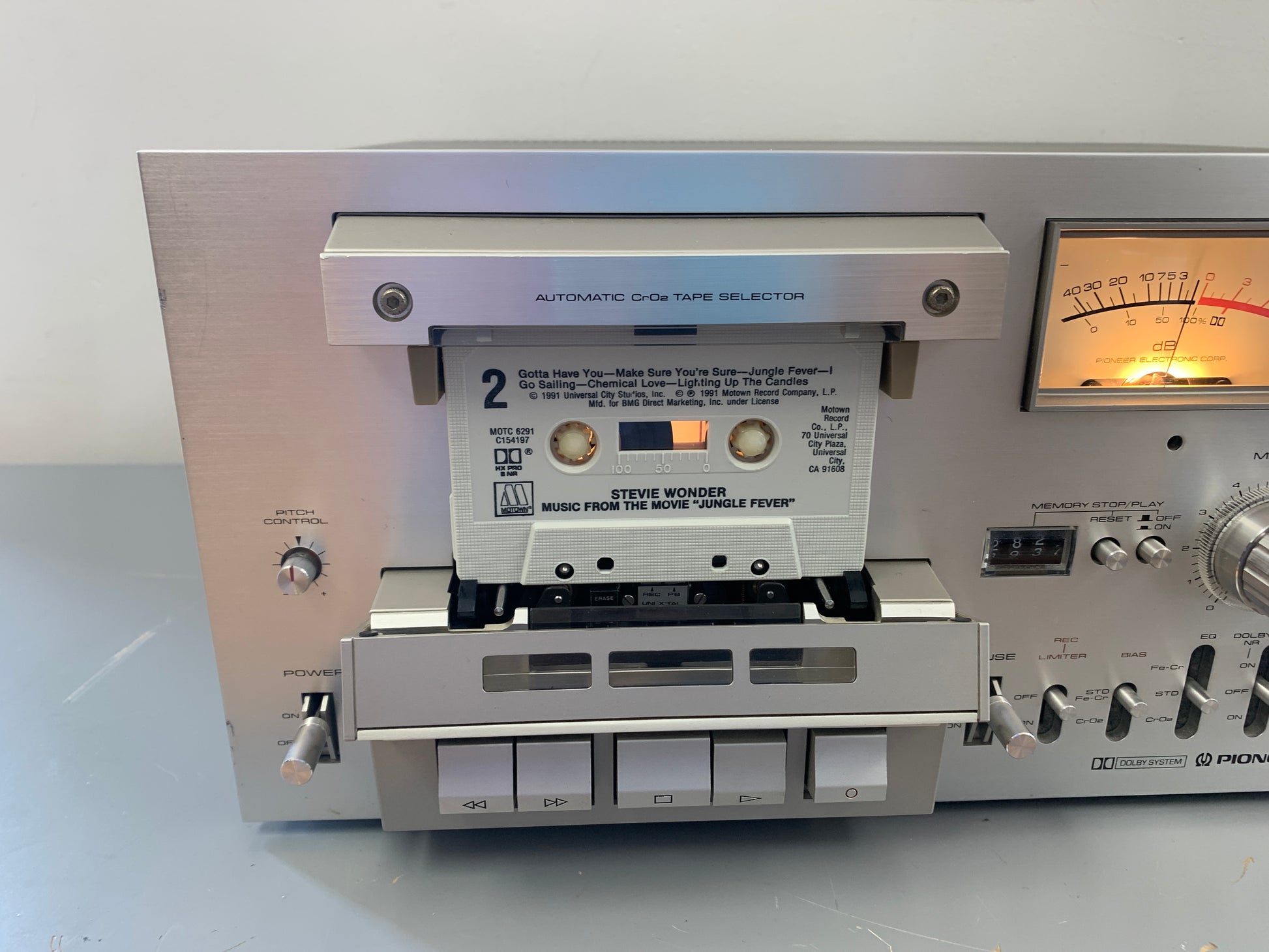

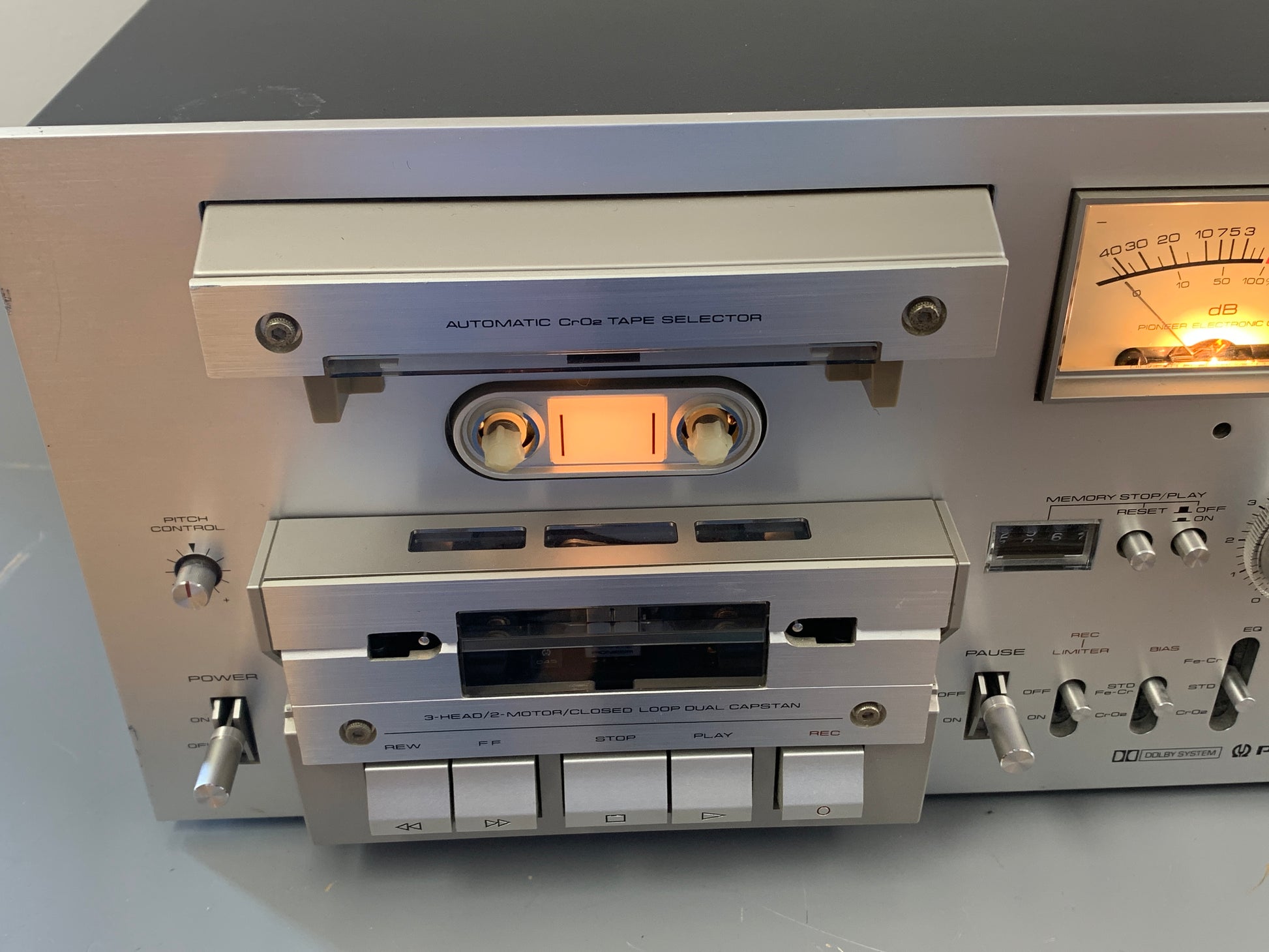

The Pioneer CT-F1000 is the deck with everything, including automatic Cr02 tape detector, multiple bias and equalization settings, pitch control, memory stop, mpx filter, tape slack canceller, oscillator, full auto stop, solenoid operated buttons and more.

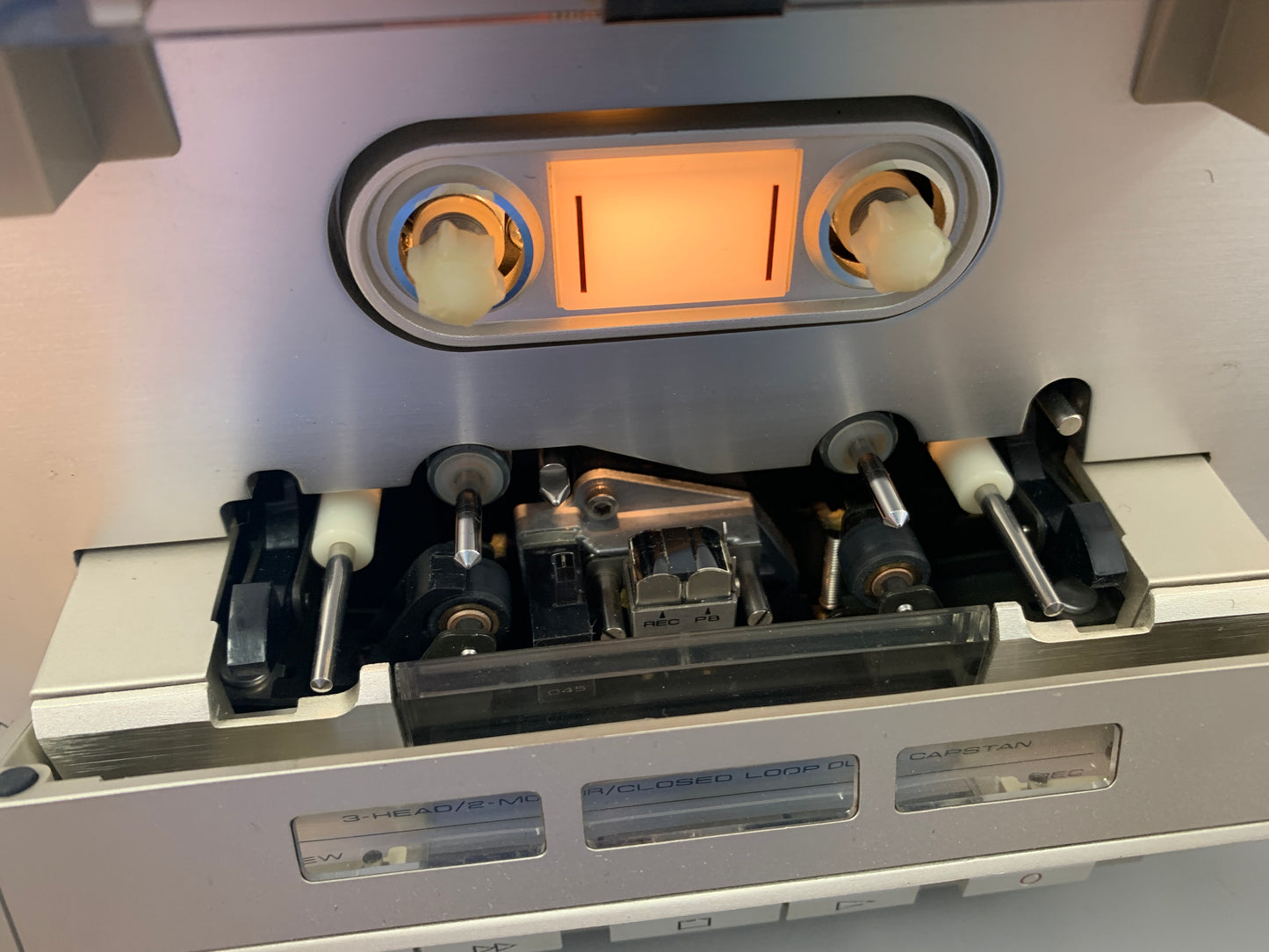

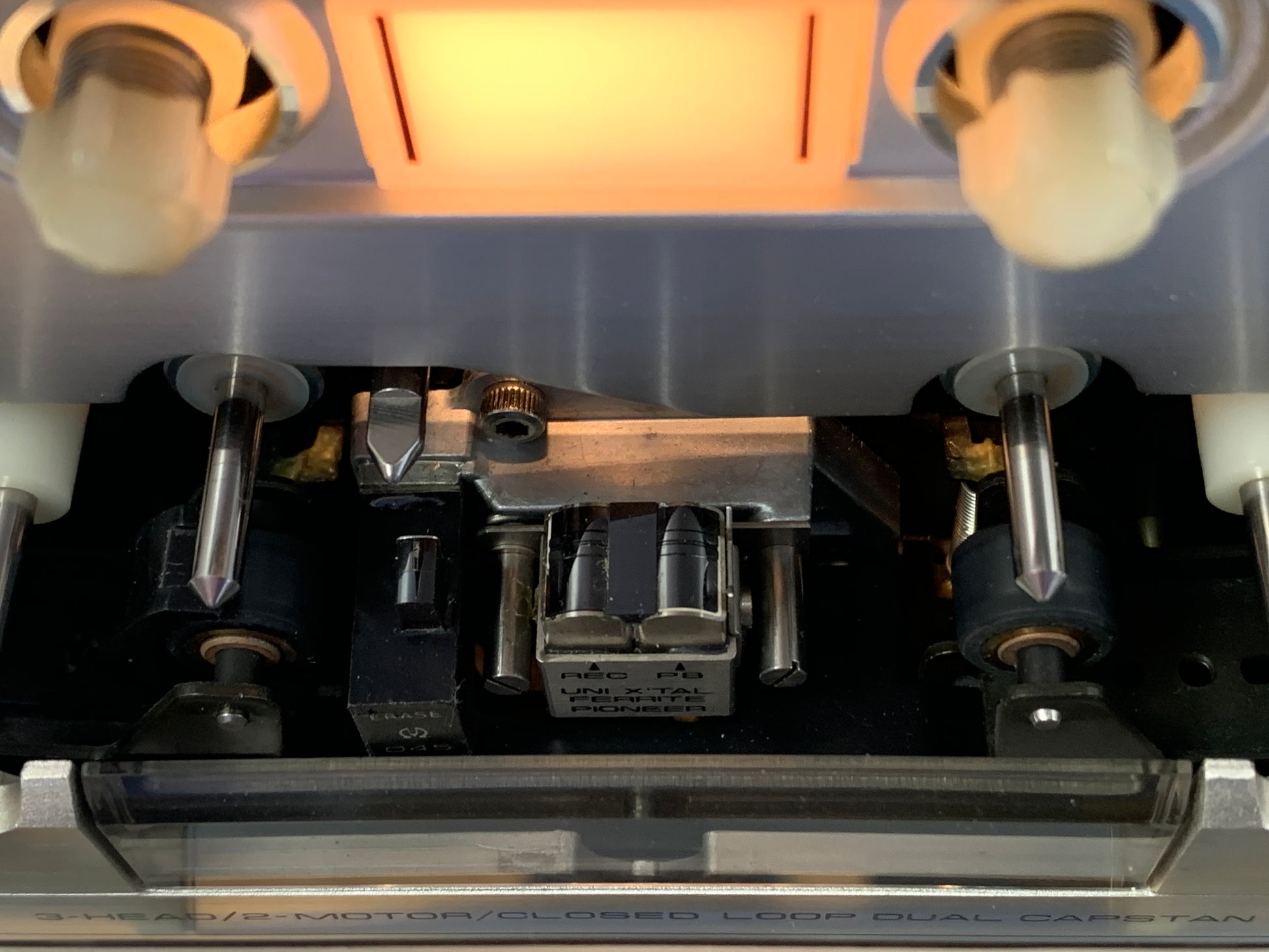

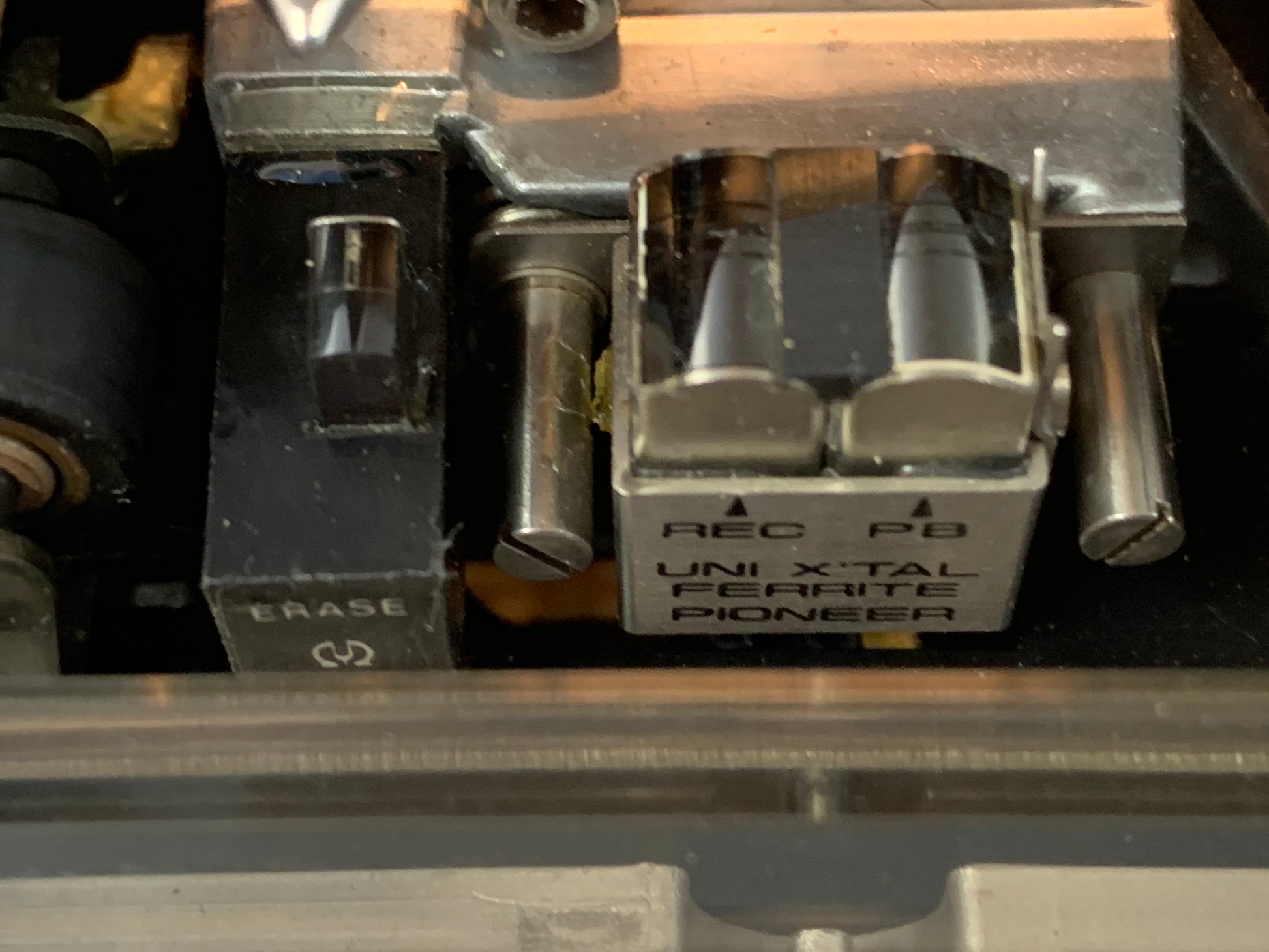

The exceptional playback and recording heads are made from a single Ferrite crystal each, instead of the usual grains of Ferrite, and the high quality DC servomotor ensures low levels of wow and flutter.
Specifications
Type: 3-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.75 cm/s
Heads: 1 x combination record/playback, 1 x erase
Motor: 1 x reel, 1 x capstan
Tape Type: type I, FeCr, CrO2
Noise Reduction: B, C
Frequency Response: 30Hz to 17kHz (Cr02 tape)
Signal to Noise Ratio: 64dB (dolby B)
Wow and Flutter: 0.05%
Total Harmonic Distortion: 1.3%

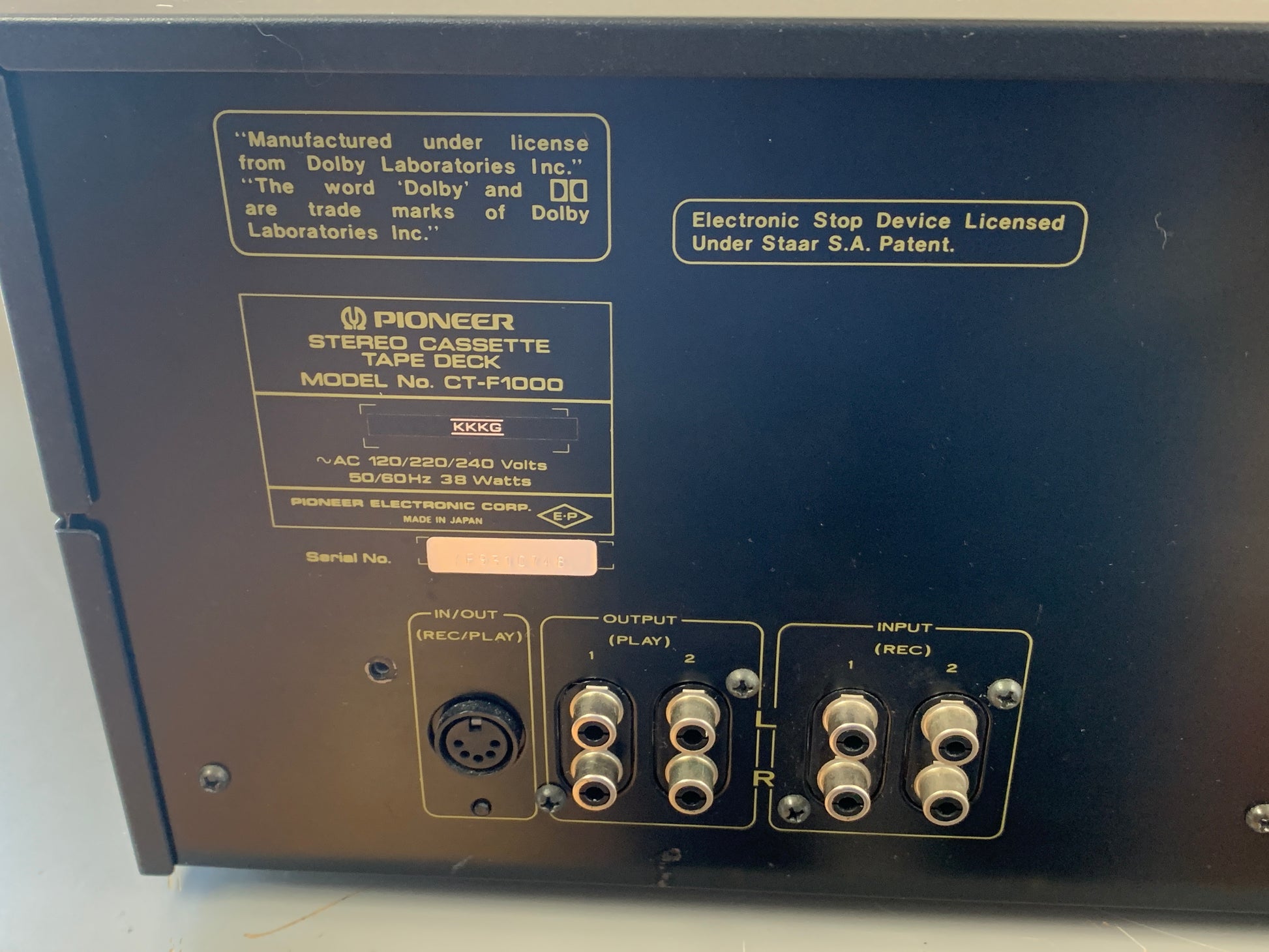

Input: 60mV (line), 0.22mV (mic)
Output: 0.68V (line)
Semiconductors: 4 x FET, 97 x transistors, 98 x diodes, 5 x IC
Dimensions: 420 x 187 x 362mm
Weight: 12kg
Year: 1978
