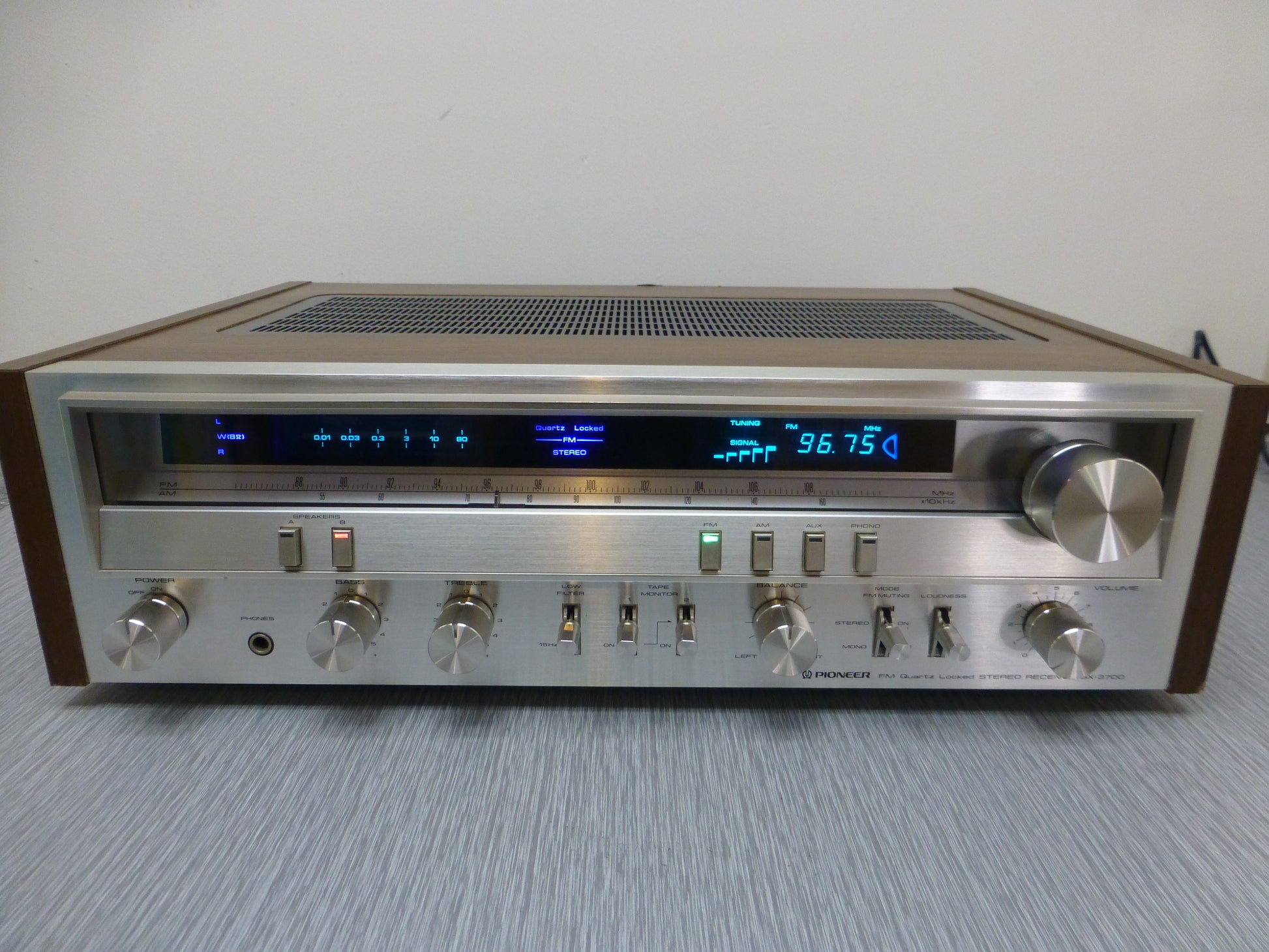

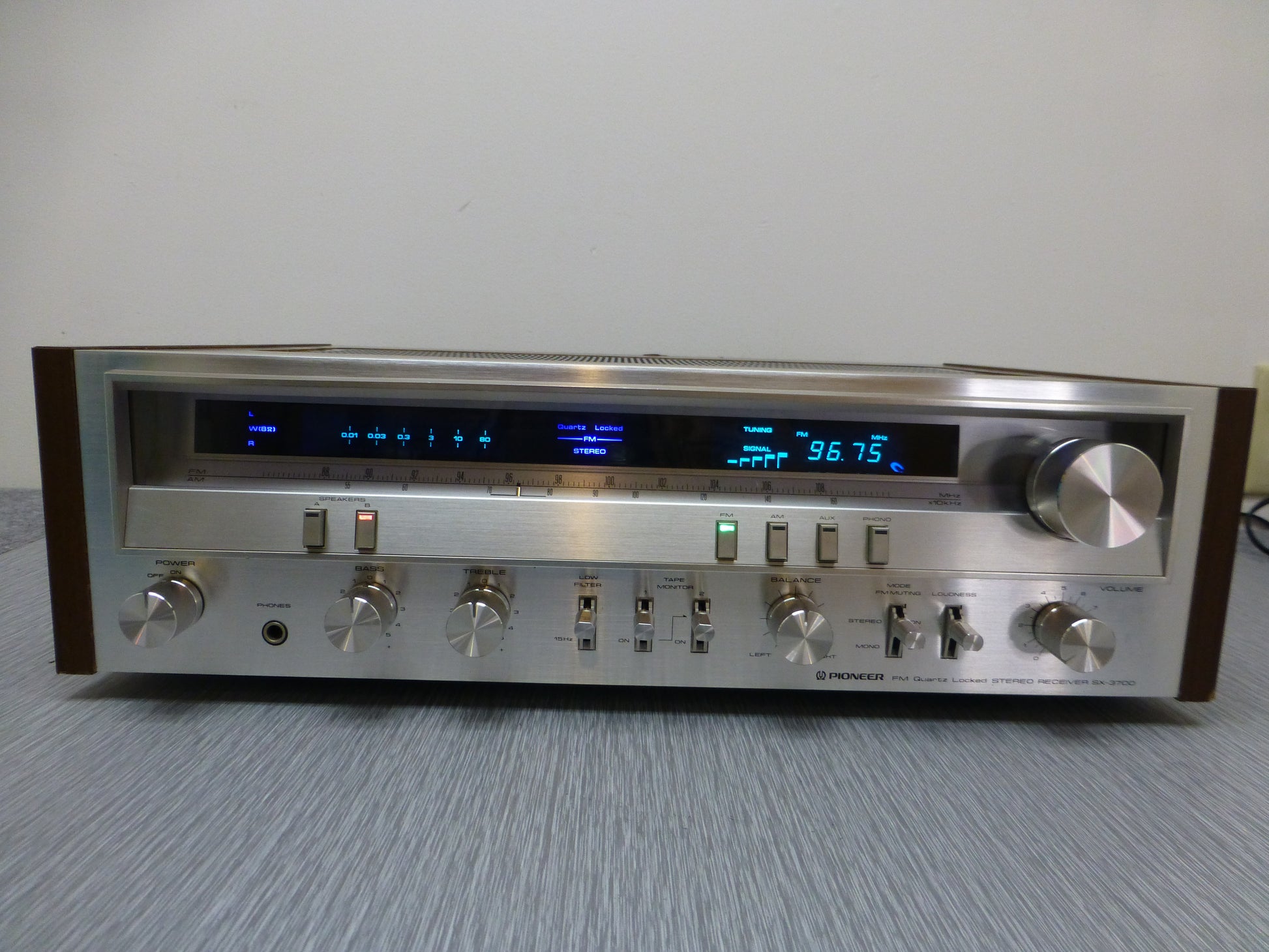

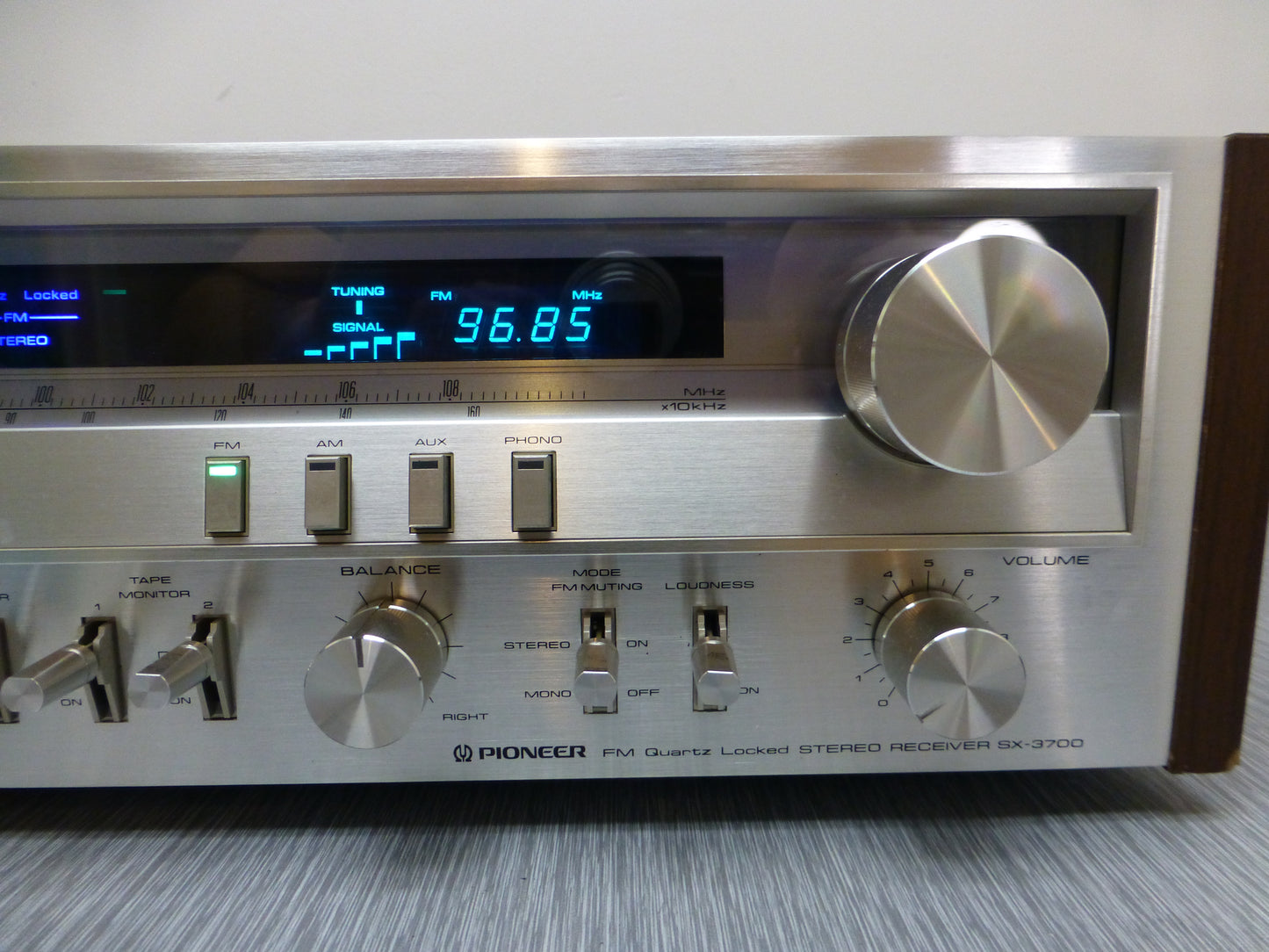

Pioneer SX-3700

AM/FM Stereo Receiver (1980-81)

Description

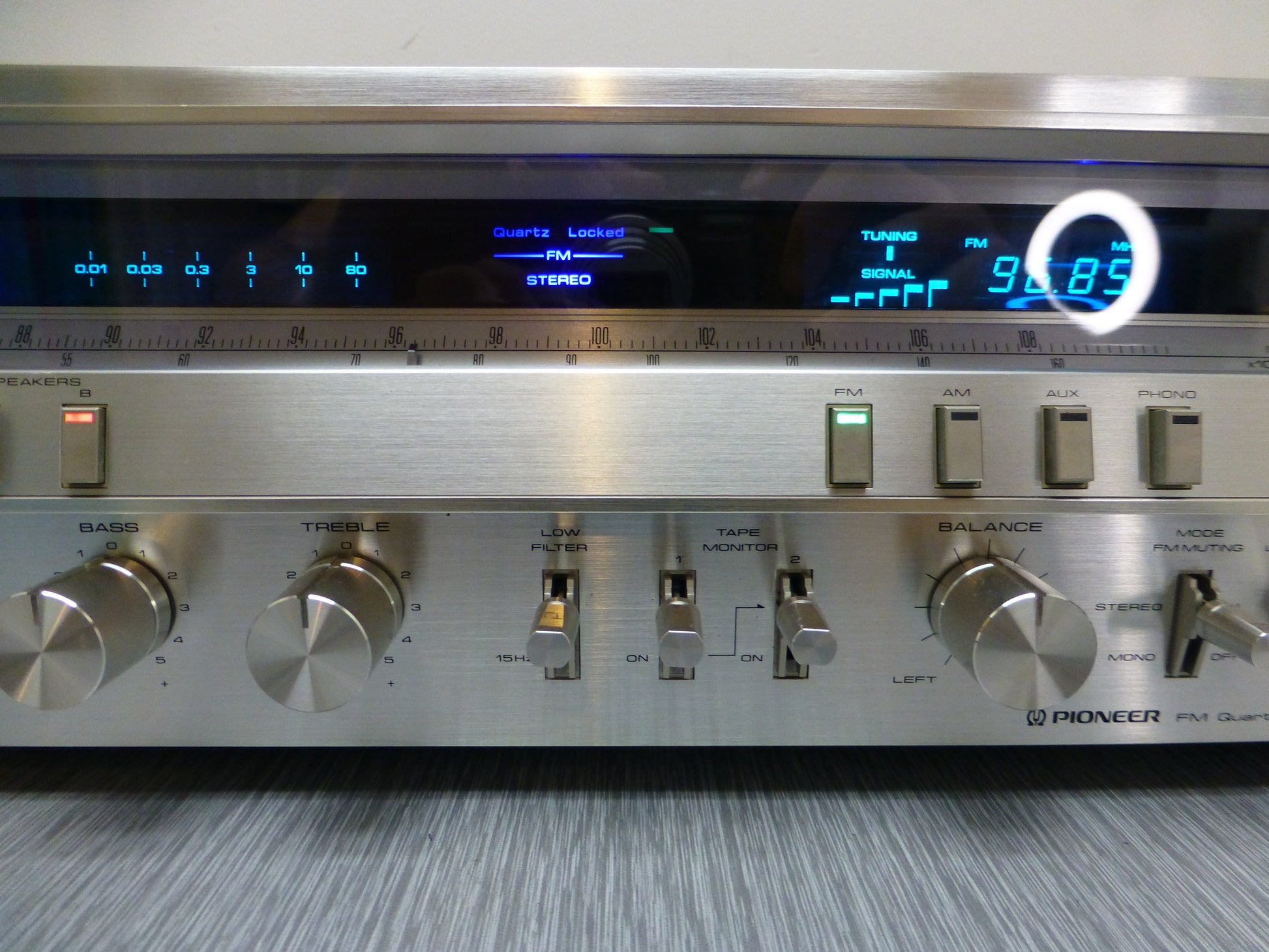

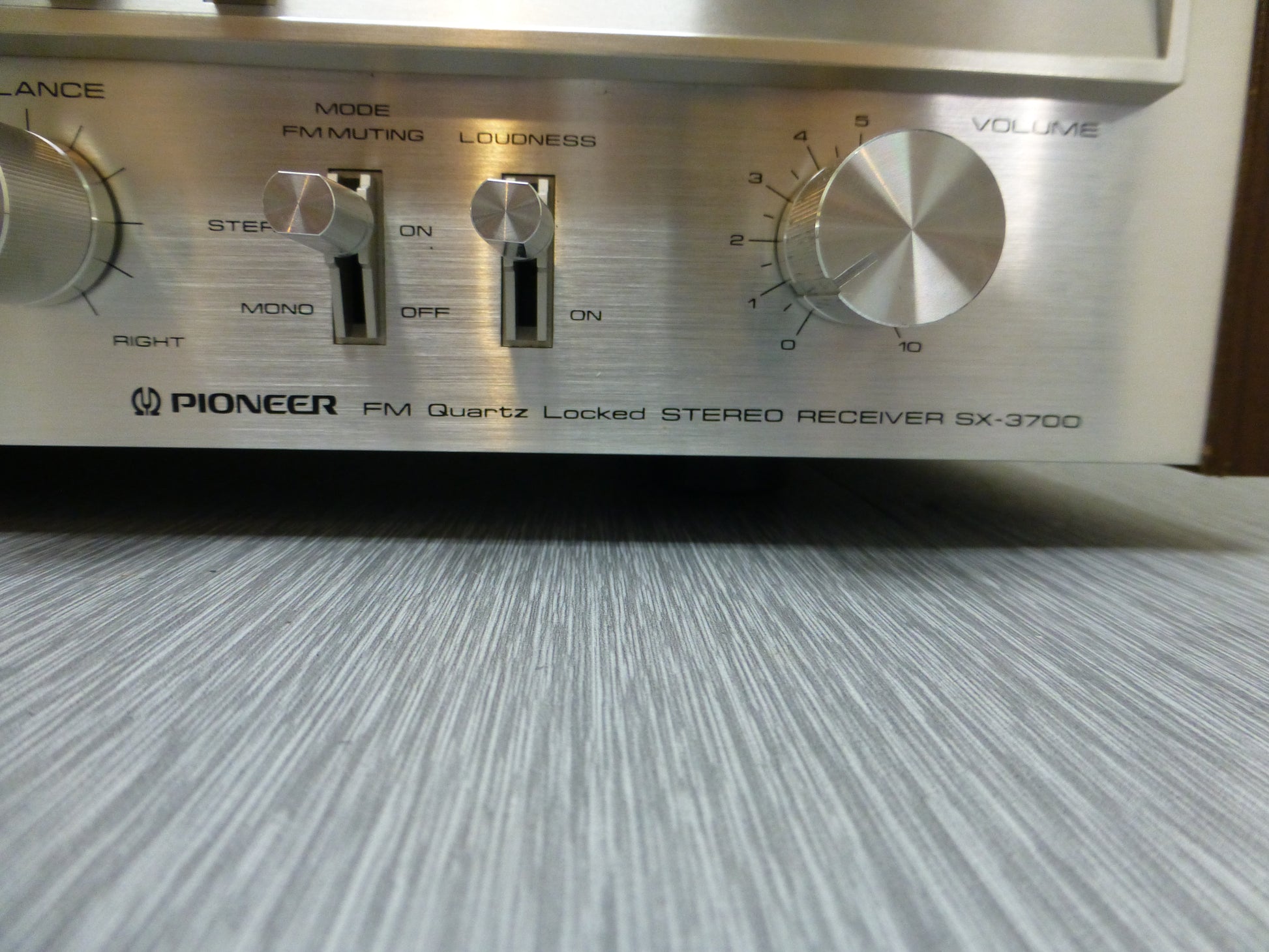

The Pioneer SX-3700 is an AM/FM stereo receiver featuring digital, quartz-servo locked tuning.

Specifications

Tuning range: FM, MW

Power output: 45 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 100kHz

Total harmonic distortion: 0.02%

Damping factor: 40

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 79dB (MM), 95dB (line)

Output: 150mV (line)

Dimensions: 480 x 145 x 364mm

Weight: 11.6kg

Accessories: FM T-type antenna

Year: 1980
