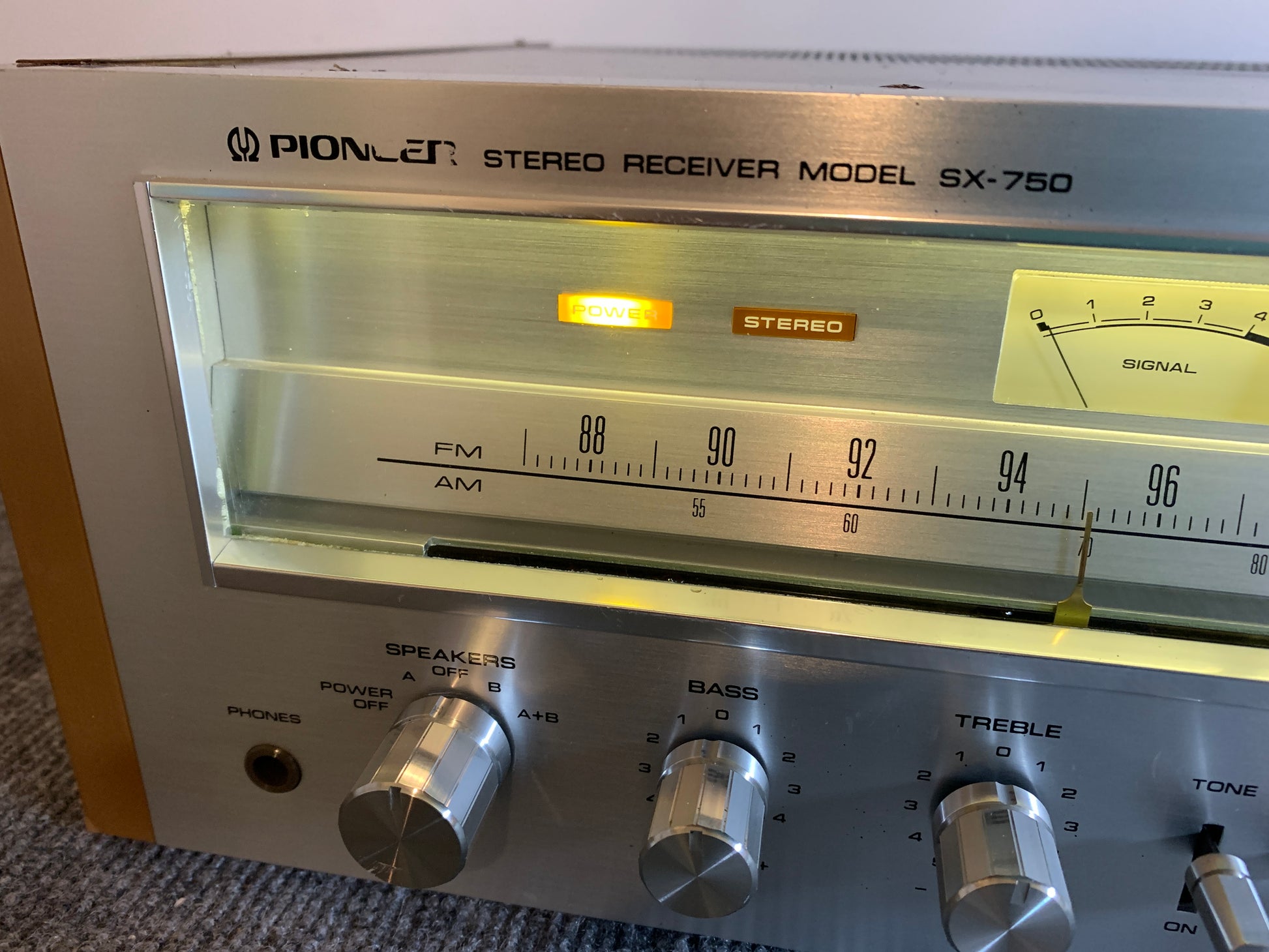

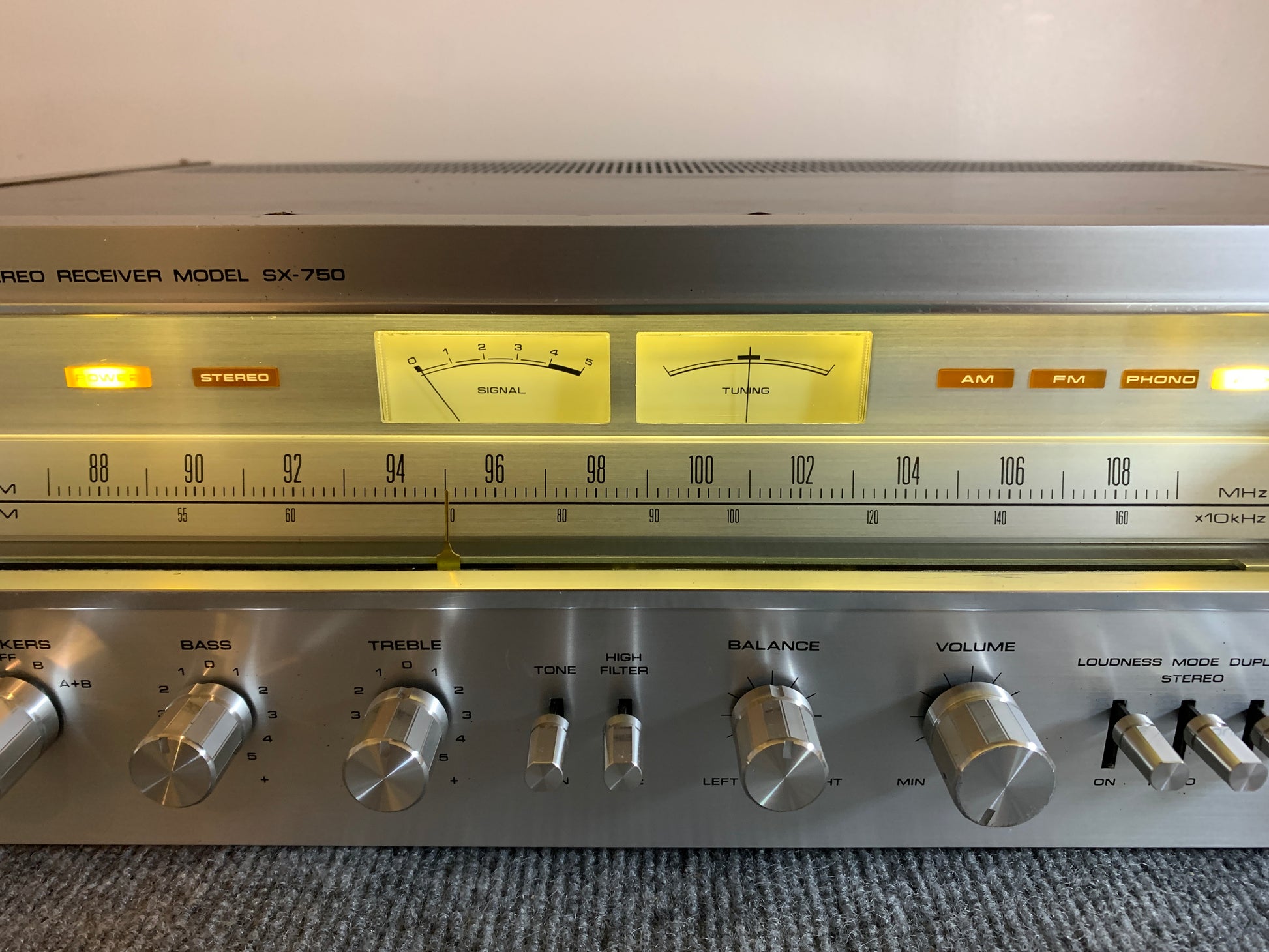

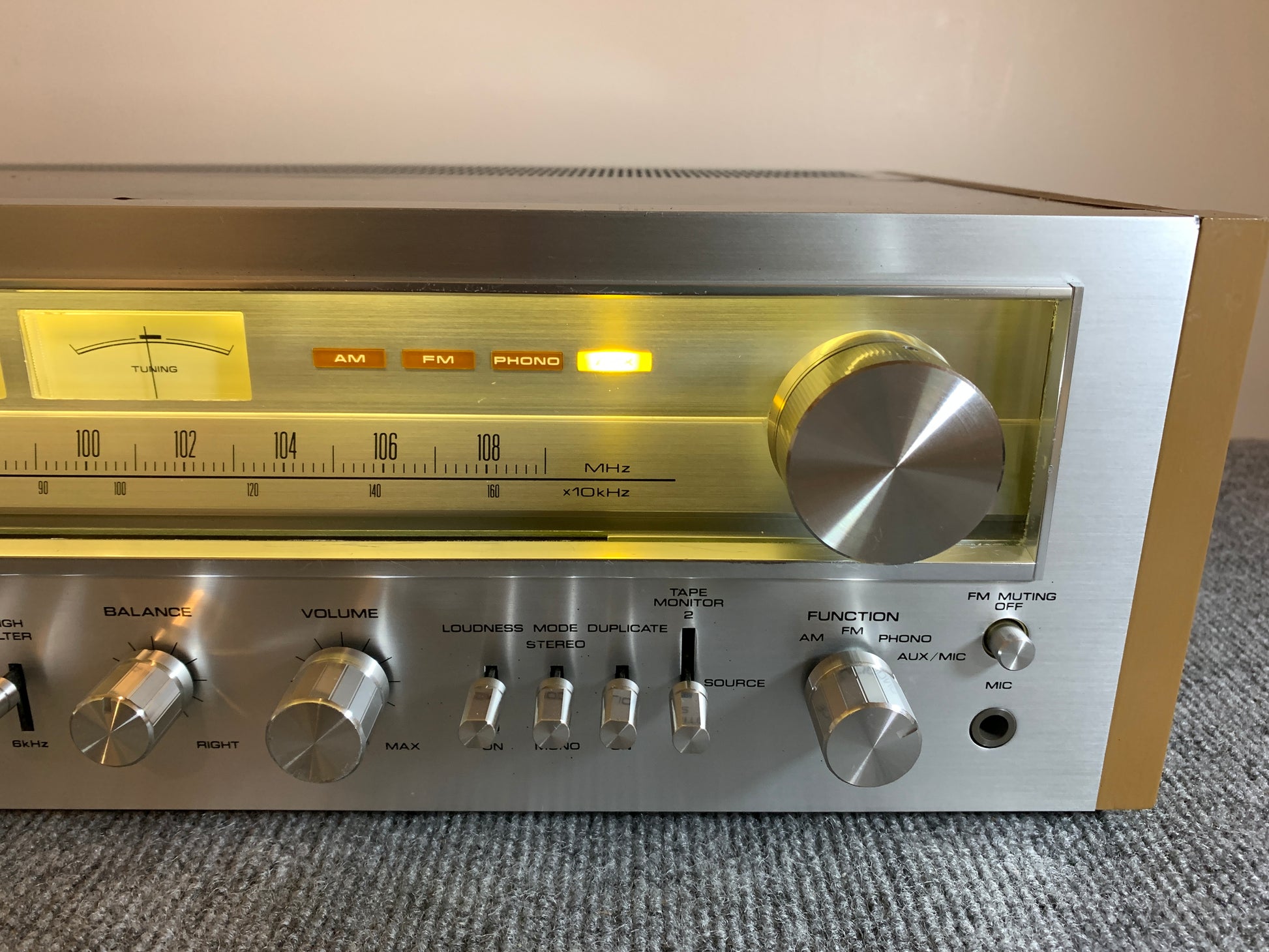

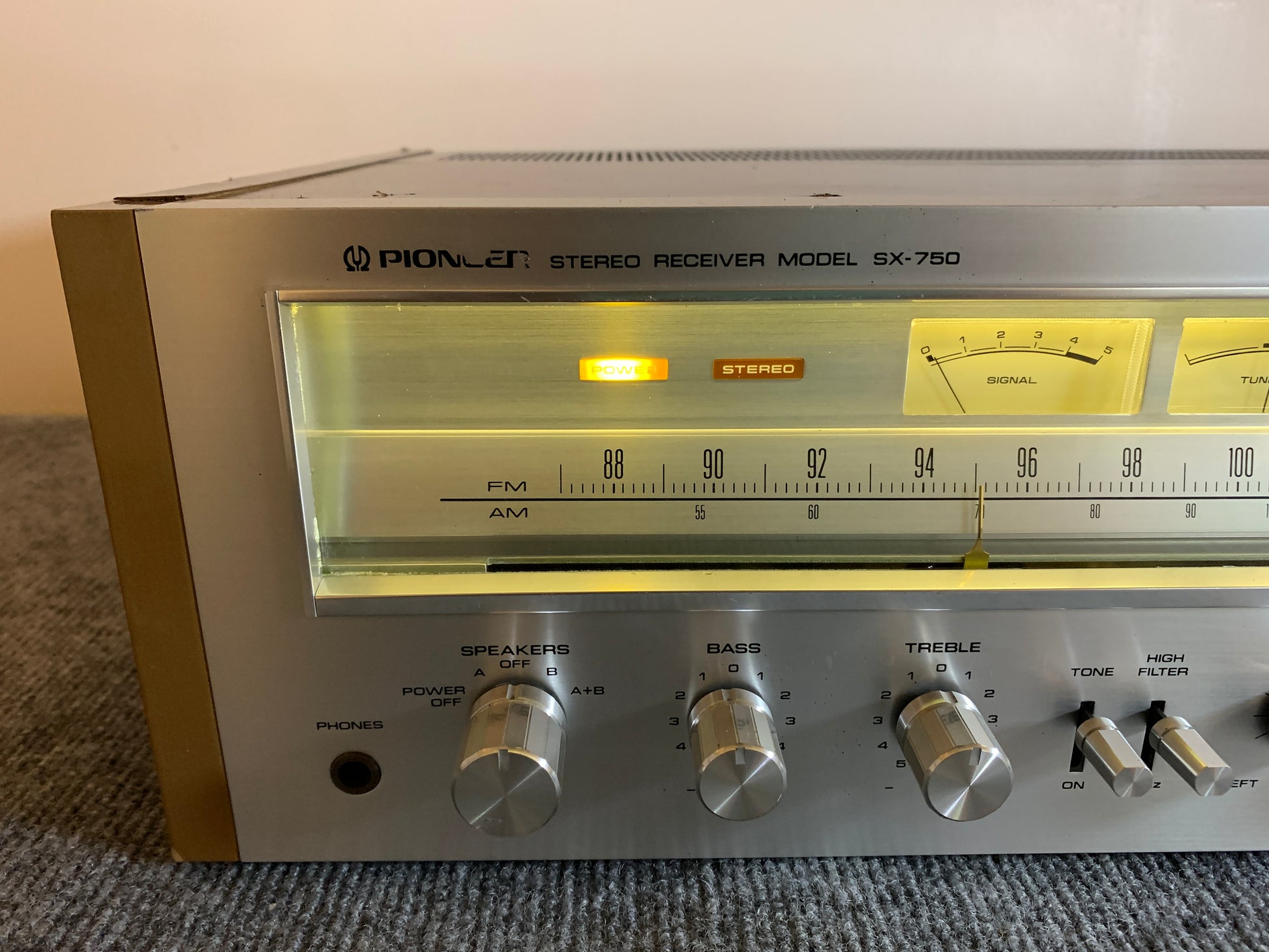

Pioneer SX-750

AM/FM Stereo Receiver (1976-78)

Specifications

Tuning range: FM, MW

Power output: 50 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 50kHz

Total harmonic distortion: 0.1%

Damping factor: 30

Input sensitivity: 5mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)

Signal to noise ratio: 70dB (MM), 90dB (line)

Output: 150mV (line), 30mV (DIN)

Speaker load impedance: 4Ω (minimum)

Semiconductors: 1 x FET, 7 x IC, 42 x transistors, 40 x diodes

Dimensions: 480 x 149 x 371mm

Weight: 13.7kg

Accessories: FM T-type antenna
