Sony

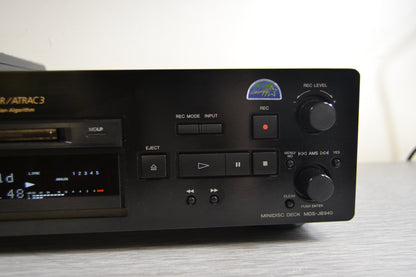

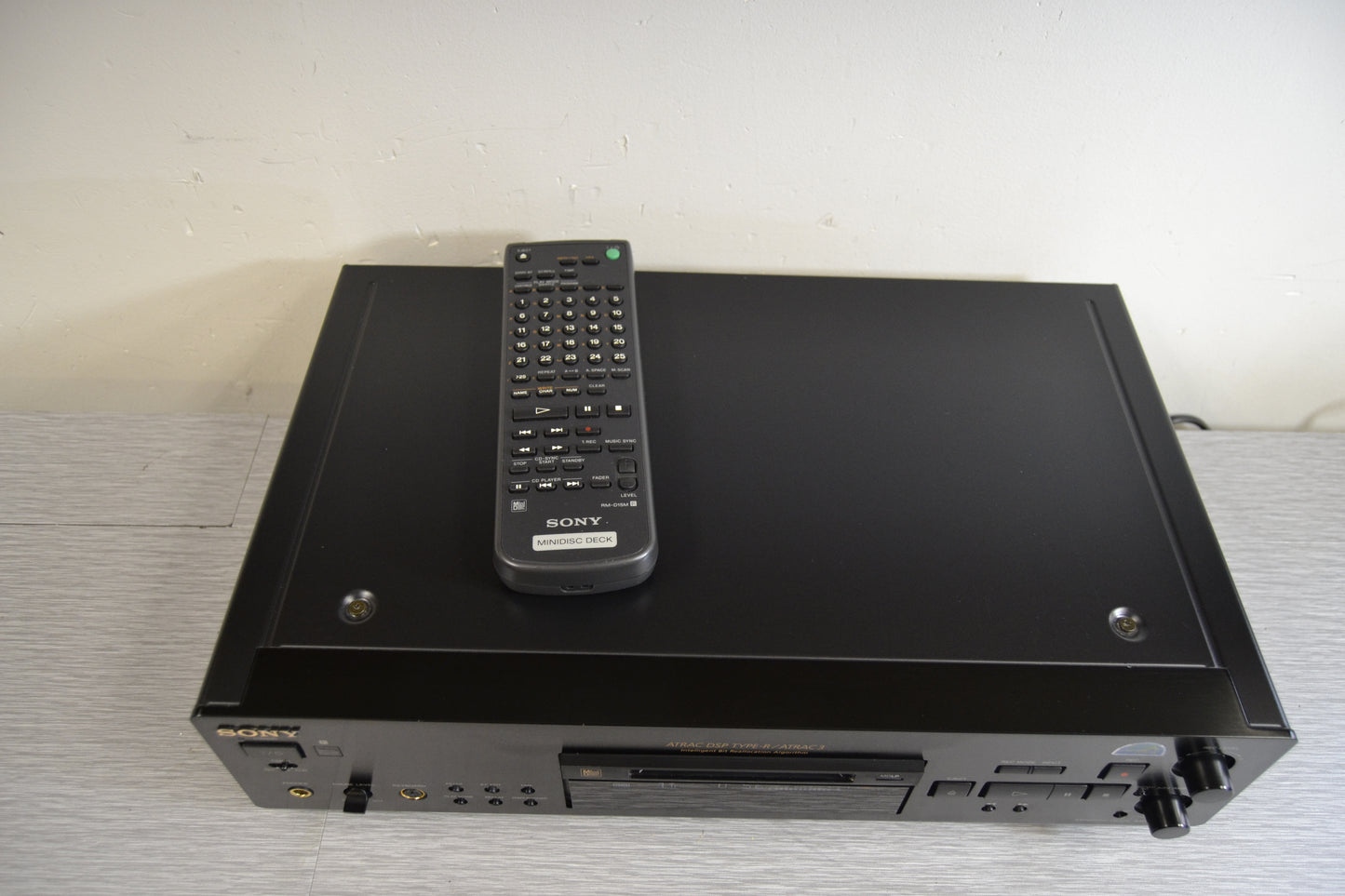

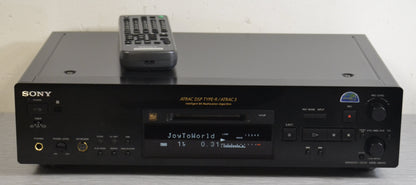

Sony MDS-JB940 Minidisc Recorder * ATRAC * MDLP * Remote Control
Sony MDS-JB940 Minidisc Recorder * ATRAC * MDLP * Remote Control
Regular price
$400.00 USD
Regular price
Sale price
$400.00 USD
Unit price
/
per
Couldn't load pickup availability
Features:
Name | MDS-JB940 |
---|---|
Manufacturer | Sony |
Released | 2000/09 |
Device type | deck |
MDLP | Yes |
NetMD | No |
Hi-MD | No |
Radio | No |
Dimensions | 430×110×287mm |
Weight | 5.3kg |
ATRAC ver | Type-R |
Power cable | AC |
Price (launch) | |
¥69 000 | |
- | |

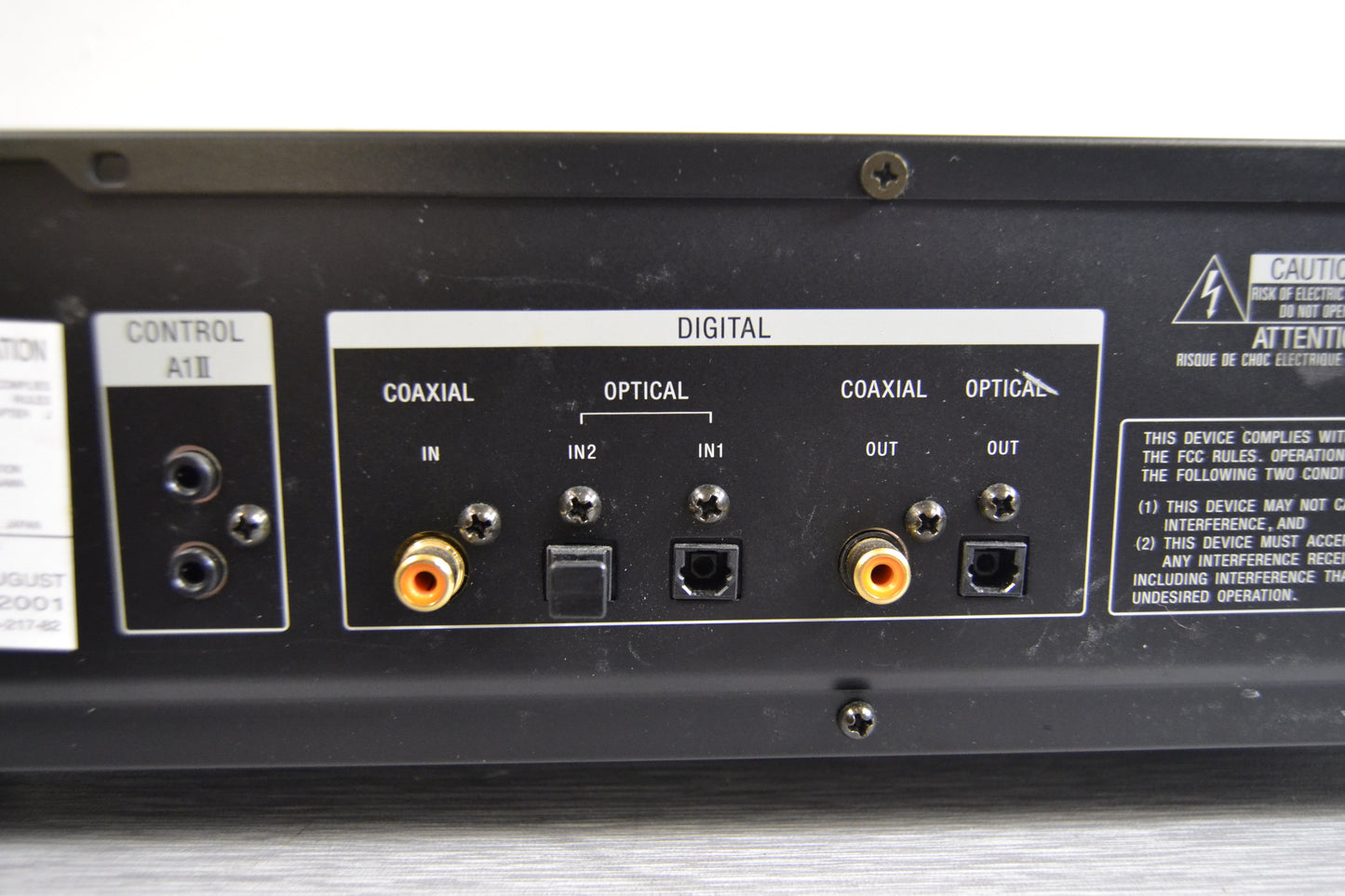

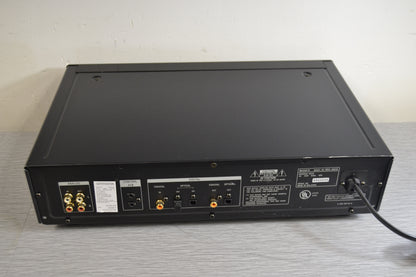

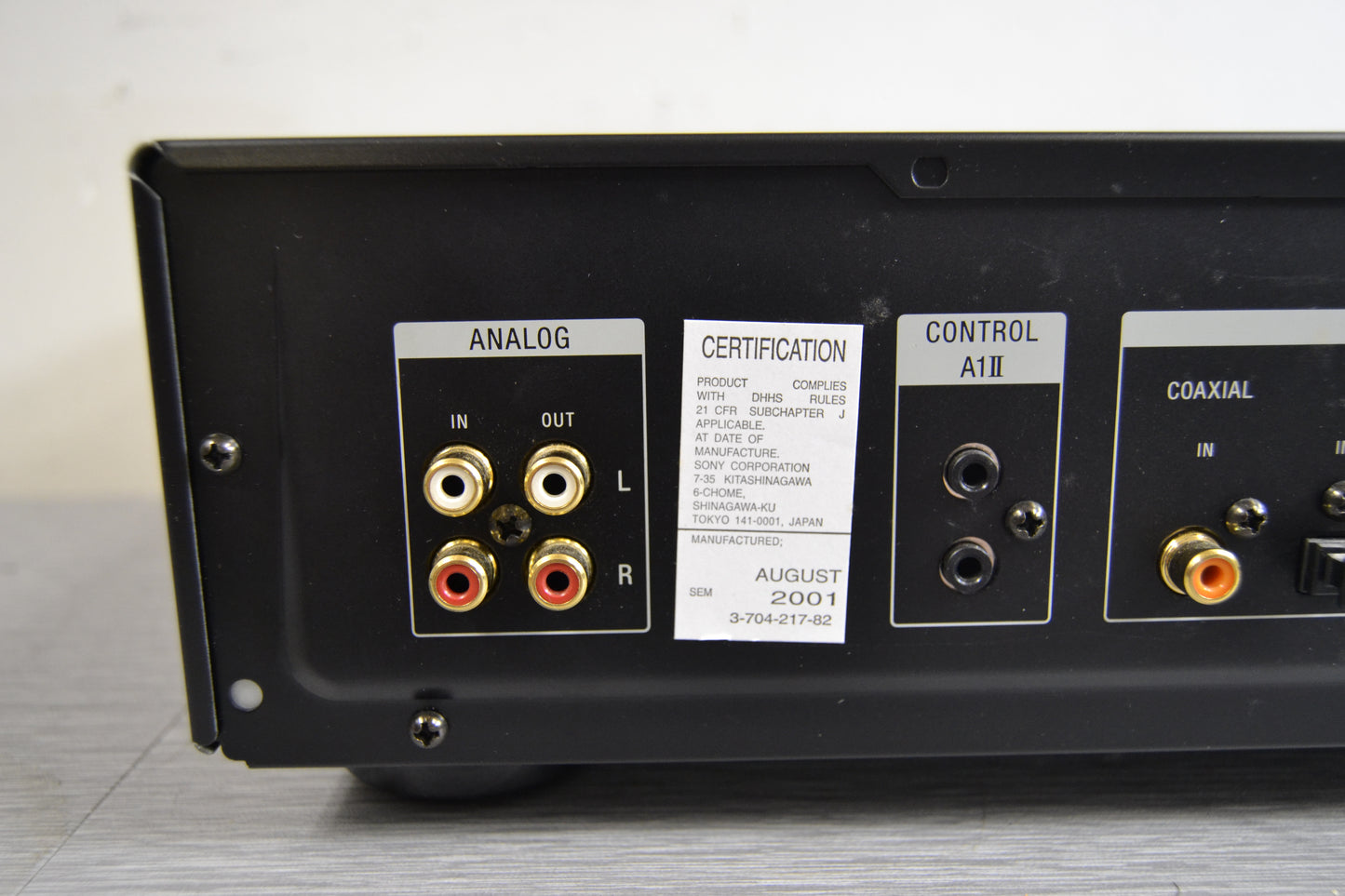

Inputs | RCA in, Digital optical (TOSLINK), Digital coaxial |
Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK), Digital coaxial |
Control | PS/2 keyboard |
-
Upper middle class home MD deck.
-

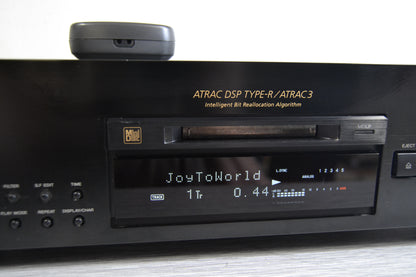

ATRAC with Type-R DSP W/ MDLP recording modes
-
4x CD → MD recording
-
Scale Factor Edit
-
Playback Pitch Control
-
Variable coefficient 24-bit digital filter and S-TACT circuitry
-
Sony Megastorage CD Changer Control
-
New USB based PC-Link kit - the PCLK-MN10 (MSRP: ¥15,000)
-
R-Core Power Transformer
-
TOC Cloning possible.
Specs: SNR > 100dB, Dynamic range: > 98dB, THD: <.003%, 24bit delta-sigma ADC, Current pulse DAC.
Improved over MDS-JB640:
-

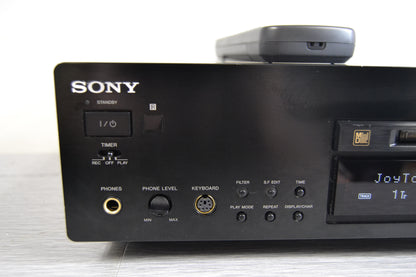

Extra button on front panel: digital filter (no S.F. edit button, only accessible through menu system)
-
Recording level dial on front panel
-

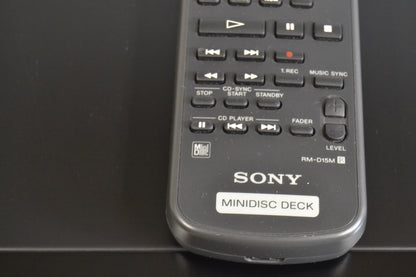

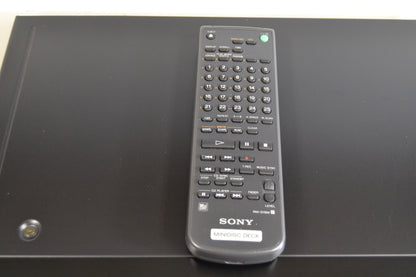

Extra buttons on 5-column remote control: date recorded, date present, numeric 11-25, music scan, auto space, peak hold, filter, CD player pause, name (name, character, number), play modes (continue, shuffle, program), time.
-
Coaxial input appears on all models, as does 2 optical inputs.
-
Digital filter appears in display modes while stopped, playing and recording. Pitch level appears when stopped and playing.
-
Clock setting, and time/date stamp for recordings.
-
Bit-length switching. Used to improve the digital output quality, by changing the outgoing bit-length.
-
Digital filter changes the tone of the signal going through the analog output.
-
Aluminium front panel, and is also of QS design. This means that the circuitboards inside are on a slant, reducing standing waves (unwanted reverberation), and it gets a nice shiny QS sticker on it.
MD Mechanism: MDM-7A
Optical Pick-up: KMS-260B/J1N
ATRAC IC: CXD2662R
