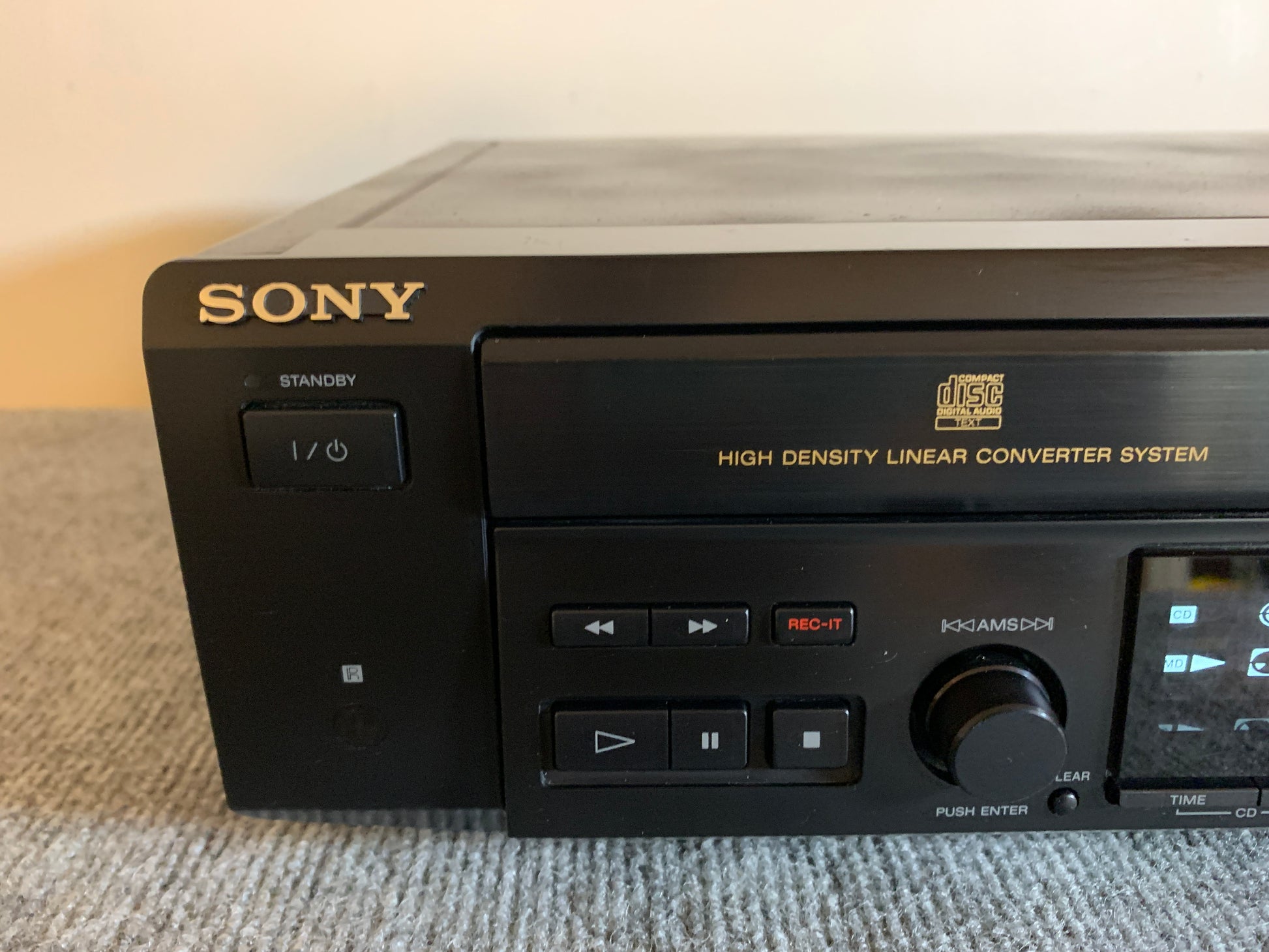

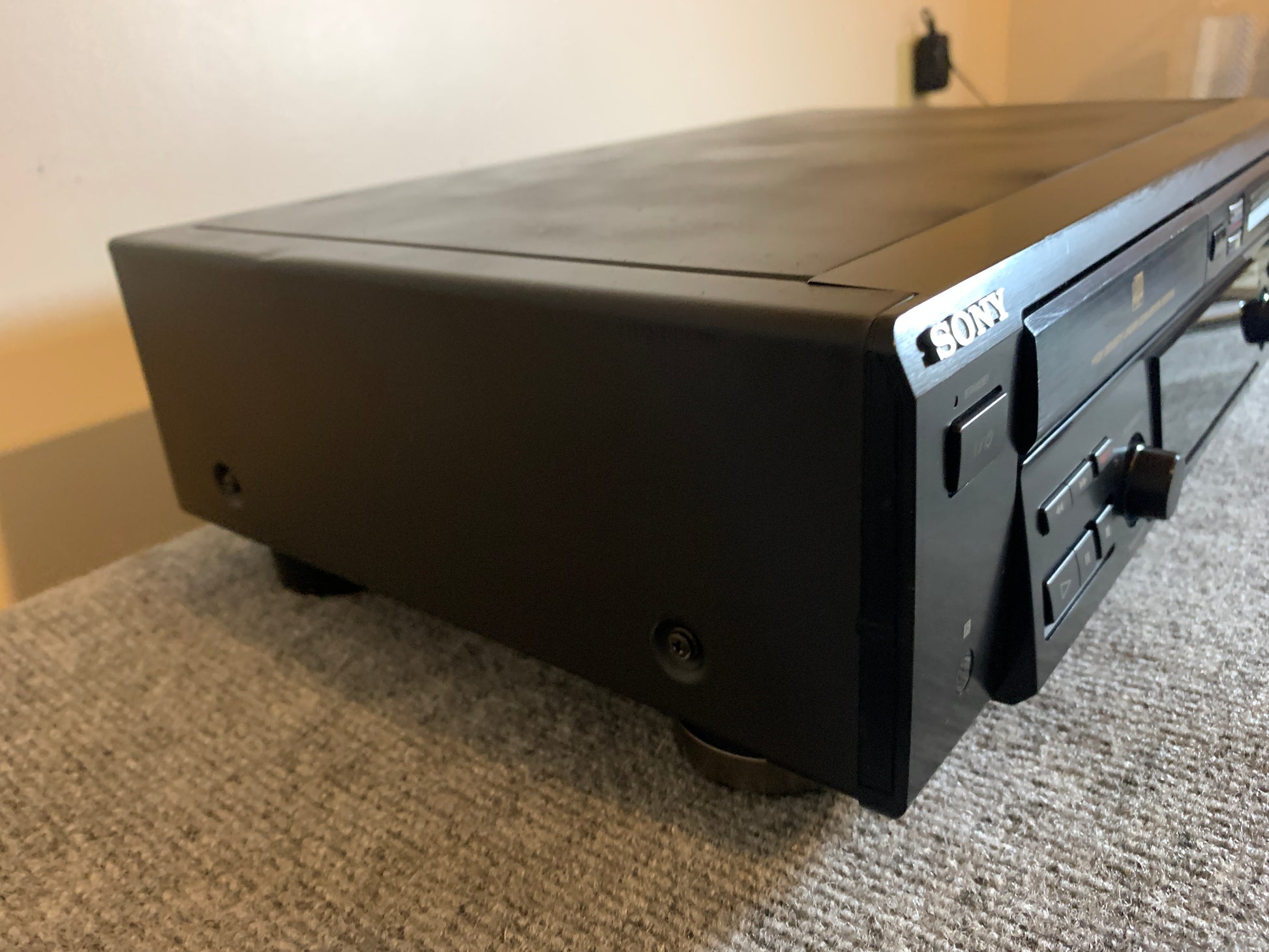

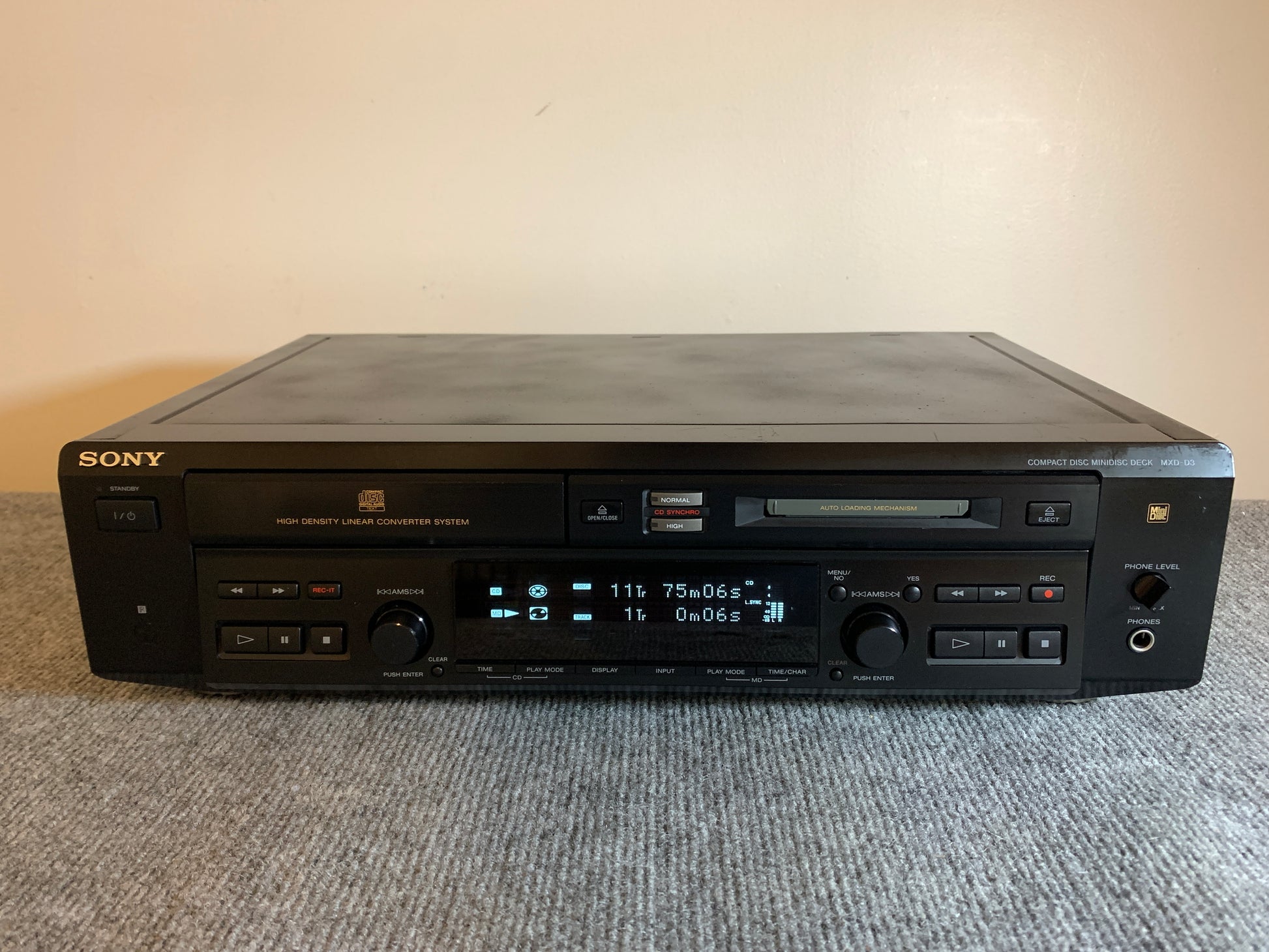

Sony MXD-D3 Compact Disc & Minidisc Deck

Sony MXD-D3 Compact Disc & Minidisc Deck

Sony

Regular price $200.00 USD
Sale price $200.00 USD Regular price
Sale Sold out
CD/MD deck
Intro: 9/1999
Street: US$400
Availability:

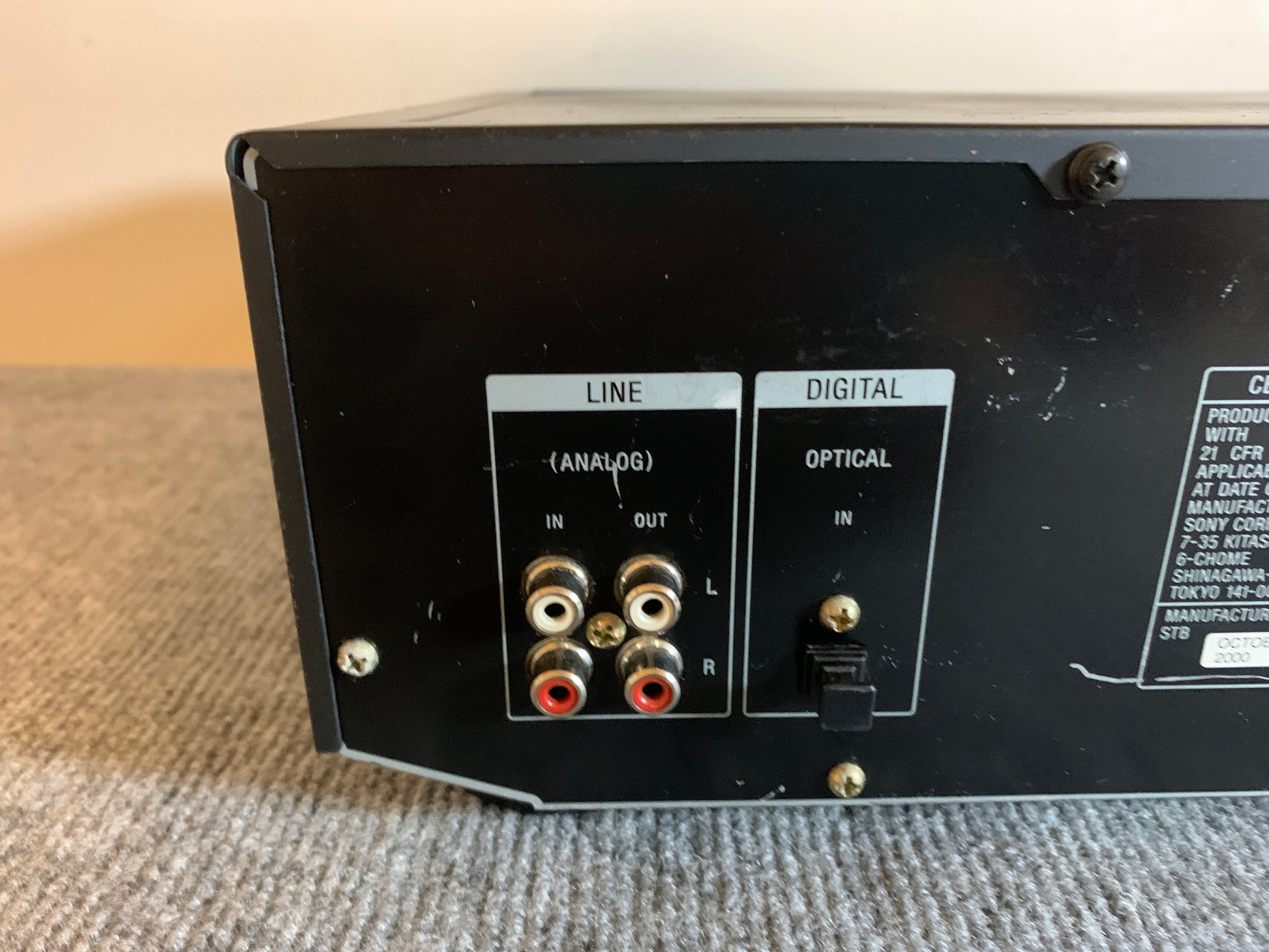

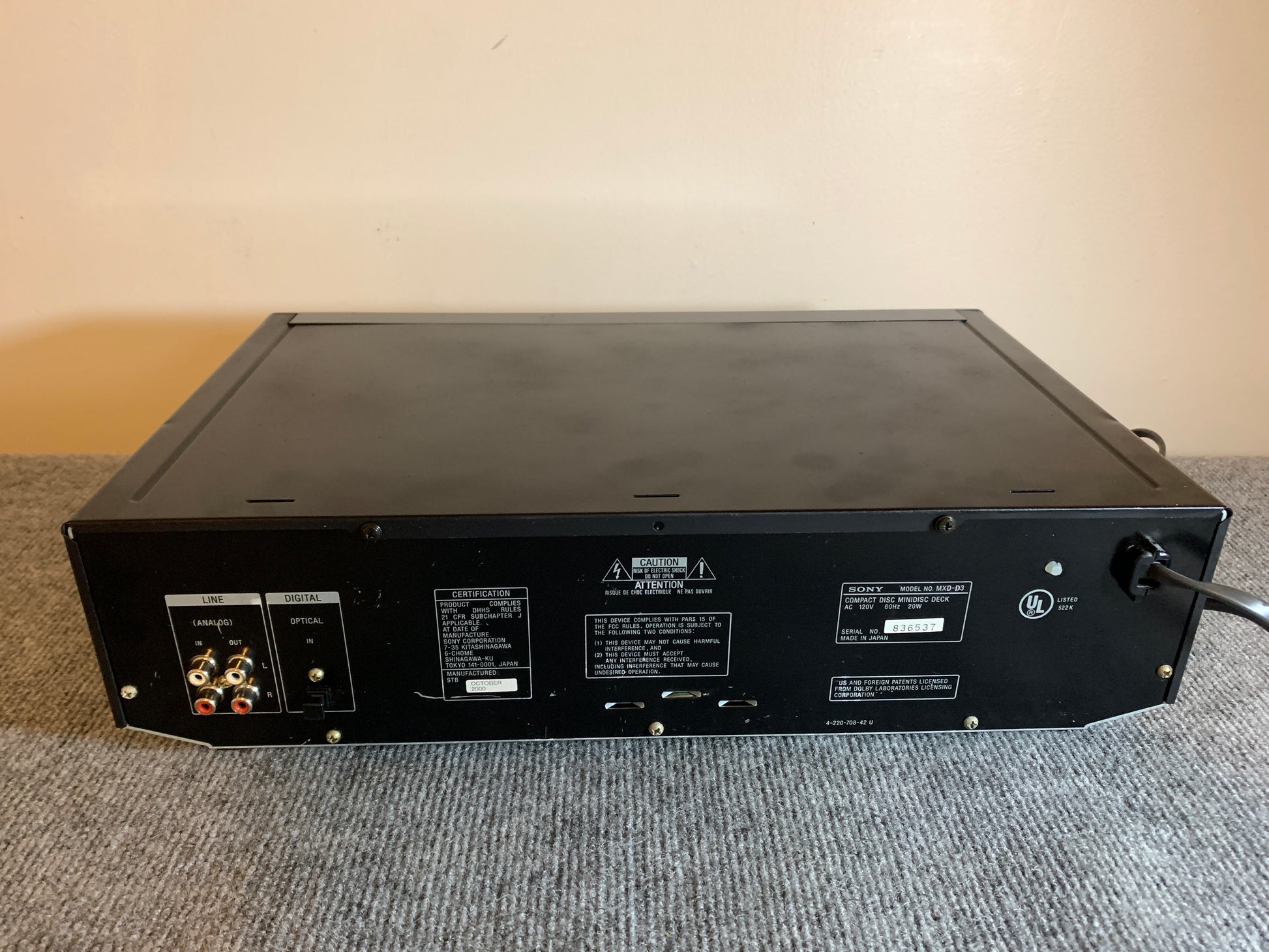

IN: line, optical. OUT: line, headphone 17"W x 4-3/4"H x 12"D

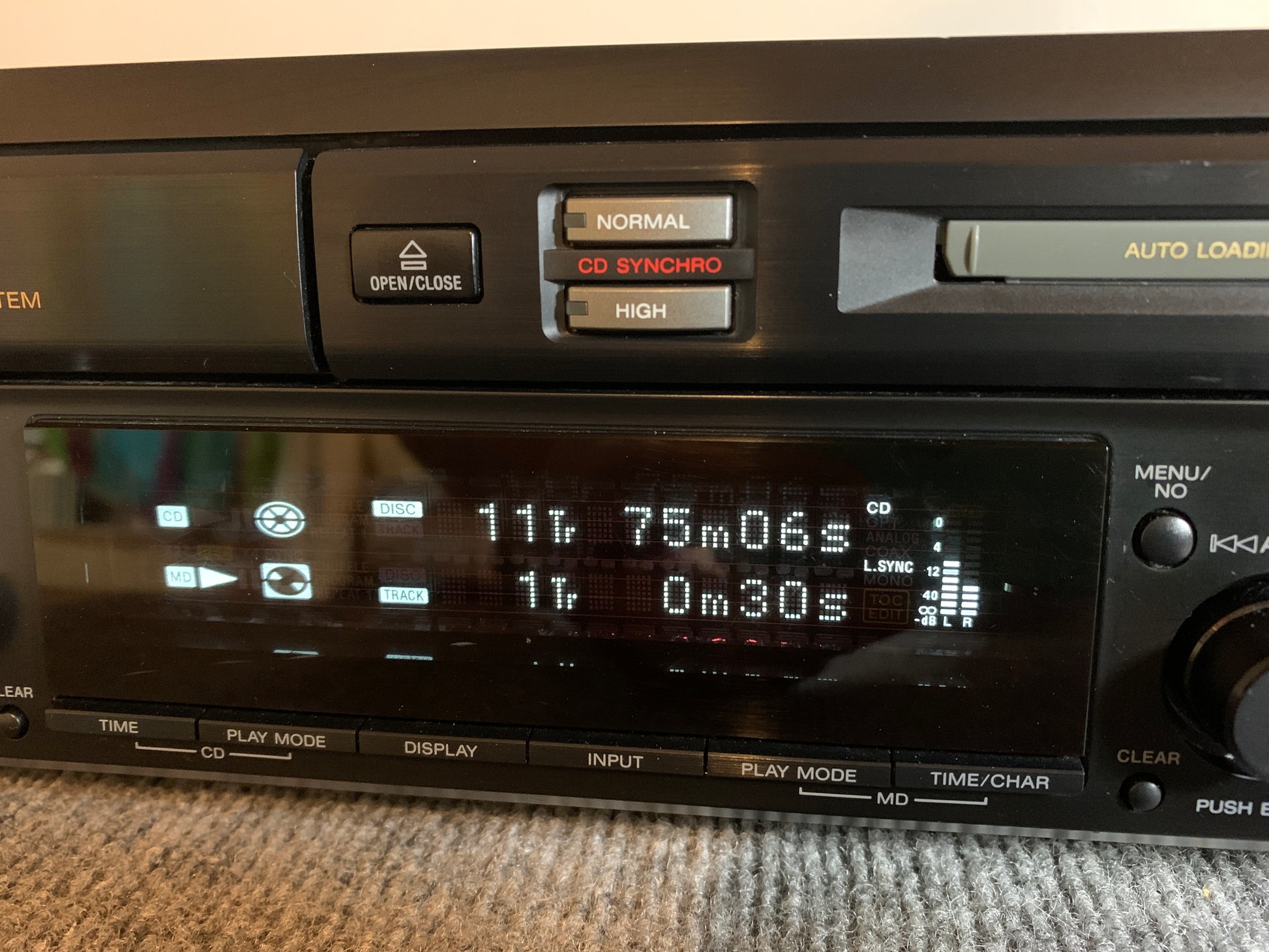

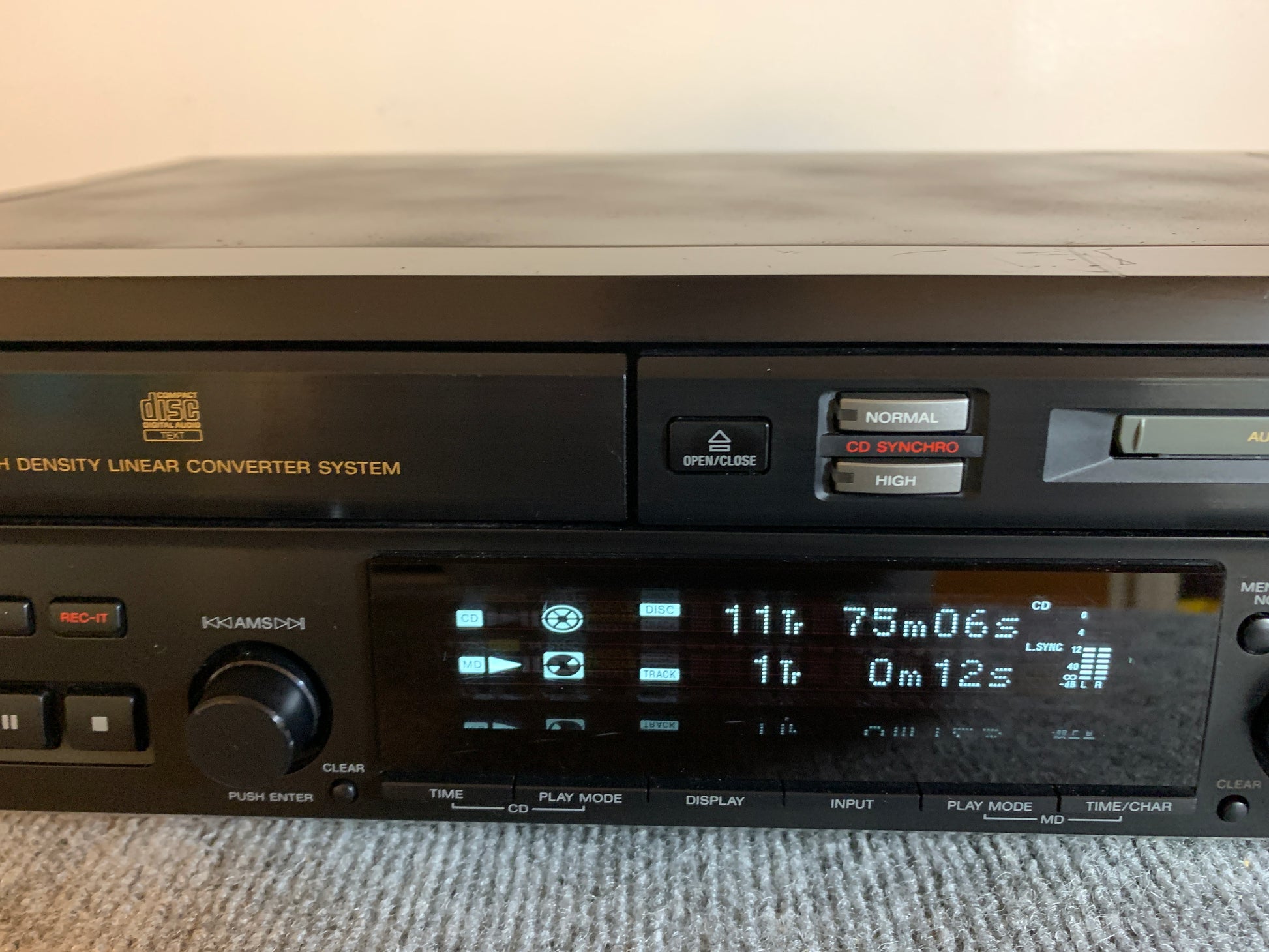

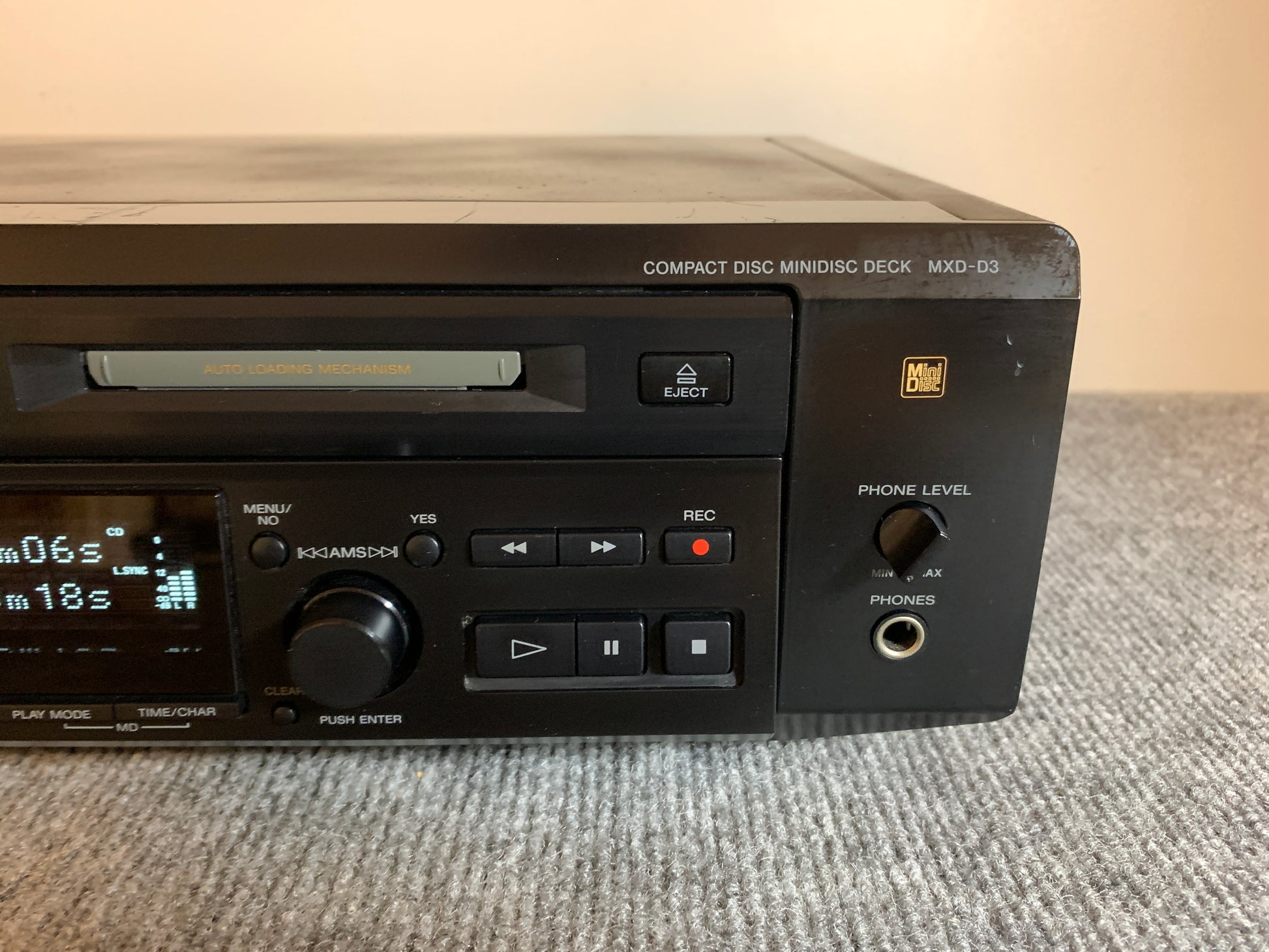

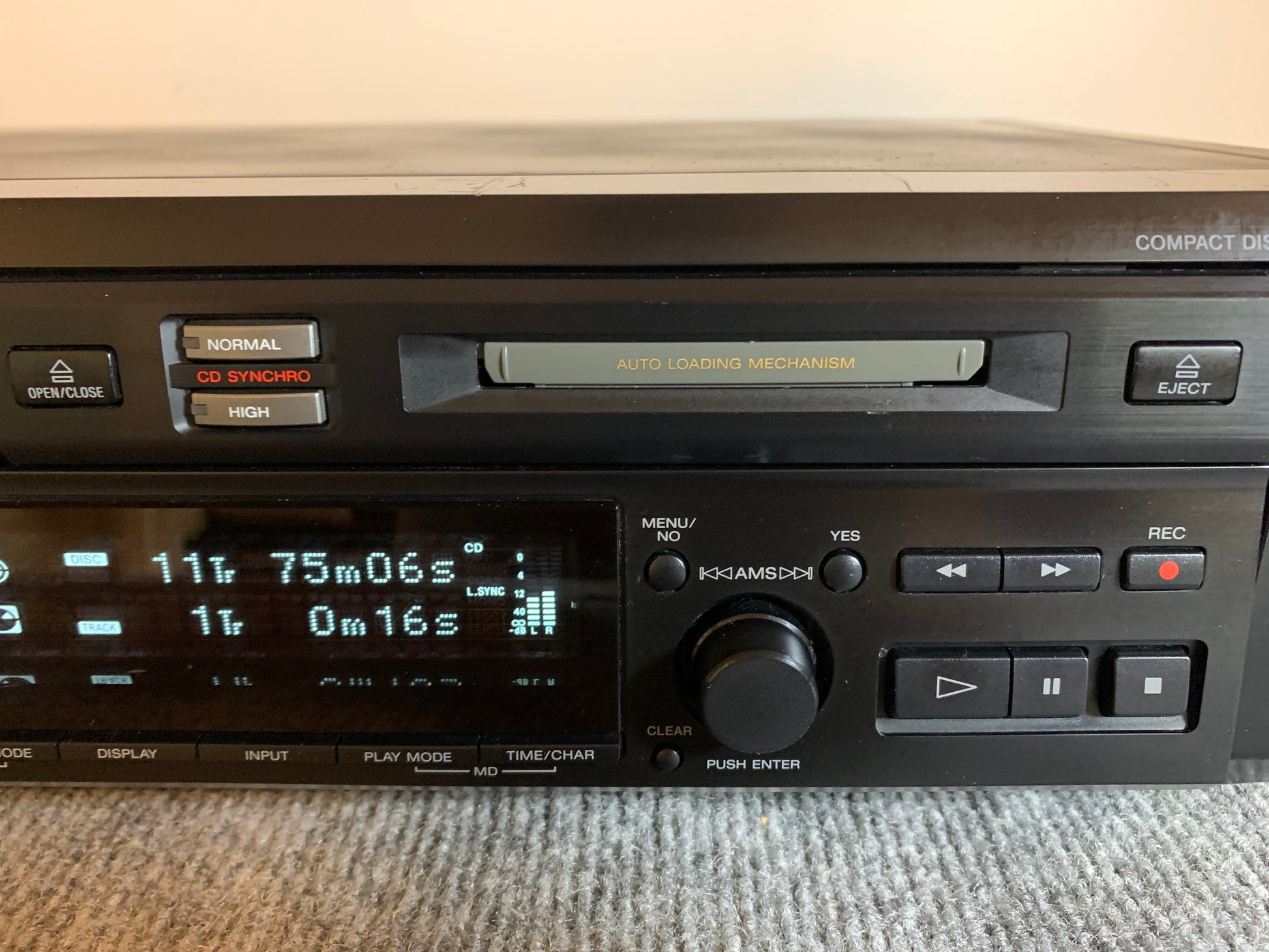

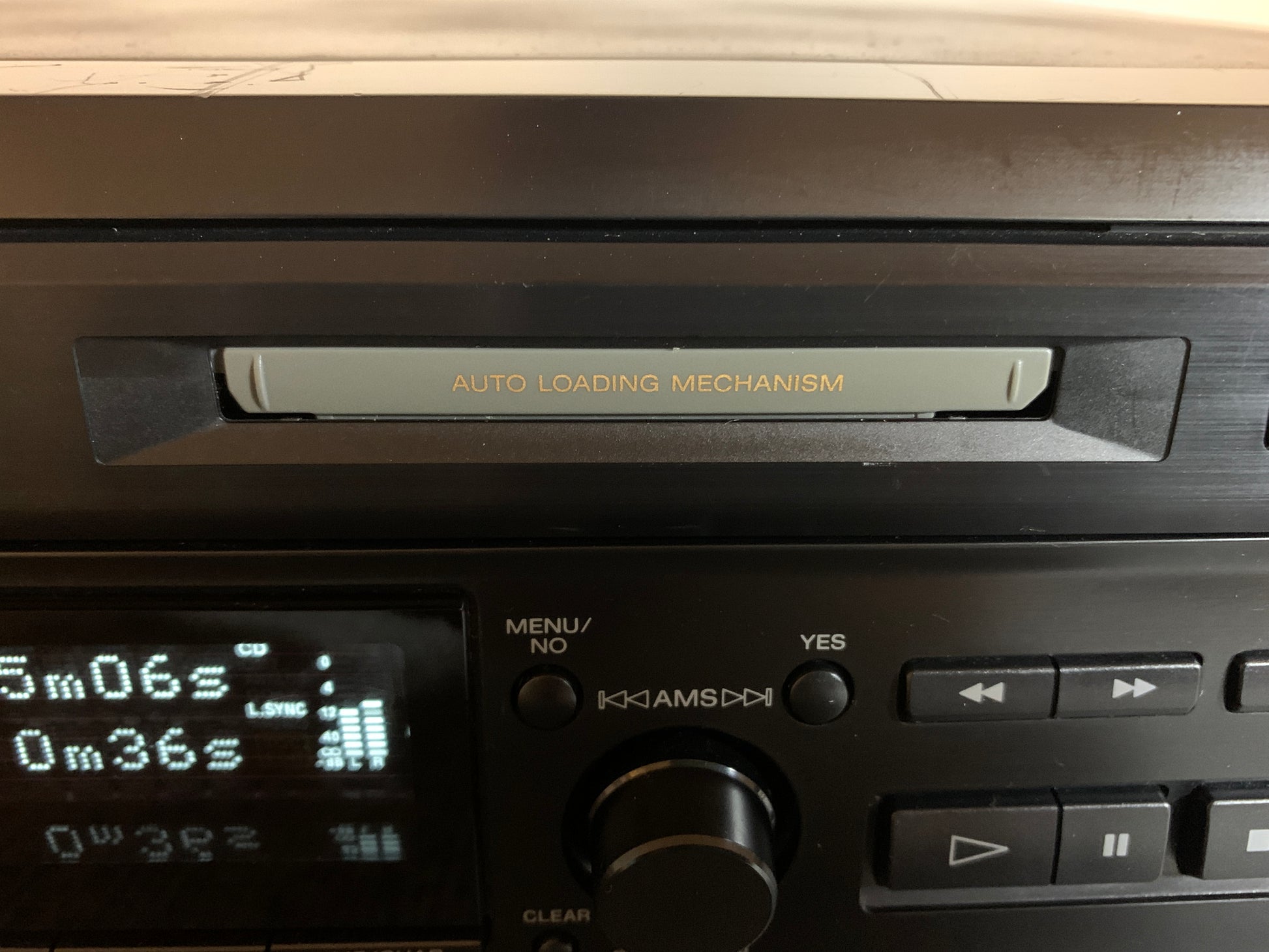

Features: ATRAC 4.5. Unit will dub CD to MD at 4X realtime, slowing down for CDs it has difficulty reading. Dual CD and MD AMS (track selector) knobs. 20-bit A/D converter. Hybrid-pulse D/A. CD-text display and recording to MD. Digital and analog record level control, 6-second time-shift recording, mono recording capability, 25-track programming, random and repeat play, remote control with direct track access, MD playback pitch control, headphone jack has volume control. Warranty: 1 year in the US, 2 years in Europe.

Notes: The Sony manual says "With the following kinds of CDs, you may experience a reading failure or noise when recorded to an MD. CD's with adhesive labels, Irregularly shaped CD's (Heart shaped, Star shaped etc..), CD's with printed text concentrated on one side only, Old CD's, Scratched CD's, Dirty CD's, Warped CD's"

User Notes: One of the things I love about the MXD-D3 is the fact that it transfers CD-Text information to the MD when recording from CD, so you don't have to sit and title it all manually. However, it appears there are some SCMS-like rules for CD-Text also, and when using most burning software I get a 'TextProtect' error, meaning that the song can be copied but the text won't get to the MD. However, I've noticed a glitch that still allows the text to be transferred. When the unit is copying a CD, it puts the CD-Text title in a 'name buffer' on the MD side. Then the unit uses the buffer to insert the new information into the TOC. When it's copying a CD-Text disc with protected text, it still copies the name to this buffer, but then doesn't send the name to the TOC. I've found that while the unit is copying, if you wait until after the unit says 'textprotect' hit the AMS knob. Select 'name?' and then 'name in?'. The data is there! just hit 'yes' and it copies the name to the TOC. I know it's slightly more 'manual' than it should be, but it still beats titling manually. -Adam Sowers

Links: Sony's Japanese press release for the unit. Sony Europe announcement. Crutchfield's page for the unit. Wired News recommends the Sony MXD-D3 CD/MD deck among the gifts Santa never thought of (under ``cut the tape'', about halfway down the page). Tim Yocum has made a handsome review of the MXD-D3. MiniDiscussion has collected user reviews for this unit. etown gives a lackluster review for this unit.

Specs: SNR: 98dB

Out of stock

There’s something undeniably magnetic about vintage audio gear. The tactile weight of milled aluminum knobs, the warm glow of dial lamps, and—above all—the rich, analog sound that today’s sterile streaming boxes can’t quite replicate. But time is merciless: capacitors dry out, switches oxidize, and those gorgeous walnut cabinets lose their sheen. That’s where the art (and science) of our vintage audio refurbishment comes in.

Why Vintage Audio Still Matters

In the golden era of hi-fi—roughly the mid-1960s through the early 1980s—companies like Marantz, McIntosh, Pioneer, Sansui, and Technics were engaged in an arms race of build quality. This was before cost-cutting plastics and disposable designs; amplifiers were over-engineered, receivers were works of art, and turntables were precision instruments.

Owning one wasn’t just about sound; it was about status and permanence. These machines were built to last a lifetime—or two. The irony? Decades later, they often do, provided they’re given the care they deserve.

The Philosophy of Refurbishment

Refurbishment is not just about fixing; it’s about preserving authenticity while ensuring reliability. The goal is to keep that lush, analog character alive without compromising safety or sound quality.

Some enthusiasts chase museum-level originality—keeping every factory component in place. Others opt for sympathetic modernization, upgrading parts that never existed in the ’70s to improve performance. Both approaches can be valid; it depends on your vision.

The Turntable Store refurbishing process.. step by step

Step 1: The Initial Encounter

When we first meet a 40-year-old amplifier, we resist the urge to plug it in right away. That dusty Marantz 2270 might look gorgeous, but old electrolytics and brittle insulation can short instantly under full voltage.

Instead:

  • We inspect for corrosion, burnt resistors, and leaking capacitors.
  • We use a Variac (variable transformer) to bring up voltage slowly, reforming capacitors rather than shocking them back to life.
  • We check fuses—not just for continuity but for correct ratings.

Tip: A faint musty smell? That’s often the scent of old phenolic boards, not trouble. But a burnt smell? That’s trouble.


Step 2: Deep Cleaning & Control Detox

Dust is the enemy of good sound, that is why we clean the interior carefully with compressed air and a soft brush.

The real magic comes with switches and potentiometers. Over decades, oxidation builds up, causing scratchy controls and dropouts. A deep contact clean in each pot and switch, followed by vigorous cycling, often restores silky-smooth operation.

Step 3: Electrical Resurrection

This is where science meets art:

  • Capacitors: Electrolytic caps often need some attention. We replace out-of-spec caps with high-quality modern equivalents (Nichicon, Panasonic), avoiding over-capacitance unless the power supply can handle it.
  • Resistors: Carbon comp resistors drift over decades. Measure and replace out-of-spec parts.
  • Transistors: Certain vintage transistors (e.g., 2SC458) are notorious for noise. We do swap defective ones for modern low-noise equivalents.
  • Relays & Lamps: Speaker relays oxidize; replace or clean contacts. Dial lamps? Upgrade to warm LEDs for a factory glow without the heat.


Step 4: Cosmetic Glory

Refinishing the walnut cabinet can transform a unit. We do use real wood oil or Danish oil, not polyurethane. We clean the glass dial carefully; those silkscreened letters are fragile.

Knobs? We polish with metal cleaner, but never use abrasives on anodized aluminum.

Faceplate lettering? We avoid harsh chemicals—just mild soap and a microfiber cloth.


Step 5: Calibration & Sonic Check

After the repair and cleaning, it’s time to dial in the performance:

  • We do adjust bias and DC offset on amplifiers for stable operation.
  • On turntables, we re-lube bearings, replace belts, and check speed accuracy.
  • On Cassette Decks and Reel to Reels, we replace belts ( if needed ), we clean and demagnetize the heads before the alignment process ( a must ! )

When done right, the result is astonishing: a sound that breathes—liquid mids, velvet highs, and bass with a tactile presence that modern gear rarely matches.


Our promise for Audiophile-Level Results

  • We Avoid Cheap Parts: That $5 eBay capacitor kit? Hard pass. We use reputable brands.
  • We Don’t Over-Polish: Patina is part of the charm. We aim for “well-loved,” not “plastic surgery.”
  • We Upgrade Discreetly: If we must modernize (like adding gold-plated RCA jacks), we keep it tasteful and reversible.


Why It’s Worth It

The payoff isn’t just sonic—it’s emotional. Restoring a 1970s Marantz or Sansui is like bringing a classic car back to life. Every glowing dial lamp, every smooth rotation of a volume knob, connects you to an era when music mattered enough to build machines like this.

And when you drop the needle on your favorite record and hear that warm, enveloping sound, you’ll know: this wasn’t just a repair. It was a resurrection.
