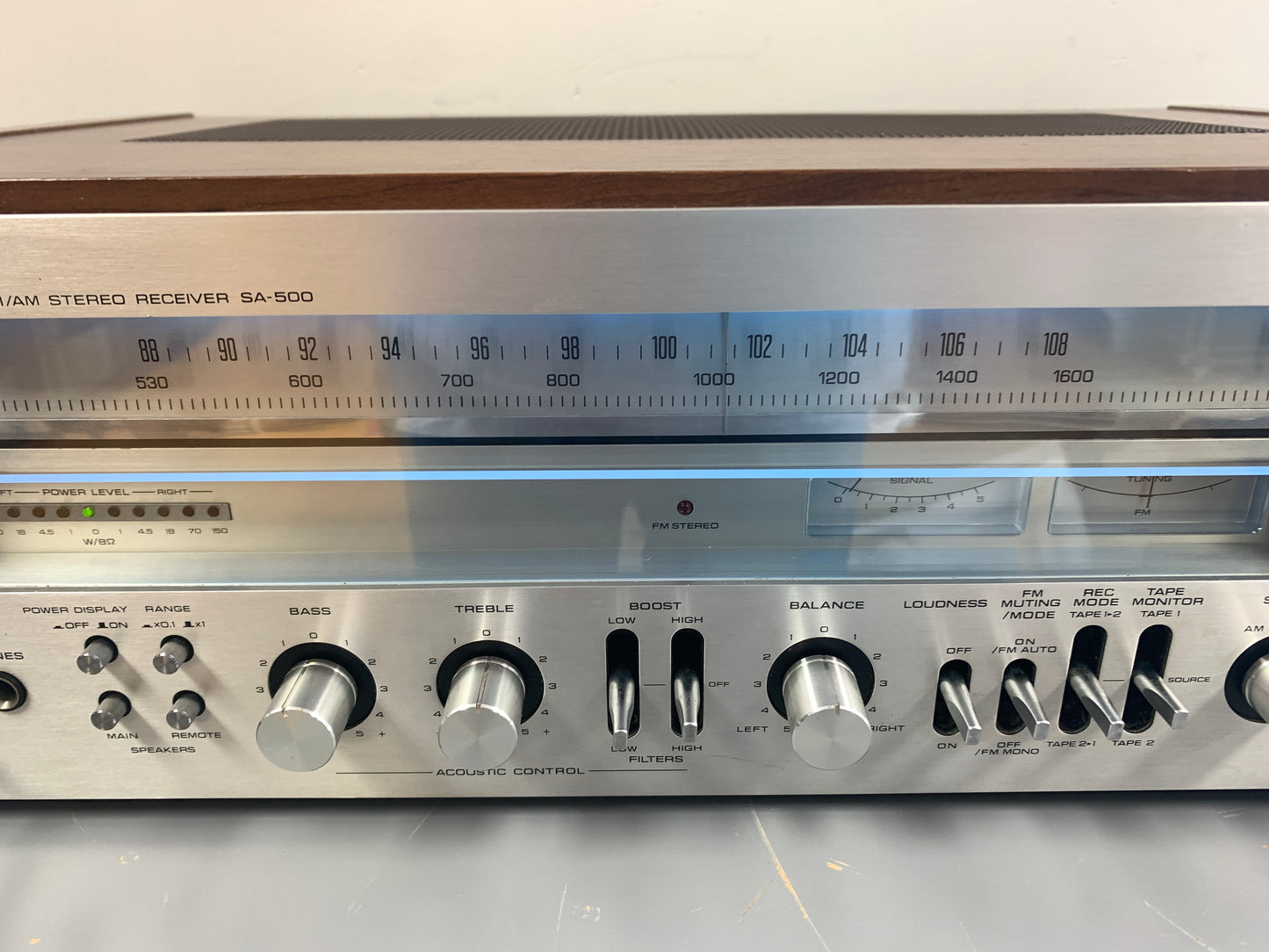

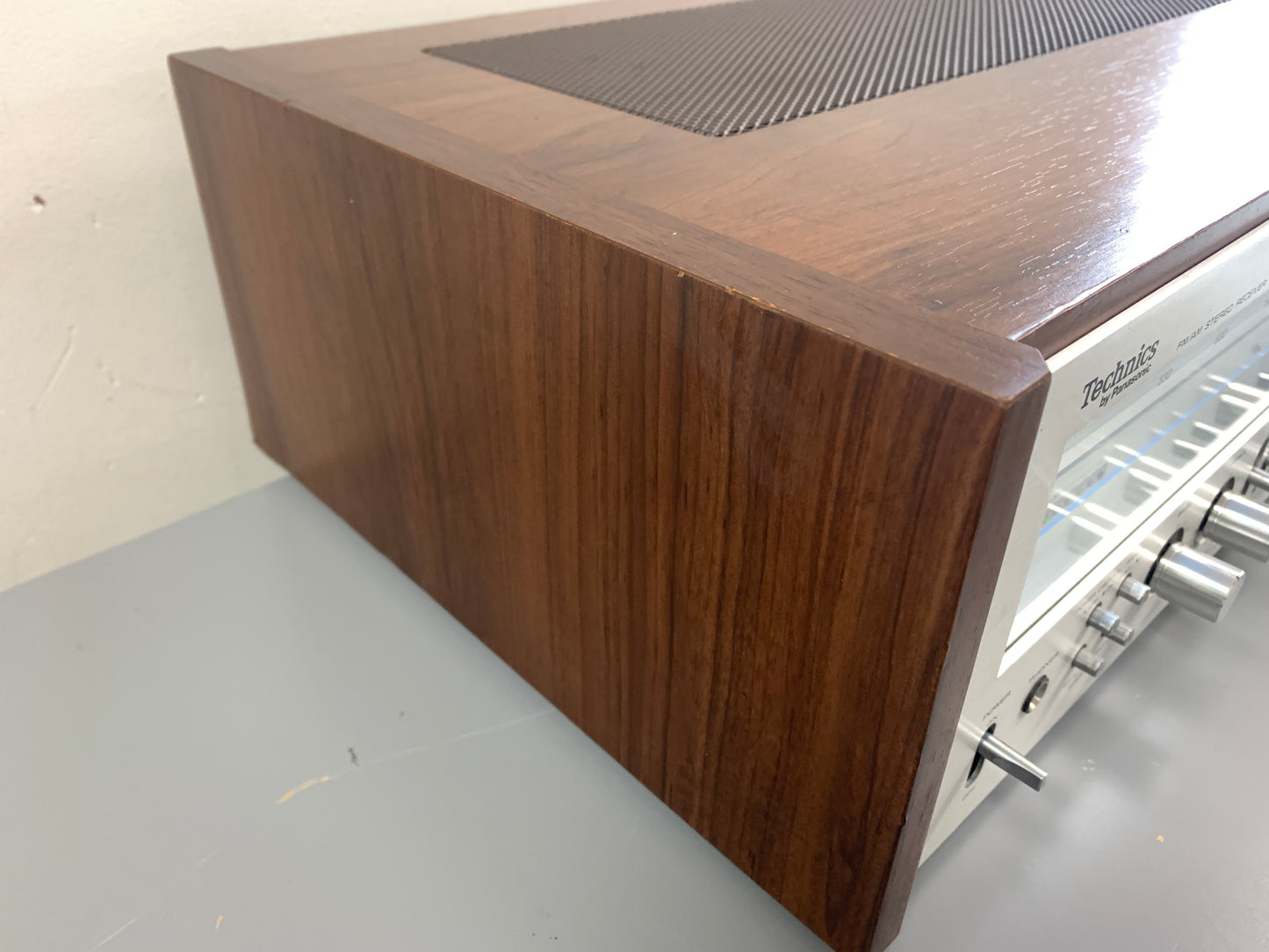

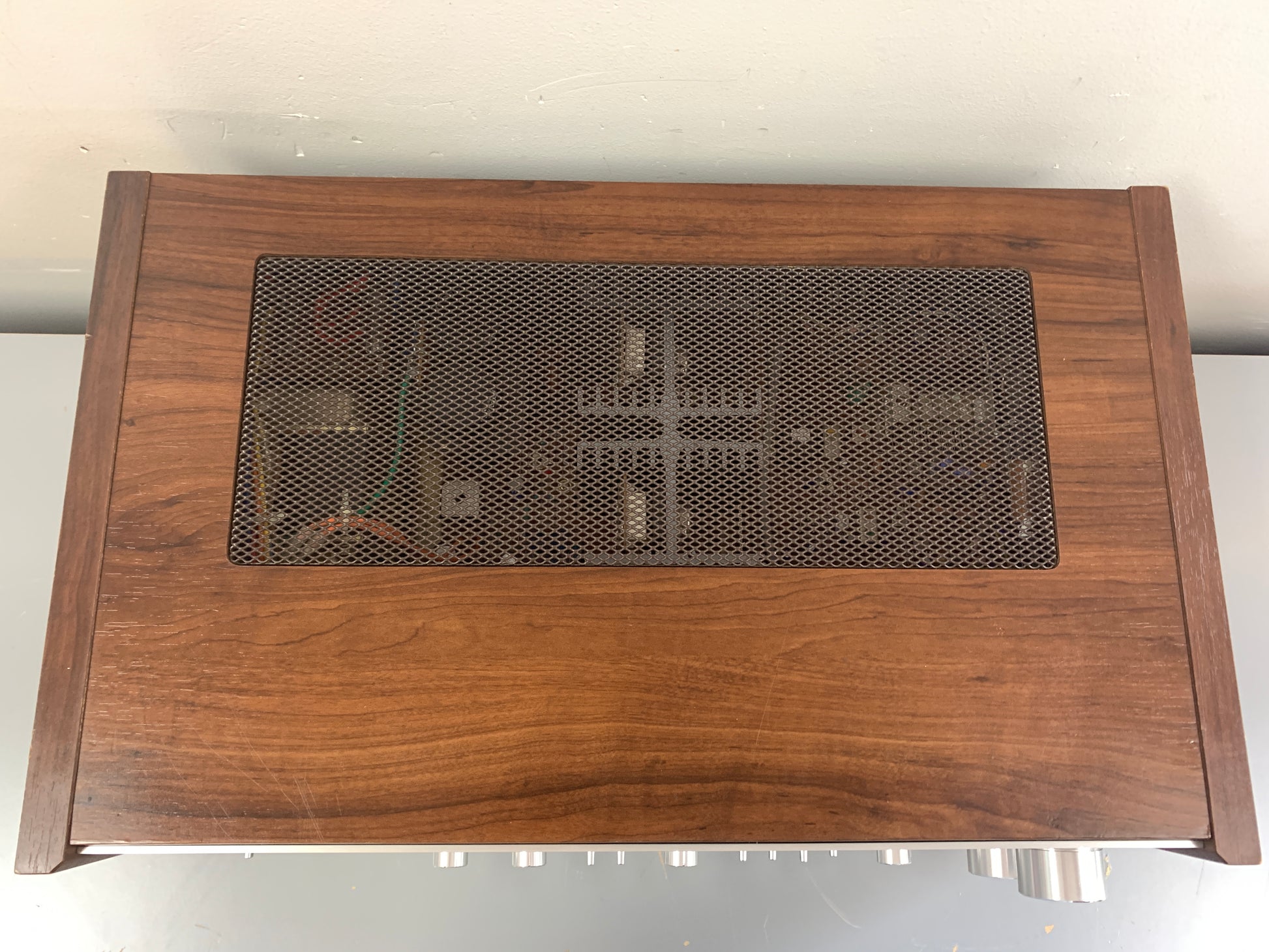

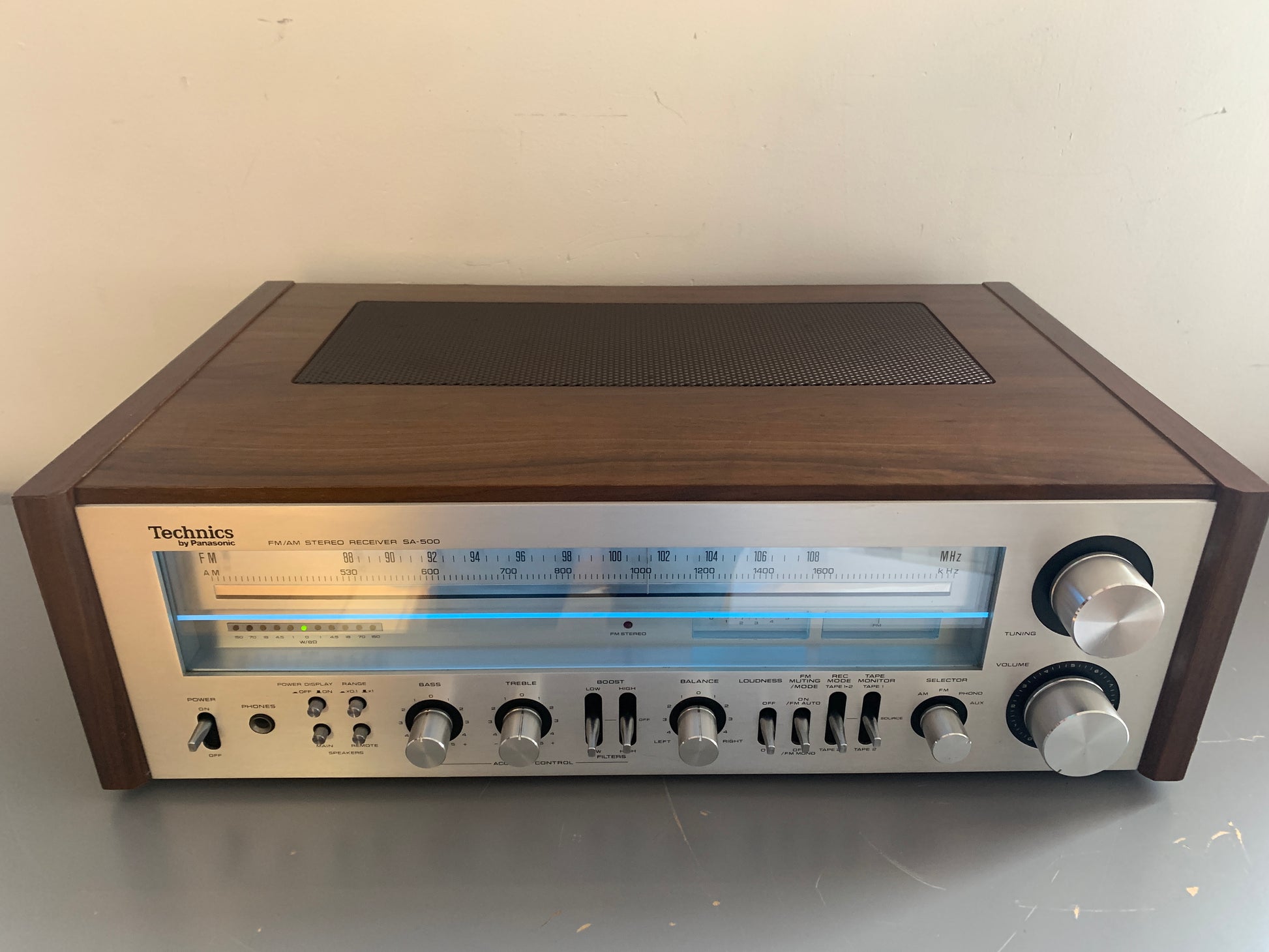

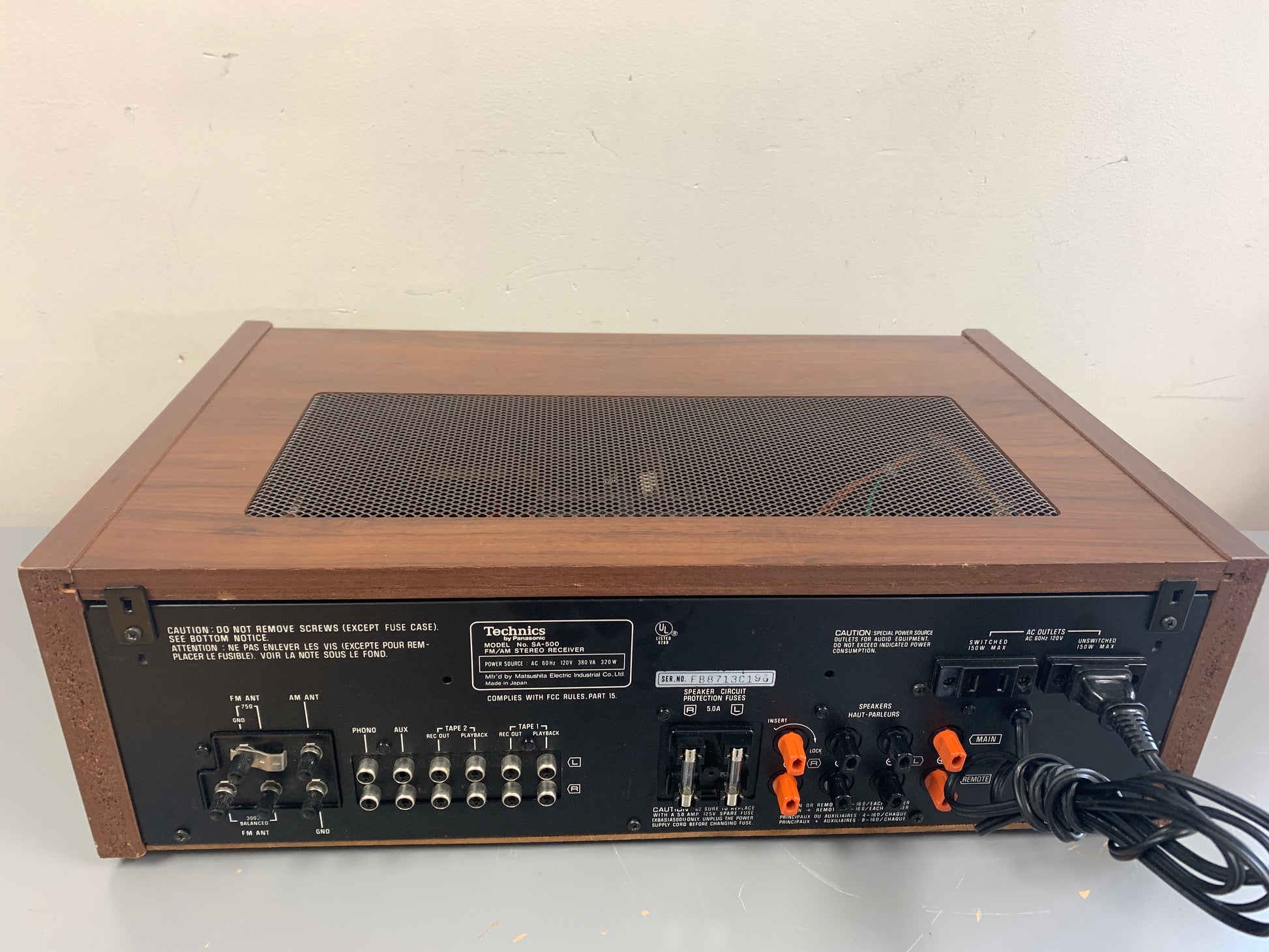

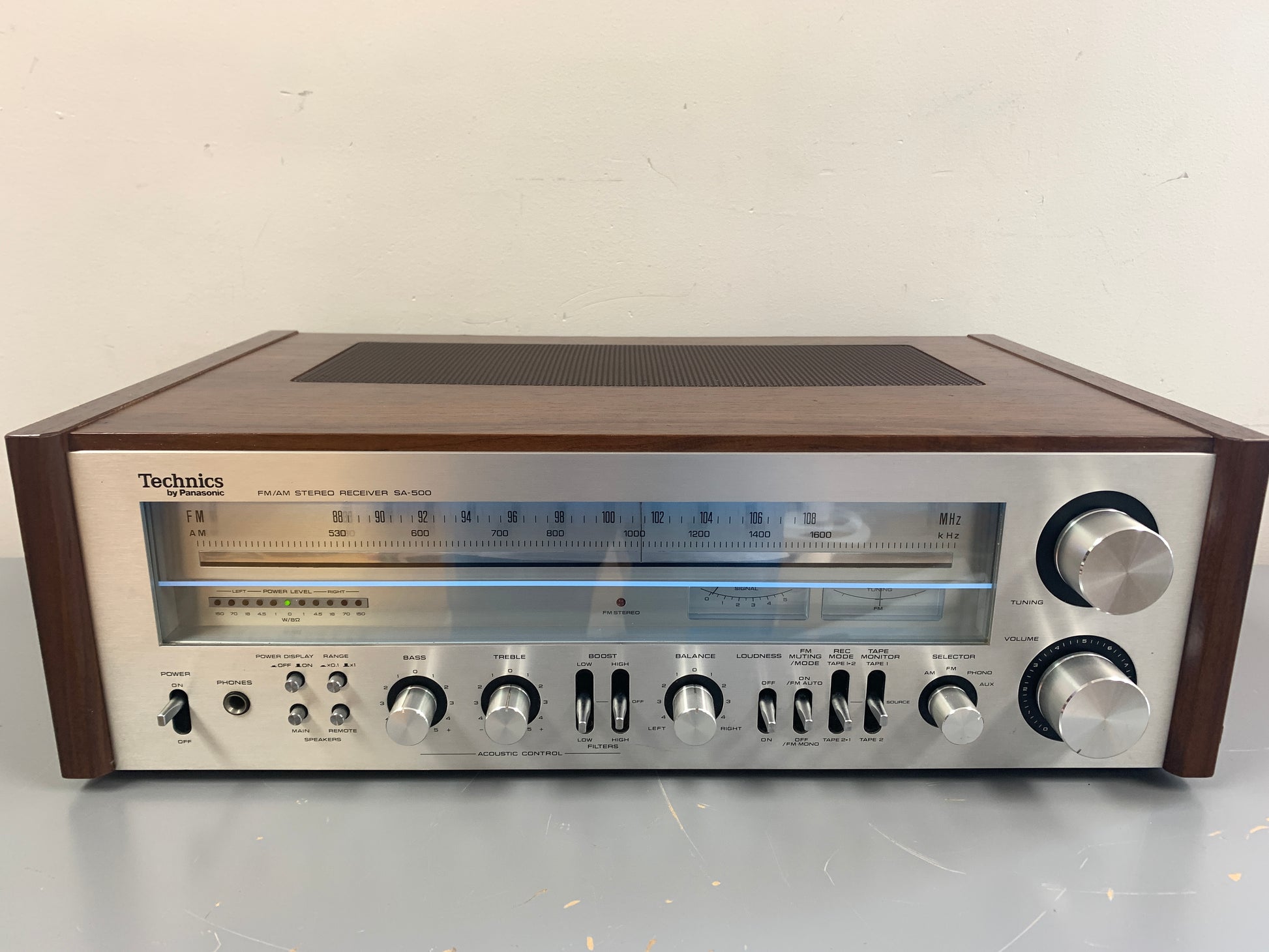

Technics SA-500

AM/FM Stereo Receiver (1978-79)

Specifications

Tuning range: FM, MW

Power output: 55 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 40kHz

Total harmonic distortion: 0.04%

Damping factor: 32

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 78dB (MM), 95dB (line)

Output: 150mV (line)

Speaker load impedance: 4Ω to 16Ω

Dimensions: 486 x 157 x 329mm

Weight: 11.4kg
