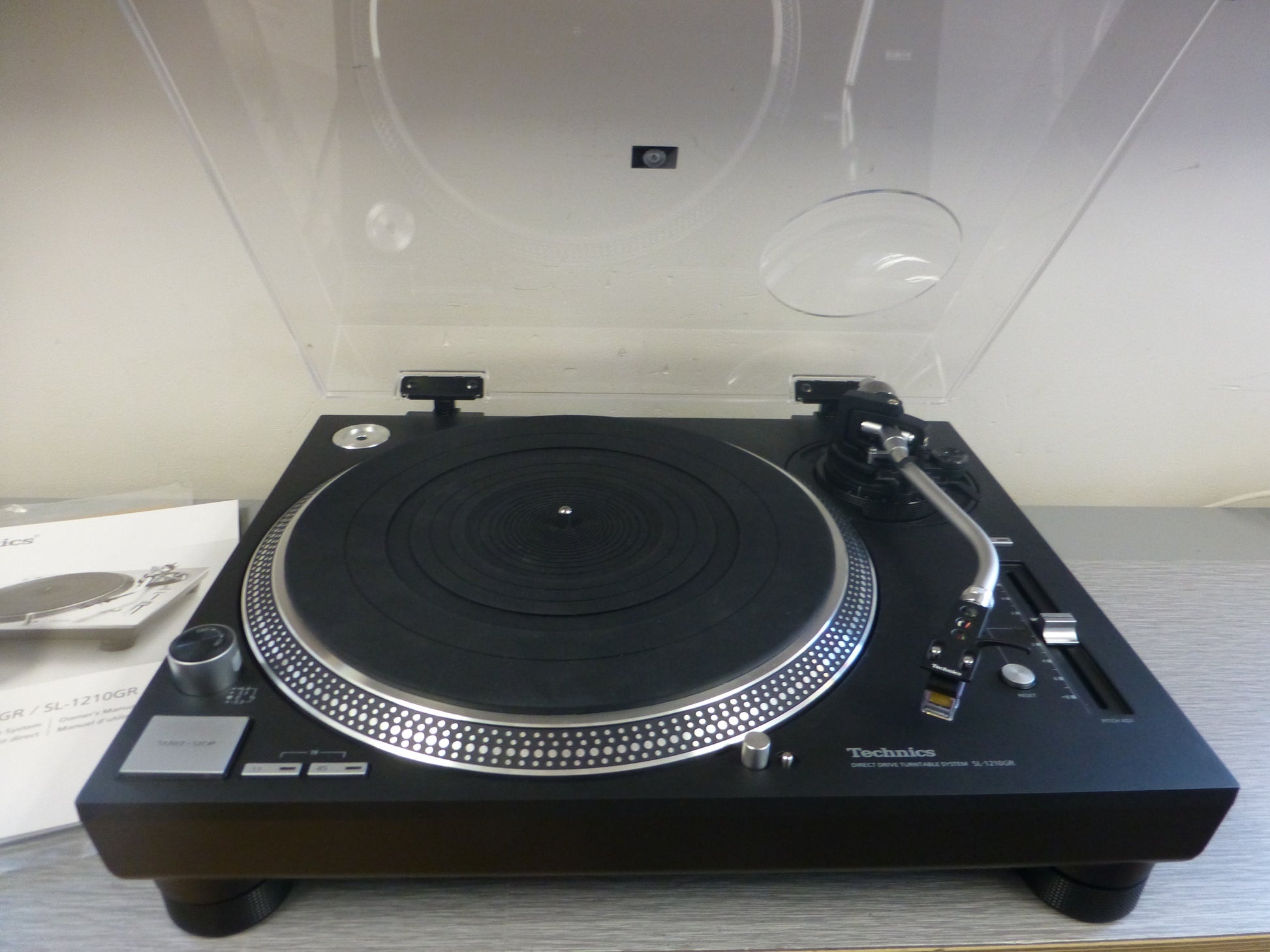

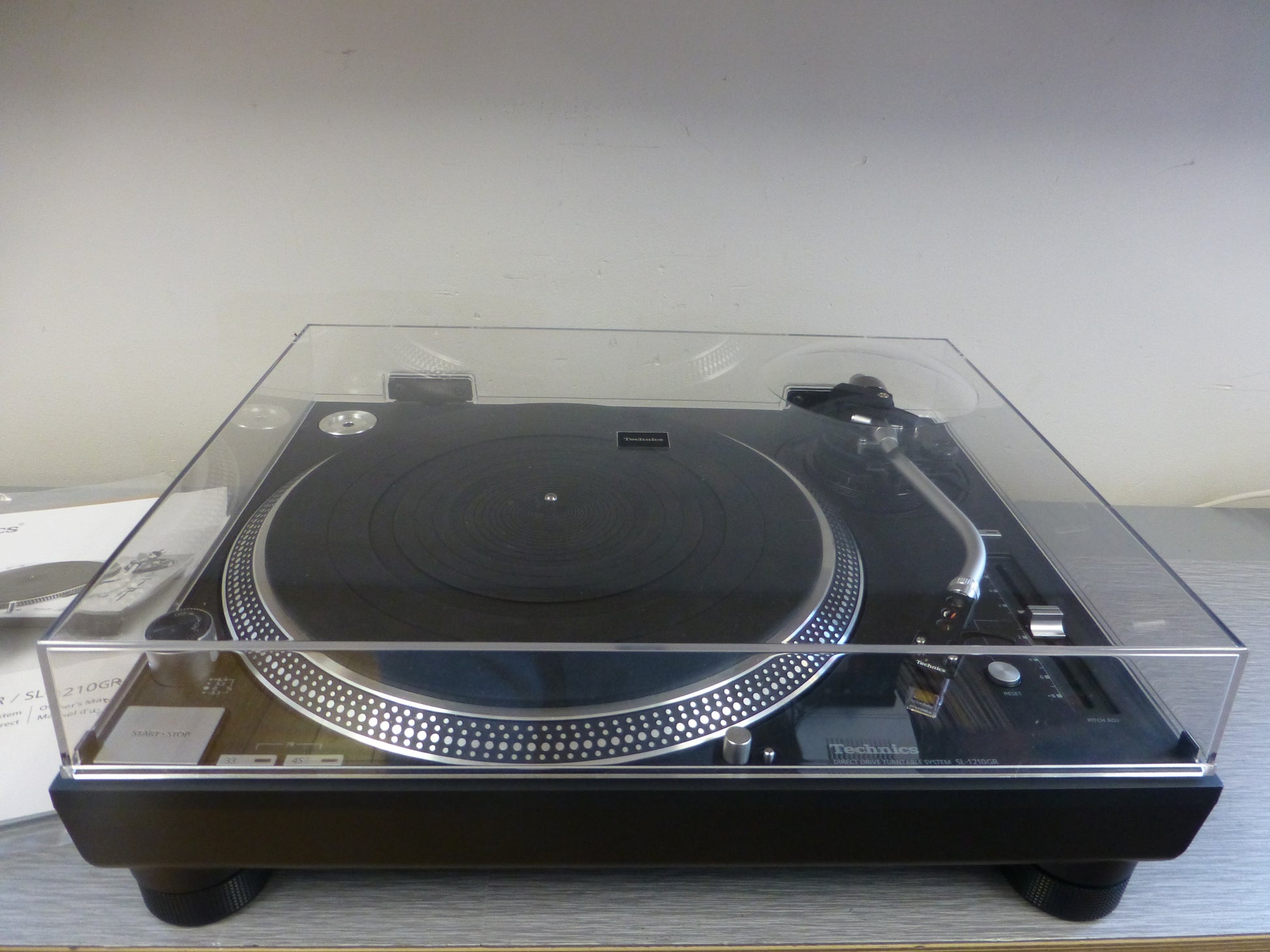

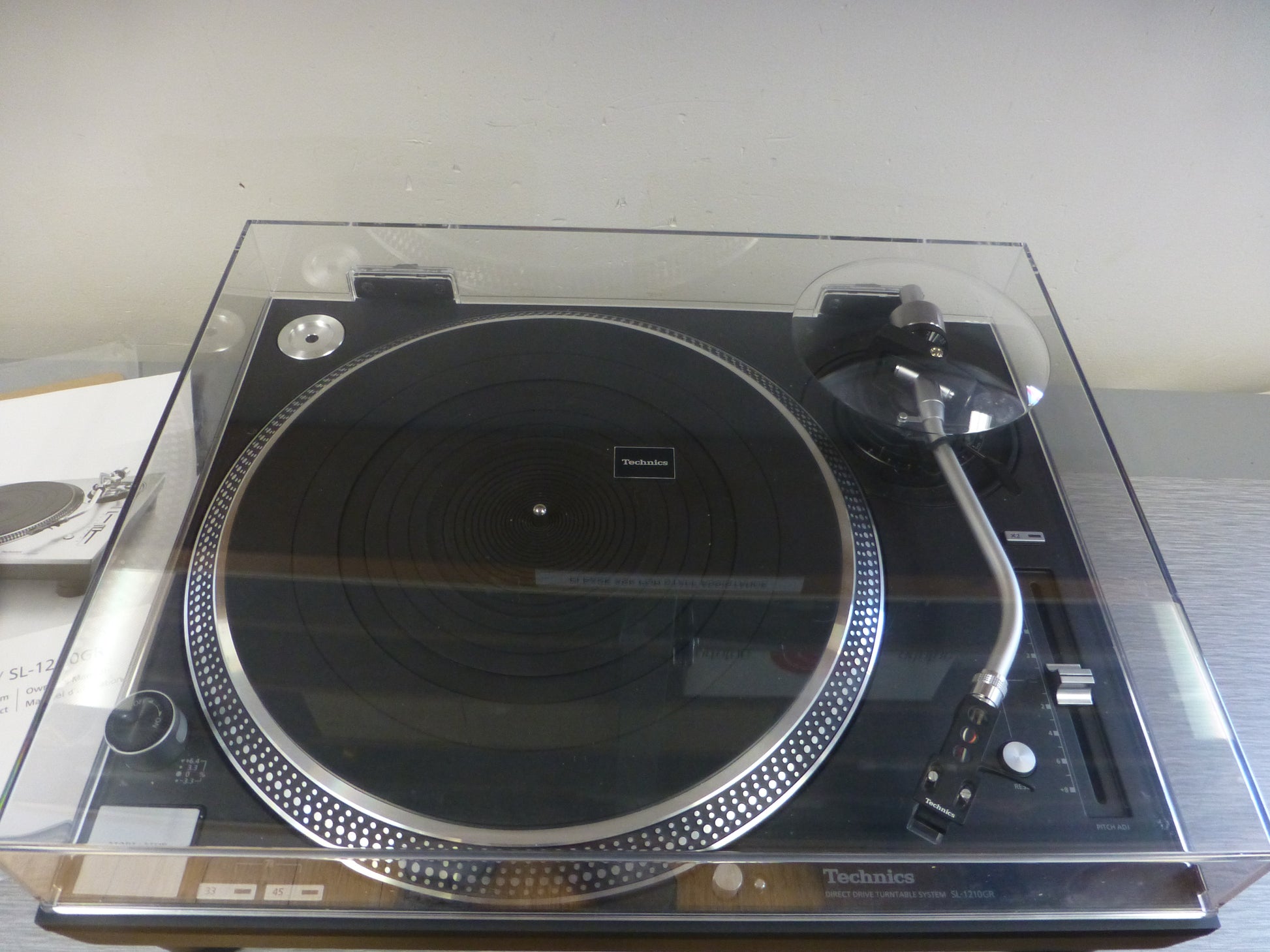

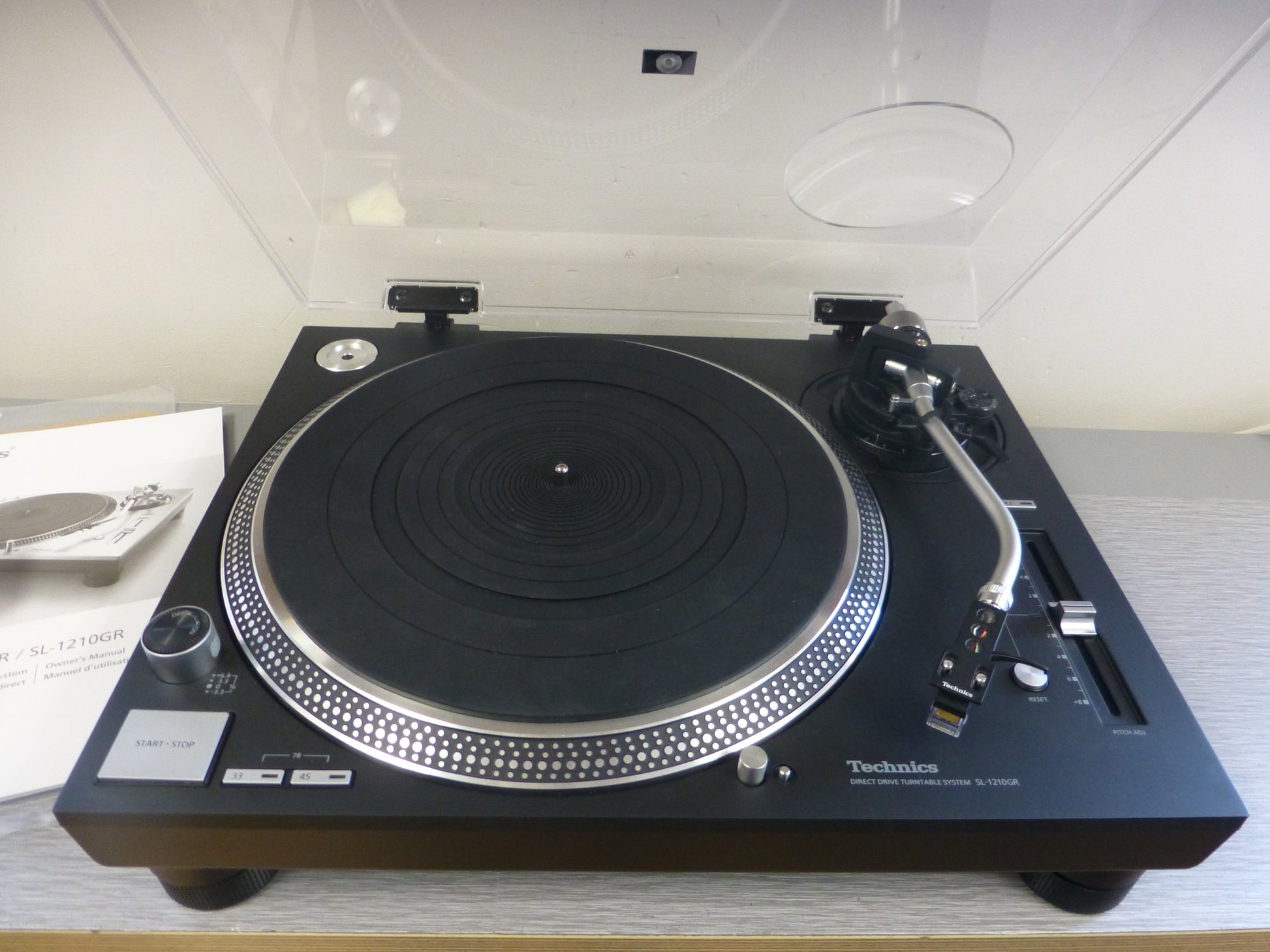

Fusing Technics’ traditional analog and digital technologies, the SL-1210GR is the new standard in direct drive turntable systems. With a newly developed coreless direct-drive motor and precise motor control technology that eliminates cogging from rotation irregularity, plus a low-vibration, high-rigidity platter and high-sensitivity tonearm, the SL-1210GR outperforms the usual standards of its class, for rich, robust sounds and true high-fidelity listening.
Newly developed coreless direct-drive motor with no iron core eliminates cogging
Advanced motor control technology for high starting torque and high-speed stability.
Two-layer turntable platter construction with deadening rubber to eliminate unnecessary resonance
The balance of the turntable is adjusted at the factory using specialized high-precision equipment

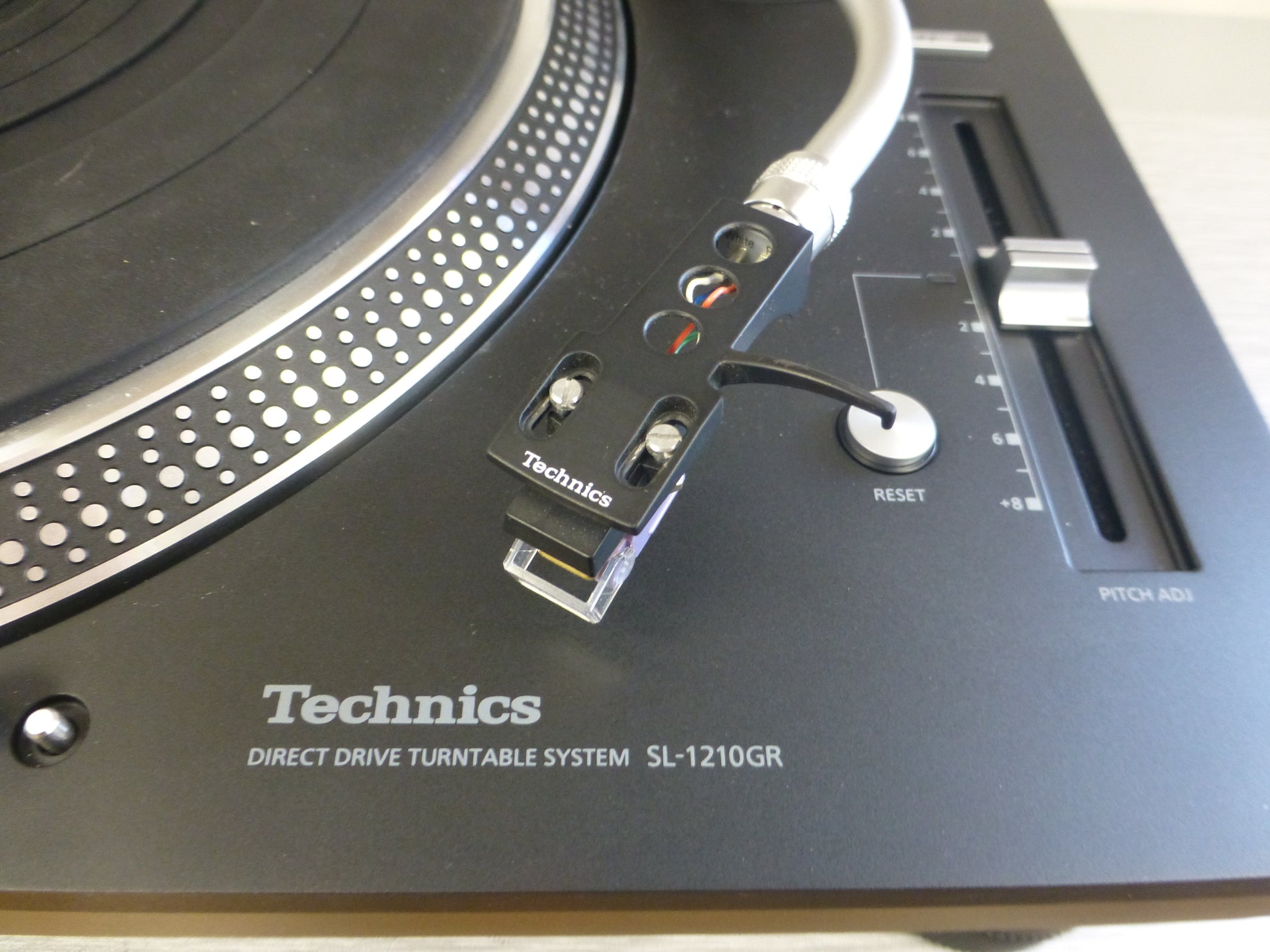

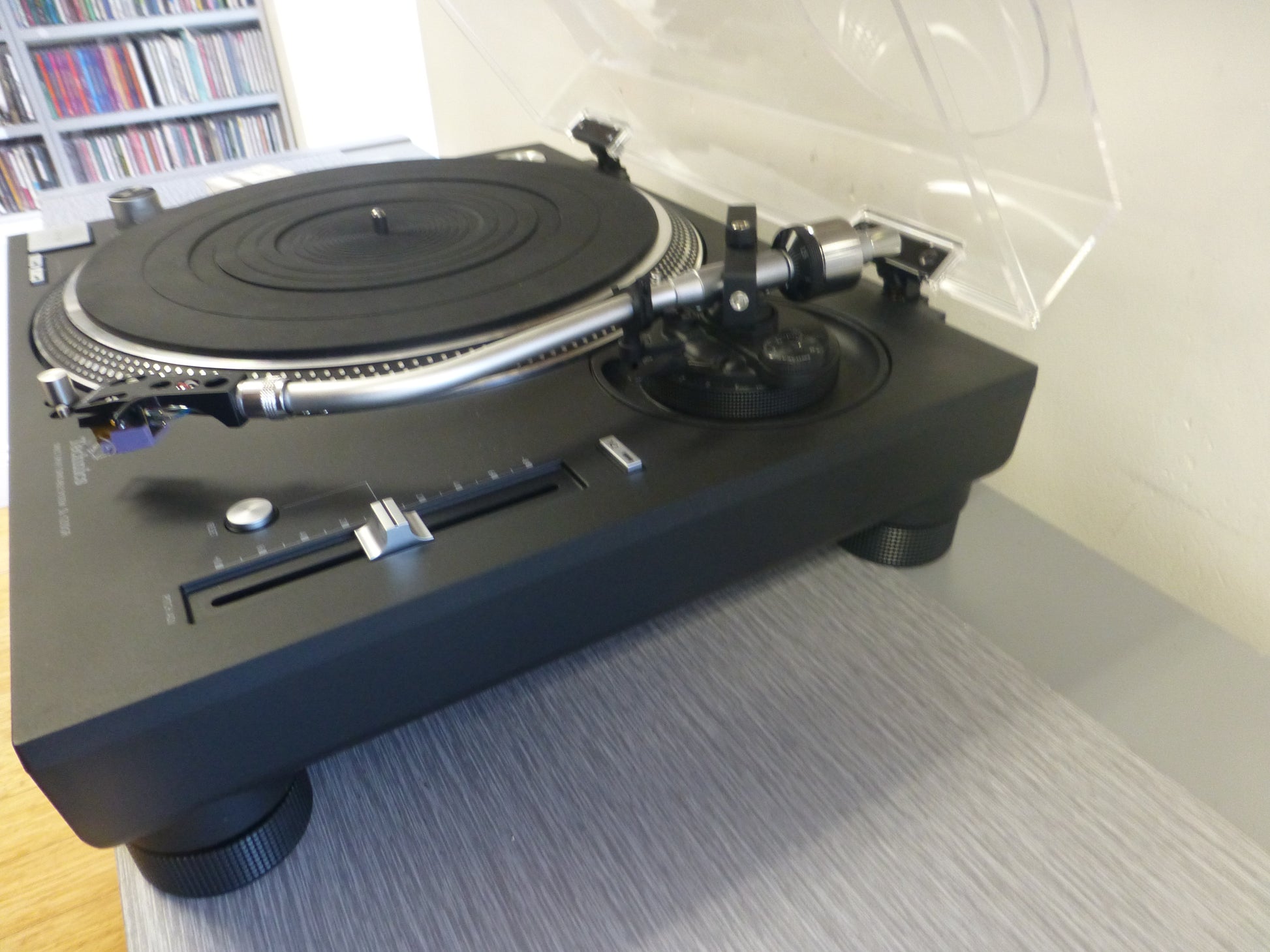

High-sensitivity tonearm with lightweight aluminum for a high-damping effect
General

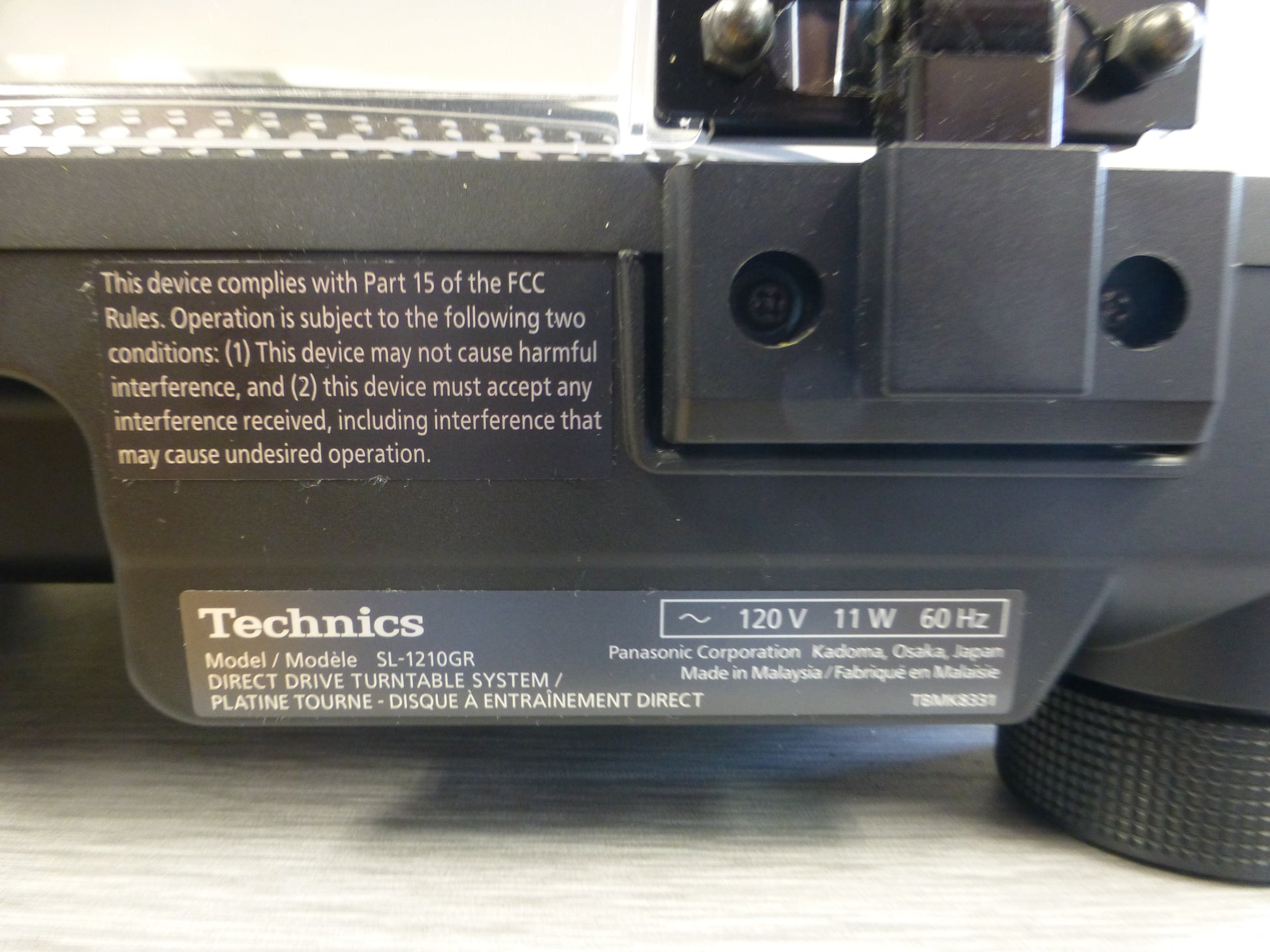

Power Supply
AC 120 V, 60 Hz
Power Consumption
11 W, Approx. 0.2 W (Standby)
Dimensions (W x H x D)
453 x 173 x 372 mm (17-27/32 × 6-13/16 × 14-21/32 inch)
Weight
Approx. 11.5 kg (Approx. 25.35lbs)
Accessories

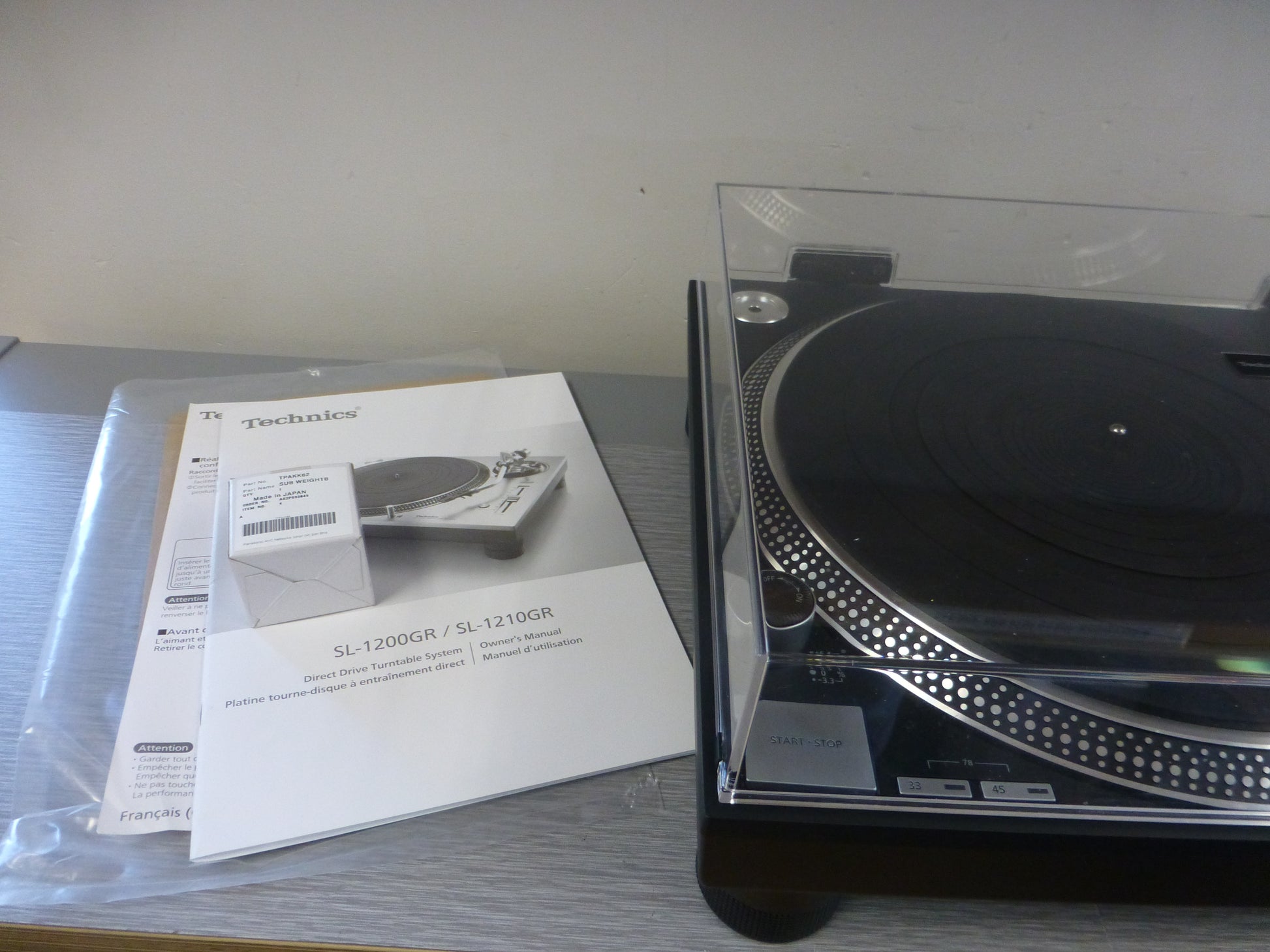

Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Auxiliary weight, Head shell, Overhang gauge, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual

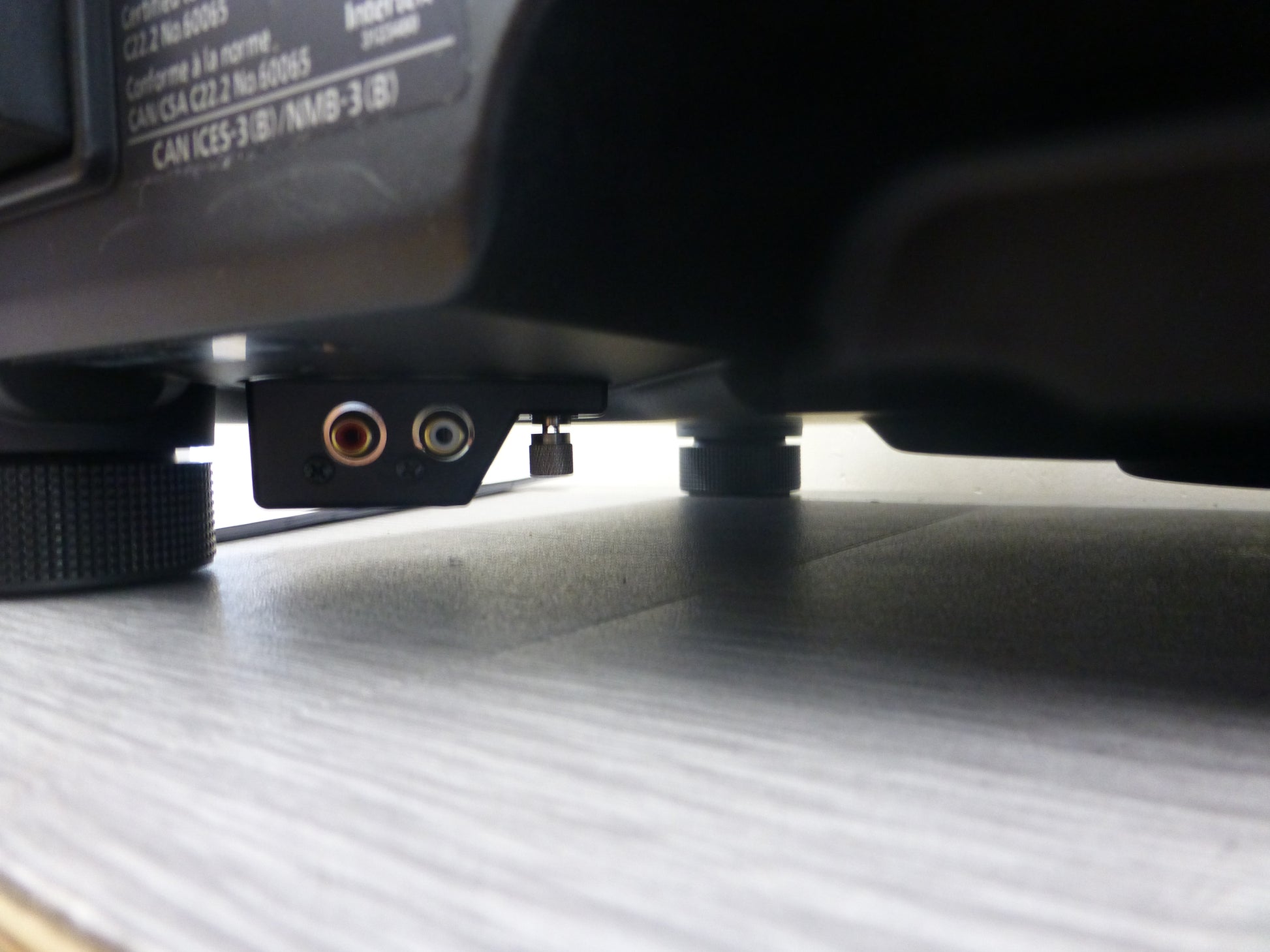

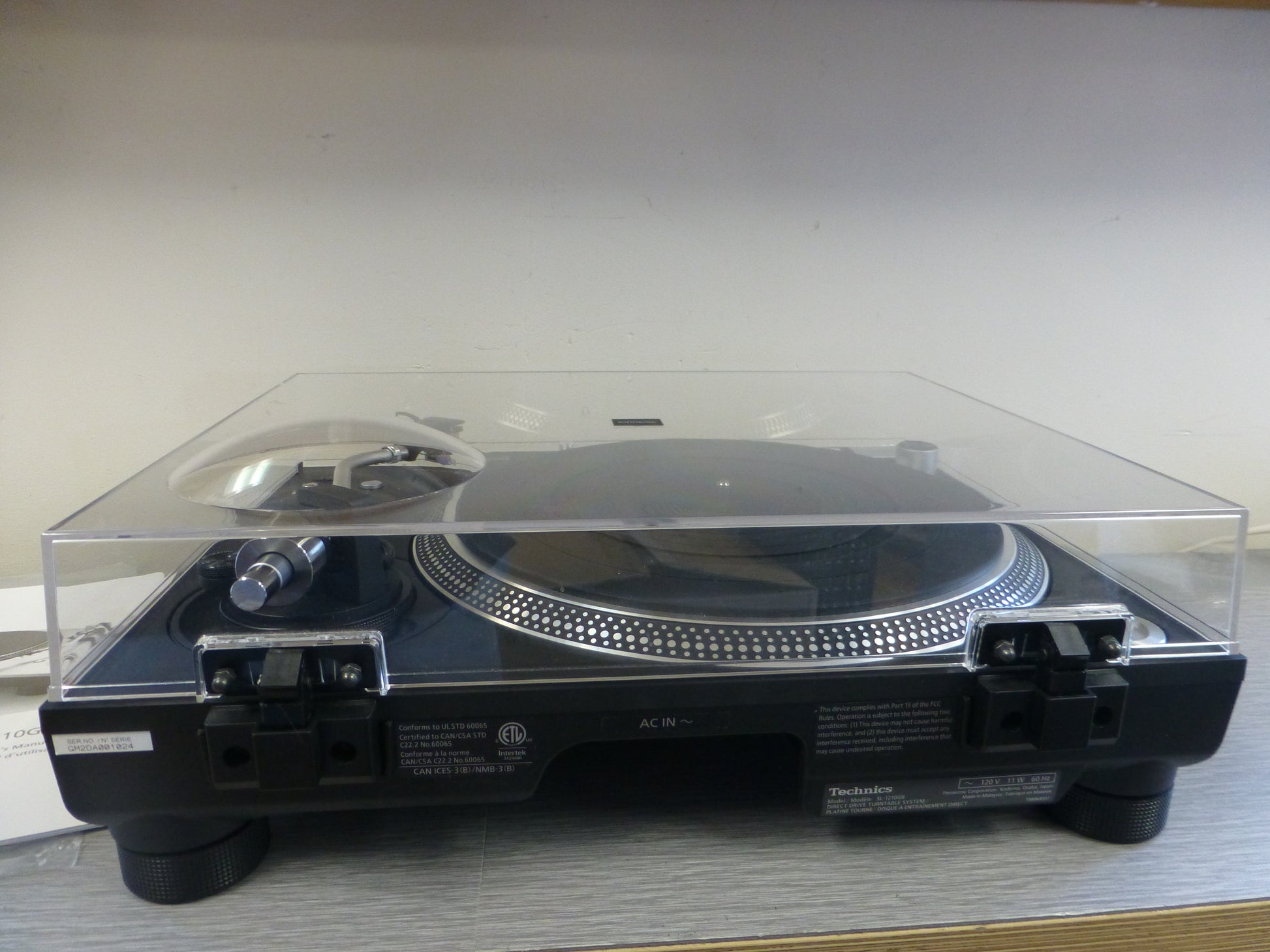

Terminals
Audio Output
PHONO (Pin Jack) x 1, EARTH TERMINAL x 1

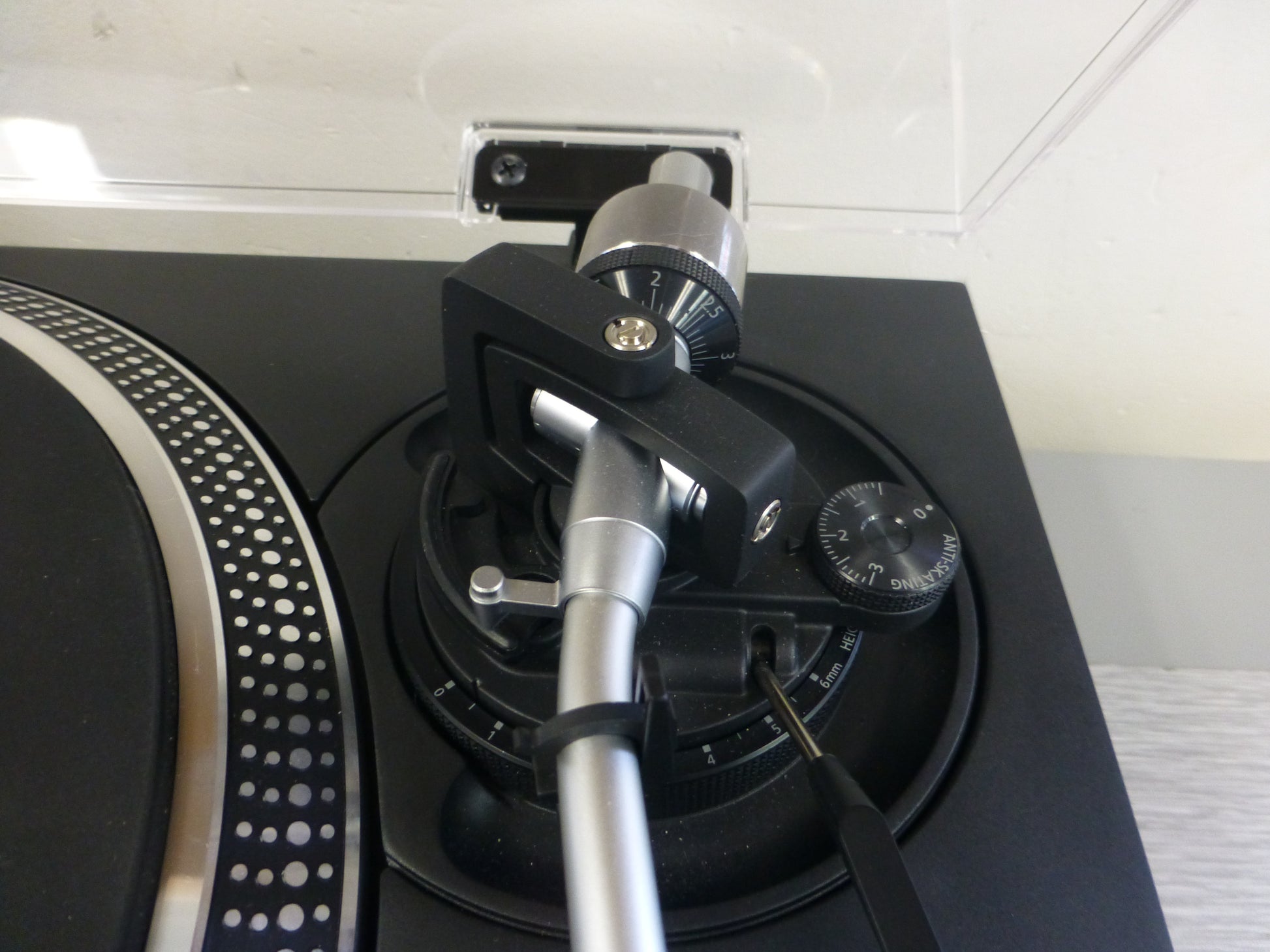

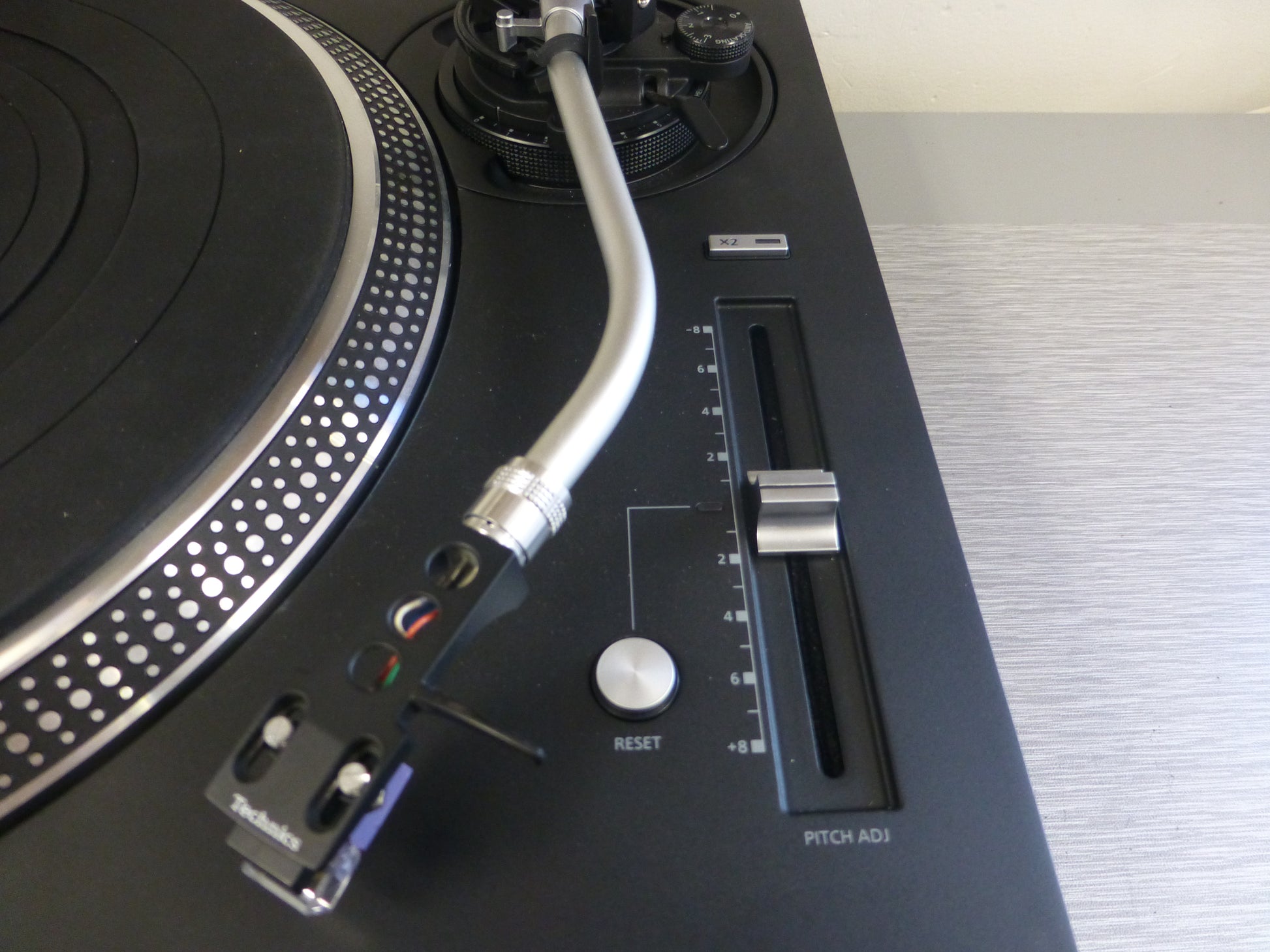

Tonearm Section
Type
Universal Static Balance
Effective Length
230 mm (9-1/16")
Overhang
15 mm (19/32")
Tracking Error Angle
Within 2° 32' (at the outer groove of 30 cm record), Within 0° 32' (at the inner groove of 30 cm record)
Offset Angle
22°
Arm-height Adjustment Range
0 - 6 mm
Stylus Pressure Adjustment Range
0 - 4 g (Direct Reading)
Head Shell Weight
Approx. 7.6 g
Applicable Cartridge Weight Range
(without auxiliary weight) 5.6 - 12.0 g 14.3 - 20.7 g (including head shell) (with auxiliary weight) 10.0 - 16.4 g 18.7 - 25.1 g (including head shell)
Cartridge Mounting Dimension
JIS 12.7 mm (1/2") interval
Head Shell Terminal Lug
1.2 mmφ 4-pin terminal lug
Turntable Section
Type
Direct Drive Manual Turntable
Turntable Speeds
33-1/3, 45 and 78 r/min
Adjust Range
±8 %, ±16 %
Starting Torque
2.2 kg-cm
Build-up Characteristics
0.7 s. from Standstill to 33-1/3 r/min
Wow And Flutter
0.025 % W.R.M.S.
Rumble
78 dB (IEC 98A weighted)
Turntable Platter
Aluminium diecast - Diameter : 332 mm, Weight : Approx. 2.5 kg (5.51 lb) (Including rubber sheet)
